MG-50A/MG-100A (Upgraded Version) Broadcast Pure Power Amplifier

Analog PA

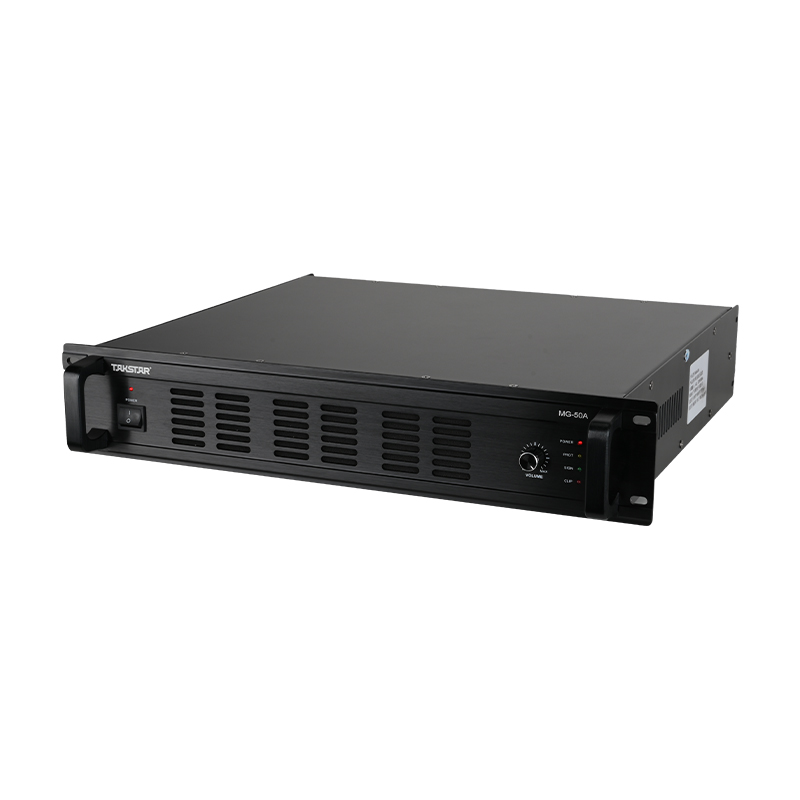

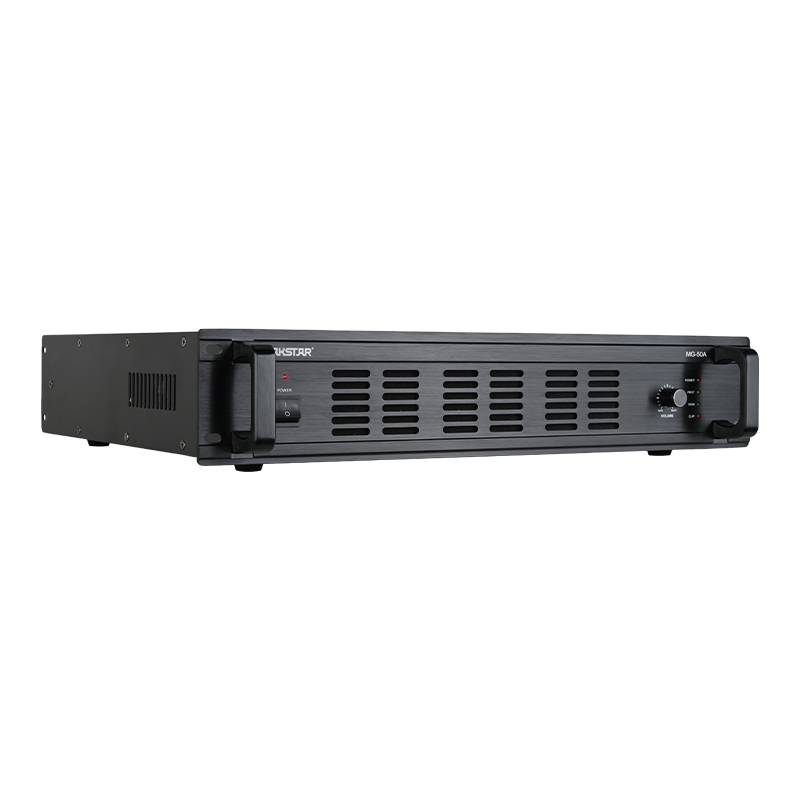

• Standard chassis design, with 2U brushed aluminum alloy front panel.

• User-friendly pull handles for both aesthetics and practicality.

• 70-100V constant voltage output and 4-16Ω constant impedance output.

• 4-segment LED level meter, allowing operating status to be clear at a glance.

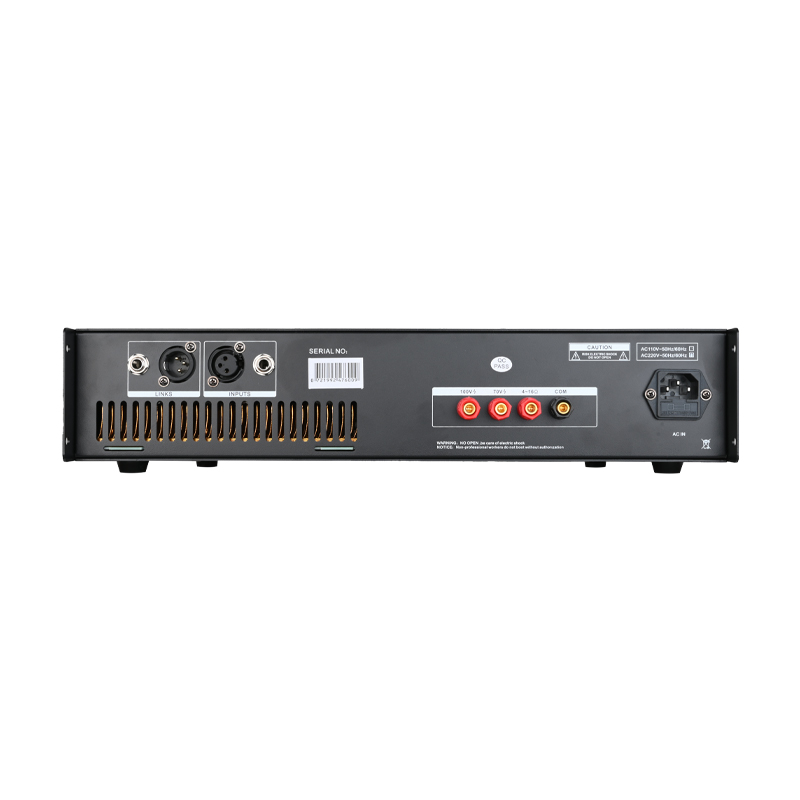

• 6.35mm jack and XLR connector for convenient loop-through connection.

• Output short circuit, over-current, and overload protection as well as overheating alarm, saturation alarm, and distortion alarm.

• Equipped with compression and limiting function to ensure no distortion.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial







• Suitable for public address applications in hotels, shopping malls, campuses

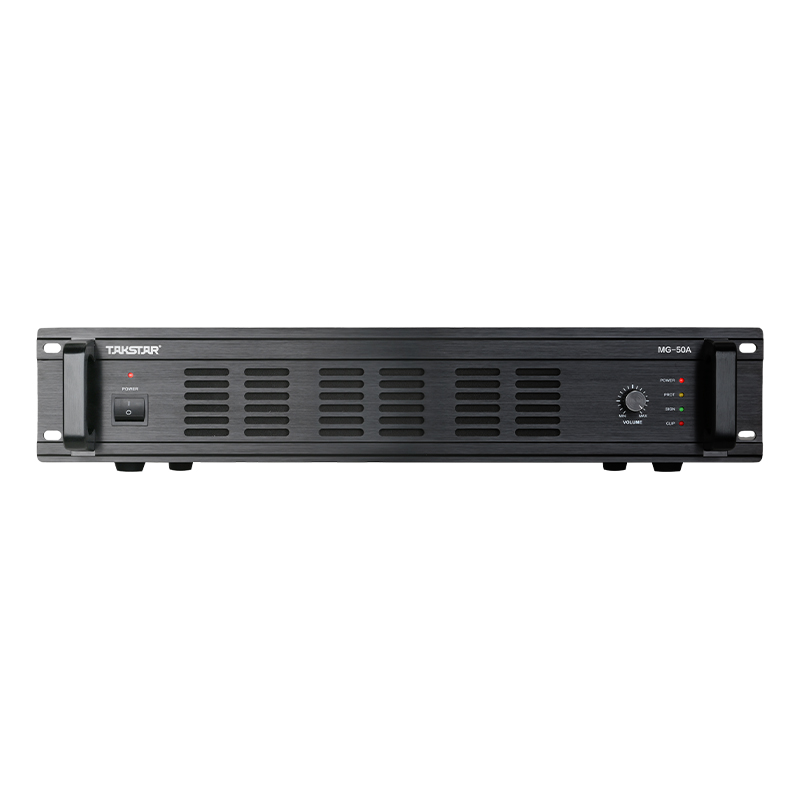

• Model: MG-50A
• Rated Power: 500W
• Frequency Response: 20Hz-20kHz
• Sensitivity: 230mV
• Signal-to-Noise Ratio: >80dB
• Harmonic Distortion: <0.3%
• Power Supply: AC220V/50Hz
• Fuse: 10A
• Net Weight (KG) : 17.76KG
• Gross Weight (KG) : 18.24KG
• Dimensions: 482*445*90mm

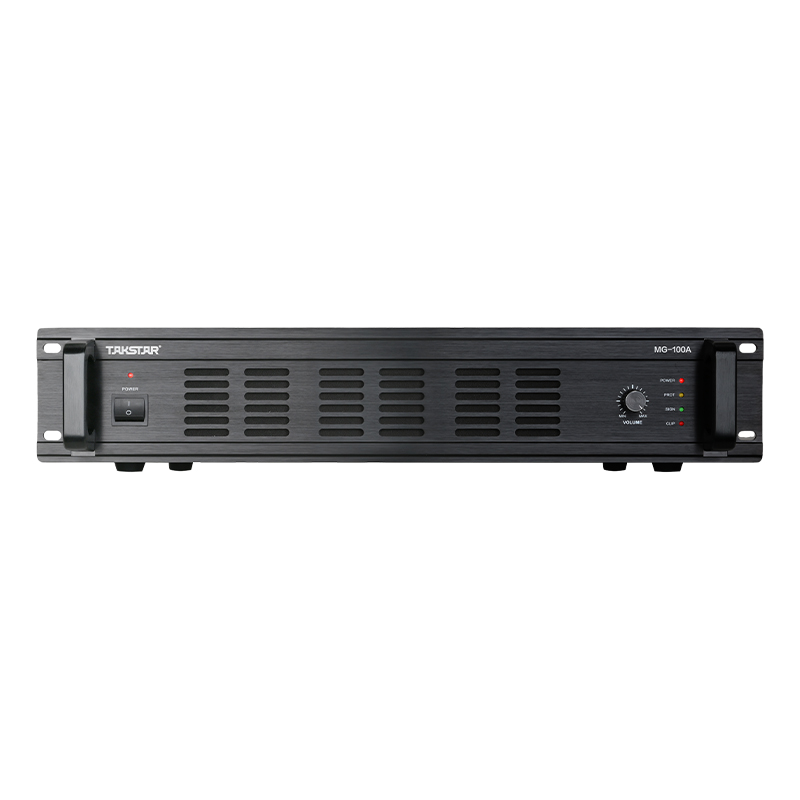

• Model: MG-100A
• Rated Power: 1000W
• Frequency Response: 20Hz-20kHz
• Sensitivity: 230mV
• Signal-to-Noise Ratio: >80dB
• Harmonic Distortion: <0.3 %
• Power Supply: AC220V/50Hz
• Fuse: 10A
• Net Weight (KG) : 21.5K G
• Gross Weight (KG) : 22.78K G
• Dimensions: 482*445*90mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
