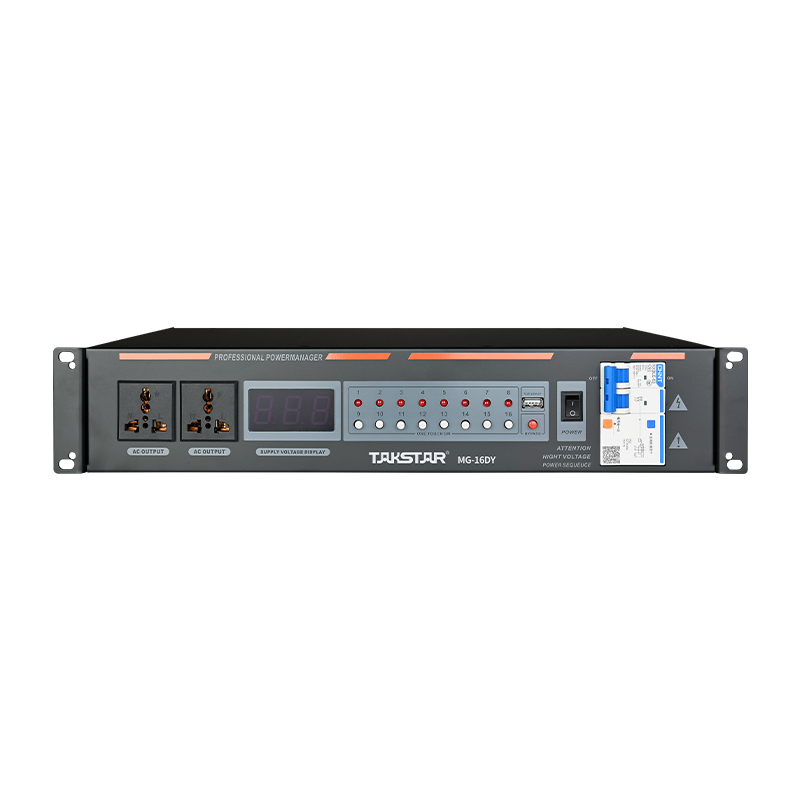

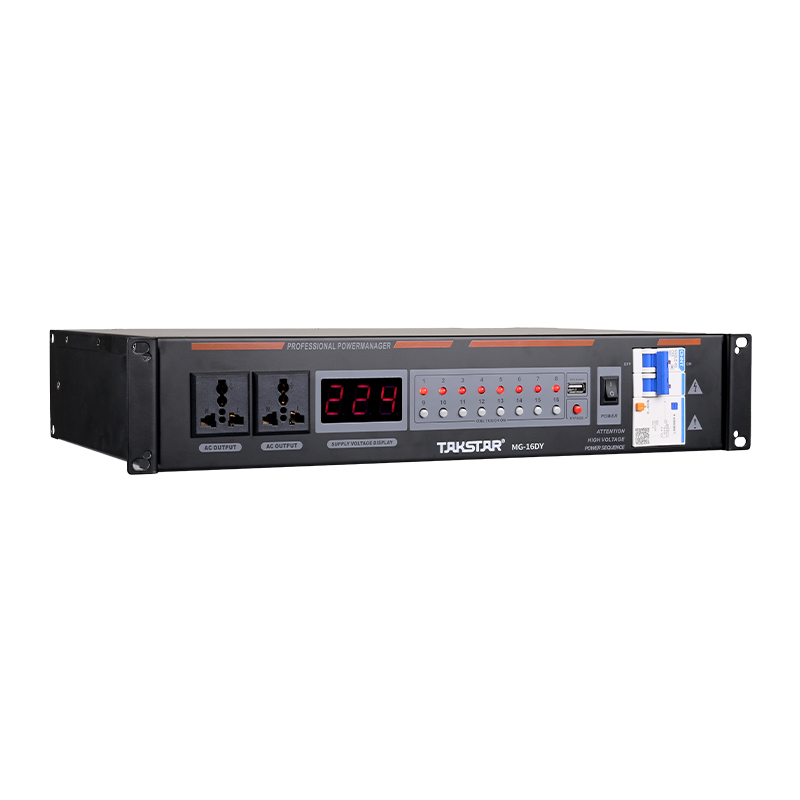

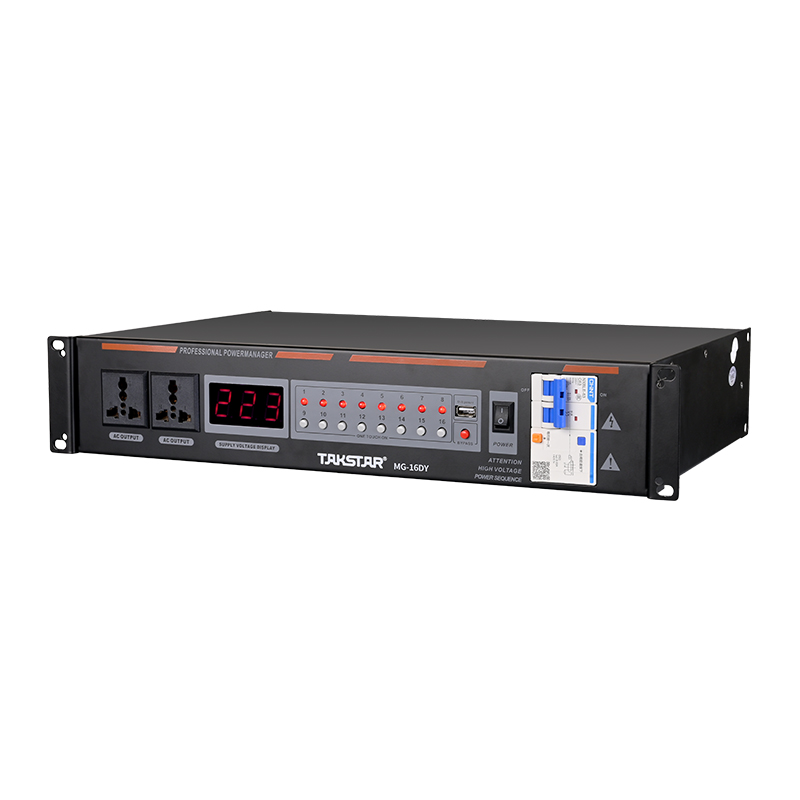

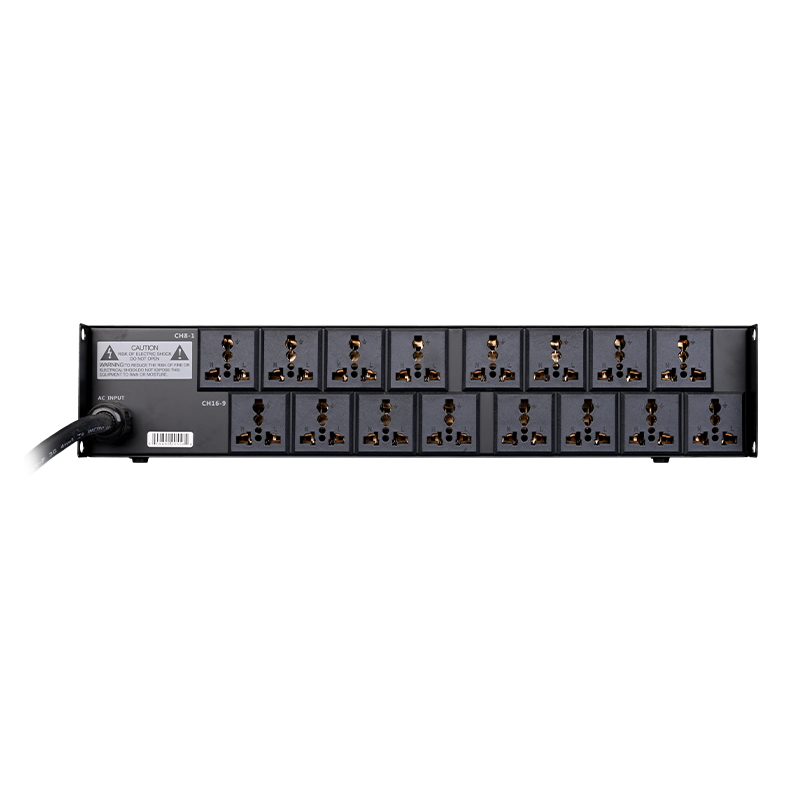

MG-16DY Power Sequencer

Analog Broadcasting

• 1-second controllable output delay.

• 16 controllable channels + 2 pass-through channels (18 total).

• 16 controllable channels divided into 8 independent switches, max 30A per channel.

• Residual current protection switch for safety against short circuits, overloads, and leakage.

• One-button pass-through function for harsh environments.

• USB interface for LED lighting connection.

• LED indicators for each channel to show operational status.

• Real-time voltage display for monitoring device voltage.

• High-quality universal sockets ensure secure connections with various plugs.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial








• For use in tourist attractions, schools, airports, large supermarkets, etc.

• Number of Channels: 16
• Number of Auxiliary Channels: 2
• Power Capacity per Channel: 220V/30A, 6600W/channel
• Sequencing Switch Time Interval: 1 second
• Indicator Lights: Power/Channel On
• Input/Output Sockets: Universal Connectors
• Power Supply: 220V/50Hz
• Dimensions: 482mm × 88mm × 210mm
• Weight: 4.28kg
• Warranty: 1 year

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
