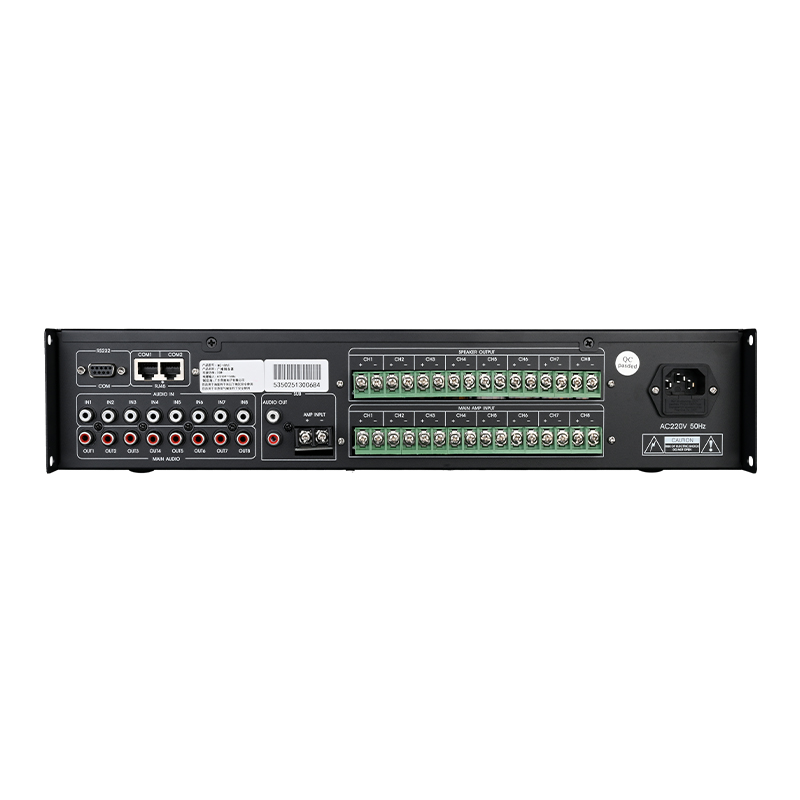

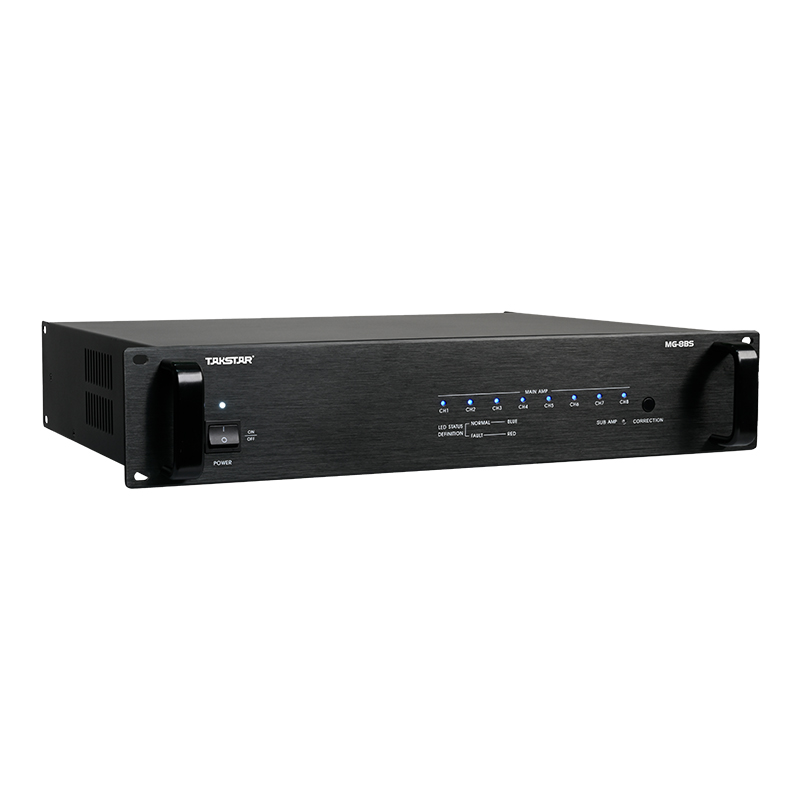

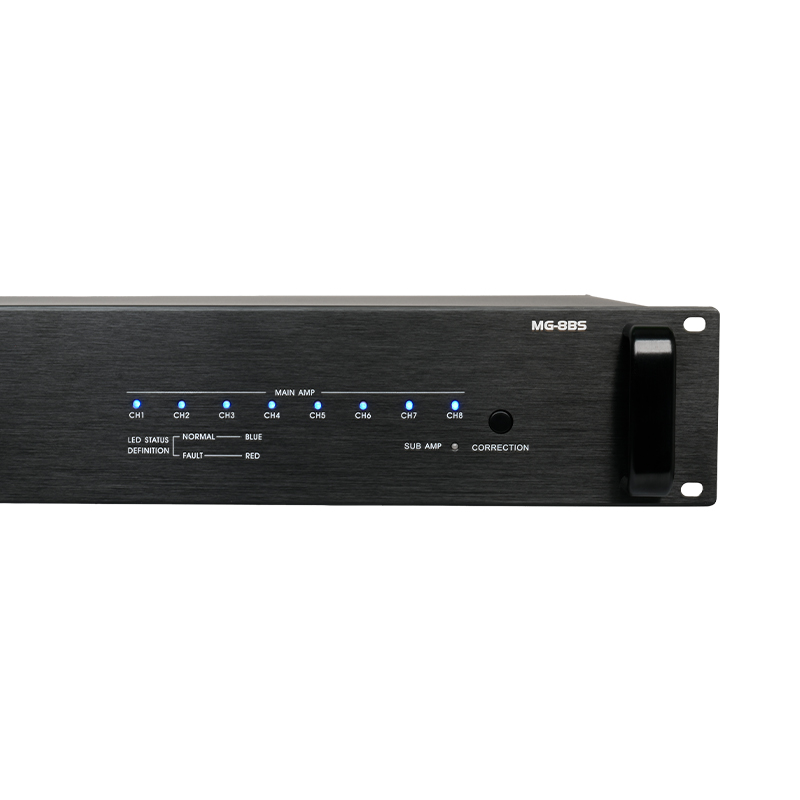

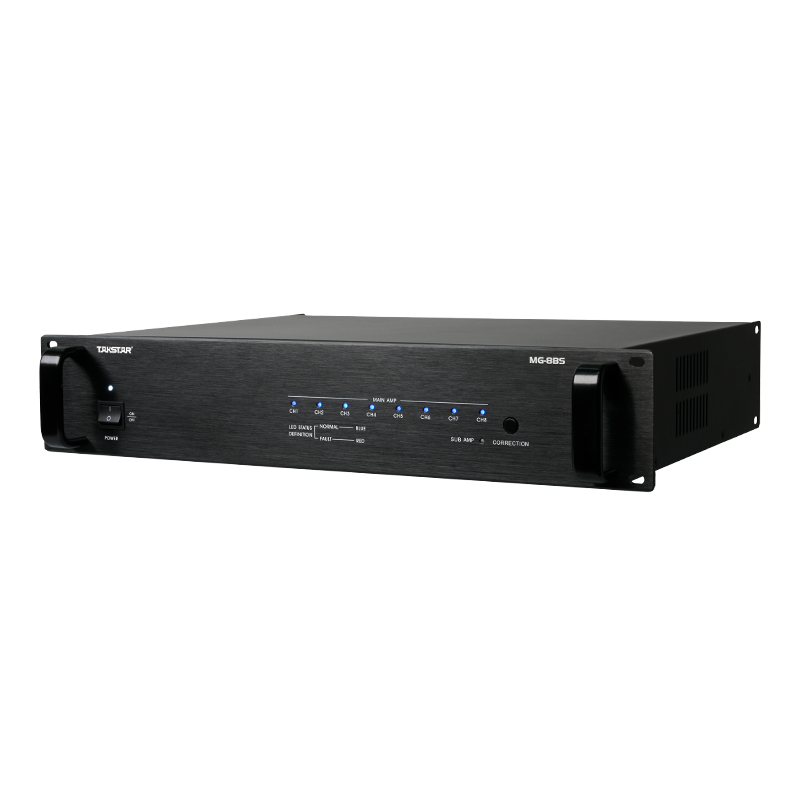

MG-8BS Backup Amplifier Switcher

Analog Broadcasting

• Signal carrier detection to prevent interference between audio source and amplifier circuits, reducing false triggers.

• Manual channel switching for convenient self-testing.

• Configurable detection method: signal carrier detection or signal amplitude detection.

• Automatic power amplifier switch-back when a failed primary amplifier is back online.

Product Detail

Application
Specification
Product Content
Product Tutorial

• For PA systems, schools, shopping malls, corporate internal broadcasting, public venues, sports facilities, etc.

• No. of Controllable Channels: 8
• Channel Operating Capacity: 150V/10A
• Amplifier Gain Requirements: >10dB
• Input Detection Threshold: <50mV
• Power Supply: AC 220V/50~60Hz
• Dimensions: 485x320x88
• Net Weight: 5.3KG
• Gross Weight: 6.35KG
