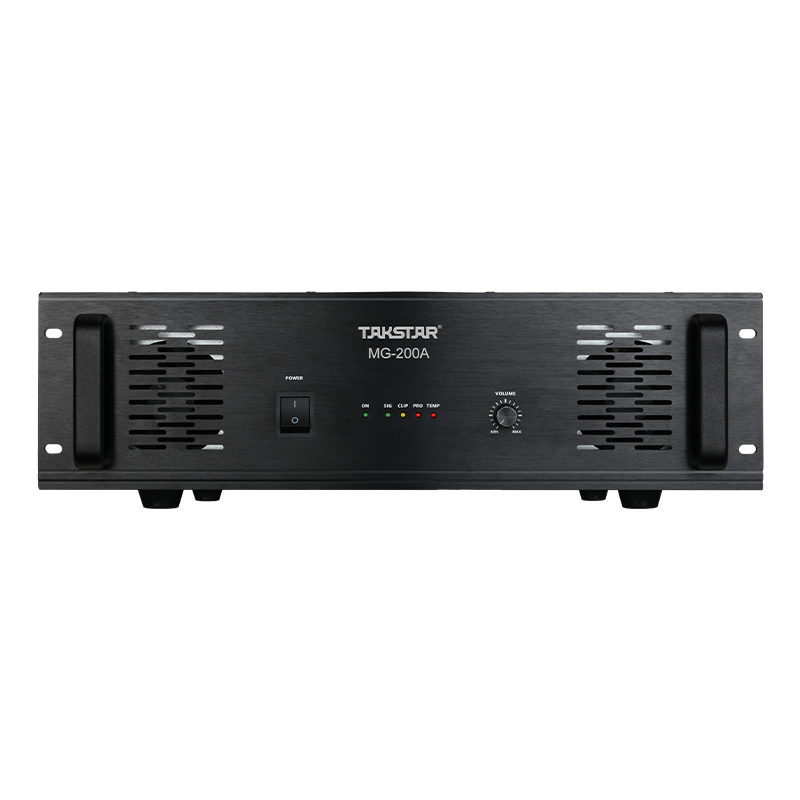

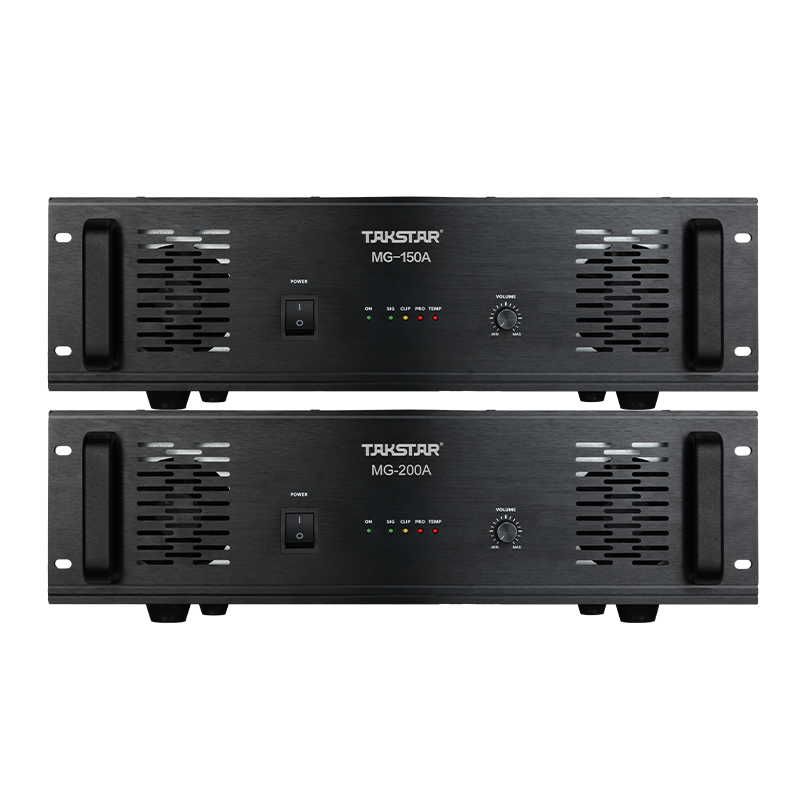

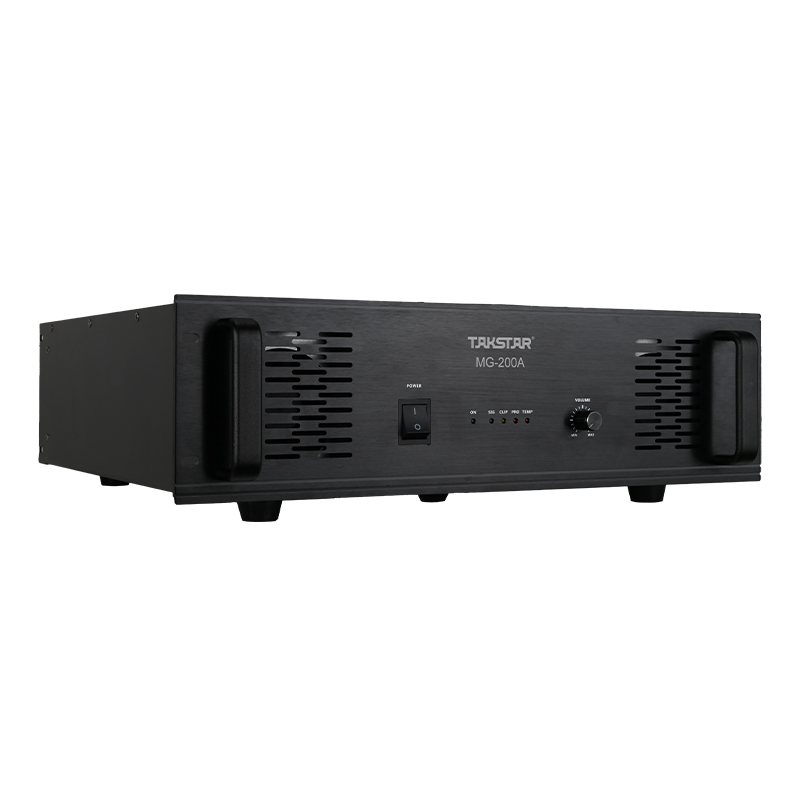

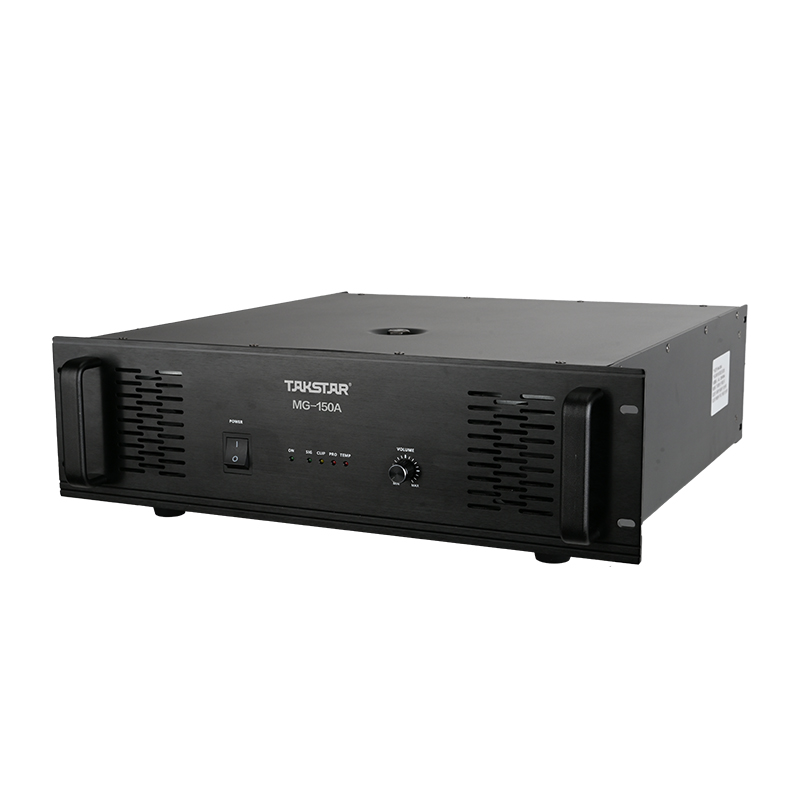

MG-150A/MG-200A Broadcast Pure Power Amplifier

Analog Broadcasting

• Standard chassis design, with 3U brushed aluminum alloy front panel.

• User-friendly pull handles for both aesthetics and practicality.

• 70-100V constant voltage output and 4-16Ω constant impedance output.

• 5-segment LED level meter, allowing operating status to be clear at a glance.

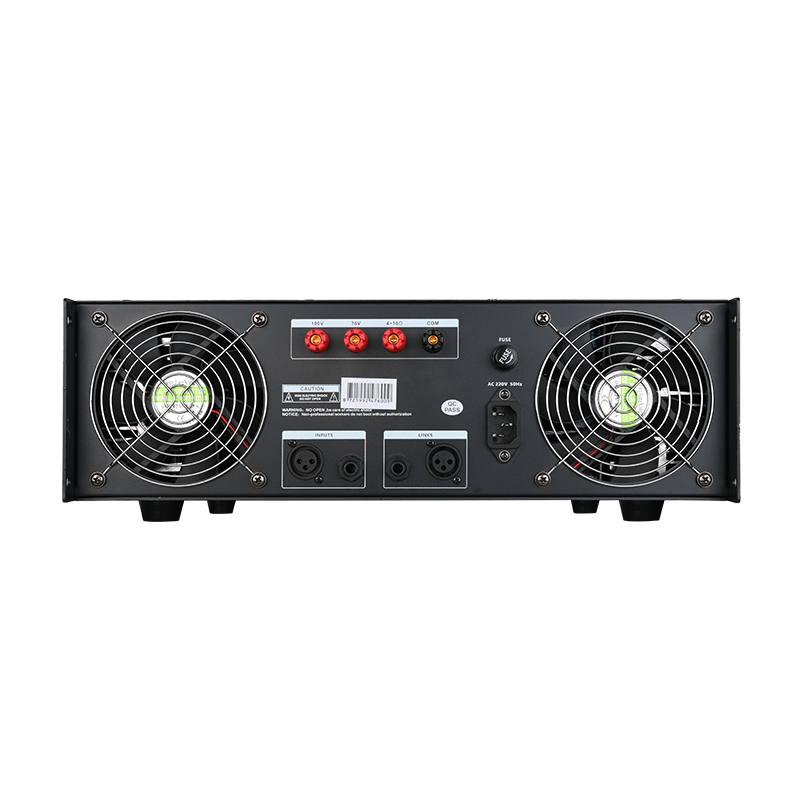

• 6.35mm jack and XLR connector for convenient loop-through connection.

• Output short circuit, over-current, and overload protection as well as overheating alarm, saturation alarm, and distortion alarm.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for public address applications in hotels, shopping malls, campuses

• Model: MG-150A
• Rated Power: 1500W
• Frequency Response: 100Hz-16kHz
• Sensitivity: 1000mV
• Signal-to-Noise Ratio: >80dB
• Harmonic Distortion: <0.1%
• Power Supply: AC220V/50Hz
• Fuse: 10A
• Net Weight (KG): 28.59KG
• Gross Weight (KG): 30.3KG
• Dimensions: 485*480*132mm

• Model: MG-200A
• Rated Power: 2000W
• Frequency Response: 100Hz-16kHz
• Sensitivity: 1000mV
• Signal-to-Noise Ratio: >80dB
• Harmonic Distortion: <0.1%
• Power Supply: AC220V/50Hz
• Fuse: 10A
• Net Weight (KG): 30.56KG
• Gross Weight (KG): 32.1KG
• Dimensions: 485*480*132mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
