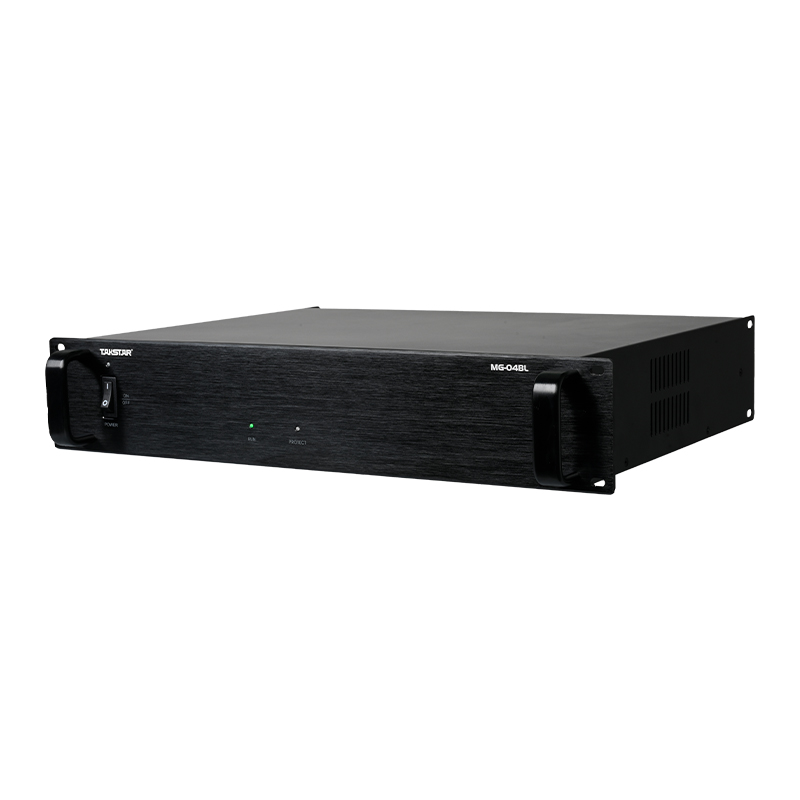

MG-04BL Lightning Protector

Analog Broadcasting

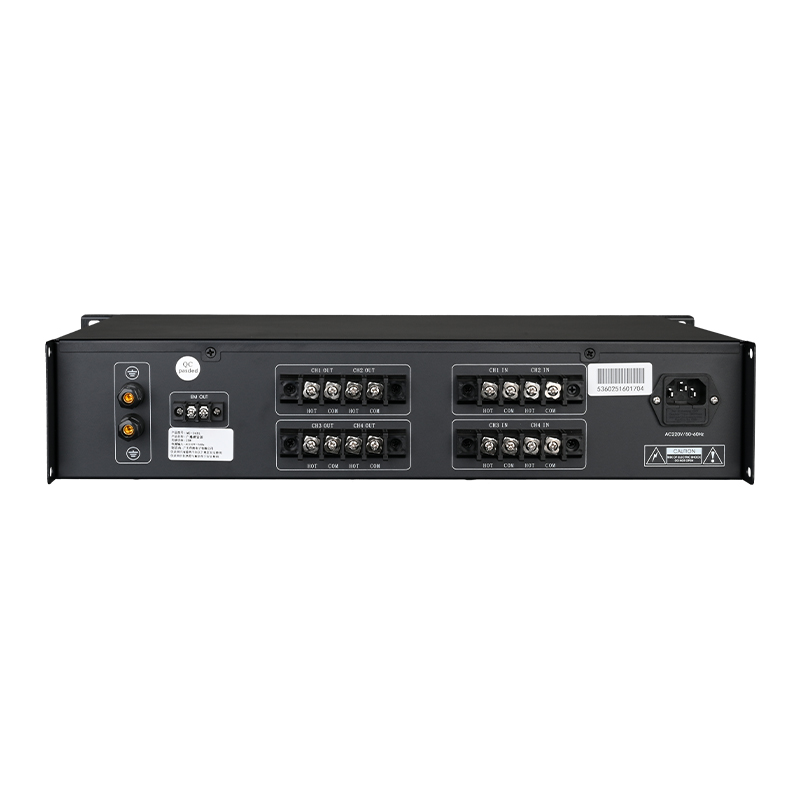

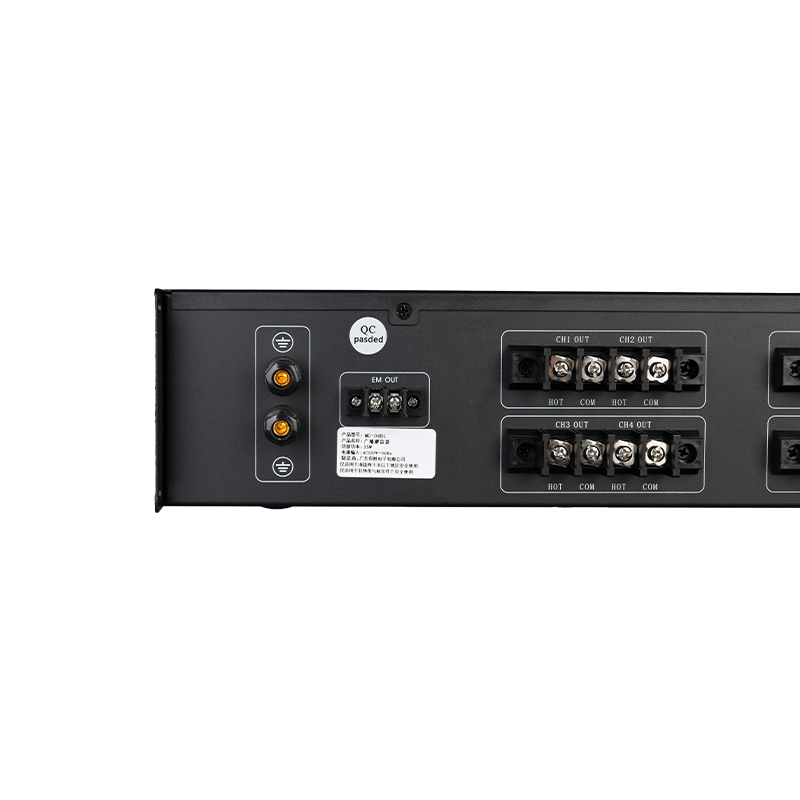

• Ground Terminal: Securely connect to earth ground.

• Short Circuit Output: Sends a signal when protection activates.

• Amplifier Signal Output Terminals CH1-CH4: Connects to respective speakers;“HOT” to +, “COM” to -.

• Amplifier Input Terminals CH1-CH4: Connects to respective amplifier output;“HOT” to +, “COM” to -.

• Auto Cutoff: Disconnects output during lightning strike.

• 2U Design: Aluminum alloy panel for durability and aesthetics.

Product Detail

Application
Specification
Product Content
Product Tutorial

• For use in scenic areas, schools, and engineering installations.

• Channels: Four groups (CH1 to CH4)
• Input Capacity: 70/100V, 10A audio signal per channel
• Output Capacity: 70/100V, 10A audio signal per channel
• Continuous Operating Voltage: 240V (RMS)
• Protection Voltage: 280V (RMS)
• 2ms Square Wave Current Capacity: Peak current: 50A
• Short Circuit Output Level: (OV) short circuit signal
• Power Supply: AC220V ±10%, 50-60Hz
• Power Consumption: Less than 25W
• Dimensions: 484×350×88 mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
