MG-10FQ 10-Channel Zone Controller

Analog Broadcasting

• Independent Zone Control: 10 independent zone switches enable seamless switching without interference.

• Audio Inputs: 4 audio inputs — 2 for background music and 2 for emergency announcements.

• Status Indicators: Green light for background music, red light for emergency priority.

• Zone Management: Two groups (A: zones 1-5, B: zones 6-10) with max output of 2000W per group and 600W per zone.

• Short-Circuit Control: Two types of input signals for all-zone activation and individual zone activation.

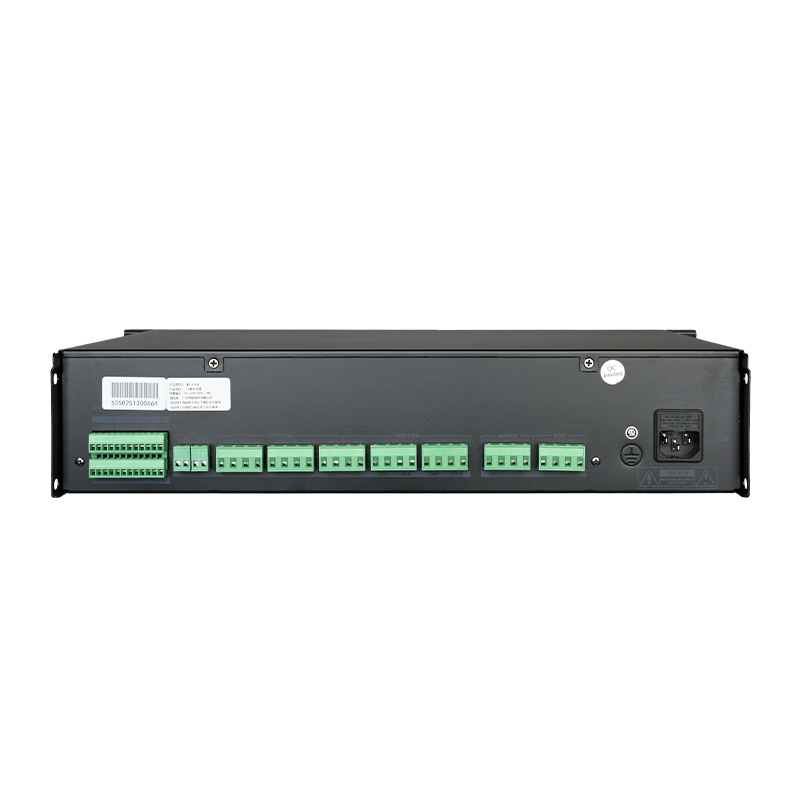

• Short-Circuit Outputs: Outputs for both all-zone and individual zone short-circuit signals.

• Dual Relay Design: Dual relay circuitry with ≥80dB isolation to prevent crosstalk.

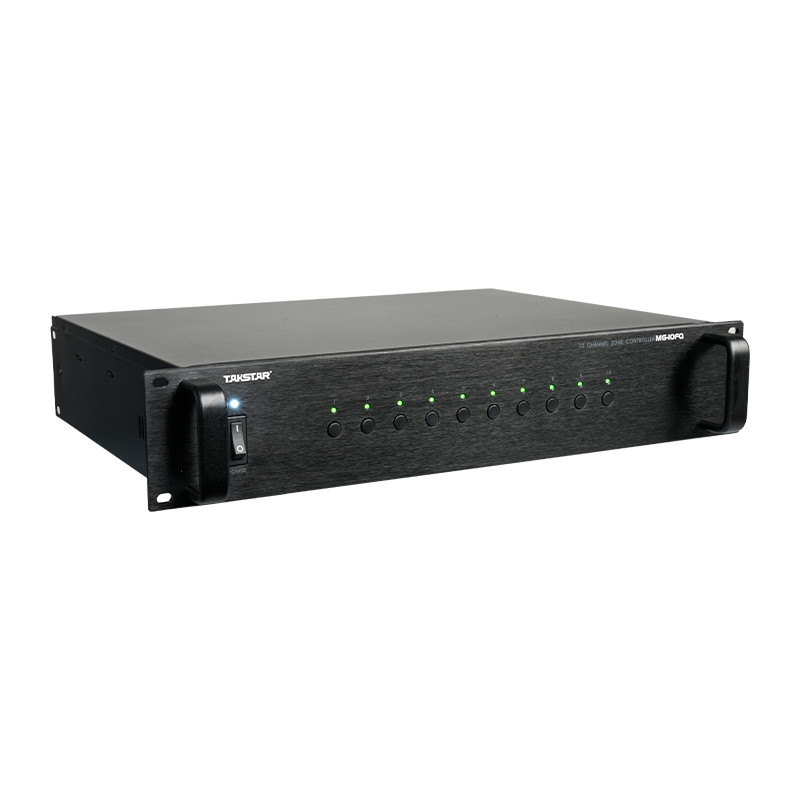

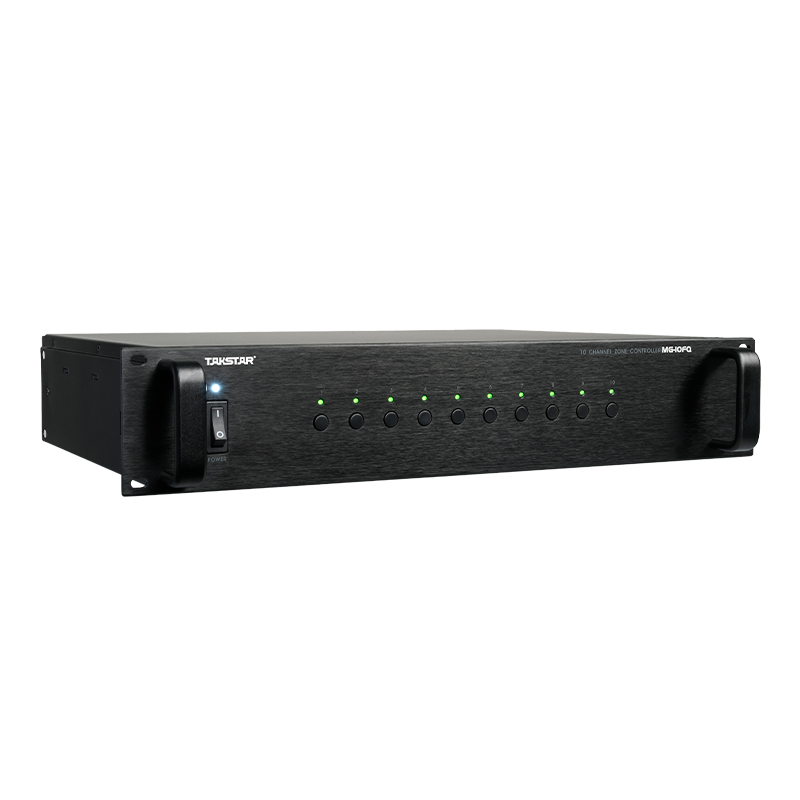

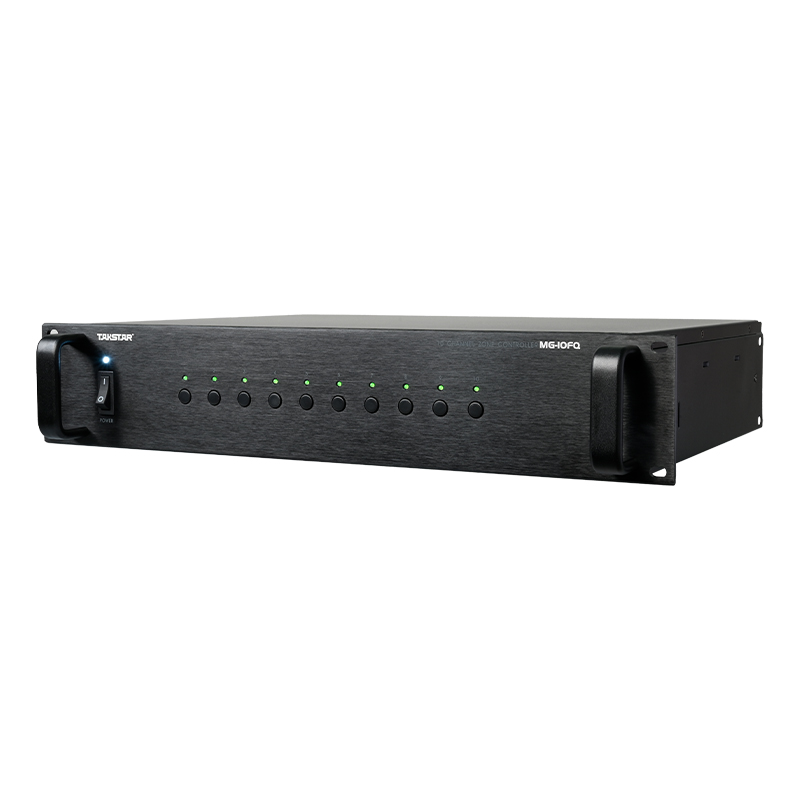

• Compact Design: 2U rackmount with an aluminum alloy front panel for durability and aesthetics.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for use in parks, schools, and engineering installations.

• Power Supply: AC 220V / 3A
• Input Channels: 2 + 2
• Output Channels: 10 (CH1-CH10)
• Channel Switching Capacity: 150V / 6A
• Power Consumption: 15W
• Dimensions: 483 x 342 x 90 mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
