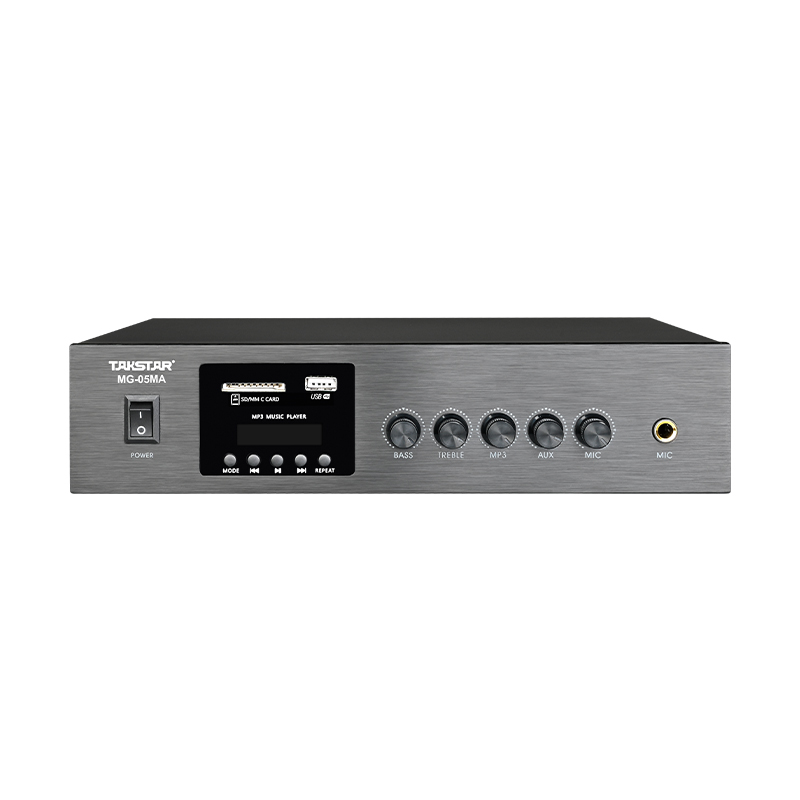

MG-05MA Integrated Broadcast Amplifier

Analog Broadcasting

• Built-in Wireless module for easy mobile Wireless streaming.

• Integrated MP3 decoder for flexible playback modes.

• Supports USB flash drives and SD cards for easy song swapping.

• Utilizes advanced and efficient power amplification circuitry.

• Features 1 microphone input and 2 line inputs.

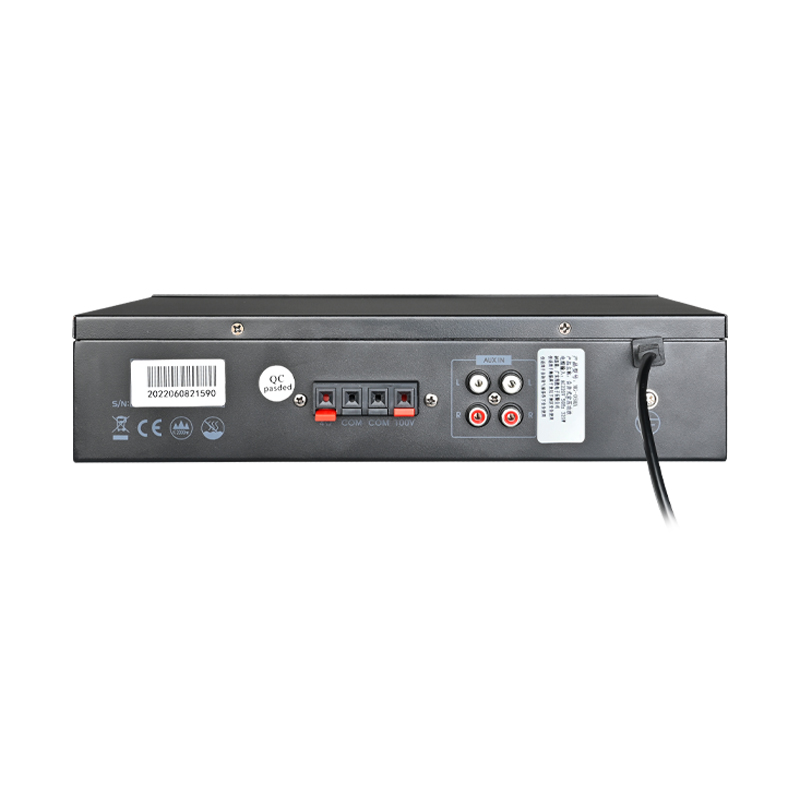

• Provides 100V High-Z output and 4Ω Low-Z output.

• Supports treble and bass adjustment, and separate volume controls.

Product Detail

Specification
Product Content
Product Tutorial

• High Impedance Output: 100V
• Low Impedance Output: 4Ω
• Rated Power: 50W
• AUX Sensitivity: -12dB
• MIC Sensitivity: -40dB
• Frequency Response: 80Hz~20KHz ±5dB
• Total Harmonic Distortion (THD): ≤0.1%
• Signal-to-Noise Ratio (SNR): ≥70dB
• Operating Temperature: -5℃ to 80℃
• Operating Humidity: 20%~80% RH, non-condensing
• Product Weight: 1.9kg
• Dimensions: 280×62×183mm
• Power Supply: 220V/50Hz
