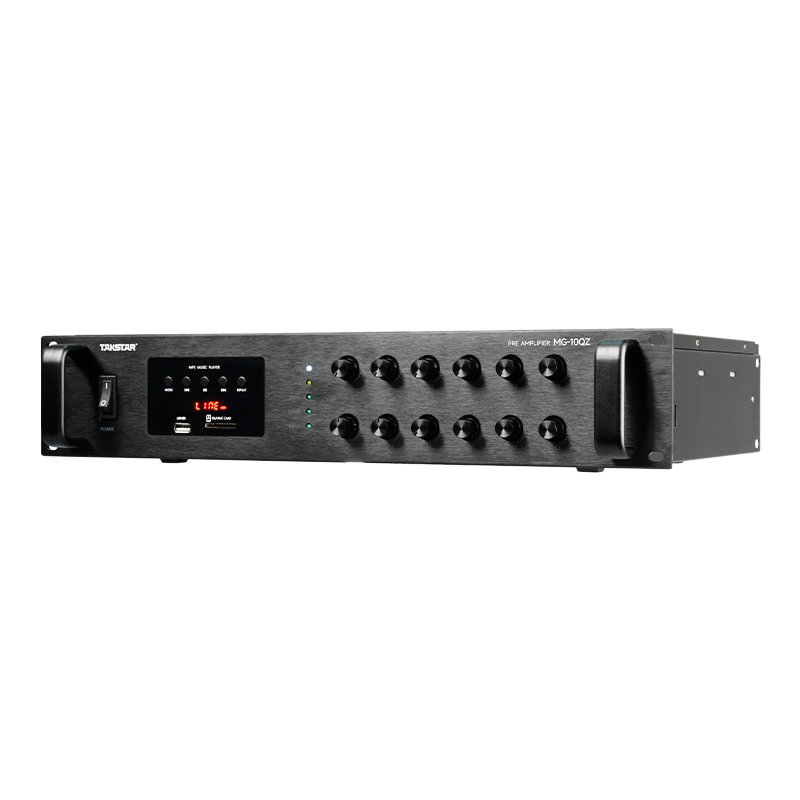

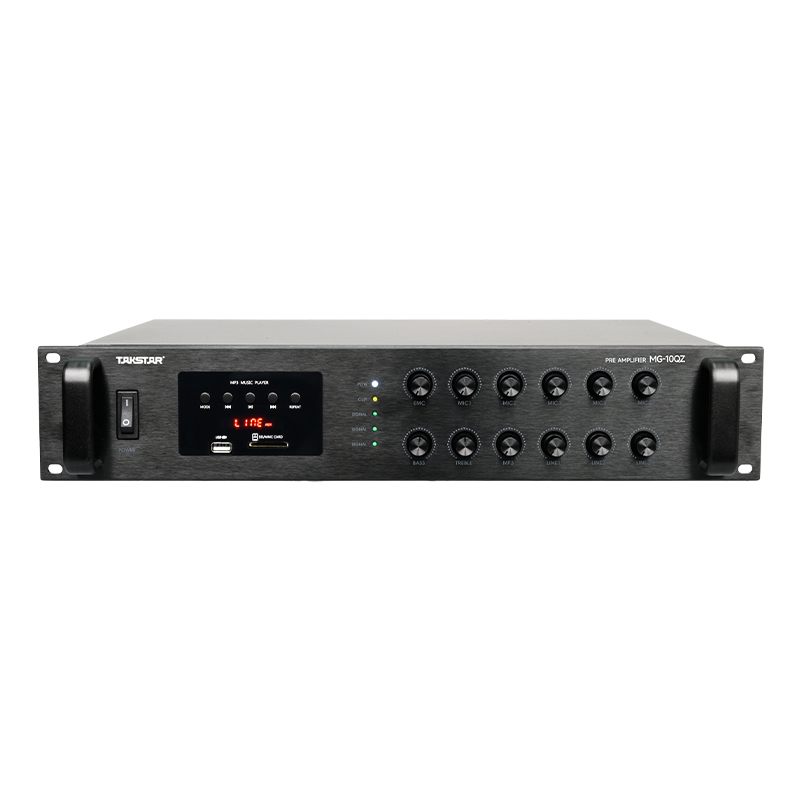

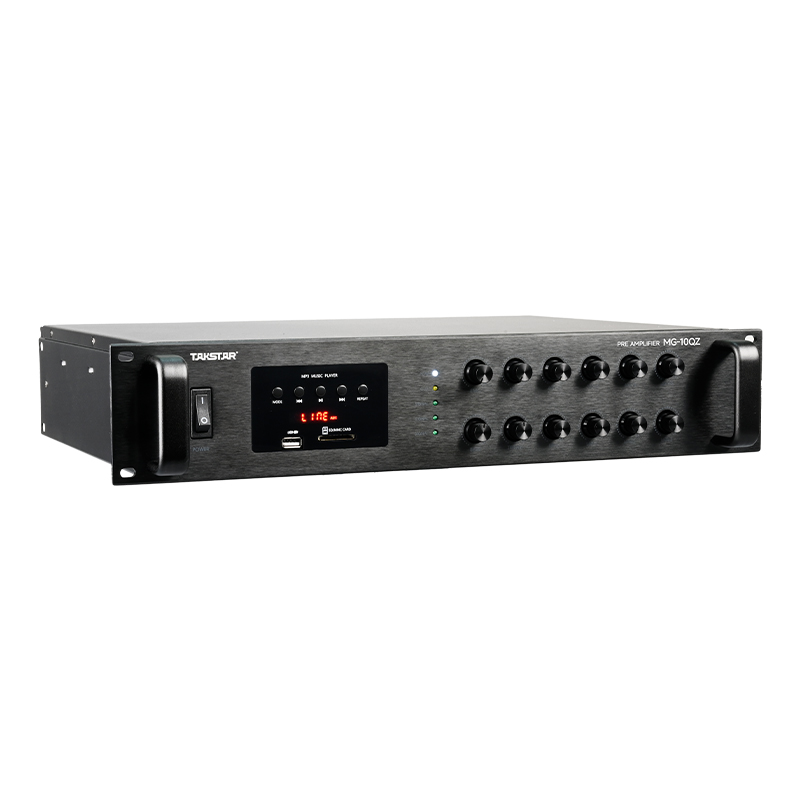

MG-10QZ Pre Amplifier

Analog Broadcasting

• 5 mic inputs, 3 line inputs, 1 emergency line input, and 2 line outputs.

• Highest priority (override) for Mic 1 and emergency line; MIC2/3/4/5 and AUX1/2/3 are at same priority level.

• Independent volume control for each input channel.

• Built-in MP3 decoder and Bluetooth player, switchable playback modes.

• Supports USB flash drive and SD card for convenient stored music playback.

• Features independent treble and bass control.

• Multiple indicator lights for power, signal, and clipping indication.

Product Detail

Application
Specification
Product Content
Product Tutorial

• For use in conference rooms, shopping malls, and campus public broadcasts.

• Power Supply: AC220V / 3A
• MIC Sensitivity: -40dB
• AUX Sensitivity: -12dB
• Line Output: 0dB
• Frequency Response: 20-20kHz (≤±3dB)
• Harmonic Distortion: ≤1%
• Signal-to-Noise Ratio: ≥85dB
• Operating Temperature: 5℃-45℃
• Operating Humidity: 20%-80% relative humidity, non-condensing
• Power Consumption: <10W
• Dimensions (mm): 483 × 342 × 90
• Weight: Approx. 5kg
• Audio Priority Levels: MIC1 = EMC1 > MIC2 = MIC3 = MIC4 = MIC5 = LINE1 = LINE2 = LINE3
• Fuse: 5×20mm 3A
• Physical Interfaces:
Audio Inputs: 4 × RCA connector sets, 5 × 6.35mm mic jacks
Audio Outputs: 2 × RCA connector sets
Power Socket: 1 × IEC socket
• Player Decoding Format: MP3
• USB Drive Support: Up to 32GB, FAT32

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
