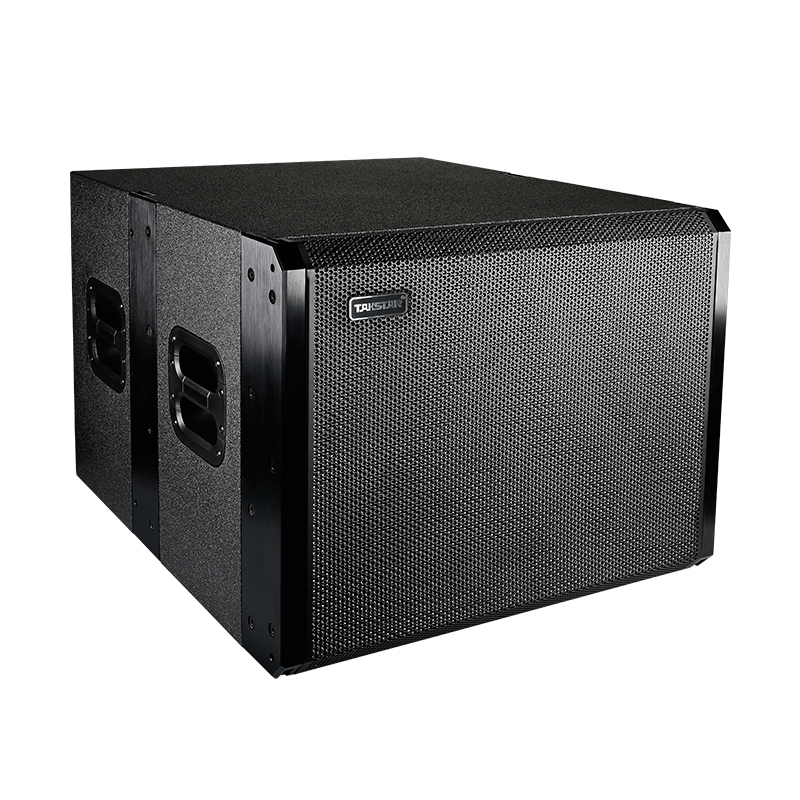

ELA-181F Waterproof Line Array Speaker

Speaker

• IPX6 waterproof certification, for all-weather use. Polyurethane-coated cabinet extends lifespan, resistant to moisture and corrosion.

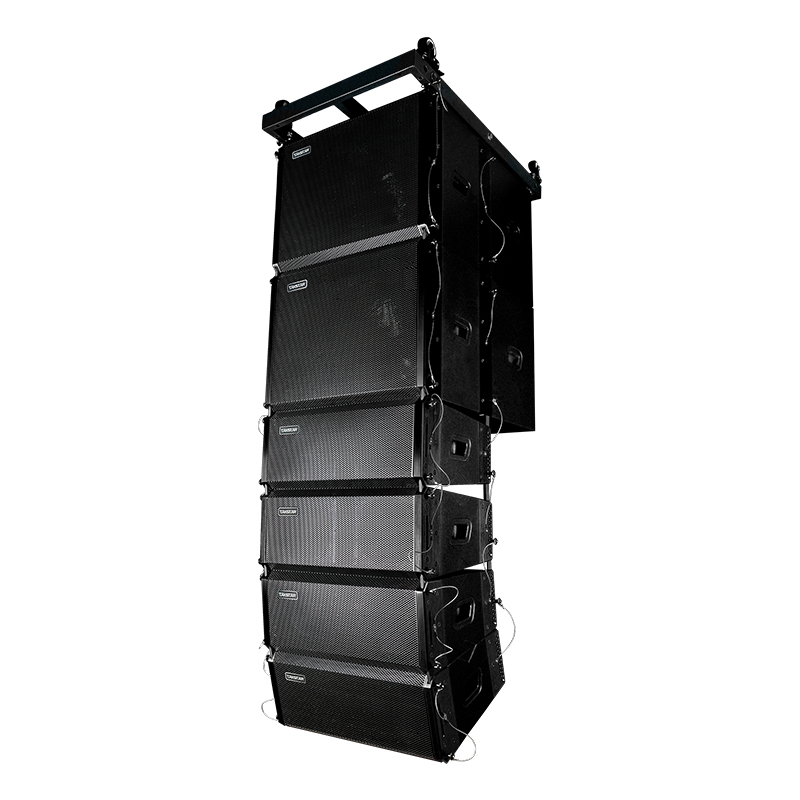

• High-sensitivity 18-inch driver with advanced aerospace-grade magnetic materials. Reflex port design. Compatible with ELA-121F full-range speaker for seamless hanging installation.

• Features a highly sensitive 18-inch imported paper cone driver and leading domestic aerospace-grade magnets. Ported cabinet design for optimal low-frequency response, resulting in high sensitivity, strong sound pressure, and excellent dynamic performance.

Product Detail

Product Detail
Specification
Product Tutorial

Driver Spec
Subwoofer (SW)
• Outer Dia: 18''
• Voice Coil Dia: 100mm
• Magnet: Ferrite 220mm
• Sensitivity: 99dB
• Rated Impedance: 8Ω
• Frequency Response: 30Hz-1000Hz

Speaker Spec
Subwoofer (SW)
• Quantity: 1PC
• Impedance: 8Ω
• Directivity: Null
• Rated Power: 1300W(AES)
• Matching Power Amp: 1300W * 2, two speakers in parallel
• Crossover Range: 25Hz-100Hz(Above is the recommended value, but subwoofer and MFLF crossover can be selected between 80-130Hz as long as their frequencies are continuous.)
• Filter Preset: High Pass BW-24, Low Pass BW-24
• Panel: 25+18mm Plywood
• Dimensions: 650*706*510mm (W*D*H)
• Connector: 2PCS, IN: Pin 1 & 2
• Cable: Two-Core Audio Cable
• Waterproof Rating: IPX6

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
