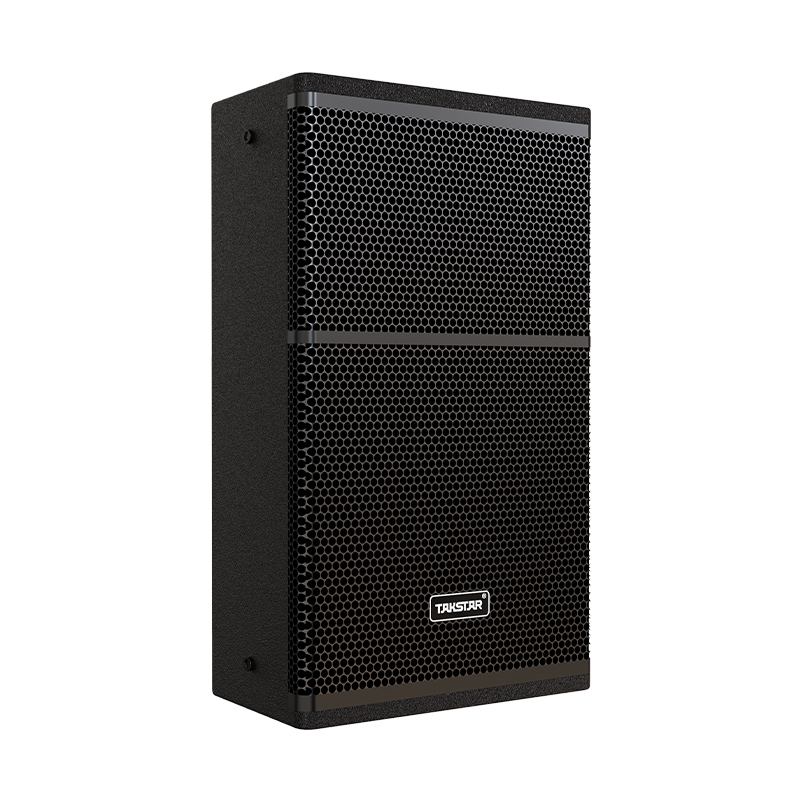

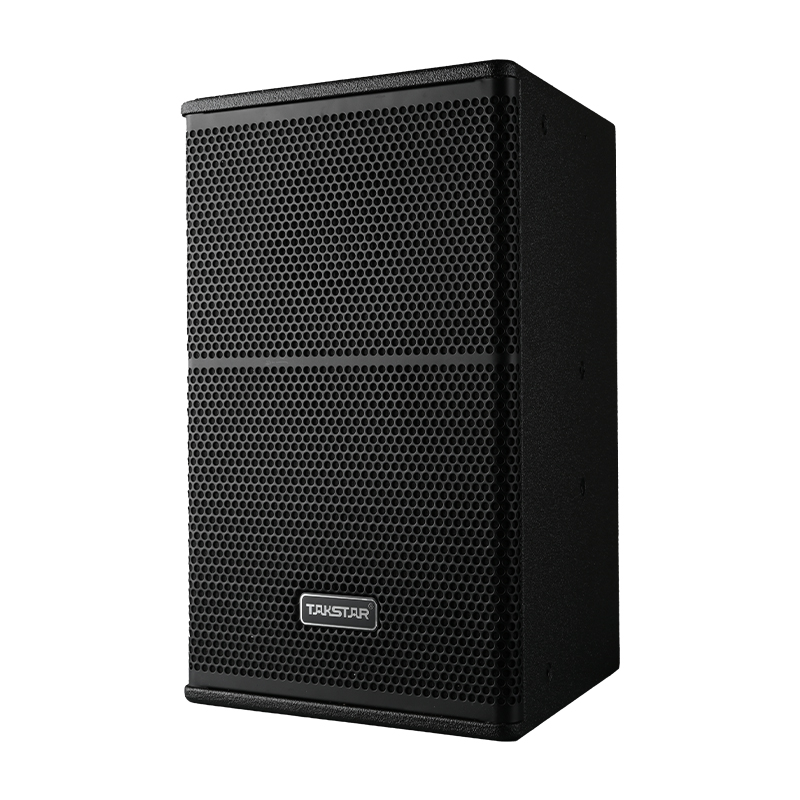

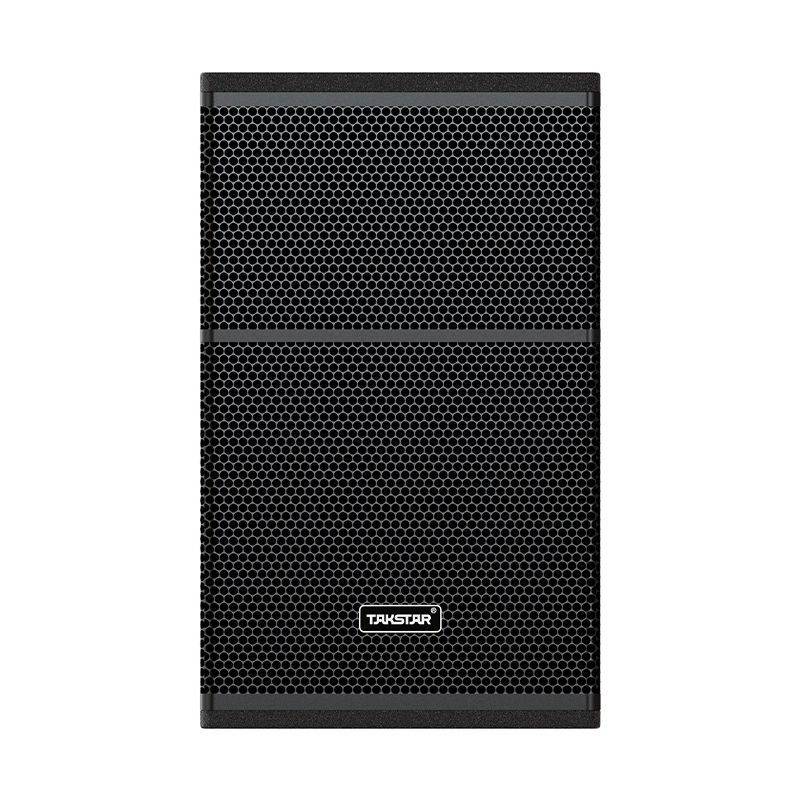

EKS-081F/EKS-101F/EKS-121F/EKS-151F/EKS-152F Waterproof Full-Range Speakers

Speaker

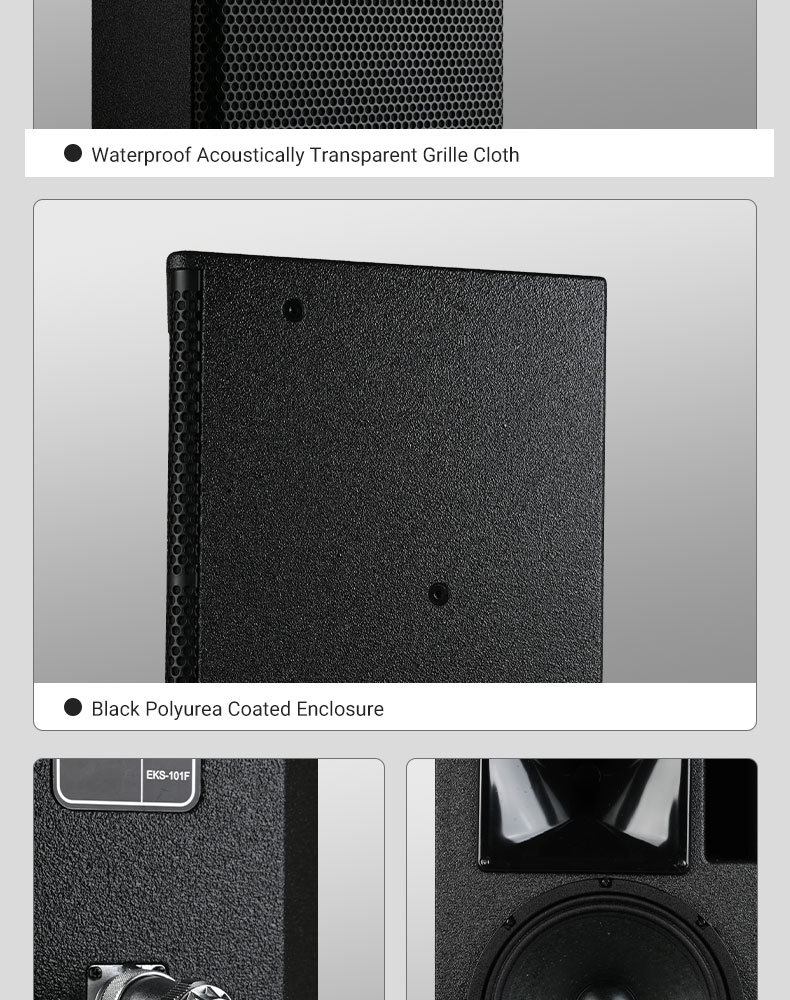

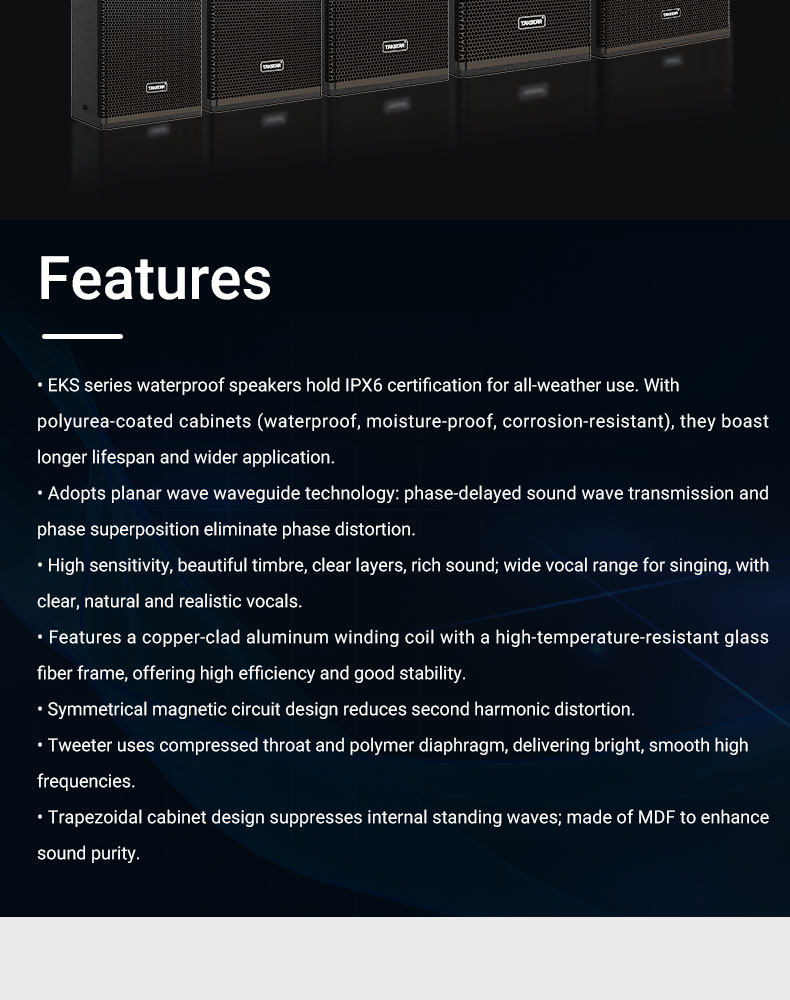

• EKS series waterproof speakers hold IPX6 certification for all-weather use. With polyurea-coated cabinets (waterproof, moisture-proof, corrosion-resistant), they boast longer lifespan and wider application.

• Adopts planar wave waveguide technology: phase-delayed sound wave transmission and phase superposition eliminate phase distortion.

• High sensitivity, beautiful timbre, clear layers, rich sound; wide vocal range for singing, with clear, natural and realistic vocals.

• Features a copper-clad aluminum winding coil with a high-temperature-resistant glass fiber frame, offering high efficiency and good stability.

• Symmetrical magnetic circuit design reduces second harmonic distortion.

• Tweeter uses compressed throat & polymer diaphragm, delivering bright, smooth high frequencies.

• Trapezoidal cabinet design suppresses internal standing waves; made of MDF to enhance sound purity.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial








• Suitable for various outdoor scenarios (malls, residential areas, stations, schools, parks, corporate entities, etc.)

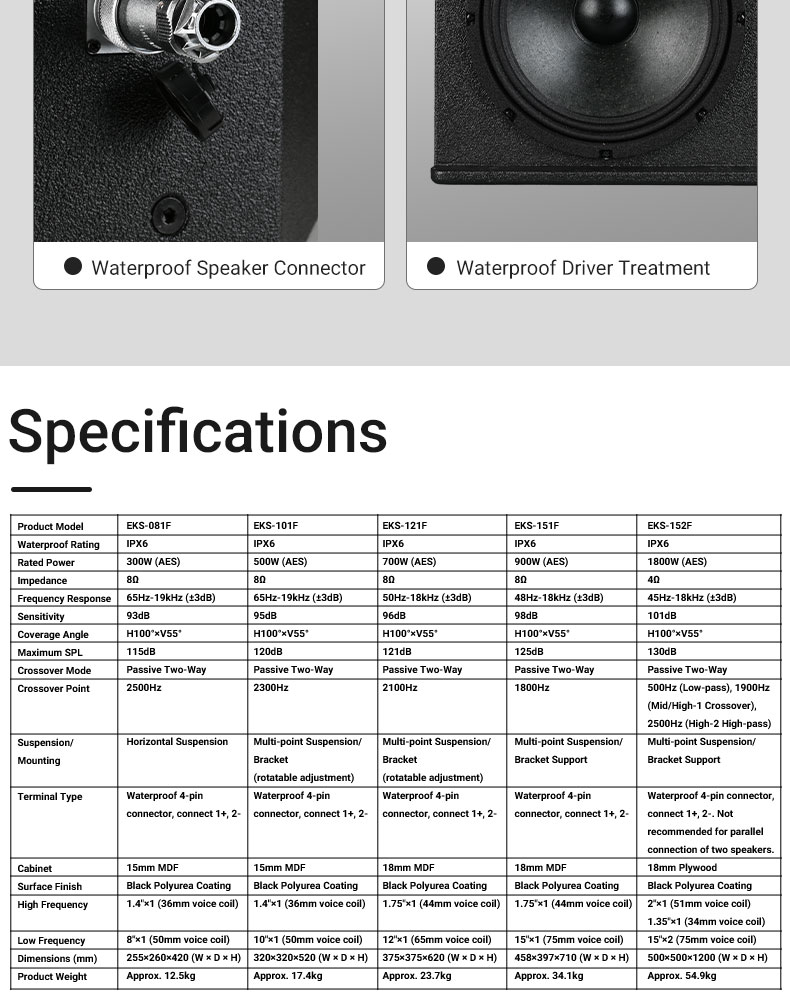

• Product Model: EKS-081F
• Waterproof Rating: IPX6
• Rated Power: 300W (AES)
• Impedance: 8Ω
• Frequency Response: 65Hz-19kHz (±3dB)
• Sensitivity: 93dB
• Coverage Angle: H100°×V55°
• Maximum SPL: 115dB
• Crossover Mode: Passive Two-Way
• Crossover Point: 2500Hz
• Suspension/Mounting: Horizontal Suspension

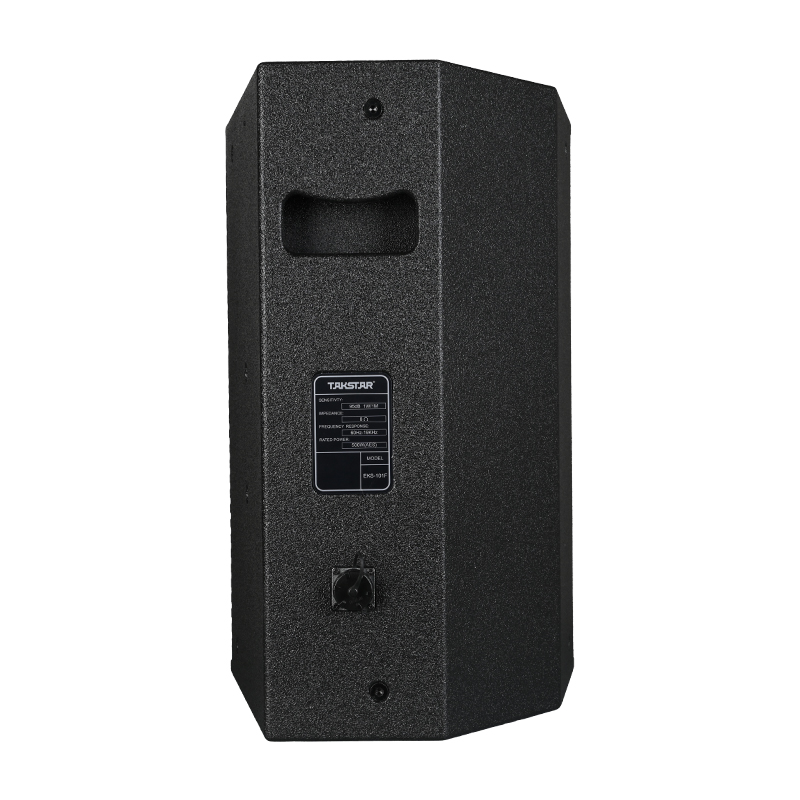

• Terminal Type: Waterproof 4-pin connector, connect 1+, 2-
• Cabinet: 15mm MDF
• Surface Finish: Black Polyurea Coating
• High Frequency: 1.4"×1 (36mm voice coil)
• Low Frequency: 8"×1 (50mm voice coil)
• Dimensions (mm): 255×260×420（W×D×H）
• Product Weight: Approx. 12.5KG

• Product Model: EKS-101F
• Waterproof Rating: IPX6
• Rated Power: 500W (AES)
• Impedance: 8Ω
• Frequency Response: 60Hz-19kHz (±3dB)
• Sensitivity: 95dB
• Coverage Angle: H100°×V55°
• Maximum SPL: 120dB
• Crossover Mode: Passive Two-Way
• Crossover Point: 2300Hz
• Suspension/Mounting: Multi-point Suspension/Bracket (rotatable adjustment)
• Terminal Type: Waterproof 4-pin connector, connect 1+, 2-
• Cabinet: 15mm MDF
• Surface Finish: Black Polyurea Coating
• High Frequency: 1.4"×1 (36mm voice coil)
• Low Frequency: 10"×1 (50mm voice coil)
• Dimensions (mm): 320×320×520（W×D×H）
• Product Weight: Approx. 17.4KG

• Product Model: EKS-121F
• Waterproof Rating: IPX6
• Rated Power: 700W (AES)
• Impedance: 8Ω
• Frequency Response: 50Hz-18kHz (±3dB)
• Sensitivity: 96dB
• Coverage Angle: H100°×V55°
• Maximum SPL: 121dB
• Crossover Mode: Passive Two-Way
• Crossover Point: 2100Hz
• Suspension/Mounting: Multi-point Suspension/Bracket (rotatable adjustment)
• Terminal Type: Waterproof 4-pin connector, connect 1+, 2-
• Cabinet: 18mm MDF
• Surface Finish: Black Polyurea Coating
• High Frequency: 1.75"×1 (44mm voice coil)
• Low Frequency: 12"×1 (65mm voice coil)
• Dimensions (mm): 375×375×620（W×D×H）
• Product Weight: Approx. 23.7KG

• Product Model: EKS-151F
• Waterproof Rating: IPX6
• Rated Power: 900W (AES)
• Impedance: 8Ω
• Frequency Response: 48Hz-18kHz (±3dB)
• Sensitivity: 98dB
• Coverage Angle: H100°×V55°
• Maximum SPL: 125dB
• Crossover Mode: Passive Two-Way
• Crossover Point: 1800Hz
• Suspension/Mounting: Multi-point Suspension/Bracket Support
• Terminal Type: Waterproof 4-pin connector, connect 1+, 2-
• Cabinet: 18mm MDF
• Surface Finish: Black Polyurea Coating
• High Frequency: 1.75"×1 (44mm voice coil)
• Low Frequency: 15"×1 (75mm voice coil)
• Dimensions (mm): 458×397×710（W×D×H）
• Product Weight: Approx. 34.1KG

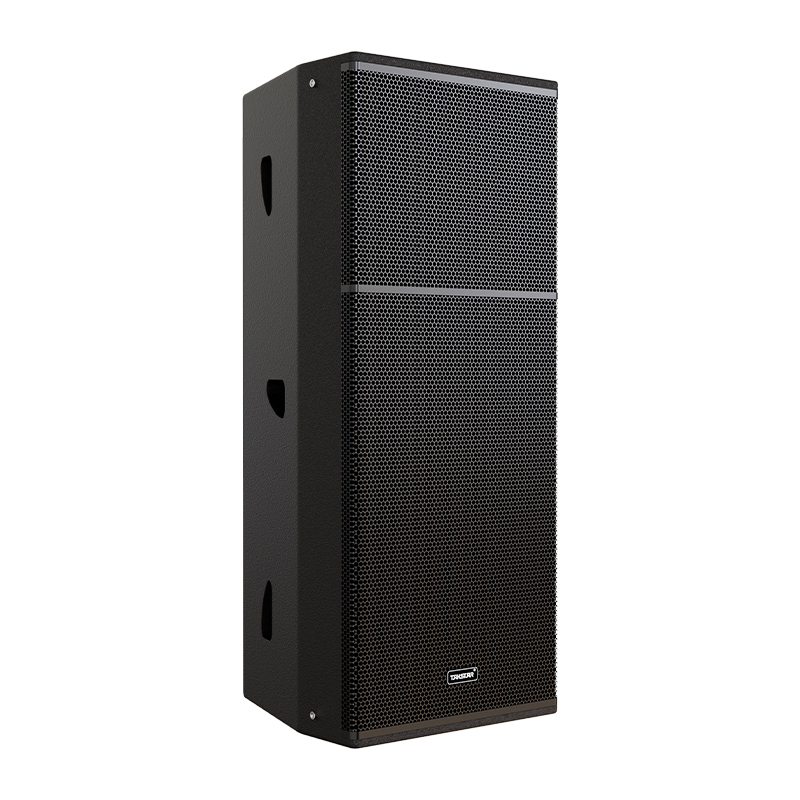

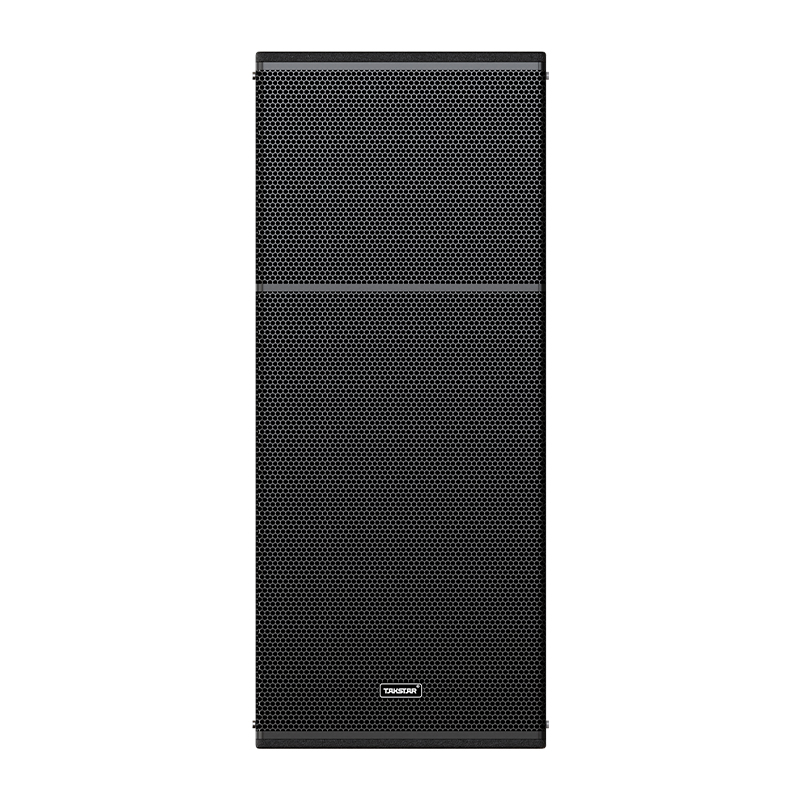

• Product Model: EKS-152F
• Waterproof Rating: IPX6
• Rated Power: 1800W (AES)
• Impedance: 4Ω
• Frequency Response: 45Hz-18kHz (±3dB)
• Sensitivity: 101dB
• Coverage Angle: H100°×V55°
• Maximum SPL: 130dB
• Crossover Mode: Passive Two-Way
• Crossover Point: 500Hz (Low-pass), 1900Hz (Mid/High-1 Crossover), 2500Hz (High-2 High-pass)
• Suspension/Mounting: Multi-point Suspension/Bracket Support
• Terminal Type: Waterproof 4-pin connector, connect1+, 2-. Not recommended for parallel connection of two speakers.
• Cabinet: 18mm Plywoo
• Surface Finish: Black Polyurea Coating
• High Frequency: 2"×1 (51mm voice coil) 1.35"×1 (34mm voice coil)
• Low Frequency: 15"×2 (75mm voice coil)
• Dimensions (mm): 500×500×1200（W×D×H）
• Product Weight: Approx. 54.9KG

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
