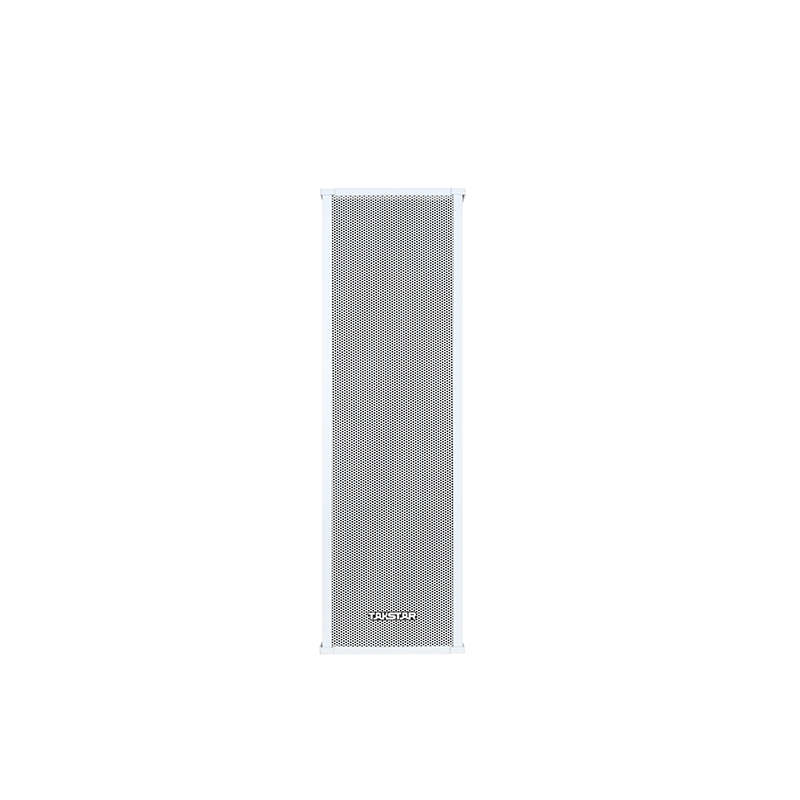

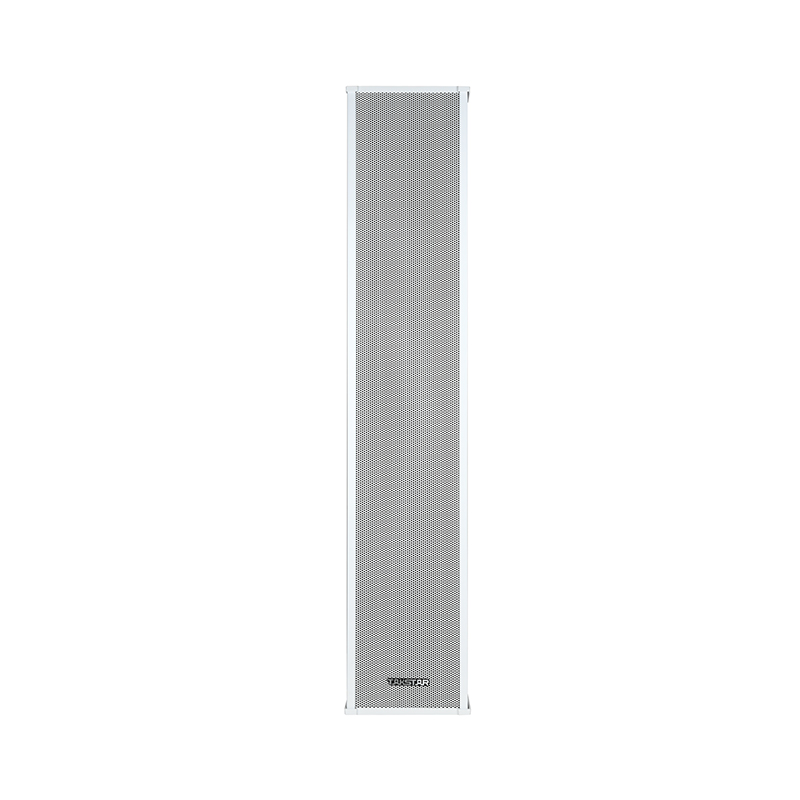

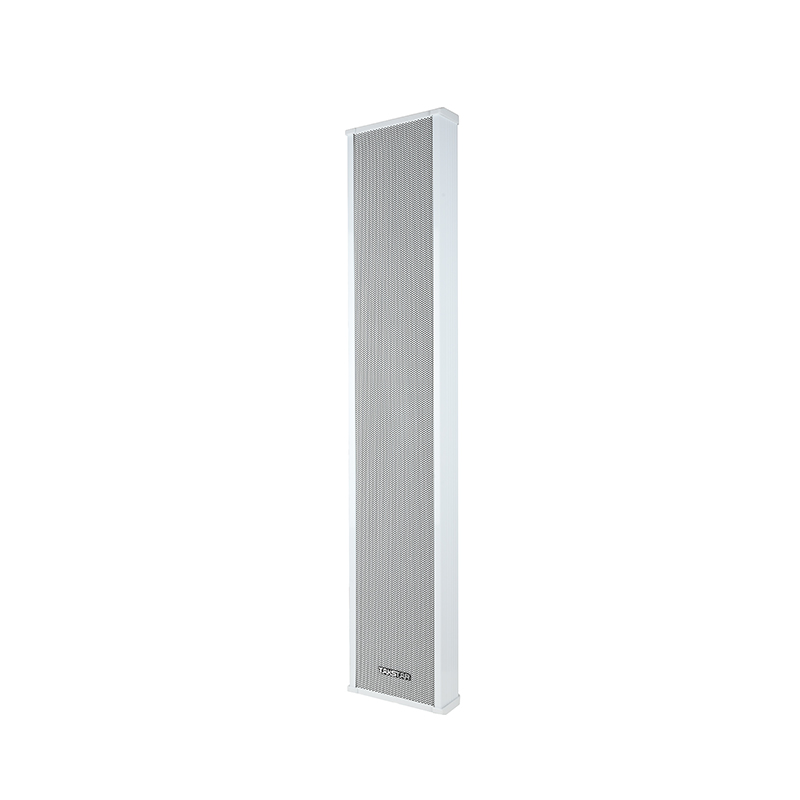

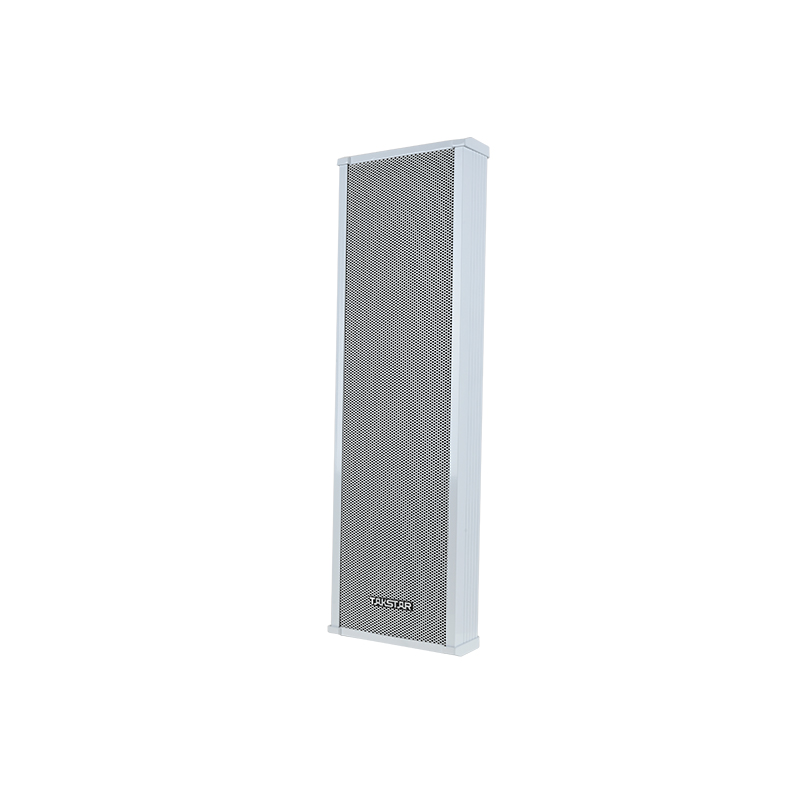

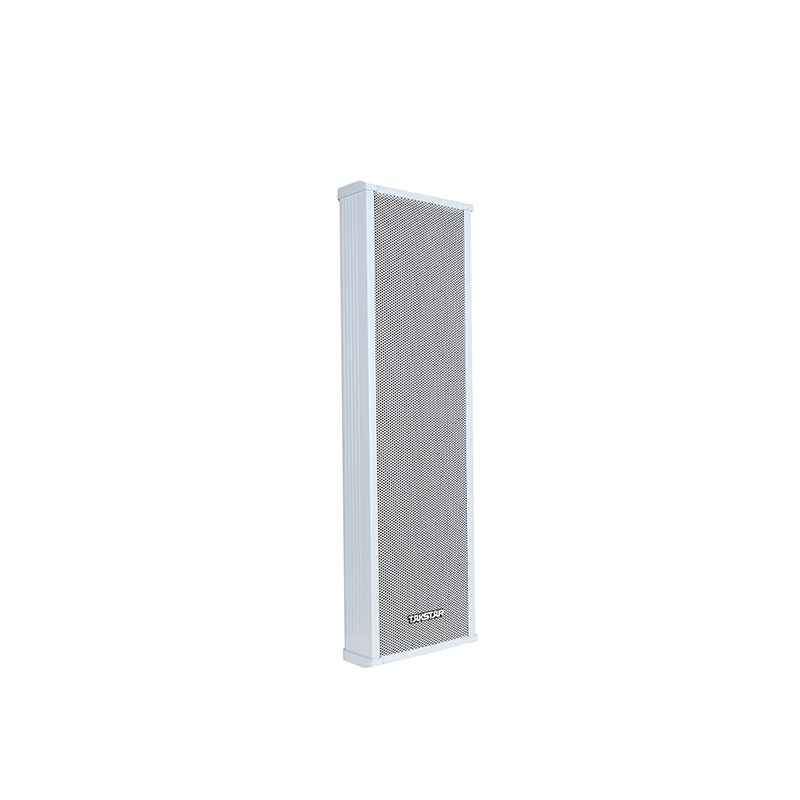

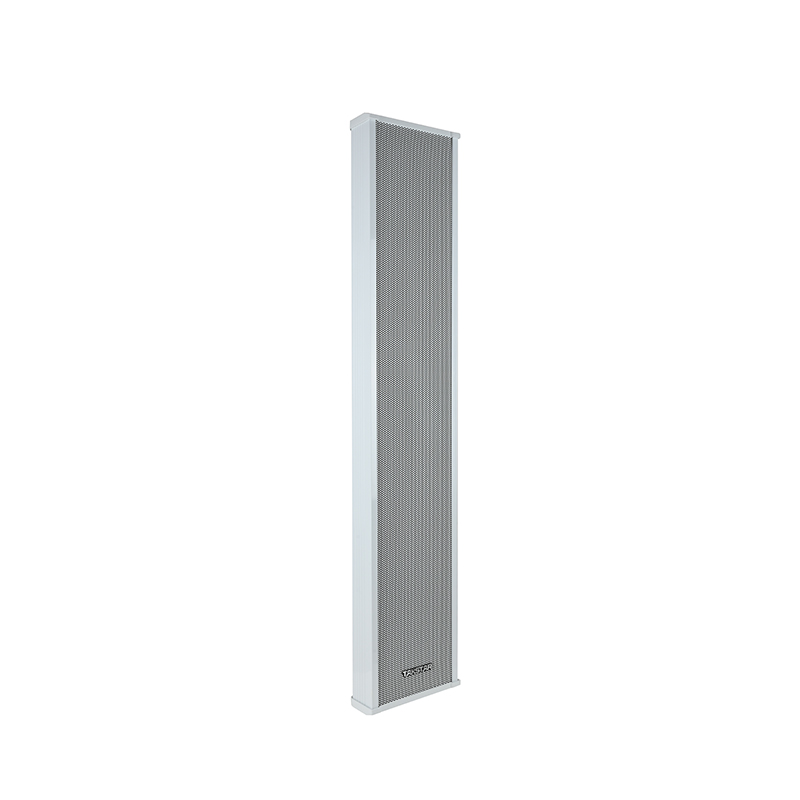

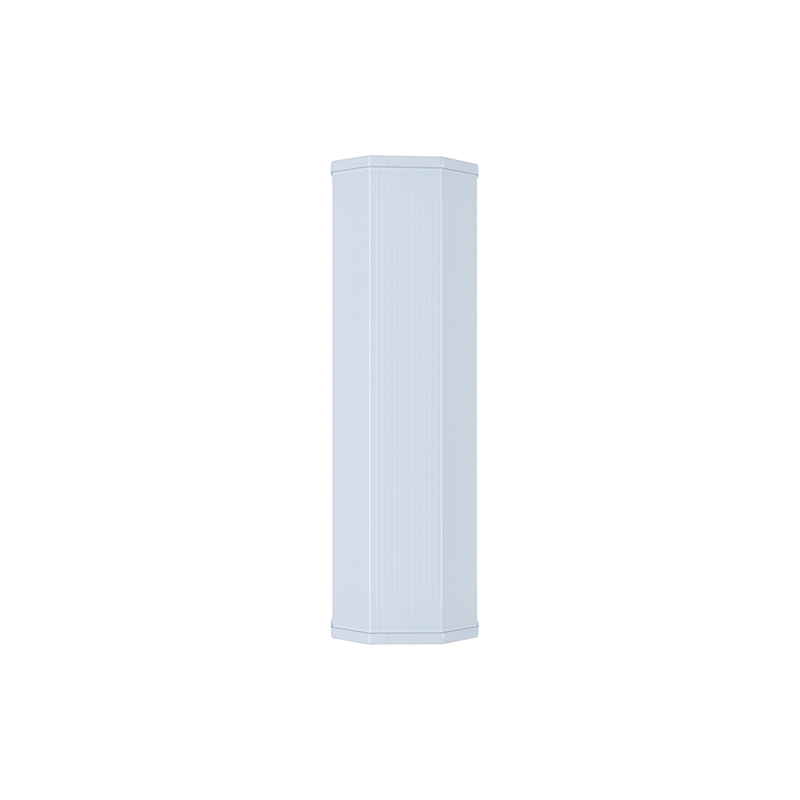

MG-6120YZ/MG-6200YZ Broadcast Waterproof Column Speakers

Speaker

• IP45 waterproof, suitable for various outdoor occasions with stable broadcasting.

• Full aluminum alloy housing, sunproof, shatterproof, durable and non-deformable.

• Clear and bright sound, elegant appearance, professional dustproof design for effective internal structure protection.

• Long-range design enhances coverage and enables longer transmission distance.

• Dedicated mounting bracket for easy installation and fixation of the column speaker.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for shopping malls, residential areas, stations, schools, parks, enterprises and other occasions.

• Model: MG-6120YZ
• Input Voltage: 70V-100V
• Power (Yellow-Blue) AES: 30V-60V
• Power (Yellow-Brown) AES: 60V-120V
• Sensitivity: 95dB
• Max SPL: 115dB
• Frequency Response: 140-15kHz
• Woofer: 6" unit × 3
• Mounting Diagonal Dimension (mm): 660±5
• Waterproof Rating: IP45
• Material: Aluminum Alloy
• Weight (kg): Approx. 6.2kg
• Product Dimensions: 740×227×125mm

• Model: MG-6200YZ
• Input Voltage: 70V-100V
• Power (Yellow-Blue) AES: 50V-100V
• Power (Yellow-Brown) AES: 100V-200V
• Sensitivity: 97dB
• Max SPL: 120dB
• Frequency Response: 140-15kHz
• Woofer: 6" unit × 5
• Mounting Diagonal Dimension (mm): 1080±5
• Waterproof Rating: IP45
• Material: Aluminum Alloy
• Weight (kg): Approx. 10.2kg
• Product Dimensions: 1160×227×125mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
