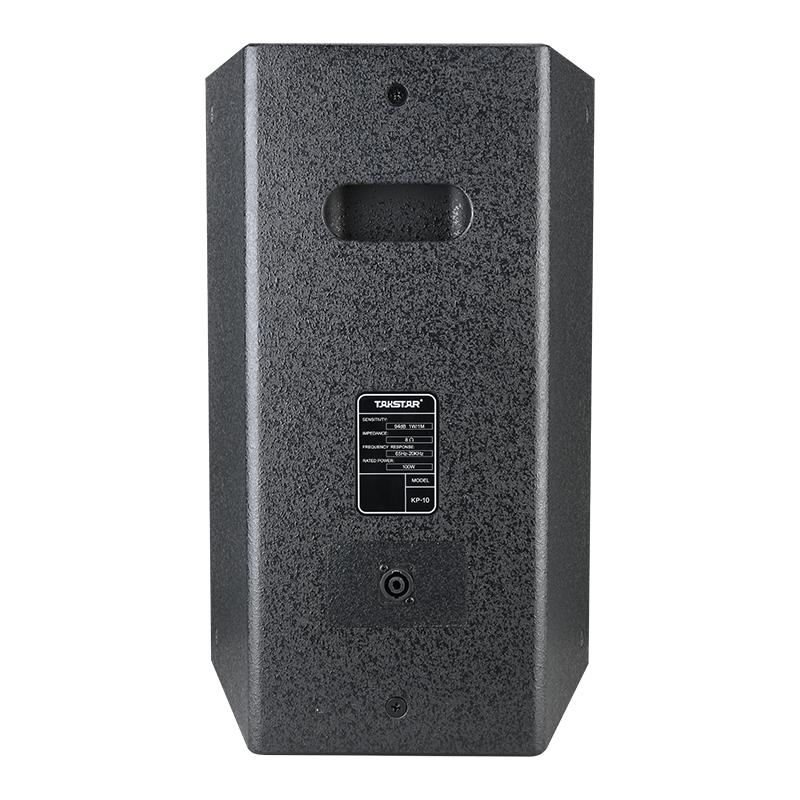

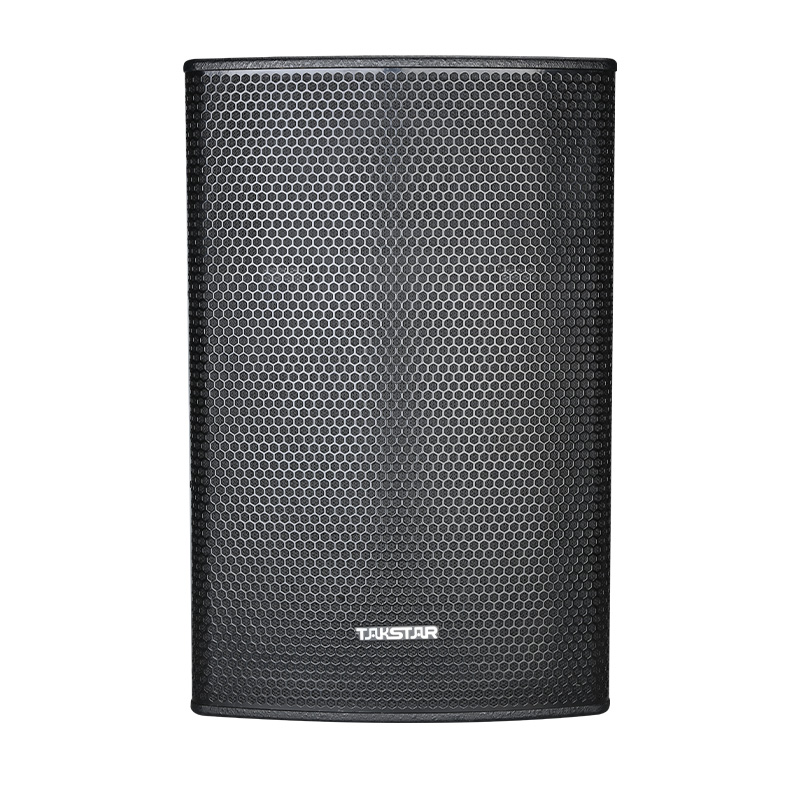

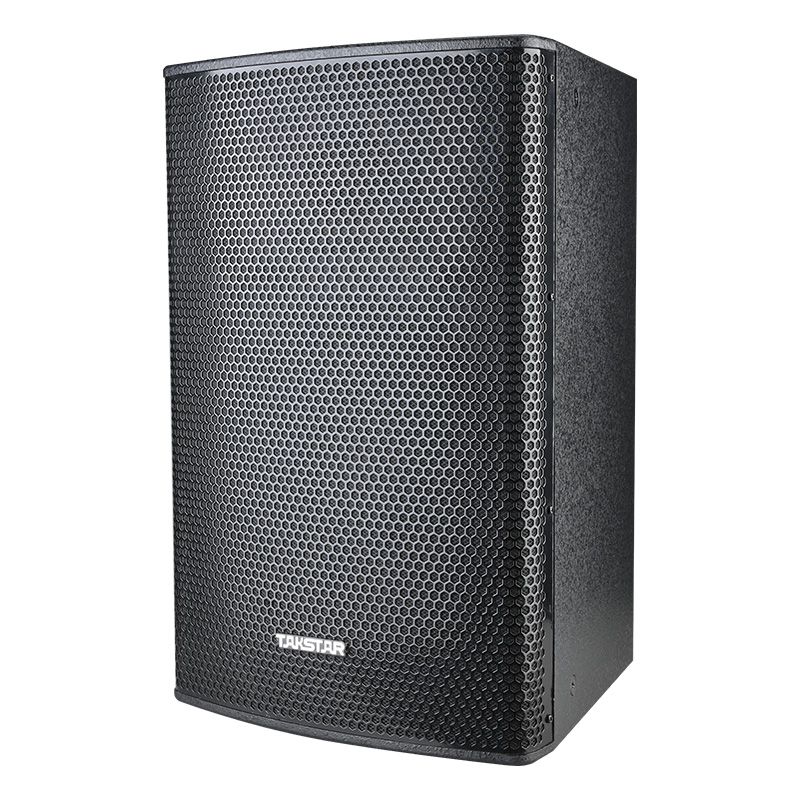

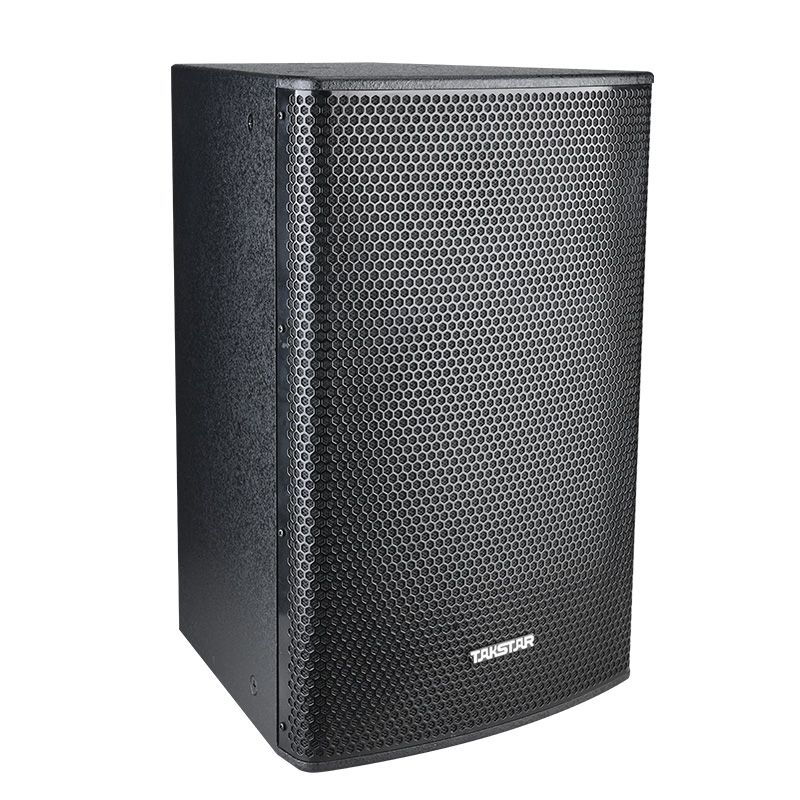

KP-10 Speaker

Speaker

• High-cost-performance 10-inch full-range speaker with a built-in two-way crossover. Its compact design houses a 10-inch bass speaker that delivers rich low-frequency vocals and a 25mm-coil horn tweeter that produces sweet and delicate high frequencies.

• Crossover components utilize low-loss, high-quality film capacitors and cement resistors with good heat dissipation, ensuring a stable crossover performance and exceptional sound quality.

• Uniform overall tonal quality, accentuating natural and clear sound characteristics in both music and vocal performances. Repeatedly tested with various dynamic and condenser mics during development, achieving excellent vocalquality results.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for conference rooms, lecture halls, and similar venues.

• Power: 100W
• Impedance: 8Ω
• Frequency Response (±3dB): 65Hz-20kHz
• Sensitivity (1W/1M): 94dB
• Coverage Angle: H90° × V60°
• Maximum Sound Pressure Level: 121dB
• Crossover Mode: Two-way
• Installation: Stand/Suspension
• Wiring Method: 1×NL4 speakon (1+, 1-)
• Enclosure: 12mm MDF
• Surface Treatment: Black textured paint
• Driver:
High Frequency: 1″ × 1 (25mm-coil)
Low Frequency: 10″ × 1 (35mm-coil)
• Product Size (W*D*H): 277*270*445mm
• Net Weight: Approx. 7.15kg per unit

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
