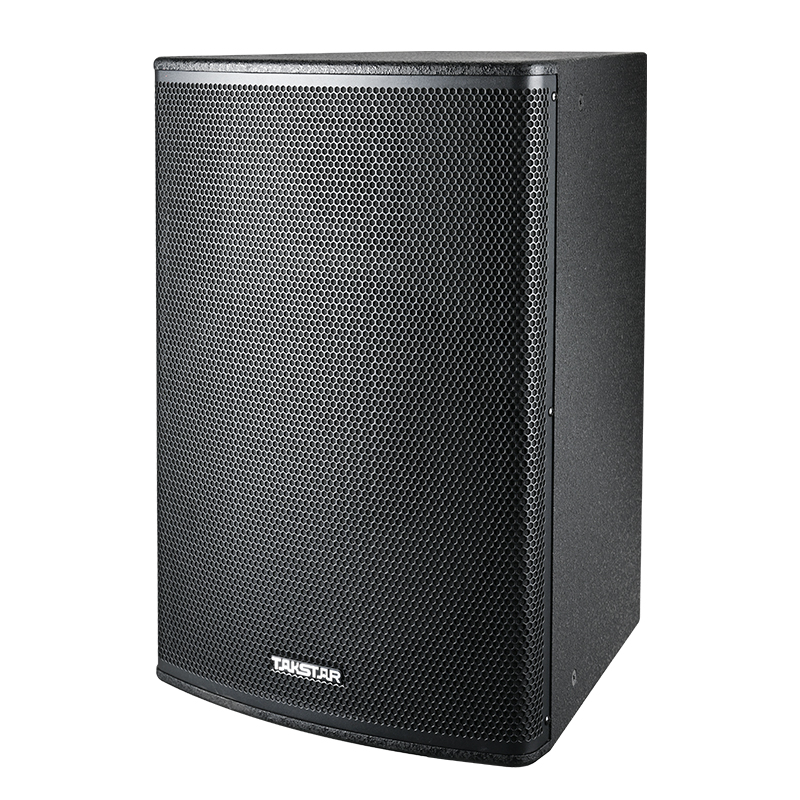

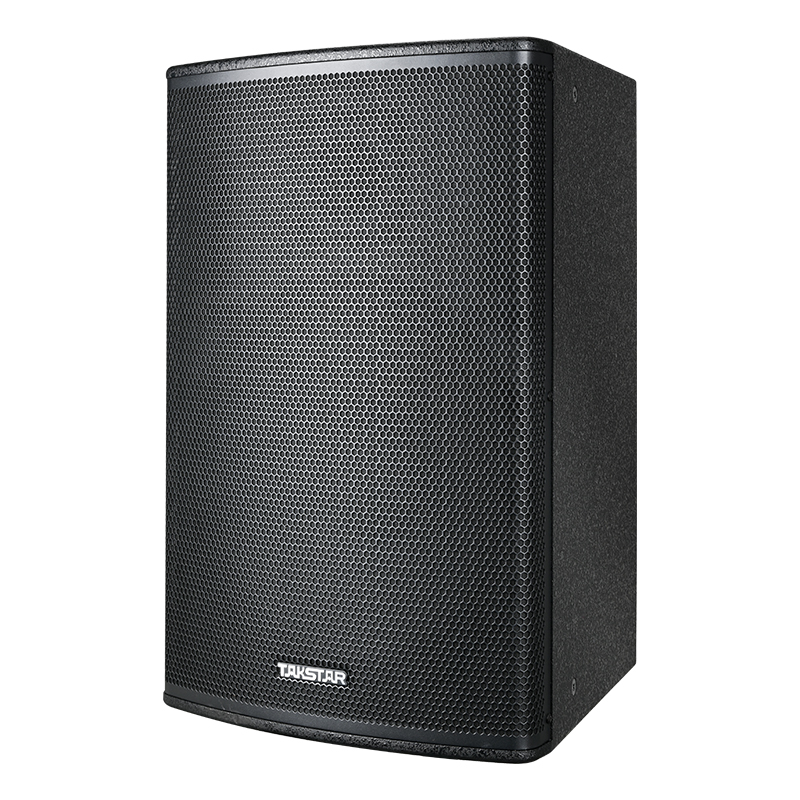

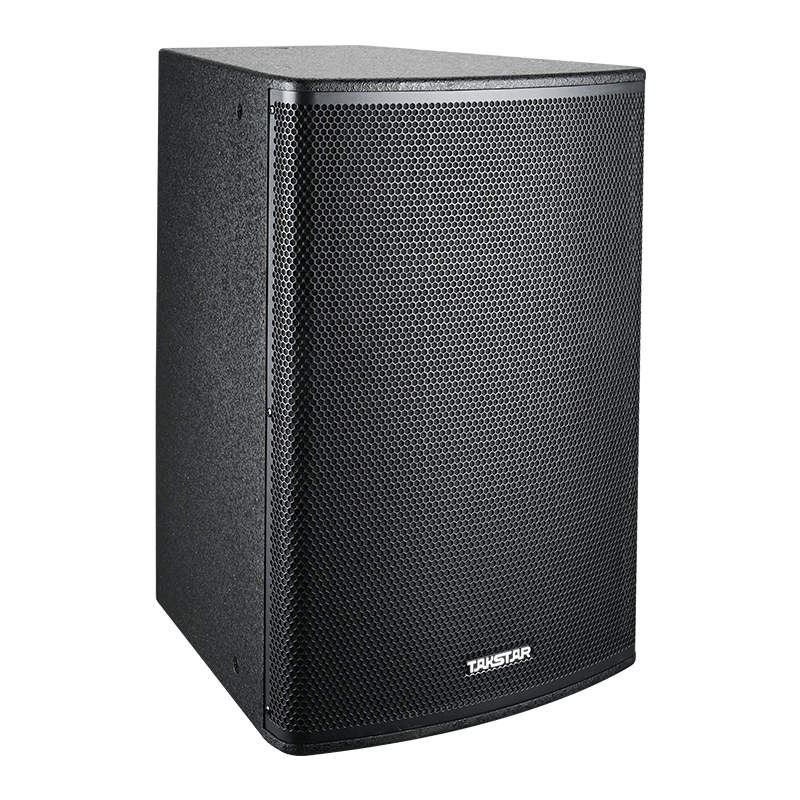

KP-15 Speakers

Speaker

• The KP Series is full-range speakers with built-in two-way frequency division, featuring one woofer for rich vocal low frequencies and one tweeter with sweet, delicate sound.

• Its crossover uses low-loss high-quality film capacitors and heat-resistant cement resistors, ensuring stable crossover and superior sound quality.

• The speaker has balanced sound layers, delivering natural, clear sound for music and vocals. It was repeatedly tested with various dynamic and condenser microphones during development, all achieving good vocal quality.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial









• Ideal for conference rooms, lecture halls, and other similar venues

• Model: KP-15
• Power (AES): 500W
• Impedance: 8Ω
• Frequency Response (±3dB): 45Hz-20kHz
• Sensitivity (1W/1M): 97dB
• Coverage Angle: H90°*V60°
• Maximum SPL: 126dB
• Crossover Mode: Two-Way
• Suspension/Mounting: Bracket/Suspension

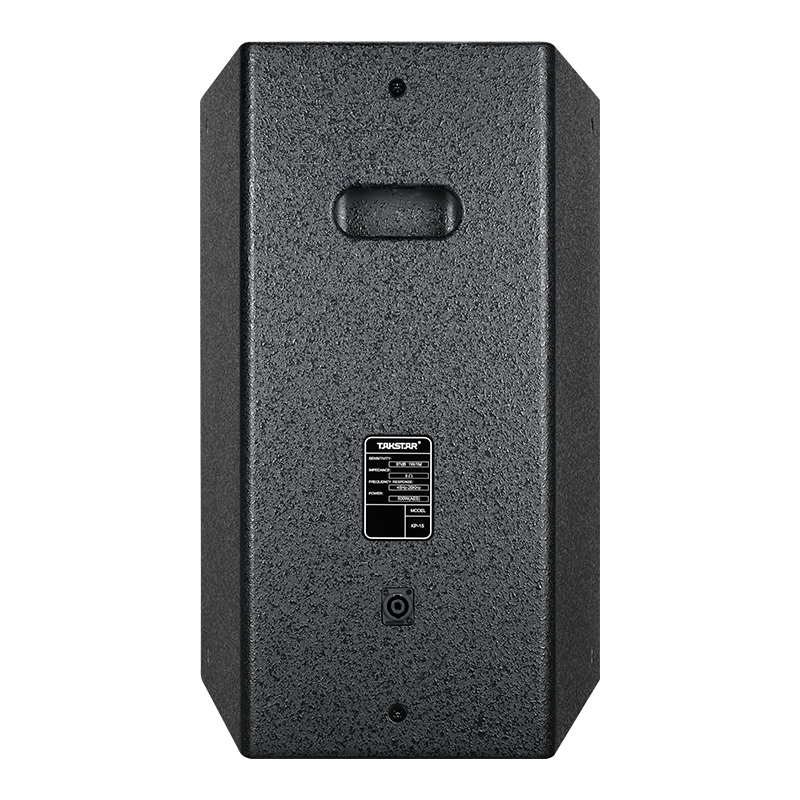

• Connection Type: 1×NL4speakon (1+, 1-)
• Cabinet: 15mm MDF
• Surface Treatment: Black Speckled Paint
• Driver: HF: 1″×1 (25mm Coil)
• LF: 15″×1 (50mm Coil)
• Product Dimensions (W*D*H): 412*423*609mm
• Net Weight: Approx. 18.2kg/unit

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
