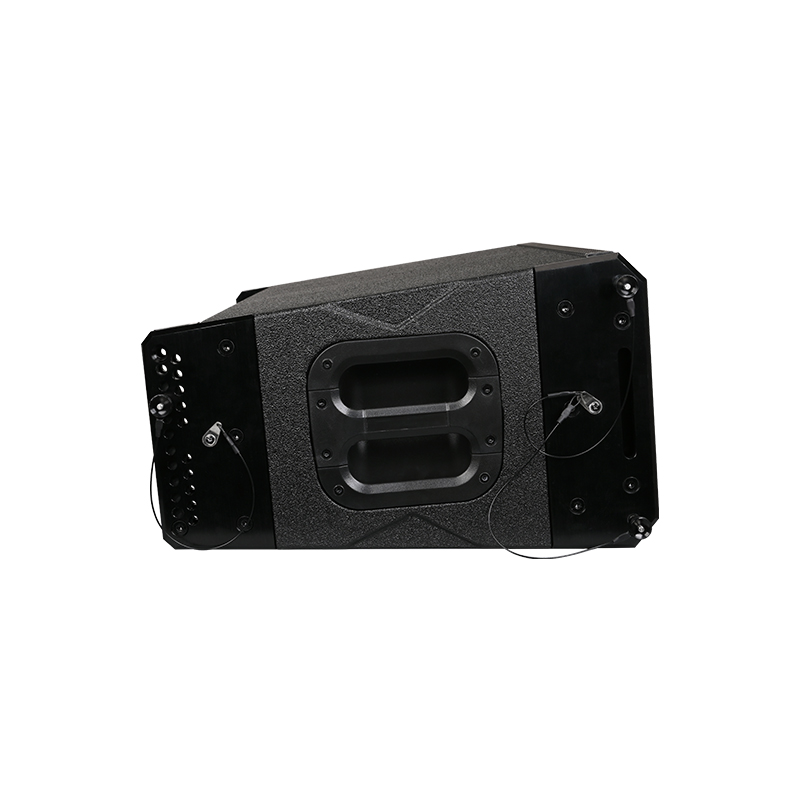

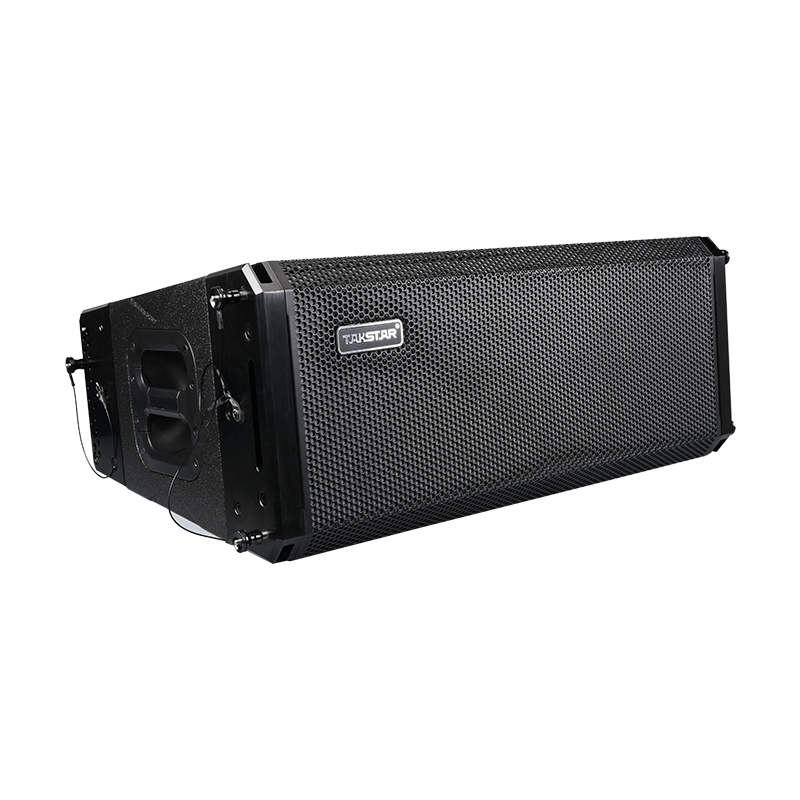

ELA-082F Waterproof Line Array Speaker

Professional
Speaker

• IPX6 certified for all-weather use, with a polyurea coating that protects against moisture and corrosion, extending lifespan in various environments.

• Dual 8-Inch Woofers with 50mm voice coils and high-quality imported paper cones, ensuring rich sound with minimal distortion at high power. Paired with a Celestion tweeter and a high-directionality horn, this design eliminates sound quality loss from built-in crossovers, resulting in high sensitivity and clear mids and highs.

• Woofer features a high-temperature fiberglass frame and high-temperature oxygen-free copper wire. The woofer cone's surround has a groove design for enhanced strength and is coated with damping glue to handle high dynamics and power.

• Tweeter utilizes a neodymium iron-boron magnet and a one-inch throat with a high-directionality horn, delivering smooth high frequencies with strong penetration and improved sound propagation distance.

Product Detail

Product Detail
Application
Specification
Product Tutorial

• Small show, church, theater, multifunciton hall, stadium

Driver Spec
MFLF Driver
• Outer Dia: 8''
• Voice Coil Dia: 50mm
• Magnet: Ferrite 160mm
• Sensitivity: 98dB
• Rated Impedance/Power: 8Ω/220W
• Frequency Response: 73Hz-4KHz

HF Driver (Tweeter)
• Outer Dia: 90mm
• Voice Coil Dia: 44mm
• Magnet: NdFeB
• Sensitivity: 113dB
• Rated Impedance /Power: 8Ω/80W
• Frequency Response: 1.2KHz-19KHz

Speaker Spec
MFLF Driver
• Quantity: 2PCS
• Impedance: 16Ω (two LF connected in series)
• Directivity: 90° x 8°
• Rated/Peak Power: 440W(AES) /1600W
• Matching Power Amp: 800W * 2, two speakers in parallel
• Crossover Range: 80Hz-2300Hz(Above is the recommended value, but subwoofer and MFLF crossover can be selected between 80-130Hz as long as their frequencies are continuous.)
• Filter Preset: High Pass Bwt24, Low Pass Lk/R24
• Panel: 18mm Plywood
• Dimensions: 450 x 650 x 270mm（W x D x H）
• Connector: 2PCS, IN: MFLF Pin 1 &2, HF Pin 3 &4
• Cable: 1.5mm² Four-Core Audio Cable
• Waterproof Rating: IPX6

HF Driver (Tweeter)
• Quantity: 2PCS
• Impedance: 16Ω (two HF connected in series)
• Directivity: 90° x 8°
• Rated/Peak Power: 160W(AES)/640W
• Matching Power Amp: 300W * 2, two speakers in parallel
• Crossover Range: 2300Hz-17000Hz(Above is the recommended value, but subwoofer and MFLF crossover can be selected between 80-130Hz as long as their frequencies are continuous.)
• Filter Preset: High Pass Lk/R24, Low Pass Lk/R24
• Panel: 18mm Plywood
• Dimensions: 450 x 650 x 270mm（W x D x H）
• Connector: 2PCS, IN: MFLF Pin 1 &2, HF Pin 3 &4
• Cable: 1.5mm² Four-Core Audio Cable
• Waterproof Rating: IPX6

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
