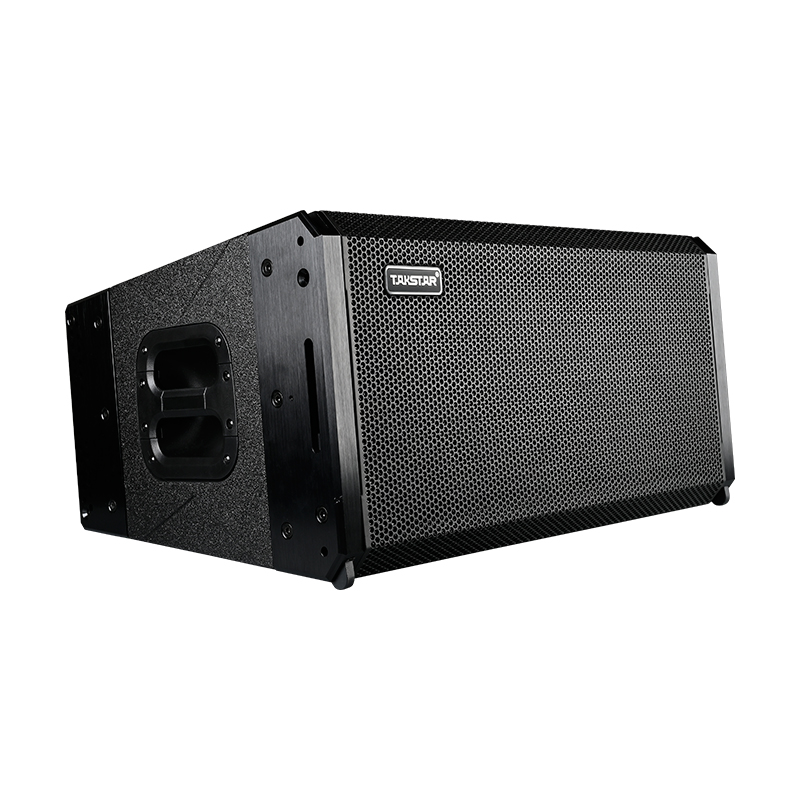

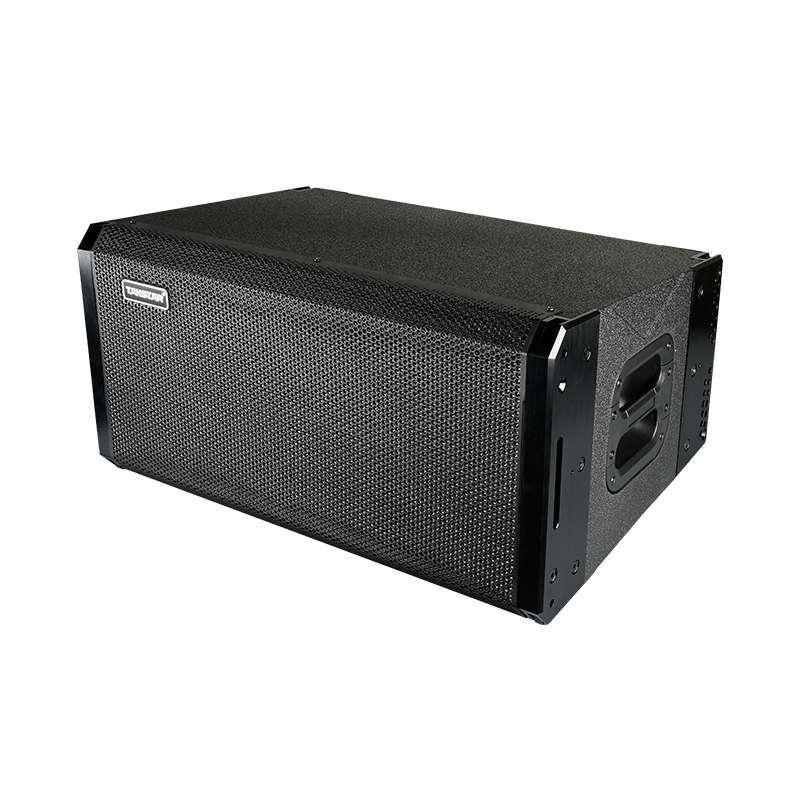

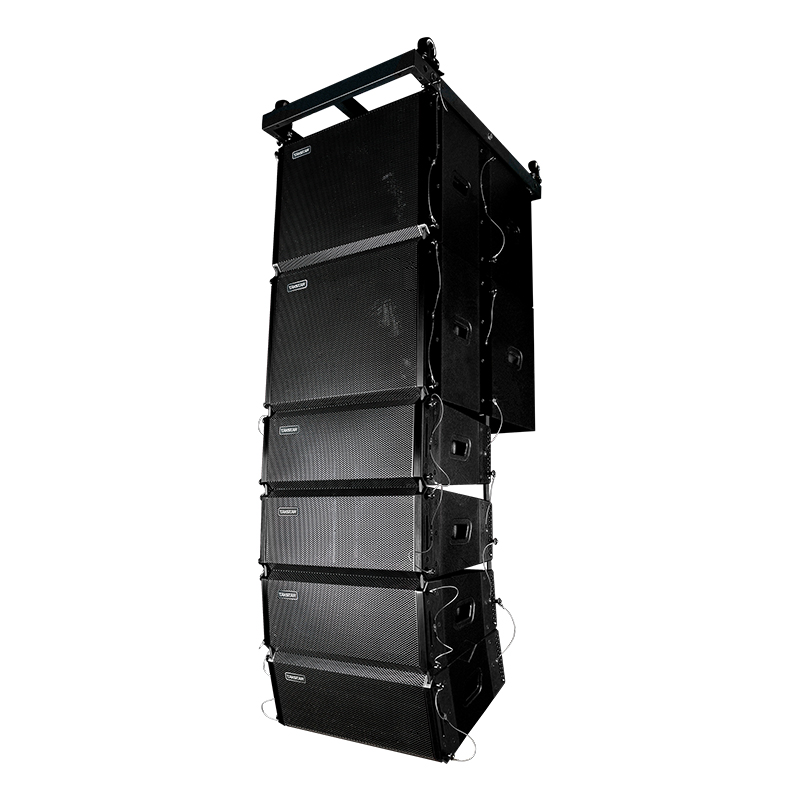

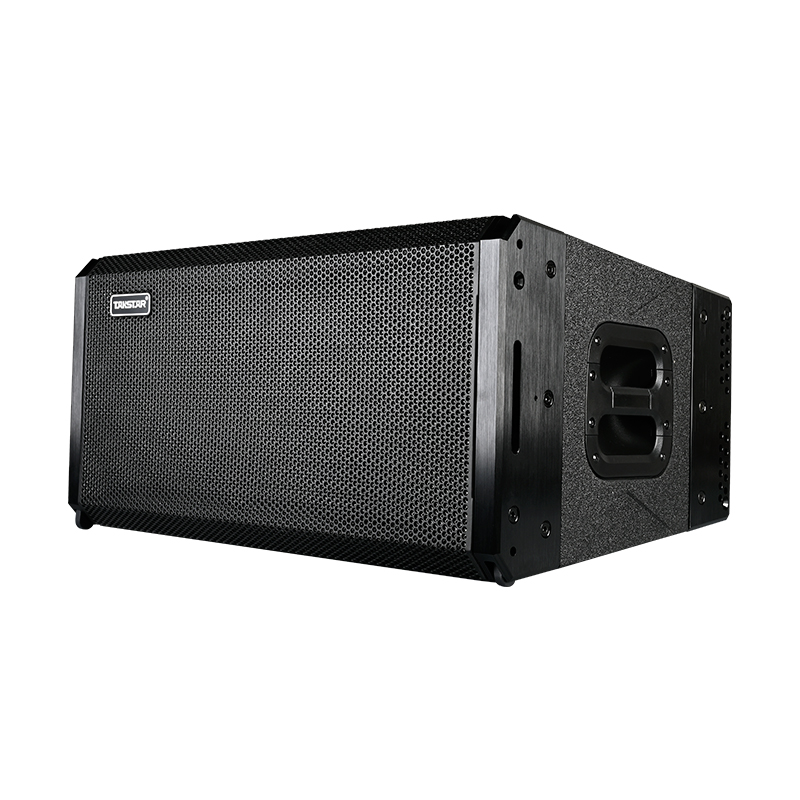

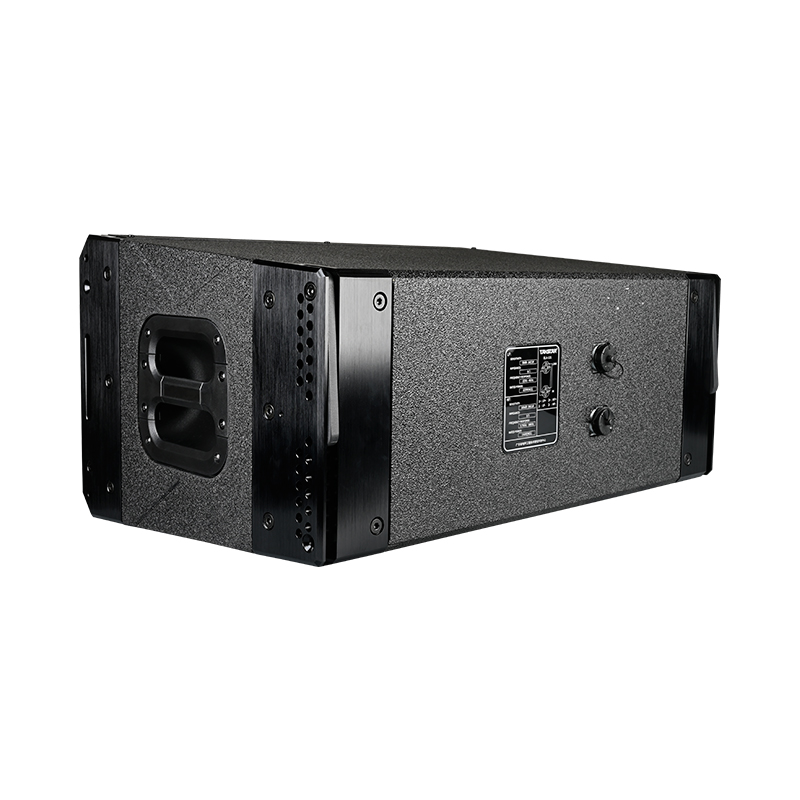

ELA-121F Waterproof Line Array Speaker

Speaker

• IPX6 waterproof certification, for all-weather use. Polyurethane-coated cabinet extends lifespan, resistant to moisture and corrosion.

• Imported drivers: 12-inch MFLF with 75mm voice coil, neodymium magnet for lightweight, high-sensitivity, wide frequency response. HF driver uses parallel neodymium magnet structure for efficient heat dissipation and magnetic flux, delivering smooth, non-fatiguing sound. Polymer diaphragm for smooth HF, and BMC horn with glossy coating for high strength, excellent acoustics and directionality.

• Electronic crossover eliminates sound quality loss associated with built-in crossovers, ensuring high sensitivity, accurate mid-range and HF resolution.

Product Detail

Product Detail
Application
Specification
Product Tutorial

• Small show, church, theater, multiunction hall, stadium

Driver Spec
MFLF Driver
• Outer Dia: 12''
• Voice Coil Dia: 75mm
• Magnet: NdFeB
• Sensitivity: 98dB
• Rated Impedance: 8Ω
• Frequency Response: 65Hz-4kHz

HF Driver (Tweeter)
• Outer Dia: 123mm
• Voice Coil Dia: 65mm
• Magnet: NdFeB
• Sensitivity: 109dB
• Rated Impedance: 8Ω
• Frequency Response: 0.7kHz-18kHz

Speaker Spec
MFLF Driver
• Quantity: 1PC
• Impedance: 8Ω
• Directivity: 100° x 8°
• Rated Power: 600W(AES)
• Matching Power Amp: 800W * 2, two speakers in parallel
• Crossover Range: 50Hz-1700Hz(Above is the recommended value, but subwoofer and MFLF crossover can be selected between 80-130Hz as long as their frequencies are continuous.)
• Filter Preset: High Pass BW-24, Low Pass BW-48
• Panel: 18mm Plywood
• Dimensions: 450*650*329mm (W*D*H)
• Connector: IN: MFLF Pin 1 &2, HF Pin 3 &4
• Cable: Four-Core Audio Cable
• Waterproof Rating: IPX6

HF Driver (Tweeter)
• Quantity: 1PC
• Impedance: 8Ω
• Directivity: 100° x 8°
• Rated/Peak Power: 150W(AES)
• Matching Power Amp: 300W * 2, two speakers in parallel
• Crossover Range: 1700Hz-18000Hz(Above is the recommended value, but subwoofer and MFLF crossover can be selected between 80-130Hz as long as their frequencies are continuous.)
• Filter Preset: High Pass LK-24, Low Pass LK-24
• Panel: 18mm Plywood
• Dimensions: 450*650*329mm (W*D*H)
• Connector: IN: MFLF Pin 1 &2, HF Pin 3 &4
• Cable: Four-Core Audio Cable
• Waterproof Rating: IPX6

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
