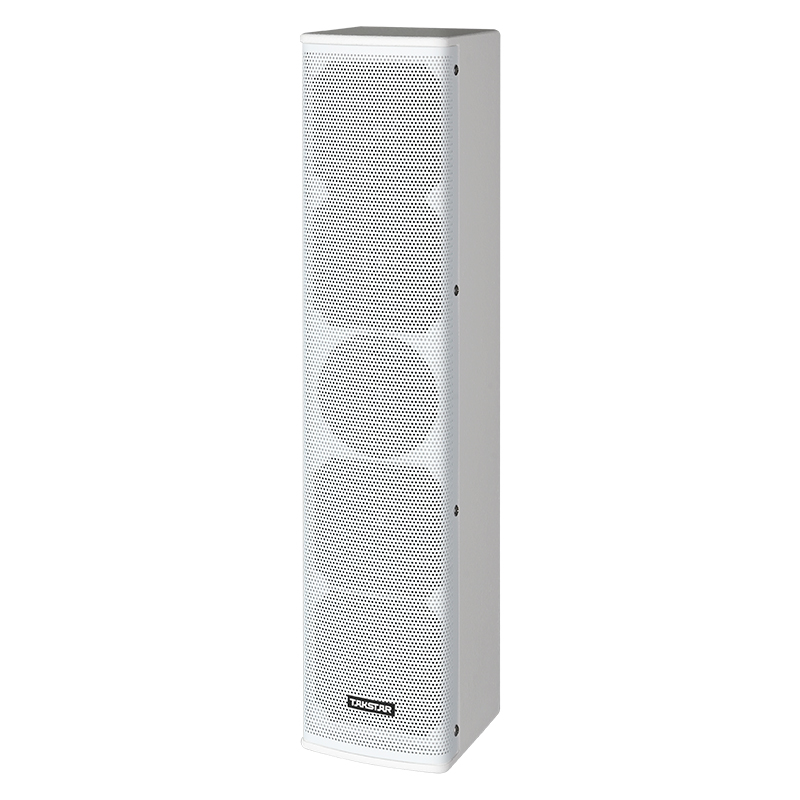

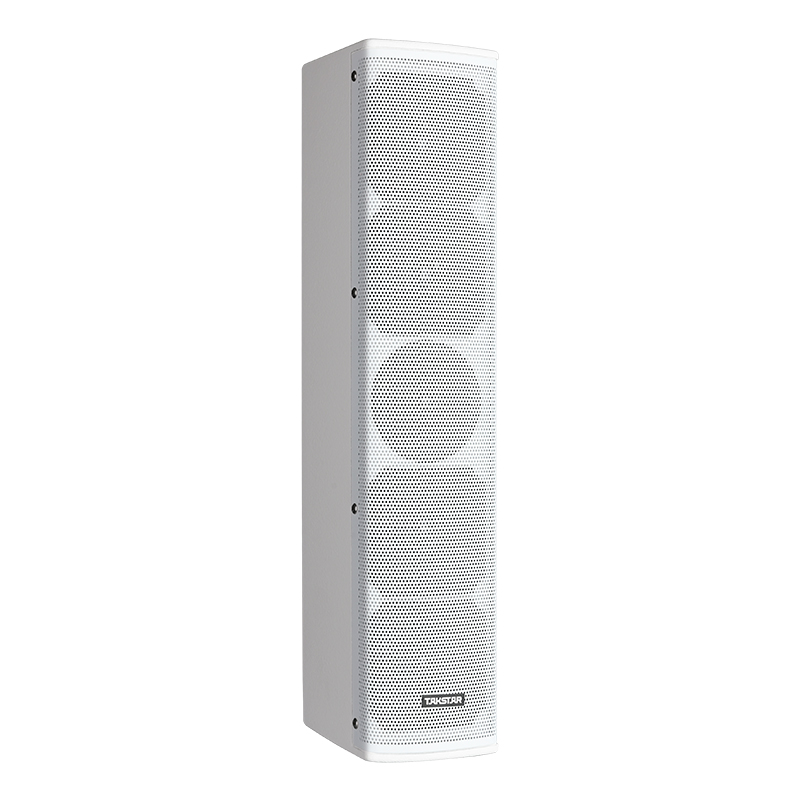

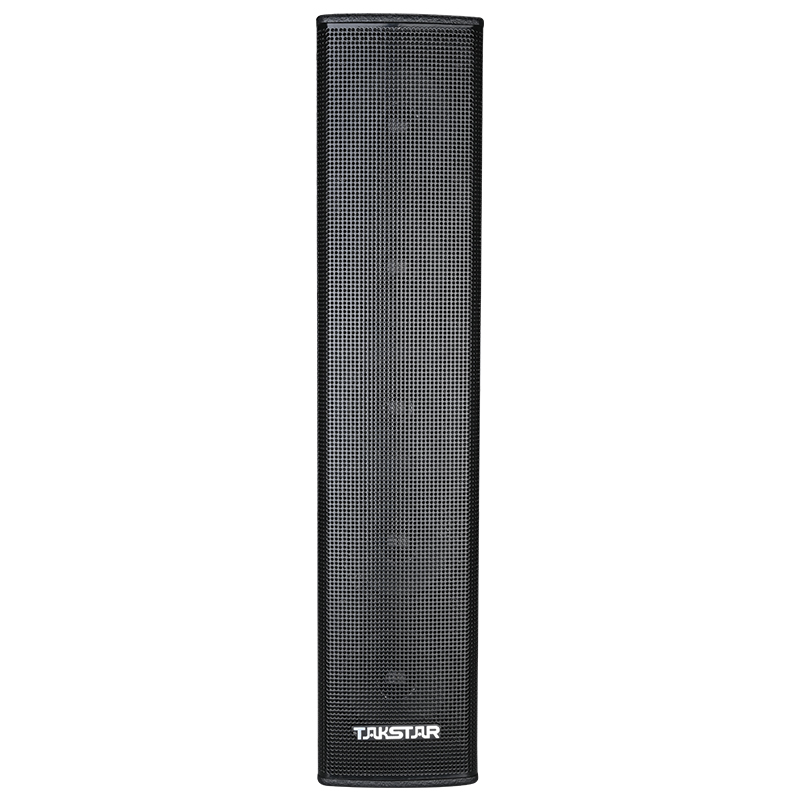

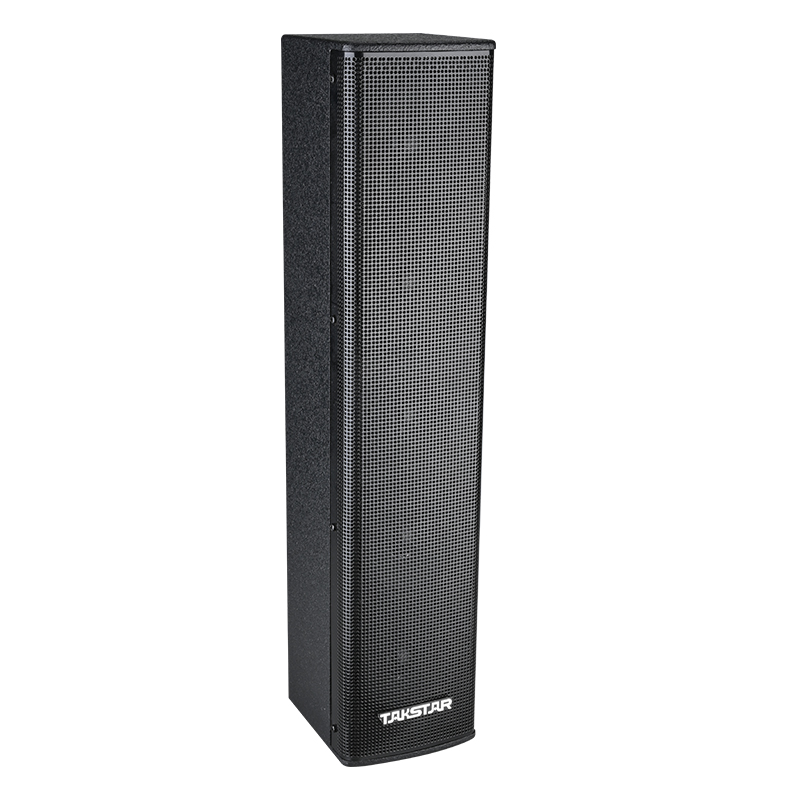

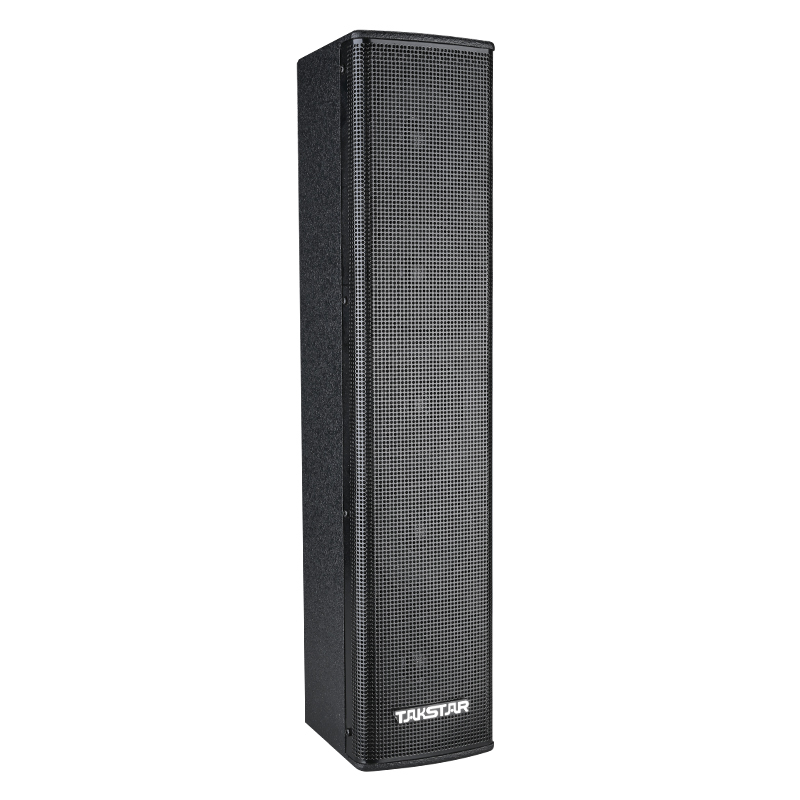

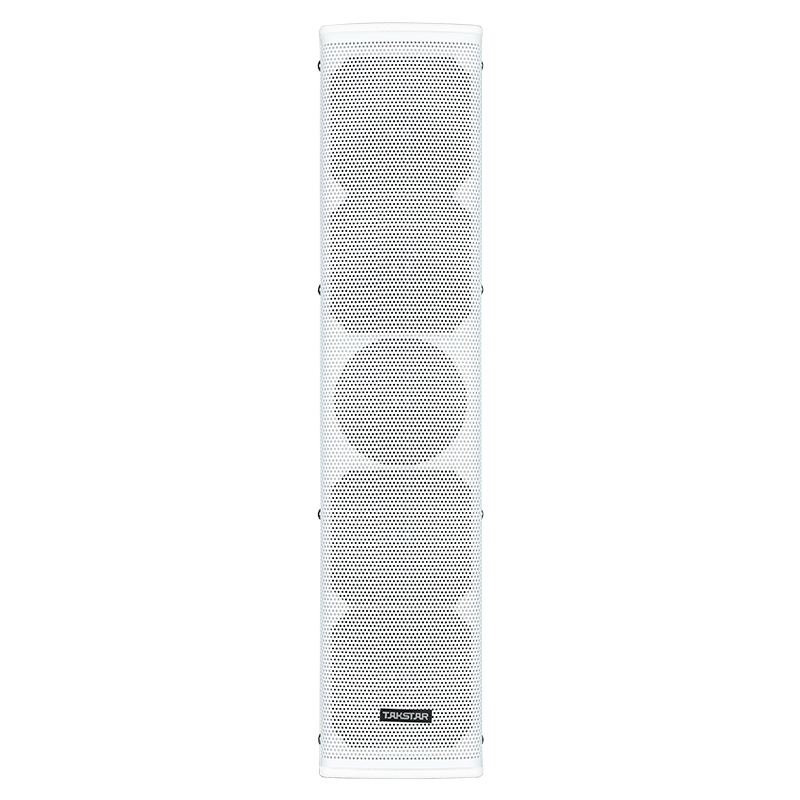

• Consists of four 4-inch woofers and one 3-inch tweeter. The woofers use rubber surrounds with excellent elasticity and fatigue resistance, resulting in quick mid-bass response and dynamic performance. The magnetic circuit features a symmetrical design to minimize harmonic distortion. The horizontal arrangement of the drivers provides wider horizontal directivity, while the vertical linear arrangement minimizes vertical directivity, allowing for long propagation distances.
• Crossover components use high-quality polypropylene capacitors with low loss values, ensuring a stable crossover performance and outstanding sound quality.
• Cabinet features a symmetrical trapezoidal structure with sound-absorbing material on the inner walls, reducing standing waves and resulting in cleaner mid-bass performance with a flatter frequency response. The elongated cabinet is compatible with various interior design styles.
• Suitable for conference rooms, lecture halls, and similar venues.

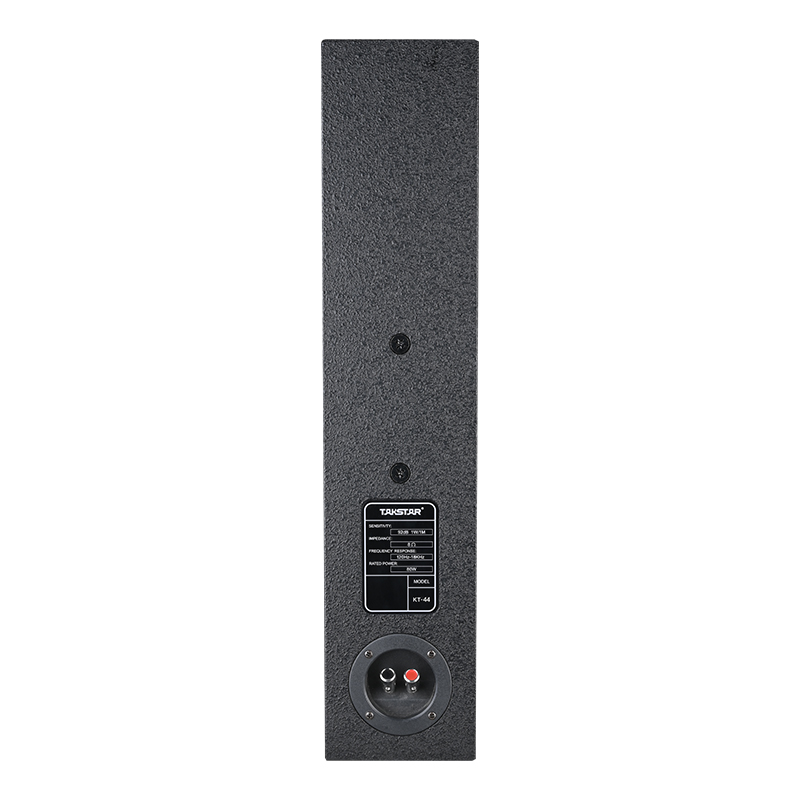

• Power: 130W(AES) • Impedance: 8Ω • Frequency Response (±3dB): 120Hz-18kHz • Sensitivity (1W/1M): 92dB • Coverage Angle: H90° × V60° • Maximum Sound Pressure Level: 108dB • Crossover mode: Two-way • Mounting: Wall mount • Wiring Method: push-type terminal box • Cabinet: 9mm medium-density fiberboard • Surface Treatment: black speckled paint • Drivers: High frequency: 3″ × 1 (13mm-coil) Low frequency: 4″ × 4 (16mm-coil) • Product Size (W*D*H): 120*133*560mm • Accessory Net Weight: Approx. 0.6kg per unit • Speaker Net Weight: Approx. 3.65kg per unit Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Column Speaker | 2 PC |
| • Wall Bracket | 2 PC |
| • User Manual | 1 PC |
User manualKT-44 Column Speaker User Manual2025-07-31 09:20:36Download
