ECA-1810F Dustproof and Waterproof Line Array Speaker

Speaker

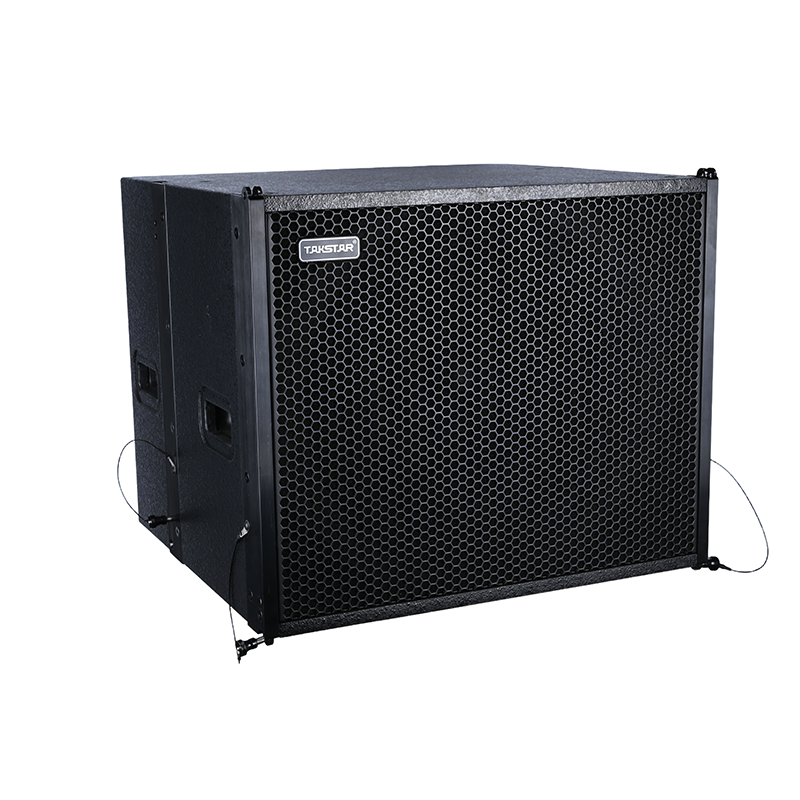

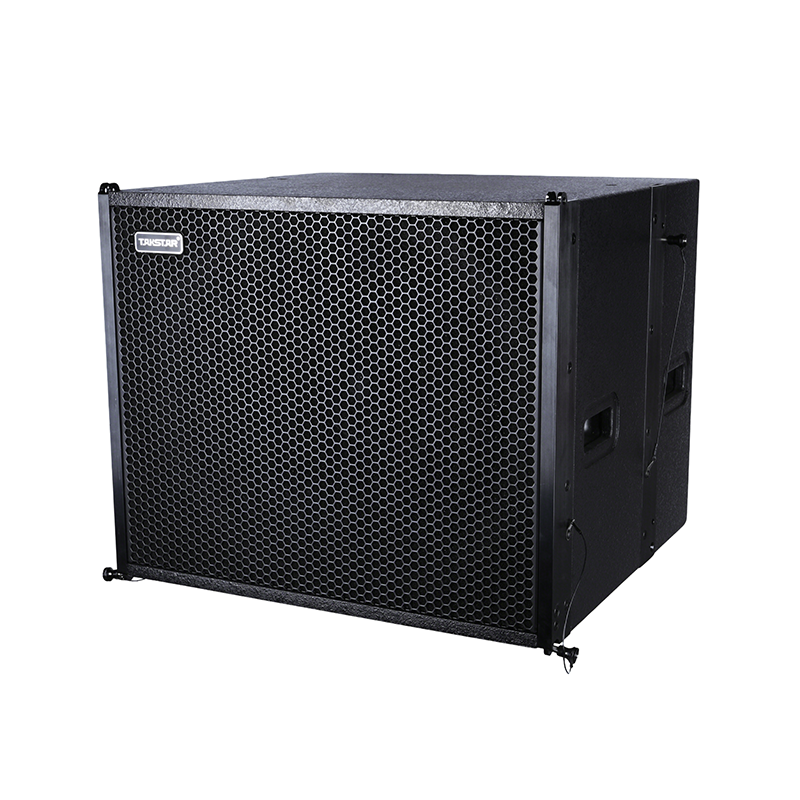

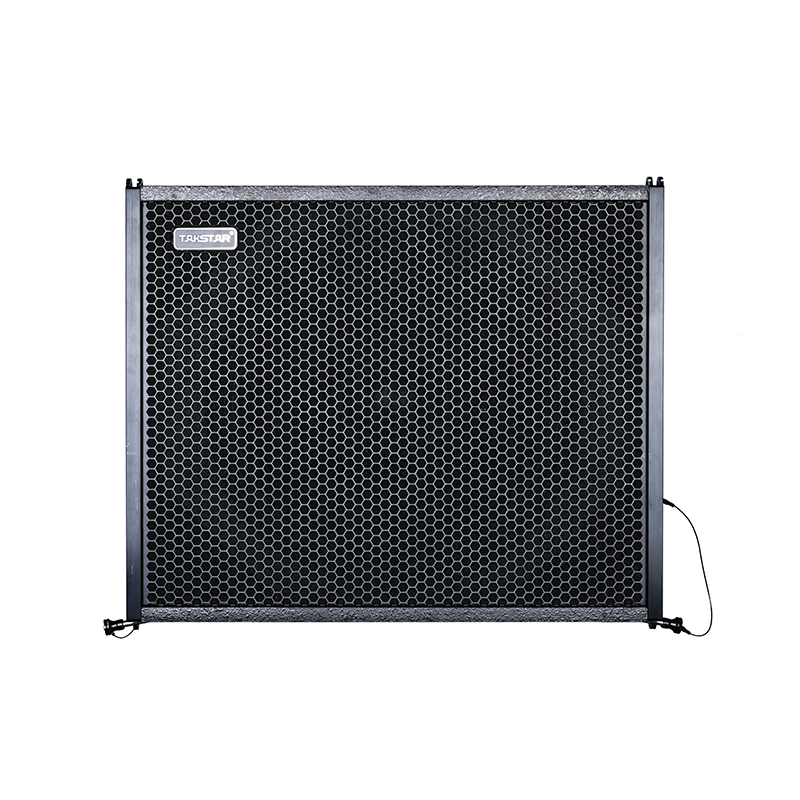

ECA-F Series Dustproof and Waterproof Subwoofer

• IP56-certified ECA-F series waterproof and dustproof subwoofer for all-weather use. Its polyurea-coated cabinet is waterproof, dustproof, moisture-proof, and anti-corrosion, extending service life and adapting to more environments.

• Features one 18" woofer, designed for use with ECA-F series full-range speaker.

• Woofer uses specially coated cloth surrounds with excellent elasticity and durability for full, fast, and dynamic low frequencies.

• Symmetrical magnetic circuit design ensures low harmonic distortion.

• Employs a bass-reflex design with an additional front chamber opening that functions as a horn; the combined output of the port and driver is compressed and radiated through the front chamber, enhancing forward energy transmission and improving low-frequency SPL and impact.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for outdoor venues such as stadiums, playgrounds, cultural tourism scenic spots, and theme parks.

• Parameters/Model: ECA-1810F
• IP Rating: IP56
• Total Power (Internal): 1500
• Woofer Power (External): 1500
• Impedance (Internal): 8Ω
• Frequency Range (Internal): 38Hz-500Hz
• Sensitivity (dB): 104
• Maximum SPL: 142
• Mounting: Flying/Stacking
• Woofer: 18"×1
• Built-in Crossover Wiring: 2×NL4 speakon (IN: 1+, 1-; LINK: 1+, 1-)
• Cabinet Material (mm): 18
• Surface Finish: Black polyester paint
• Dimensions (W×D×H): 636*570*543mm
• Net Weight (kg): 41.2kg

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
