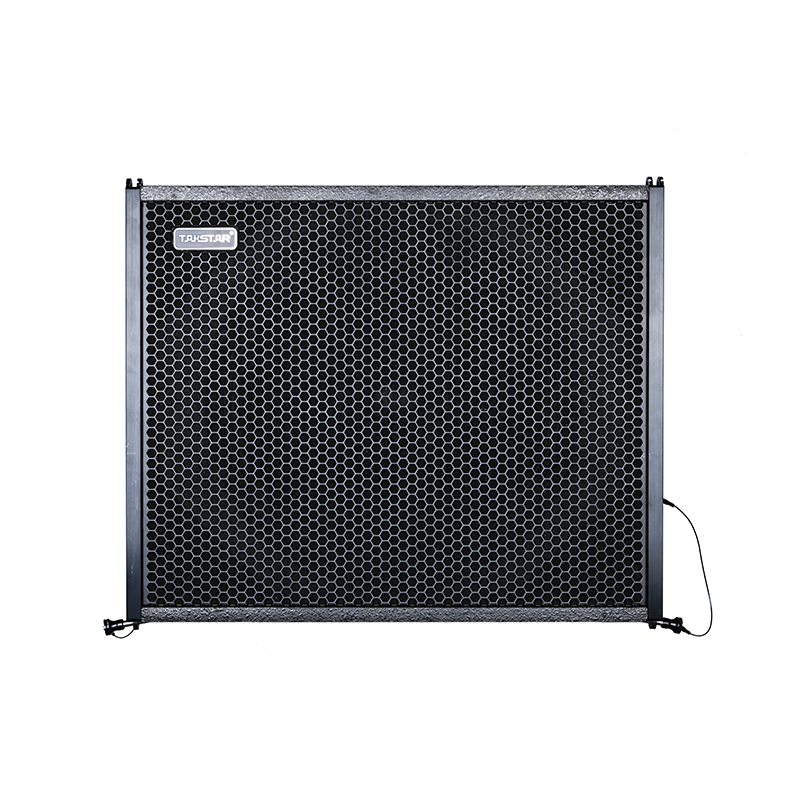

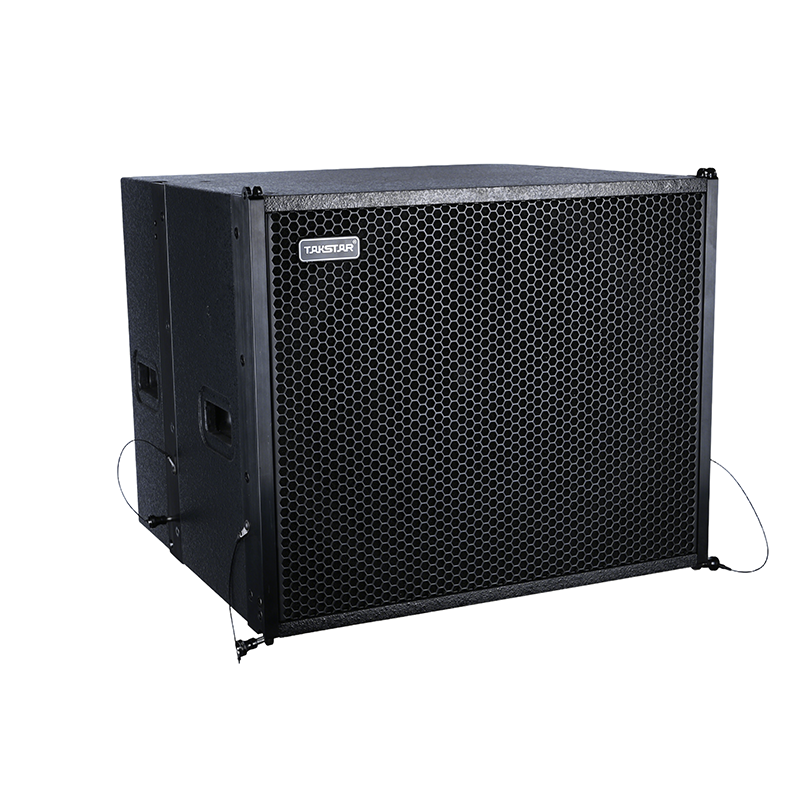

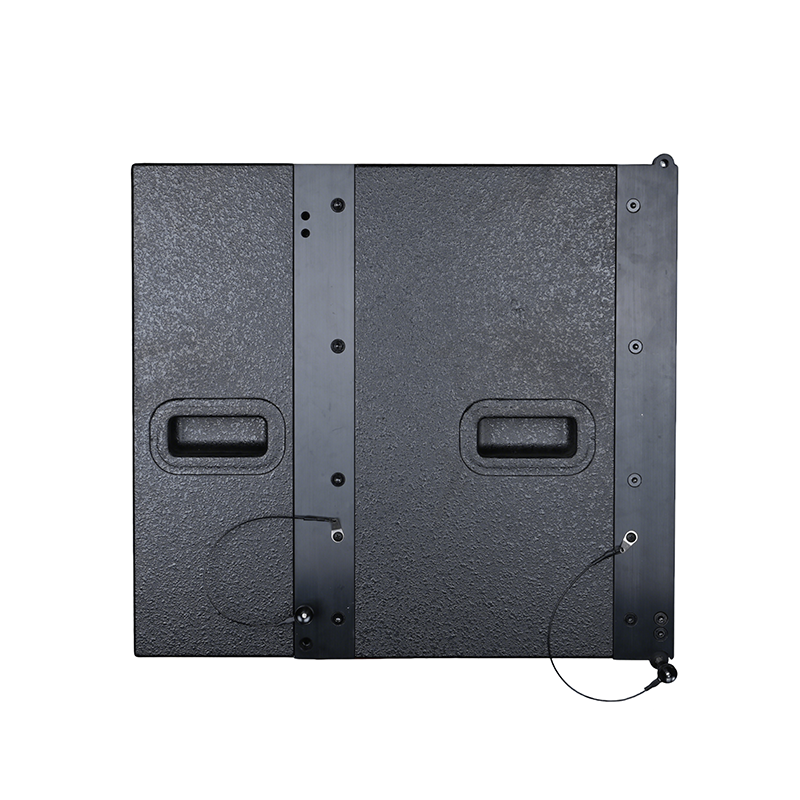

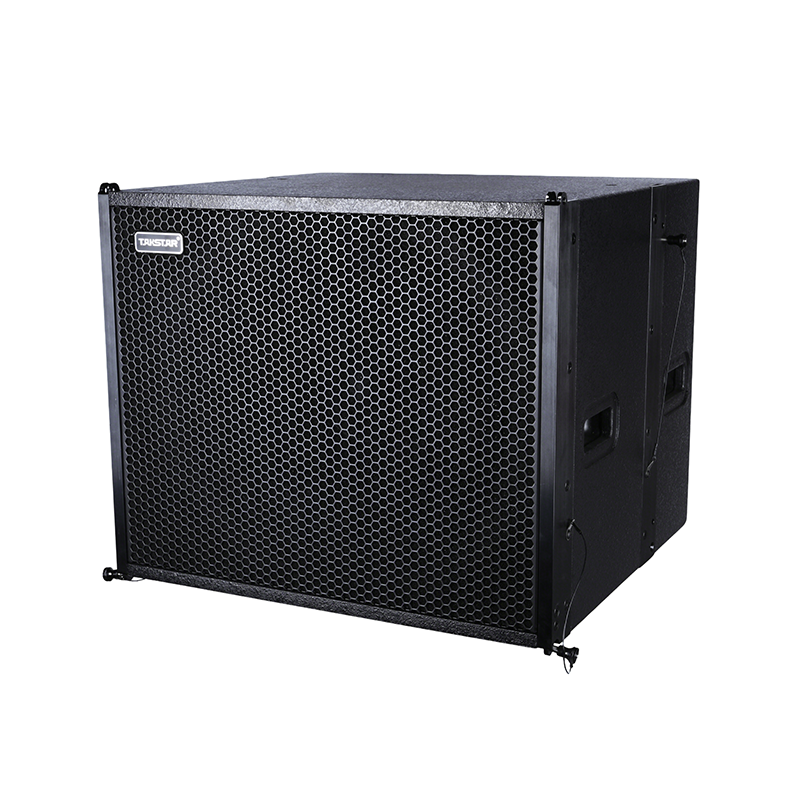

ECA-1808F Dustproof and Waterproof Line Array Speaker
- Speaker
ECA-F Series Dustproof and Waterproof Subwoofer
• IP56-certified ECA-F series waterproof and dustproof subwoofer for all-weather use. Its polyurea-coated cabinet is waterproof, dustproof, moisture-proof, and anti-corrosion, extending service life and adapting to more environments.
• Features one 18" woofer, designed for use with ECA-F series full-range speaker.
• Woofer uses specially coated cloth surrounds with excellent elasticity and durability for full, fast, and dynamic low frequencies.
• Symmetrical magnetic circuit design ensures low harmonic distortion.
• Employs a bass-reflex design with an additional front chamber opening that functions as a horn; the combined output of the port and driver is compressed and radiated through the front chamber, enhancing forward energy transmission and improving low-frequency SPL and impact.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Suitable for outdoor venues such as stadiums, playgrounds, cultural tourism scenic spots, and theme parks.
• Parameters/Model: ECA-1808F • IP Rating: IP56 • Total Power (Internal): 1500 • Woofer Power (External): 1500 • Impedance (Internal): 8Ω • Frequency Range (Internal): 38Hz-500Hz • Sensitivity (dB): 104 • Maximum SPL: 142 • Mounting: Flying/Stacking • Woofer: 18"×1 • Built-in Crossover Wiring: 2×NL4 speakon (IN: 1+, 1-; LINK: 1+, 1-) • Cabinet Material (mm): 18 • Surface Finish: Black polyester paint • Dimensions (W×D×H): 636*570*543mm • Net Weight (kg): 41.2kg Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Speaker | 1 PC |
| • User Manual | 1 PC |
| • Waterproof Connectors | 2 PC |
User manualECA-1808F Dustproof and Waterproof Line Array Speaker User Manual2026-08-14 14:08:36Download
User manualECA-1808F
