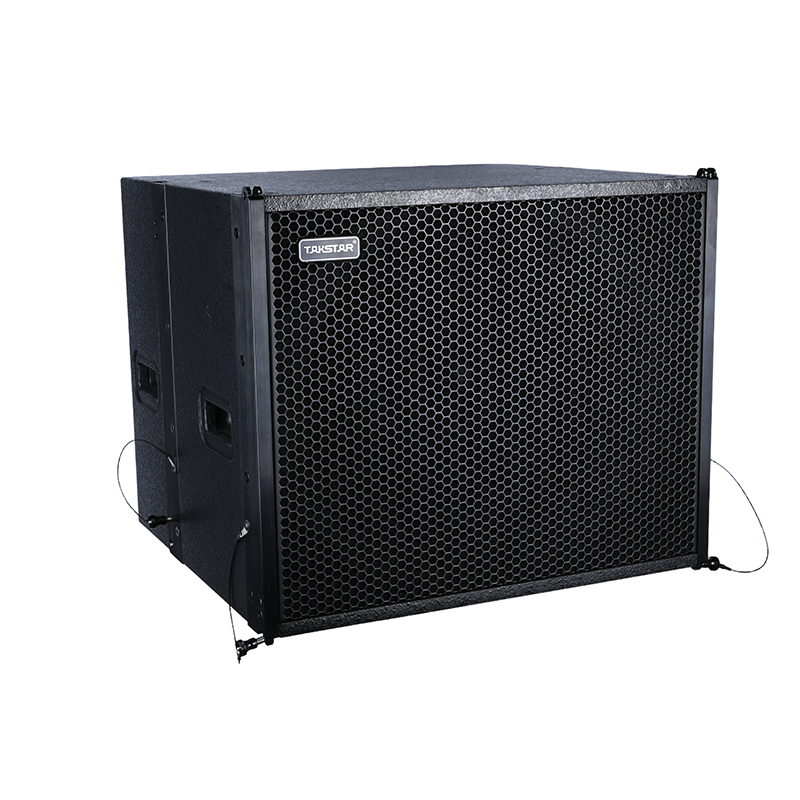

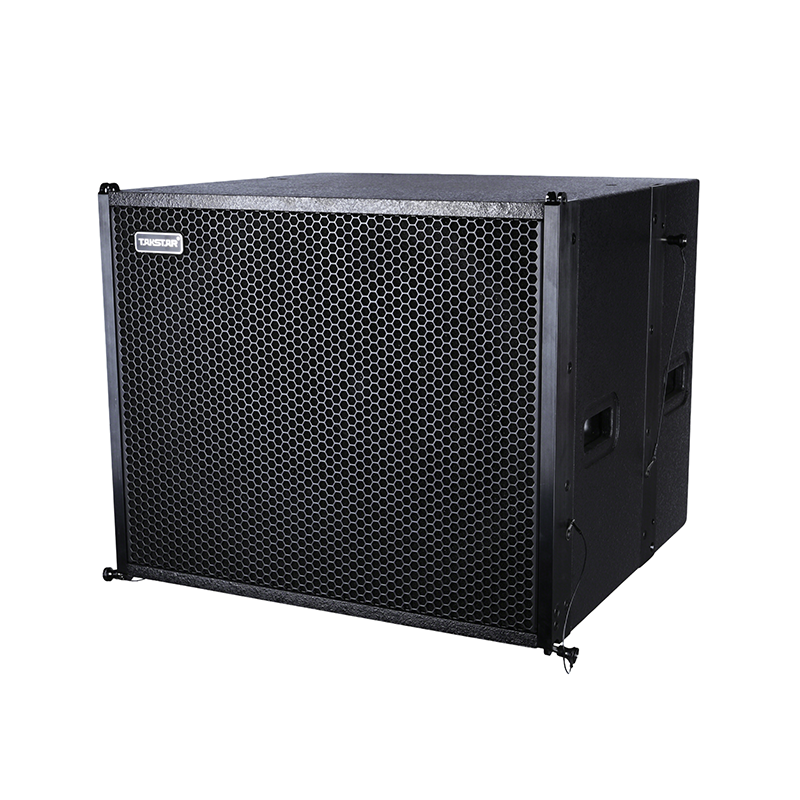

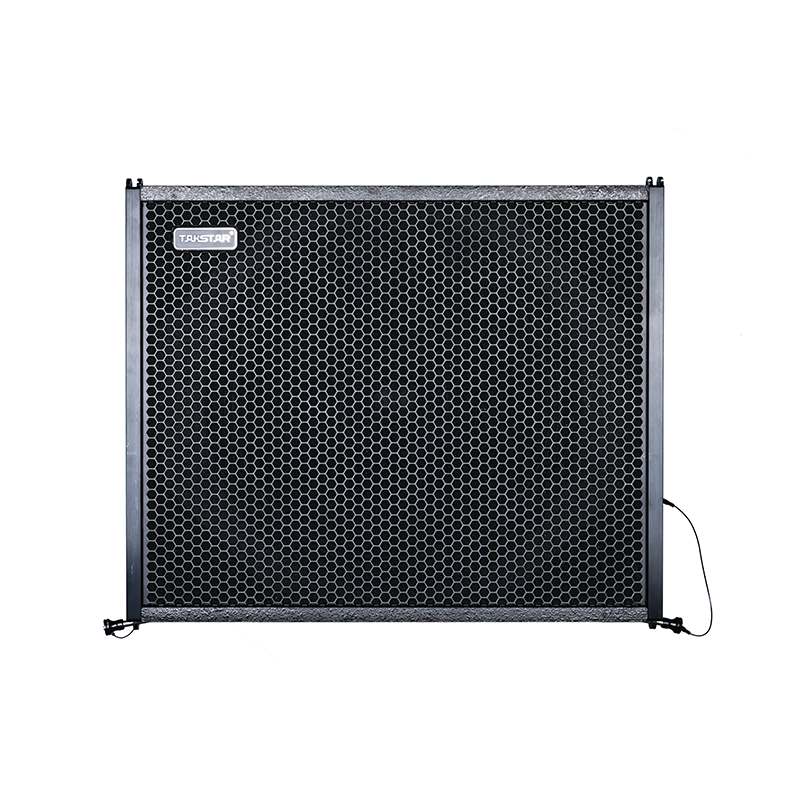

ECA-1810 Line Array Speaker

Speaker

ECA Series Subwoofer

• Features one 18" woofer, designed for use with ECA series full-range speaker.

• Woofer uses specially coated cloth surrounds with excellent elasticity and durability for full, fast, and dynamic low frequencies.

• Symmetrical magnetic circuit design ensures low harmonic distortion.

• Employs a bass-reflex design with an additional front chamber opening that functions as a horn; the combined output of the port and driver is compressed and radiated through the front chamber, enhancing forward energy transmission and improving low-frequency SPL and impact.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for stadiums, small and medium banquet halls, large conference rooms and other venues

• Parameters/Model：ECA-1810
• Power (AES)：1500
• Impedance (Internal)：8Ω
• Frequency Range (Internal)：38Hz-500Hz
• Sensitivity (dB)：104
• Maximum SPL：142

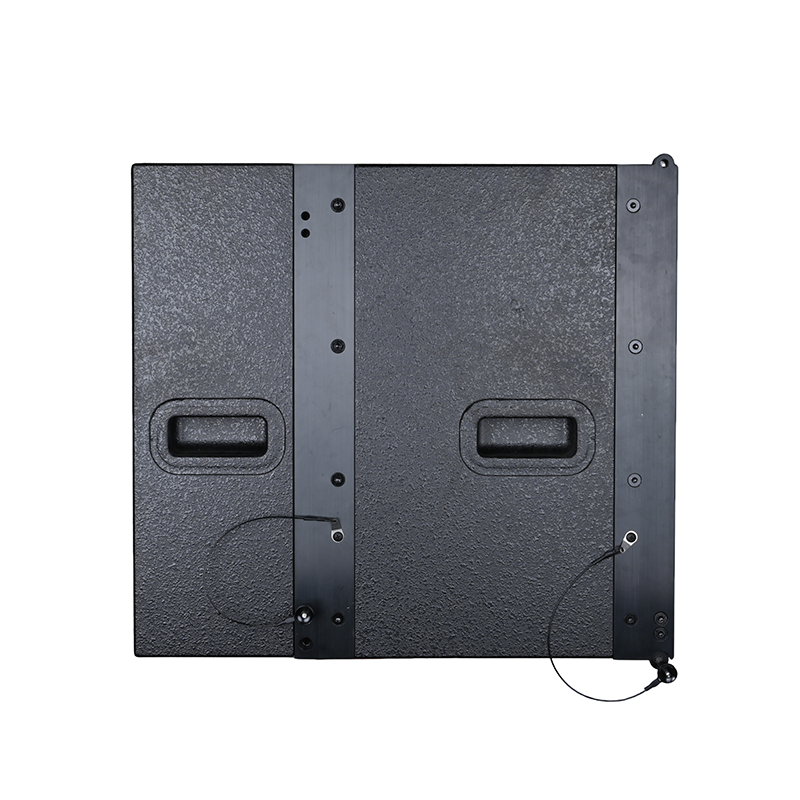

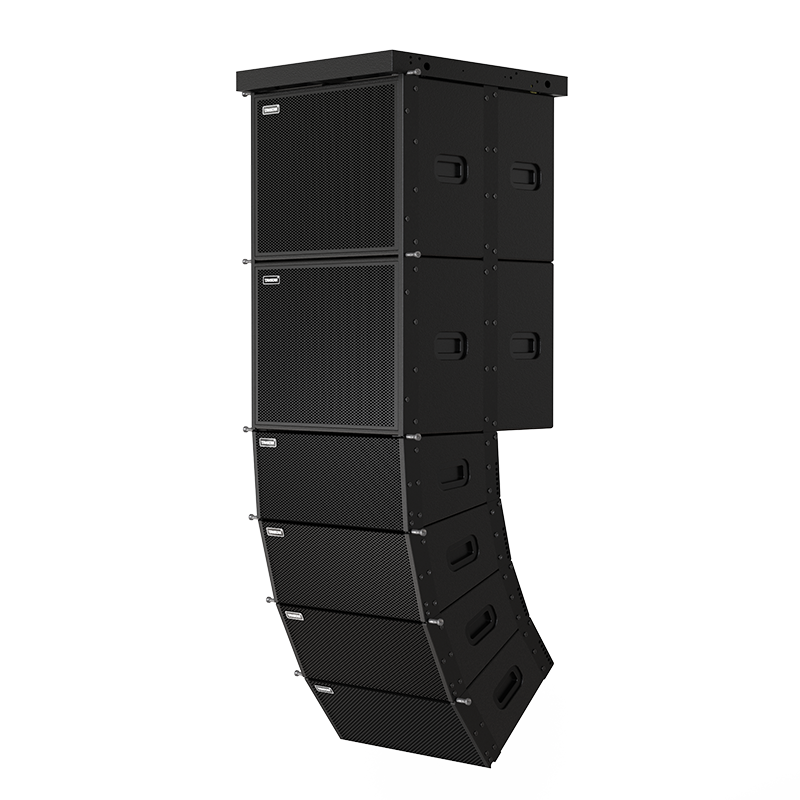

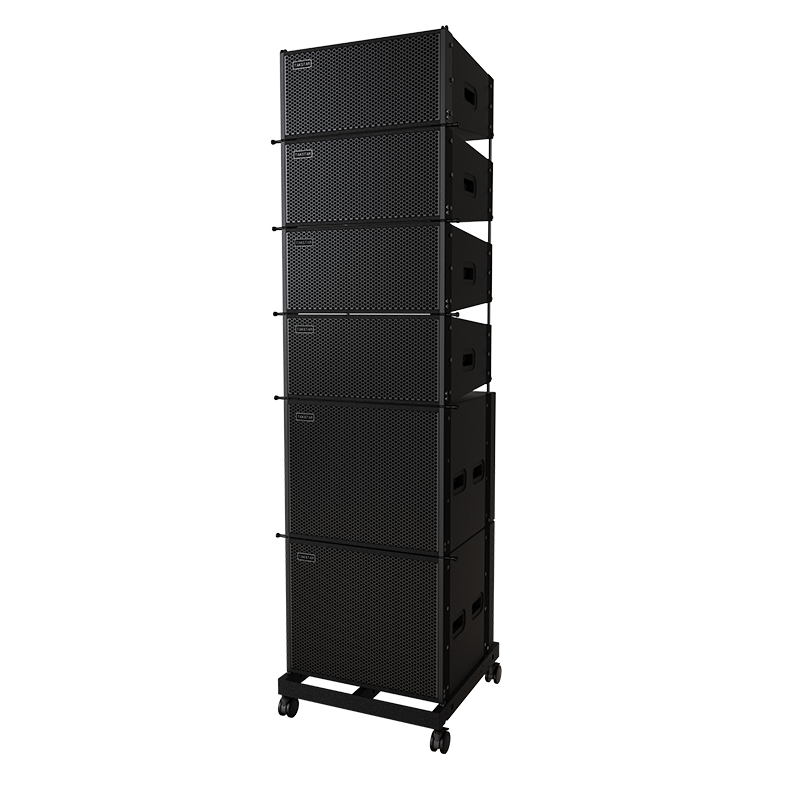

• Mounting：Flying/Stacking
• Vertical Angle：-2° to +10°
• Woofer：18"×1

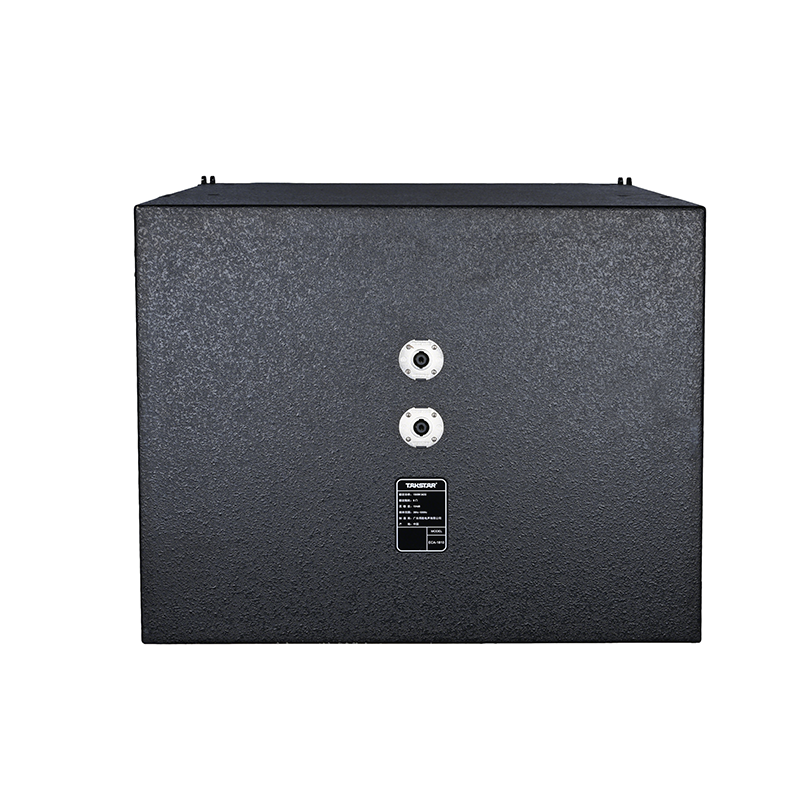

• Wiring Method：2×NL4 speakon (IN: 1+, 1-; LINK: 1+, 1-)
• Cabinet Material (mm)：18
• Surface Finish：Black polyurethane textured paint
• Dimensions (W×D×H)：636×570×543mm
• Net Weight (kg)：41.2kg

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
