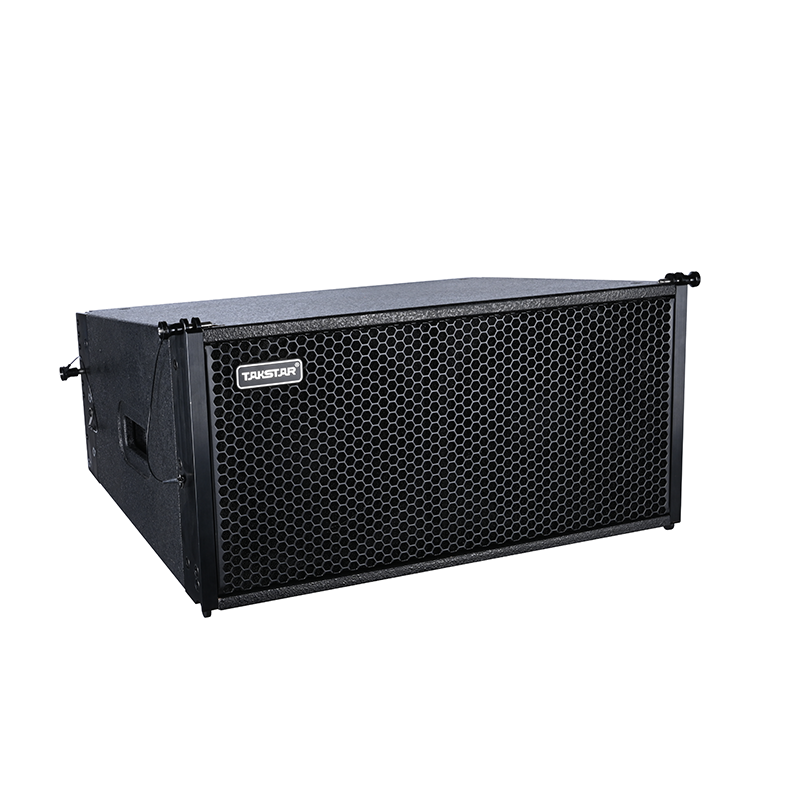

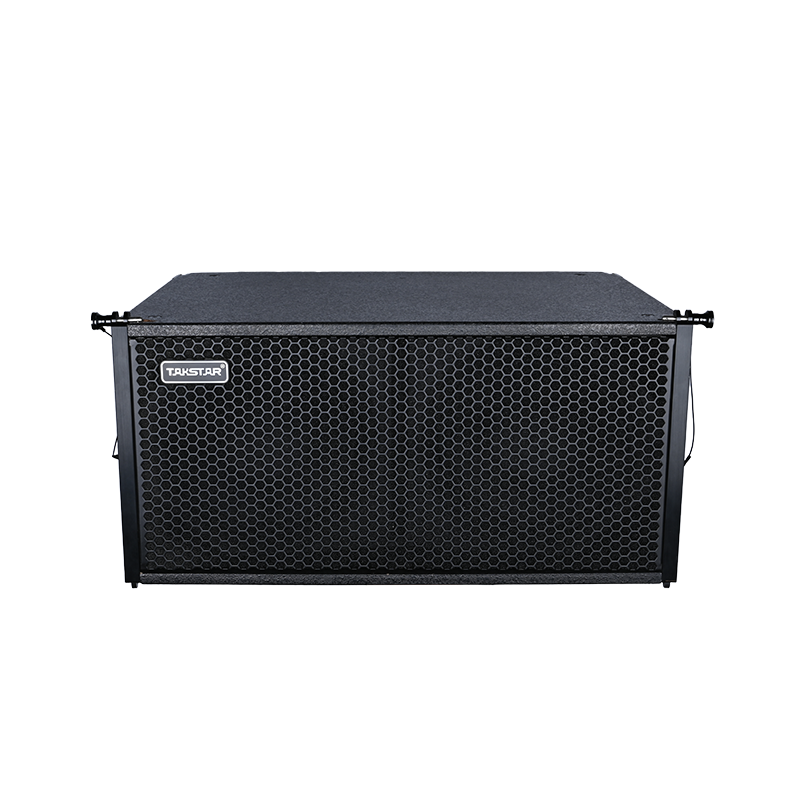

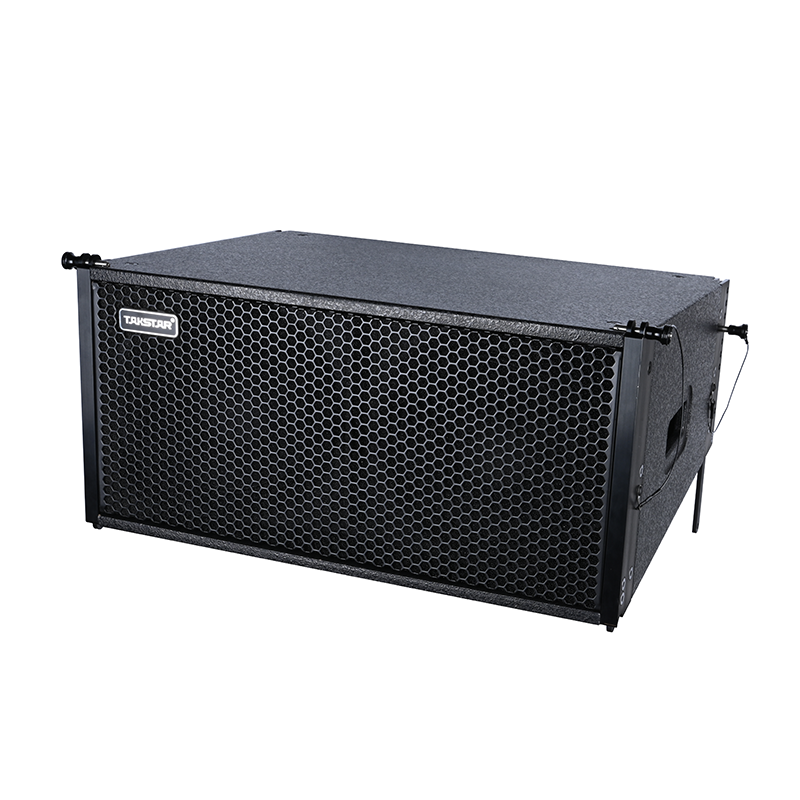

ECA-102 Line Array Speaker

Speaker

ECA Series Full-Range Speaker

• Equipped with two woofers and one 75-core compression tweeter for wide frequency response and strong penetration.

• Built-in passive HF exciter with a toggle switch for 0dB, +3dB, +6dB high-frequency boost.

• Switchable internal/external crossover for flexible system configuration.

• Woofers feature specially coated cloth surrounds with excellent elasticity and durability for fast, dynamic mid-low response.

• Tweeter diaphragm made of aviation-grade material for smooth, detailed, and transparent highs.

• Equipped with a directional plane waveguide horn to control vertical directivity; multiple units combine to form a near-linear sound source with reduced long-distance attenuation.

• Symmetrical magnetic circuit design for low harmonic distortion.

• Crossover uses low-loss oxygen-free copper air-core inductors and high-quality PP/PET capacitors for stable performance and superb sound.

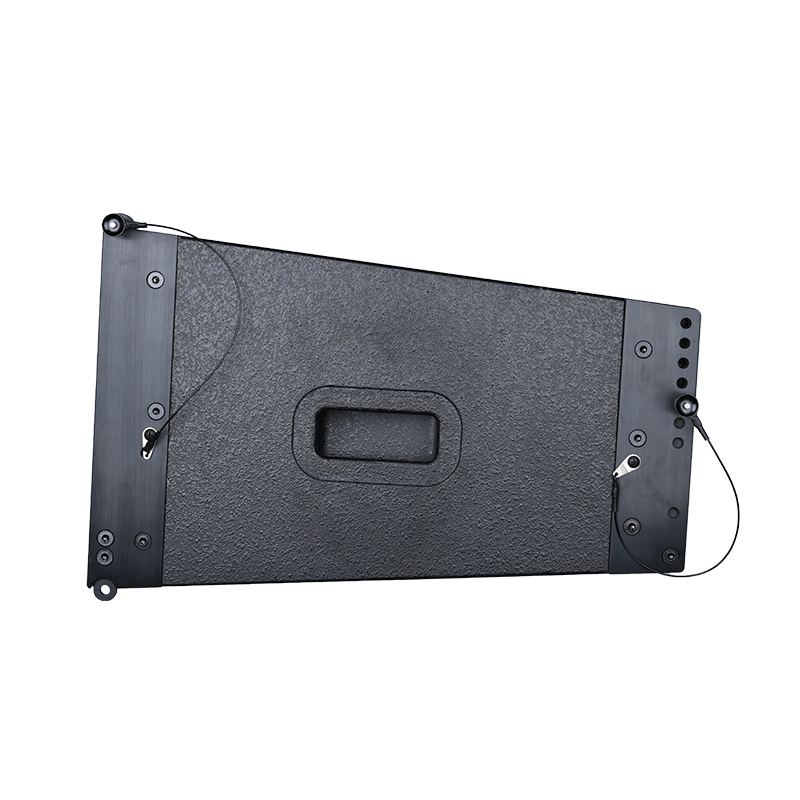

• Trapezoidal cabinet with internal acoustic foam reduces standing waves for clean mid-bass and flat frequency response; compact cabinet with flying hardware and pins, vertical angle adjustable in 7 steps from -2° to 10° for flexible radiation control.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for stadiums, small and medium banquet halls, large conference rooms and other venues

• Parameters/Model：ECA-102
• Power (AES)：1500
• Impedance (Internal)：8Ω
• Frequency Range (Internal)：65Hz-20kHz
• LF Response (External)：60Hz-4kHz
• HF Response (External)：700Hz-20kHz
• Sensitivity (dB)：107
• Maximum SPL：144
• Directivity (H×V)：100*10

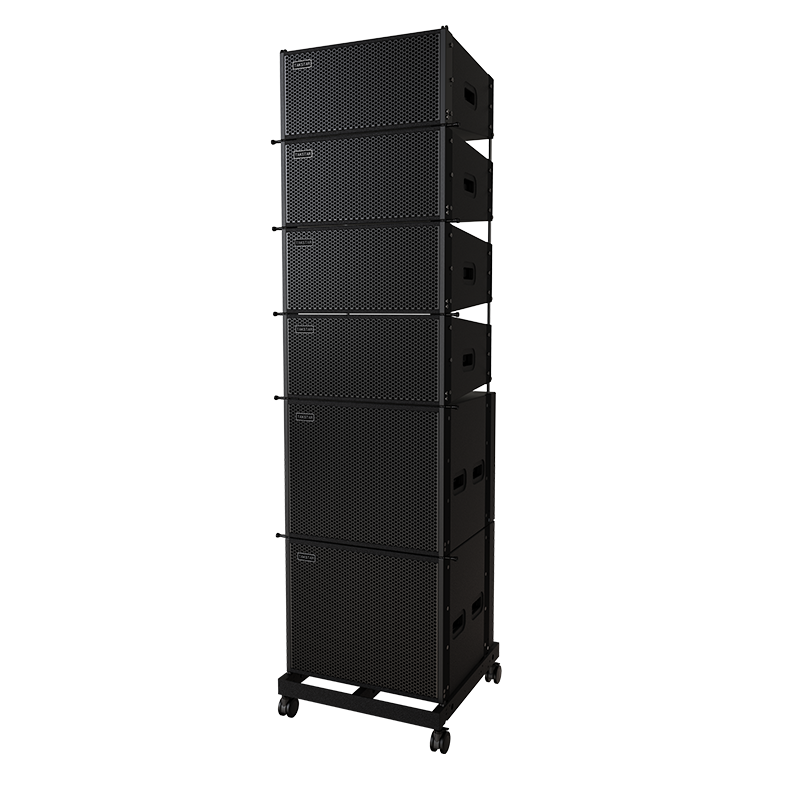

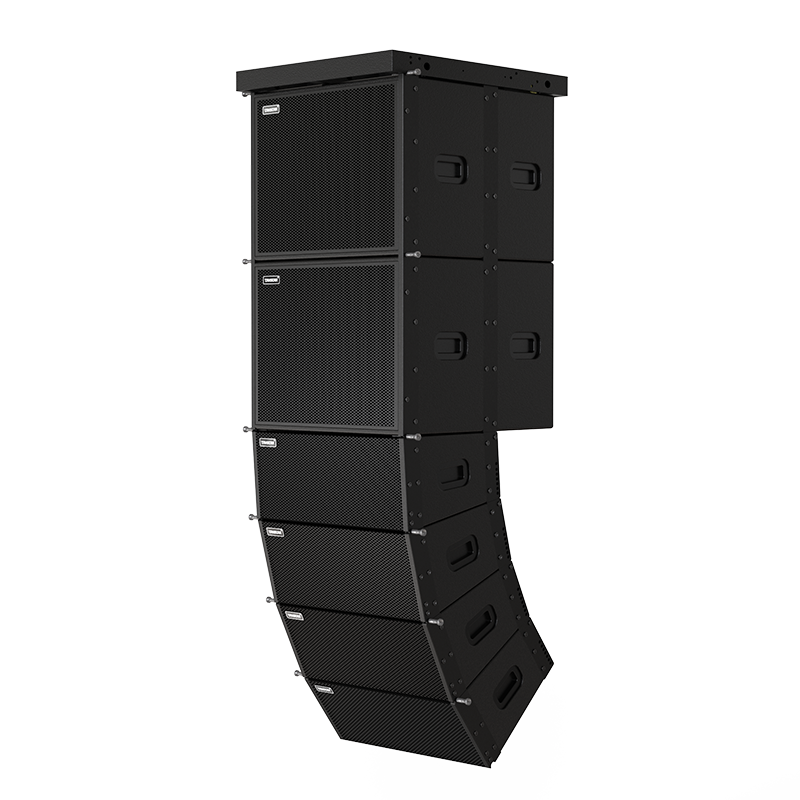

• Mounting：Flying/Stacking
• Vertical Angle：-2° to +10°
• Woofer：10"×2
• Tweeter：75-core×1

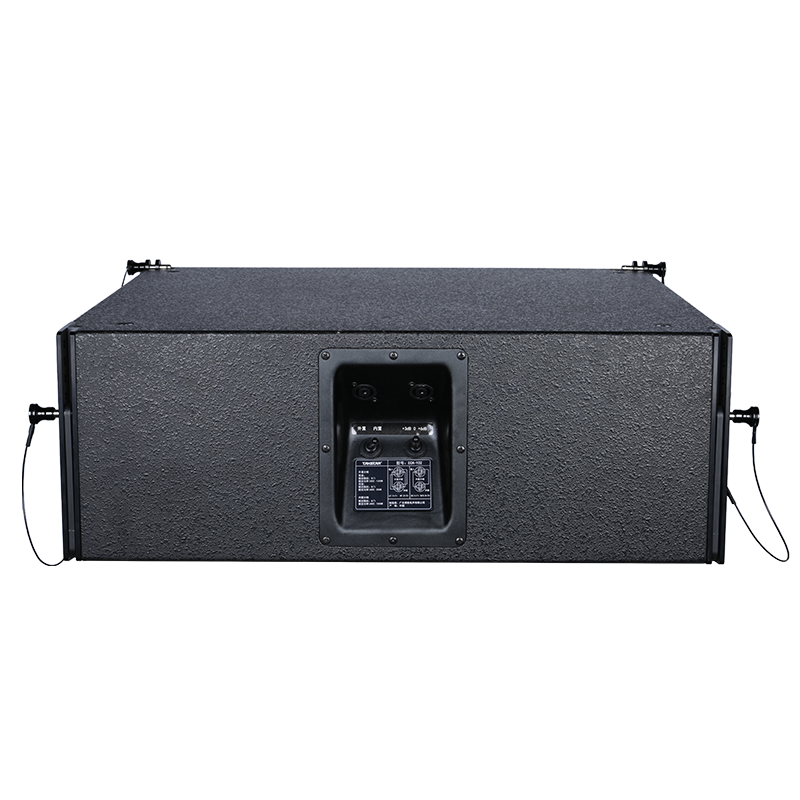

• Wiring Method：2×NL4 speakon (IN: 1+, 1-; LINK: 1+, 1-)
• Cabinet Material (mm)：15
• Surface Finish：Black polyurethane textured paint
• Dimensions (W×D×H)：636×505×331mm
• Net Weight (kg)：31.5kg

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
