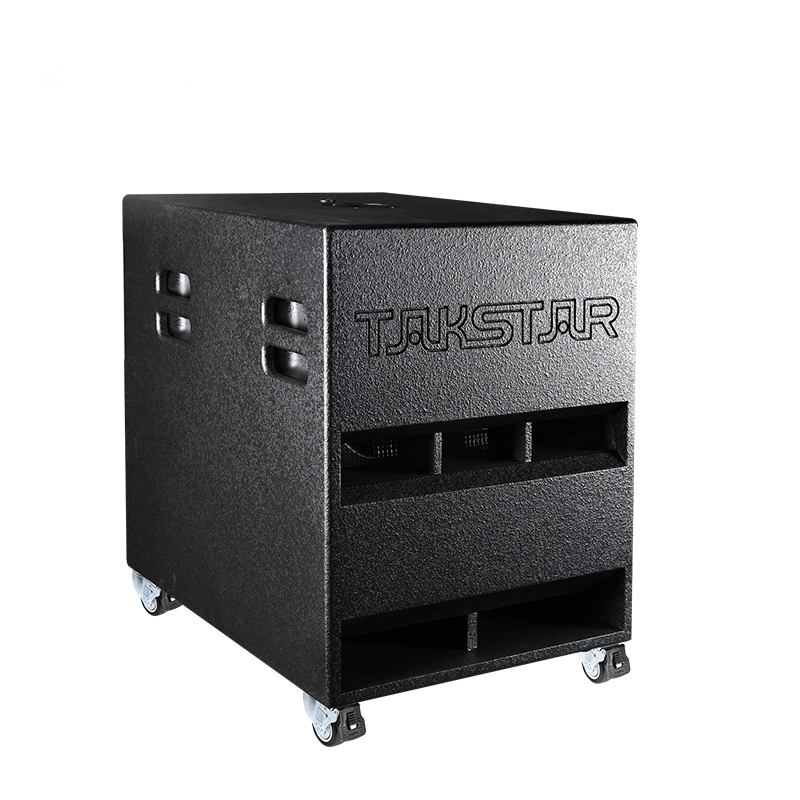

• High-power 15" woofer with 100mm voice coil; 6th-order bandpass enclosure design delivers excellent low-frequency response and a maximum SPL of 133dB.
• 18mm MDF enclosure with moisture-resistant paint finish, featuring light weight, good internal damping and strong anti-resonance performance. Four rubber feet at the bottom prevent vibration displacement during high-dynamic operation. Tuned for indoor use, it delivers punchy impact, deep yet tight bass extension with no muddiness. Used with full-range speakers, it widens the soundstage. It differs from outdoor subwoofers, which prioritize low-frequency impact and long radiation distance.
• The driver adopts aerospace-grade magnets for high magnetic flux density in the magnetic circuit. The high-temperature resistant voice coil sustains high power and remains stable under prolonged high-power operation without burnout risk. A special coating on the cone enhances rigidity and moisture resistance. Optimized spider and cloth surround provide flexible damping for the vibration system, reducing distortion and delivering excellent transient response.
• Designed for slow-rock bars, disco clubs, and high-end KTV venues, used in conjunction with full-range speakers.

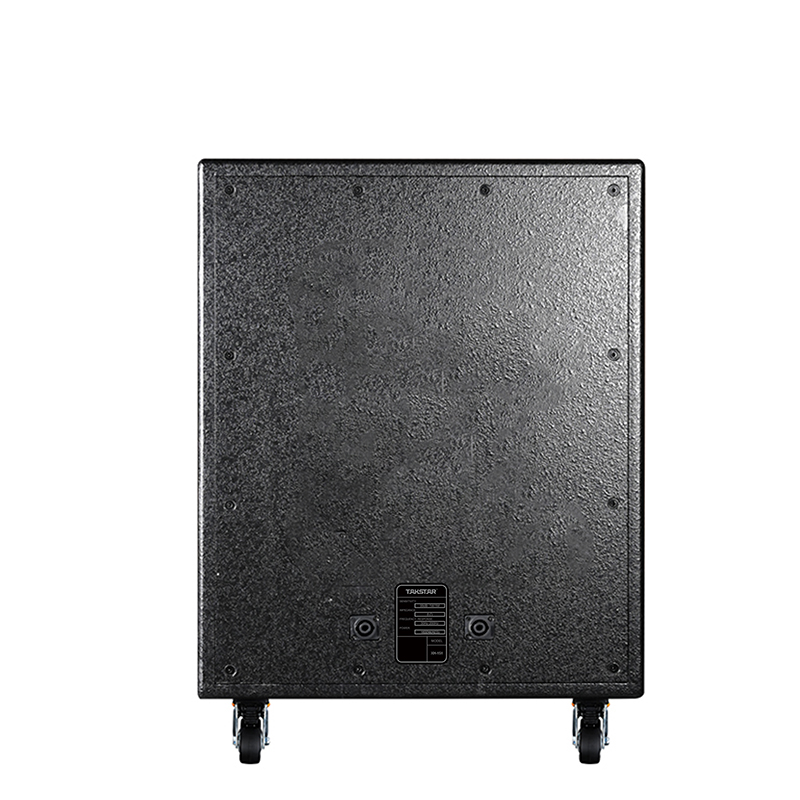

• Rated Power: 1600W (AES) • Impedance: 8Ω • Frequency Response (±3dB): 30Hz‒200Hz • Sensitivity (1W/1M): 99dB • Max. SPL: 133dB • Connectors: 2× NL4 Speakon (1+, 1-) • Enclosure: 18mm MDF • Finish: Black stipple paint • LF Driver: 15" × 1 (100mm VC) • Dimensions (mm): 470×600×580 (W×D×H) • Net Weight: Approx. 35kg Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Subwoofer | 1 PC |
| • Casters | 4 PC |
| • User Manual | 1 PC |
User manualXH-151 Subwoofer User Manual2026-08-17 09:08:19Download
