XW Xuanwu Series Karaoke System
- Speaker
• 10-inch and 12-inch sets available to suit different space sizes.
• The system is configured like a professional karaoke venue. All rack equipment comes pre-wired from the factory, eliminating complicated and tedious wiring for easy installation.

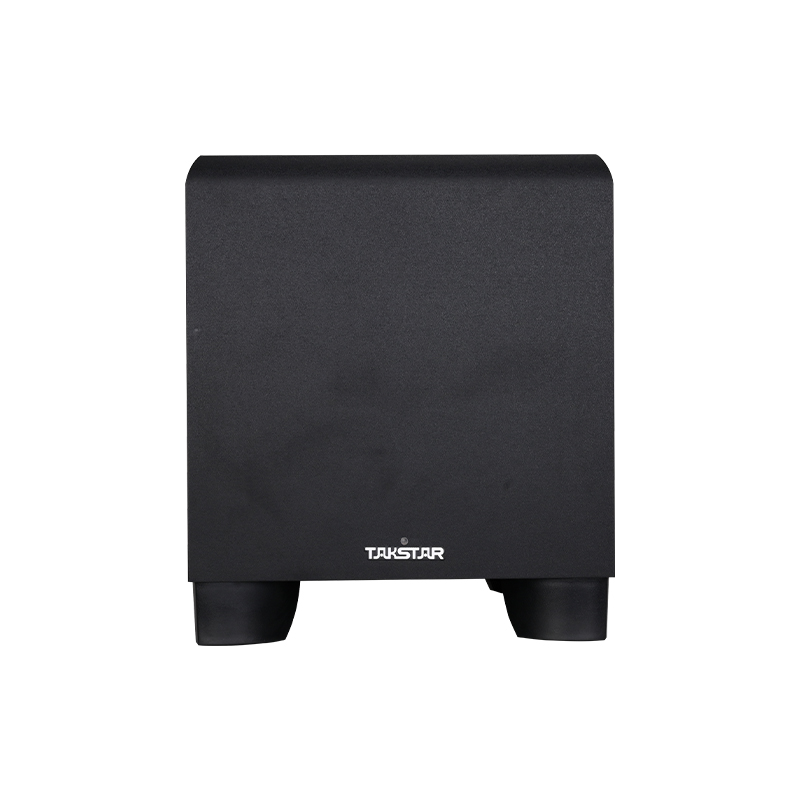

• Includes an active subwoofer, forming a 2.1 stereo system that enhances immersion, spatial awareness, and emotional resonance.
• Equipped with a 10-inch rubber surround woofer for rich, deep, and powerful bass.
• Bass reflex design, with precise acoustic simulation ensuring high bass efficiency.
• Pairs with the XW Series Karaoke Set to form a 2.1 stereo sound system, enhancing the overall immersion, spatial awareness, and emotional resonance of the audio experience.

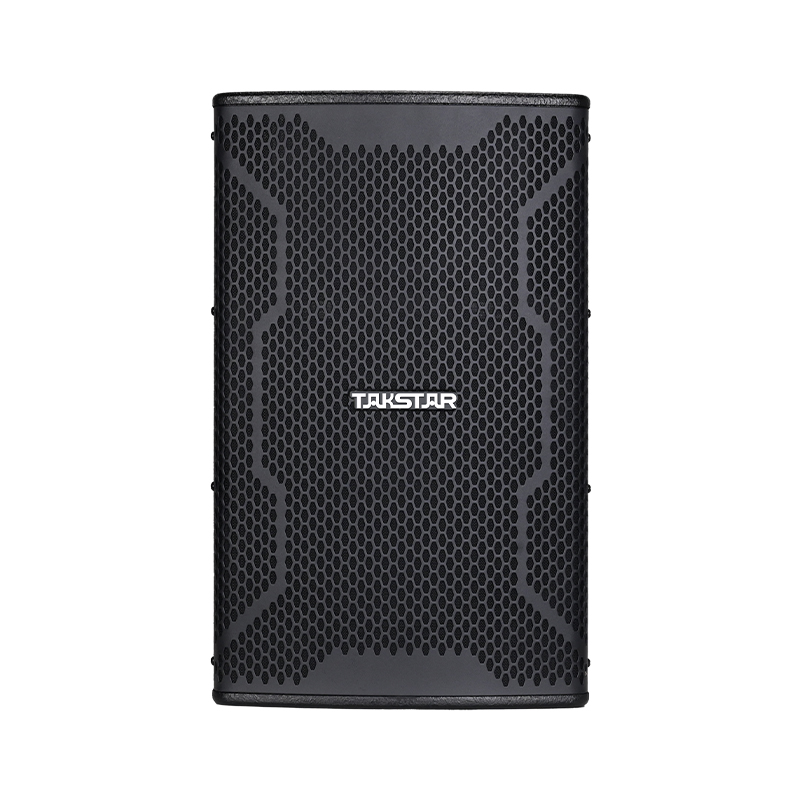

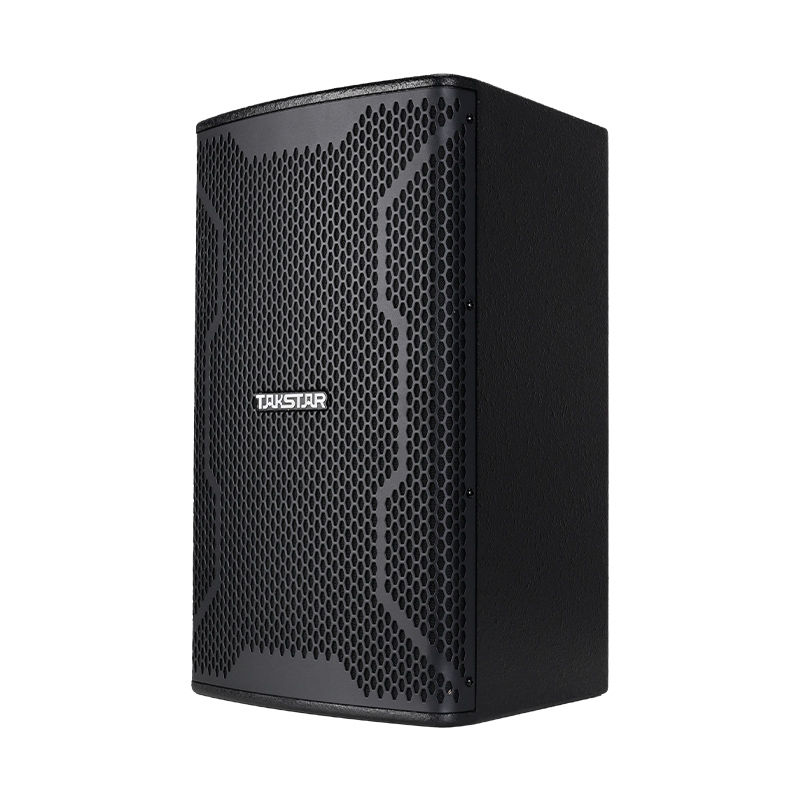

• High-cost-performance 10-inch full-range speaker with a built-in two-way crossover. Its compact design houses a 10-inch bass speaker that delivers rich low-frequency vocals and a 25mm-coil horn tweeter that produces sweet and delicate high frequencies.
• Crossover components utilize low-loss, high-quality film capacitors and cement resistors with good heat dissipation, ensuring a stable crossover performance and exceptional sound quality.
• Uniform overall tonal quality, accentuating natural and clear sound characteristics in both music and vocal performances. Repeatedly tested with various dynamic and condenser mics during development, achieving excellent vocal quality results.
• High-cost-performance 12-inch full-range speaker with a built-in two-way crossover. Its compact design houses a 12-inch bass speaker that delivers rich low-frequency vocals and a 25mm-coil horn tweeter that produces sweet and delicate high frequencies.
• Crossover components utilize low-loss, high-quality film capacitors and cement resistors with good heat dissipation, ensuring a stable crossover performance and exceptional sound quality.
• Uniform overall tonal quality, accentuating natural and clear sound characteristics in both music and vocal performances. Repeatedly tested with various dynamic and condenser mics during development, achieving excellent vocal quality results.
Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Suitable for home karaoke, small performances and other venues.
XW1 Power Sequencer • Number of Channels: 8 • Auxiliary Channels: 2 • Channel Rated Current: 13A • Channel Maximum Current: 30A • Total Channel Power: 3500W • Sequencing Time Interval: 1s • Power Supply: 220V/50Hz • Weight: Approx. 3kg • Dimensions (W×D×H): 483×66.5×185mm XW2 Effects Processor • Input Level: 775mVrms • Main Output Frequency Response: 20Hz-20kHz • Subwoofer Frequency Response: 20Hz-400Hz • Fuse: AC 250V 1A • Power Supply: AC 220V 50Hz • Power Consumption: 10W • Dimensions: 480×160×65mm • Weight: Approx. 2.5kg XW3 Microphone System Receiver: • Frequency Range: 610-680MHz • Frequency Response: 50Hz-18kHz • Reception Distance: 100m • Power Supply: DC=12V • Dimensions: 480×180×45mm • Weight: Approx. 1450g Microphone: • Frequency Range: 610-680MHz • Transmission Distance: 100m • Operating Voltage: 3V • Operating Current: 120mA XW4 Power Amplifier • Power: 400W • Impedance: 8Ω • Frequency Response: 20Hz-20kHz • Power Supply: AC 220V 50Hz • Dimensions: 485×320×87mm • Weight: Approx. 8.4kg XW5 Active Subwoofer • Power: 280W • Output Impedance: 4Ω • Speaker Driver Size: 10 inches • Frequency Response (±3dB): 30Hz-300Hz • Power Supply: AC 100-240V 50/60Hz • Enclosure Material: 18mm MDF • Product Dimensions (W*D*H): 343*343*394mm • Net Weight: 10.2kg XW10 Speaker • Power: 200W • Impedance: 8Ω • Frequency Response (±3dB): 65Hz-20kHz • Sensitivity (1W/1M): 94dB • Coverage Angle: H90° × V60° • Maximum Sound Pressure Level: 121dB • Crossover Mode: Two-way • Installation: Stand/Suspension • Wiring Method: 1×NL4 speakon (1+, 1-) • Enclosure: 12mm MDF • Surface Treatment: Black textured paint • Driver: High Frequency: 1″ × 1 (25mm-coil) Low Frequency: 10″ × 1 (35mm-coil) • Product Size (W*D*H): 277*270*445mm • Net Weight: Approx. 7.15kg per unit XW12 Speaker • Power: 280W • Impedance: 8Ω • Frequency Response (±3dB): 55Hz-18kHz • Sensitivity (1W/1M): 95dB • Coverage Angle: H90° × V60° • Maximum Sound Pressure Level: 123dB • Crossover Mode: Two-way • Installation: Stand/Suspension • Wiring Method: 1×NL4 speakon (1+, 1-) • Enclosure: 12mm MDF • Surface Treatment: Black textured paint • Driver: High Frequency: 1″ × 1 (25mm-coil) Low Frequency: 12″ × 1 (50mm-coil) • Product Size (W*D*H): 338*345*518mm • Net Weight: Approx. 11.2kg per unit Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| 1. Xuanwu 1 Karaoke System ‒ Speakers | |
| • 10" Full-Range Speakers | 2 PC |
| • 10" Active Subwoofer | 1 PC |
| 2. Xuanwu 2 Karaoke System ‒ Speakers | |
| • 12" Full-Range Speakers | 2 PC |
| • 10" Active Subwoofer | 1 PC |

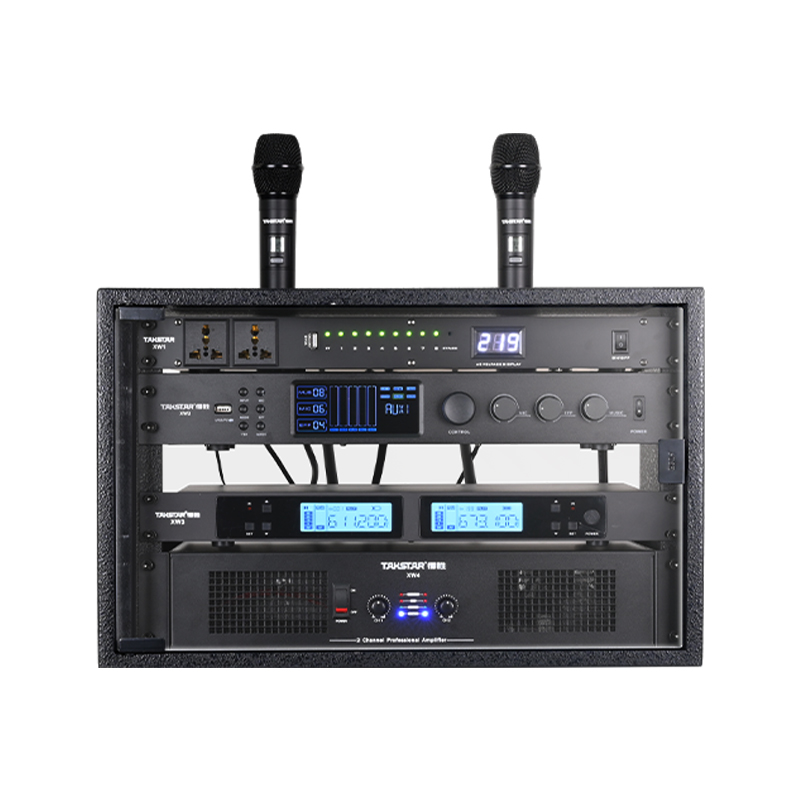

| 3. Rack Equipment List | |
| • Power Sequencer | 1 PC |
| • Effects Processor | 1 PC |
| • Wireless Microphone | 1 PC |
| • 400W 8Ω Pure Power Amplifier | 1 PC |
| 4. Rack Cable List | |
| • 6m Speaker Cables with XLR Connectors (Both Ends) | 2 PC |
| • 1m Mic Cable with 6.35mm Plugs (Both Ends) | 1 PC |
| • 65cm Dual RCA Audio Cable | 1 PC |
| • 3m Dual RCA Subwoofer Cable | 1 PC |
| • Adapter | 1 PC |
| • Power Cord | 1 PC |
User manualXW Xuanwu Series
