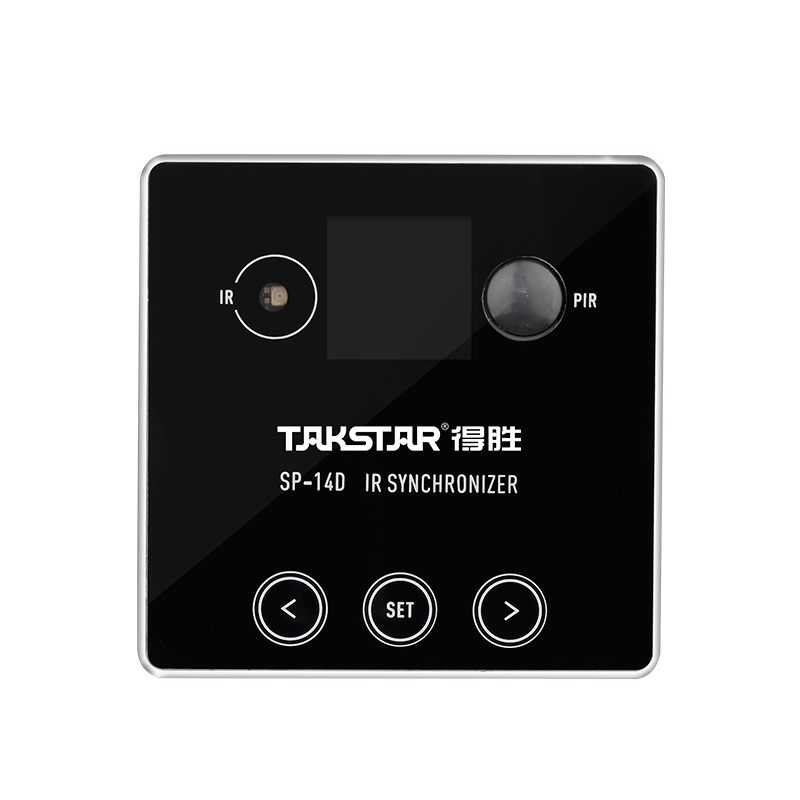

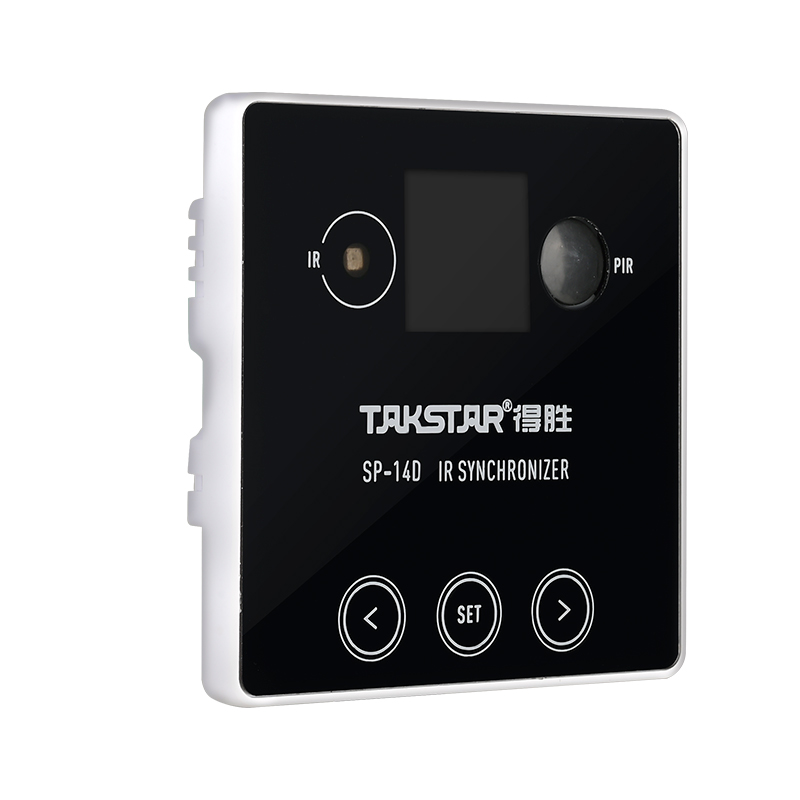

• Pairs with infrared human body sensing synchronizer for hassle-free auto sync.
• Ultra-wide directivity H175°×V175° for complete, off-axis coverage.

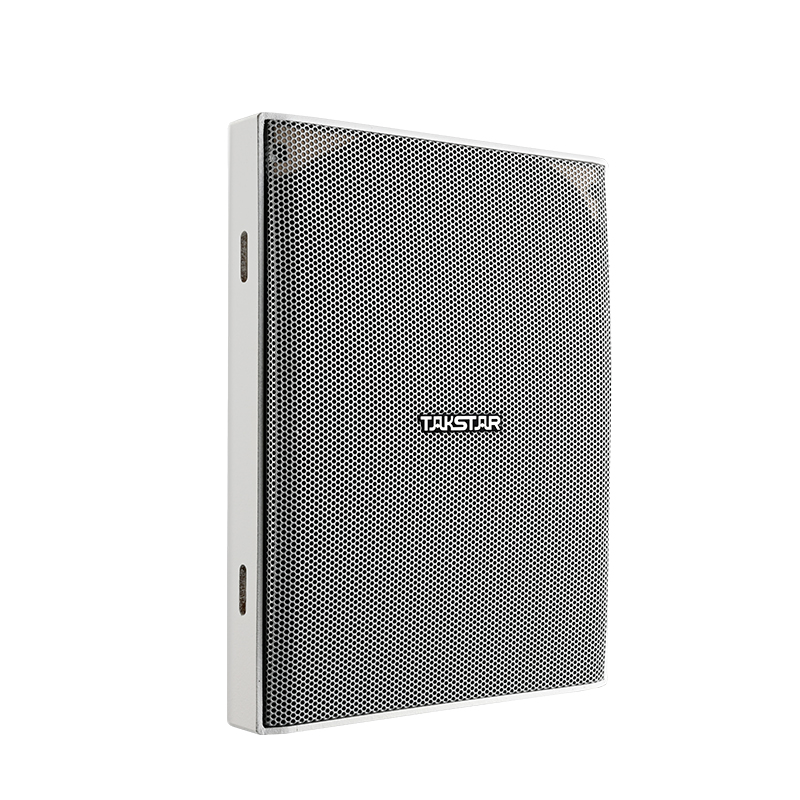

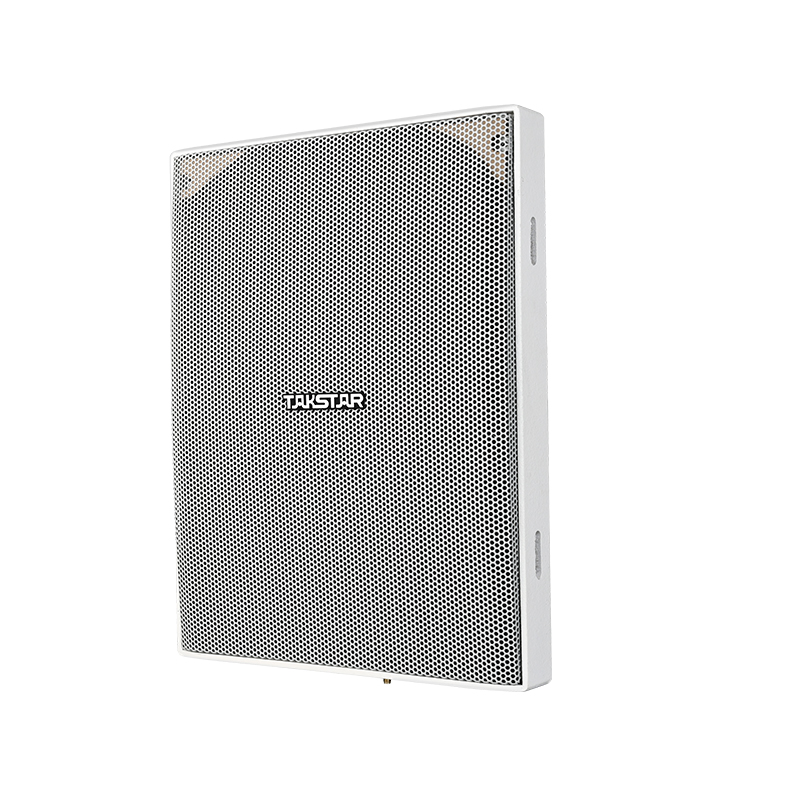

• Slim, minimalist planar design for easy installation and placement.
• Minimal sound attenuation for even distribution of sound pressure.
• Planar speaker technology for lower distortion and higher fidelity. Planar speakers radiate sound directly from a flat, vibrating surface, unlike traditional speakers where sound waves are compressed through a constricted throat which can lead to significant distortion,especially at different frequencies, due to the difference in wavelengths.
• For educational settings, conference rooms, etc.
• Rated Power (AES): 30W • Frequency Response: 120Hz-10kHz • Sensitivity: 92dB • Rated Impedance: 4Ω • Directivity: 175°×175° • Enclosure Material: 5mm Plywood • Mounting Options: Wall Bracket, Suspension • Surface Finish: Black/Gray-White Small Dot Paint • Product Dimensions: 420*320*50mm • Product Net Weight: About 3.1Kg Note: The above data are measured by Takstar laboratory which has the final interpretation right!
• Speaker | 1 PC |
• Antenna | 1 PC |
• Power Adapter | 1 PC |
• Audio Adapter Cable | 1 PC |
• Wall Screw | 3 PC |
• Wall Anchor | 3 PC |
• Wall Bracket Set | 1 PC |
• User Manual | 1 PC |
SP-16A&SP-16F Planar Speaker User Manual2025-03-31 08:49:09Download
