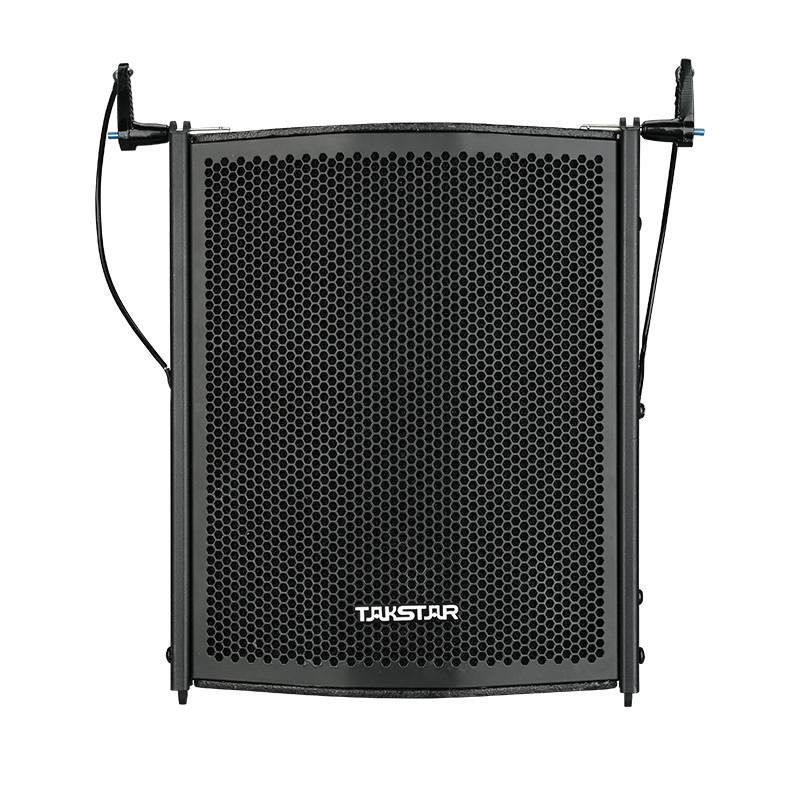

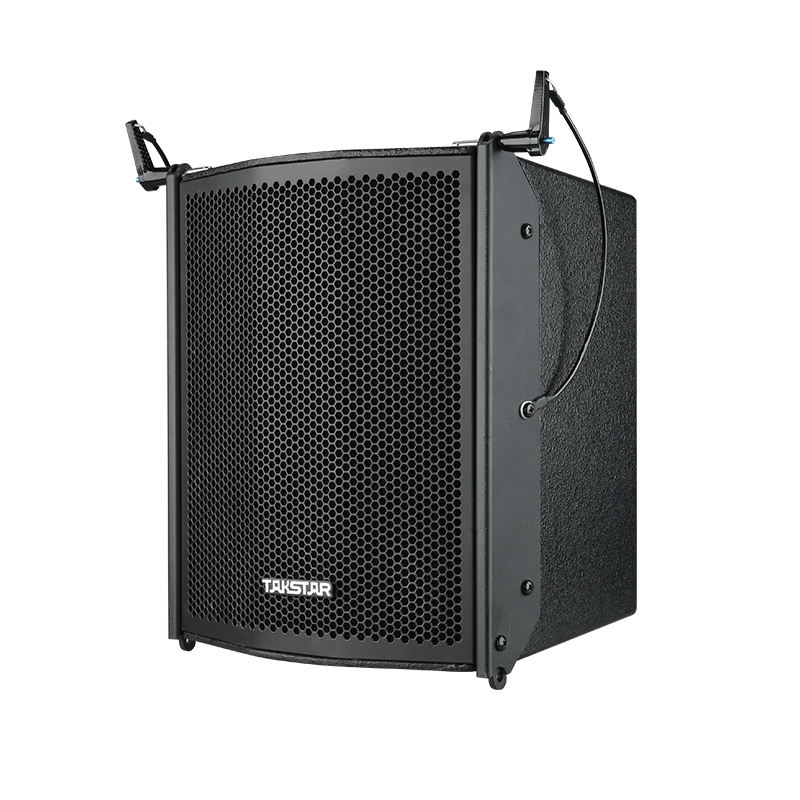

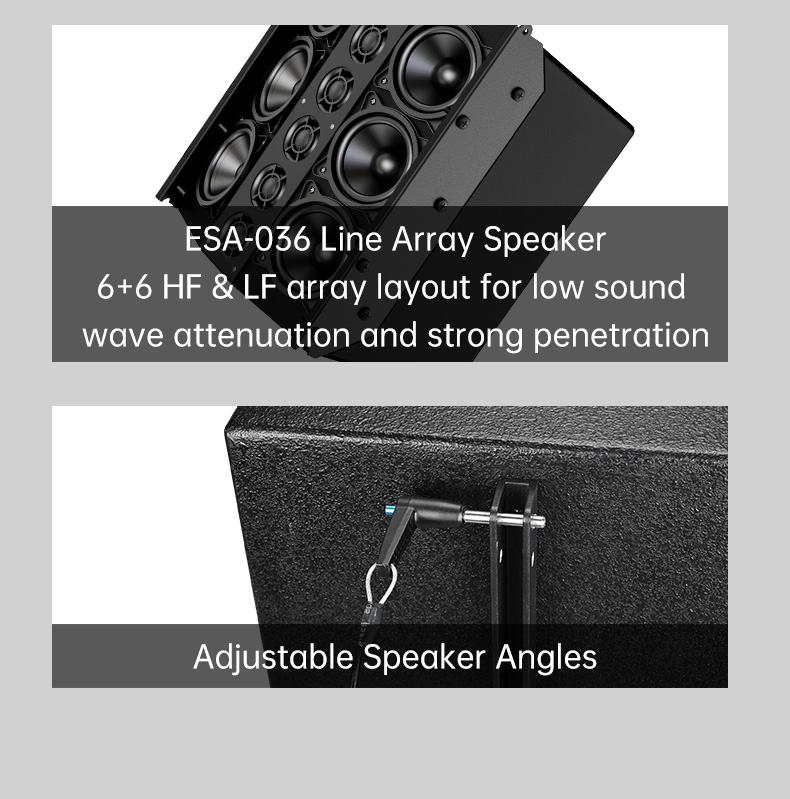

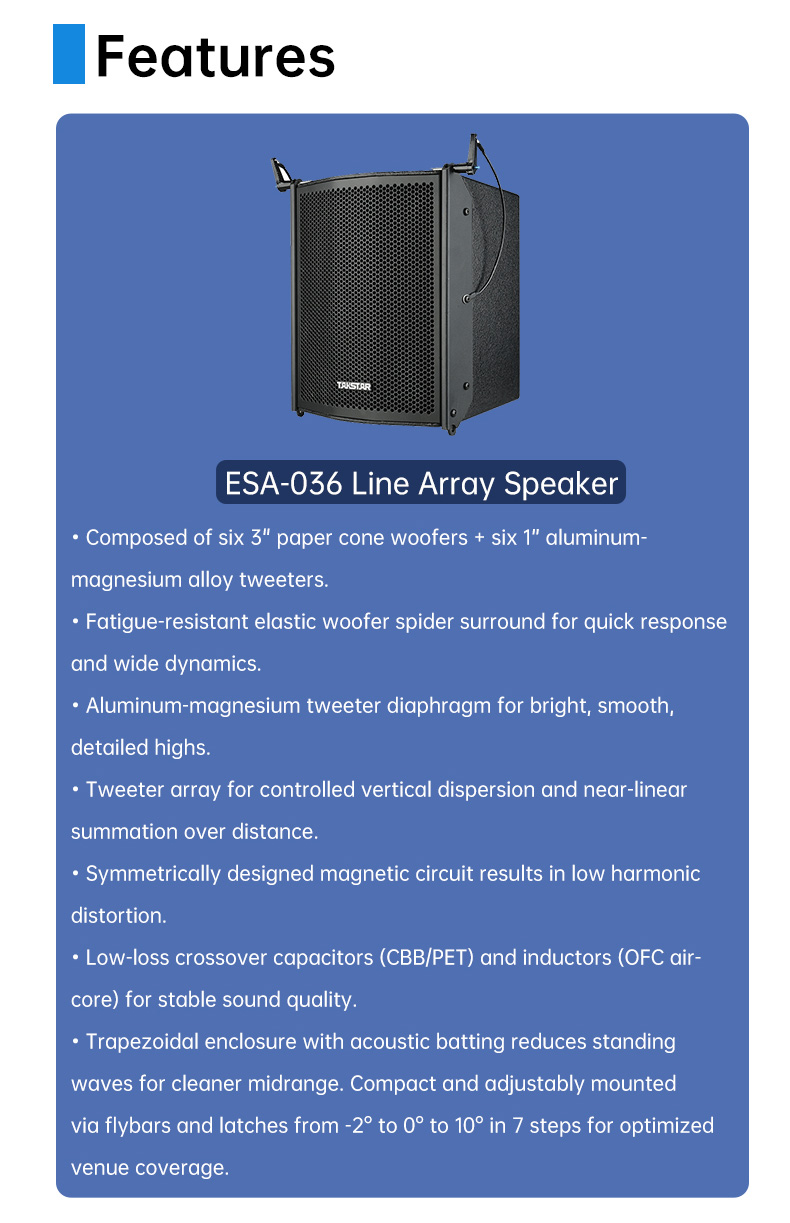

• Composed of six 3" paper cone woofers + six 3" aluminum-magnesium alloy tweeters.
• Fatigue-resistant elastic woofer spider surround for quick response and wide dynamics.
• Aluminum-magnesium tweeter diaphragm for bright, smooth, detailed highs.
• Tweeter array for controlled vertical dispersion and near-linear summation over distance.
• Symmetrically designed magnetic circuit results in low harmonic distortion.
• Low-loss crossover capacitors (CBB/PET) and inductors (OFC air-core) for stable sound quality.

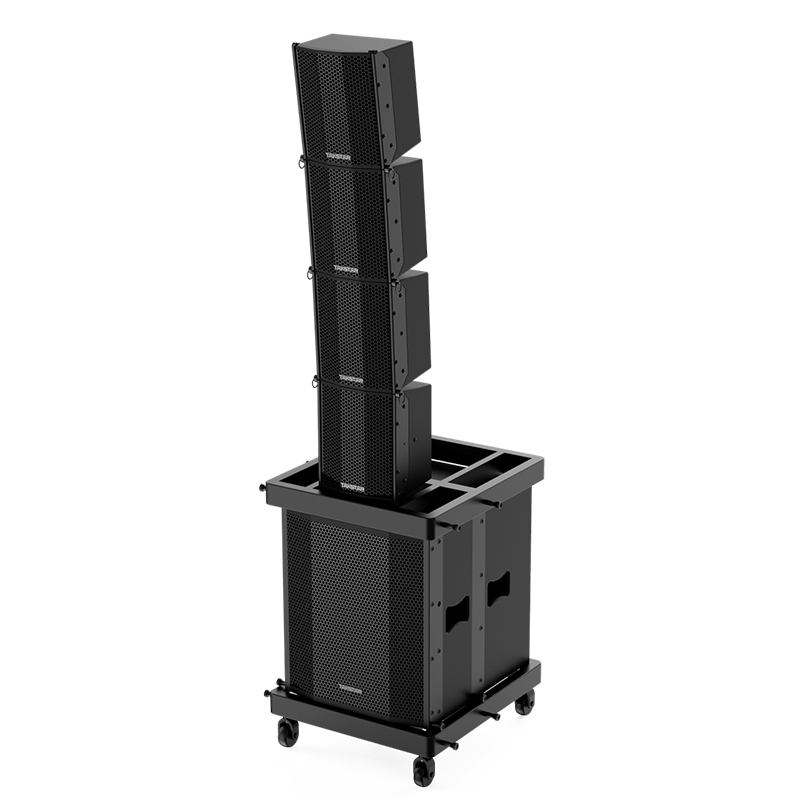

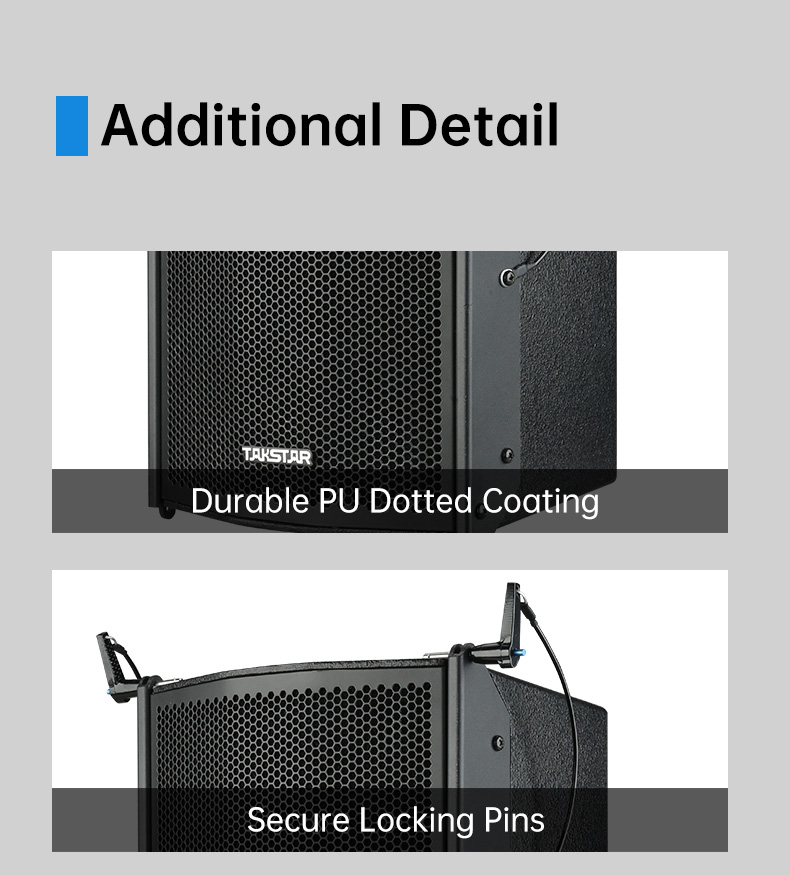

• Trapezoidal enclosure with acoustic batting reduces standing waves for cleaner midrange. Compact and adjustably mounted via flybars and latches from -2° to 0° to 10° in 7 steps for optimized venue coverage.

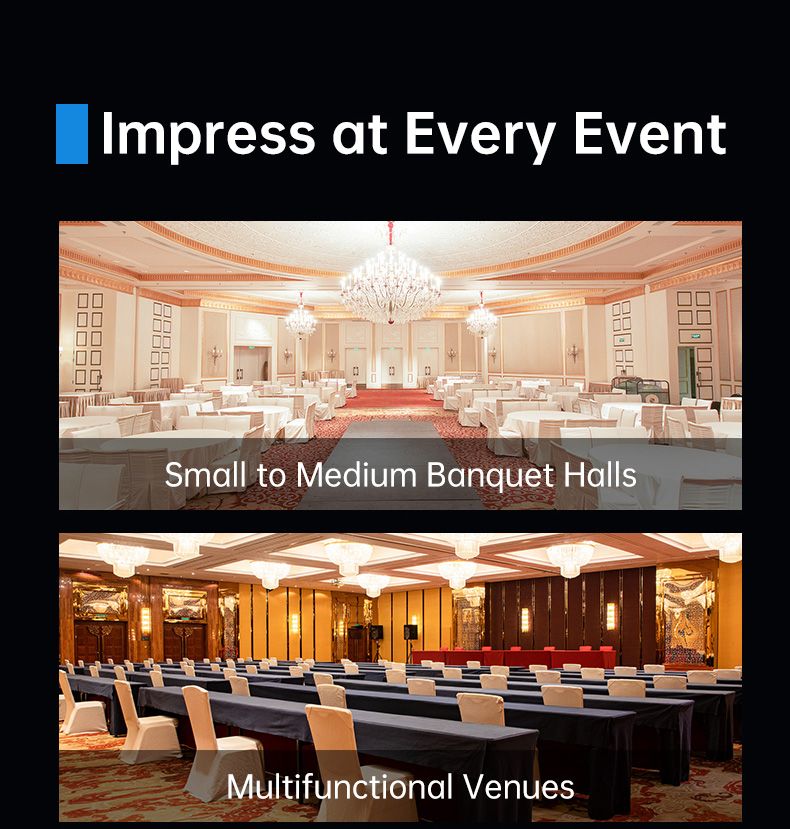

• Medium to small-sized banquet halls, multi-purpose halls, sports arenas, and large conference rooms.

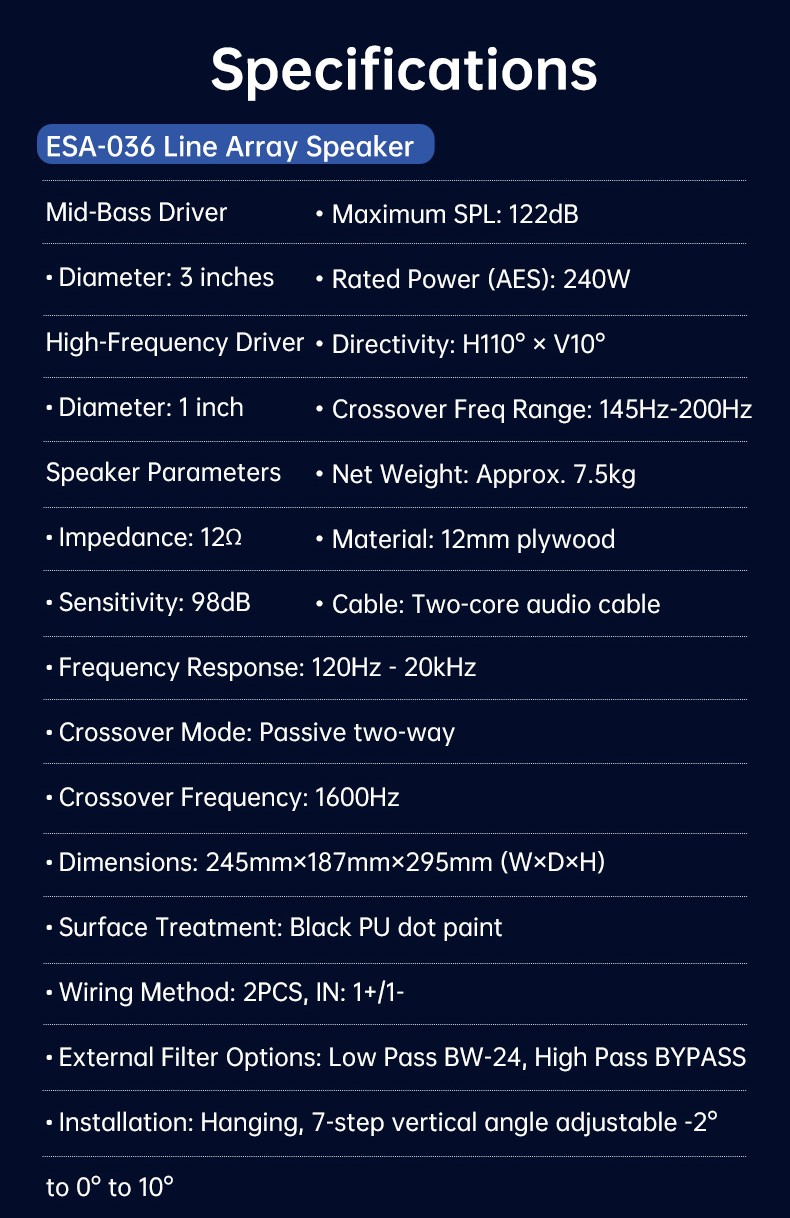

• Woofer Outer Diameter: 3-inch * 6 PCS • Tweeter Outer Diameter: 1-inch * 6 PCS • Impedance:12Ω • Frequency Response:120Hz-20kHz • Crossover Mode:Passive, two-way • Crossover Point:1600Hz • Sensitivity:98dB • Max SPL:122dB • Rated Power (AES):240W • Directivity:H110º x V10º • Crossover Range:145Hz-20kHz • Ext. Filter Selection:Low-Pass BW-24, High-Pass Bapsaa • Surface Treatment: • Installation:Suspension Bracket, -2°-0°- 10° Vertical Angle Adjust (7 steps) • Panel Material:12mm Plywood • Dimensions:245*187*295 (W*D*H) • Net Weight:About 7.5KG • Wiring Method:2PCS, IN:1+/1- • Audio Cable:Two-Core Cable
• Speaker | 2 PC |
• Connecting Rod | 8 PC |
• Latch Pin | 6 PC |
• User Manual | 1 PC |
ESA-036 Line Array Speaker User Manual2025-03-24 16:39:17Download
