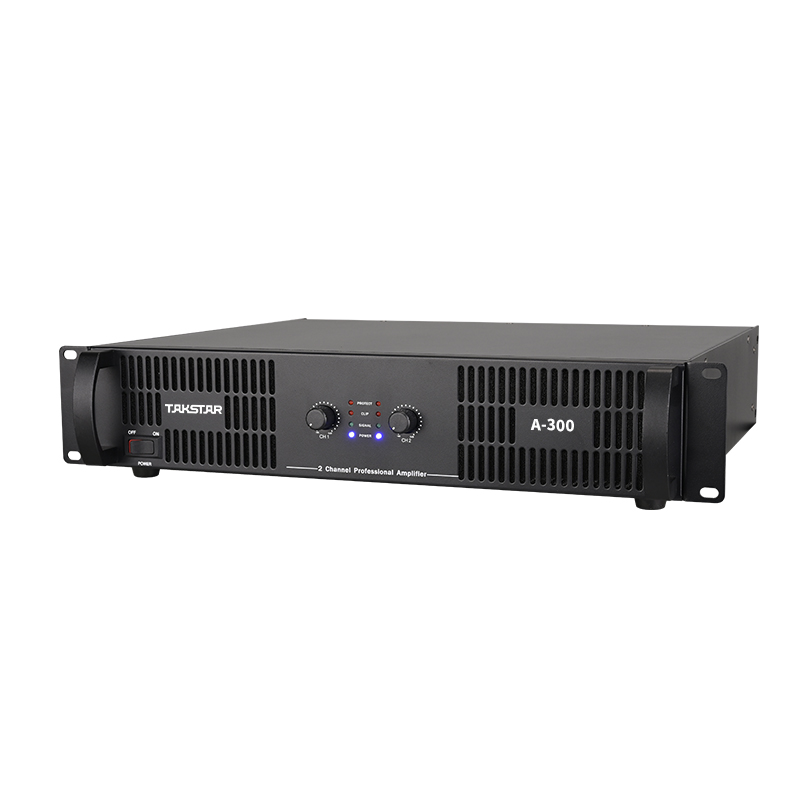

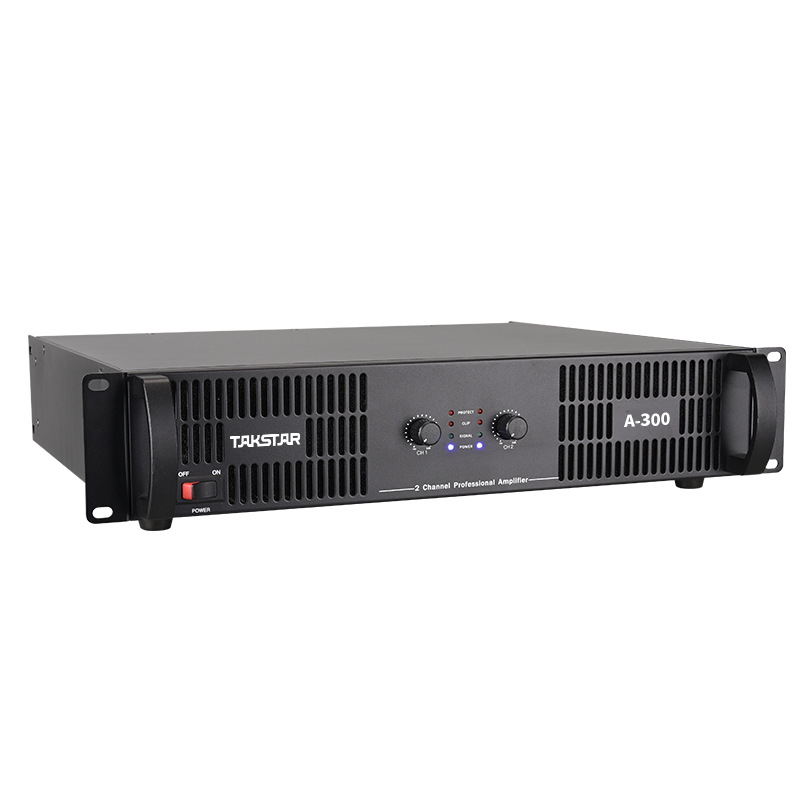

A-300 Professional Power Amplifier

Power Amplifier

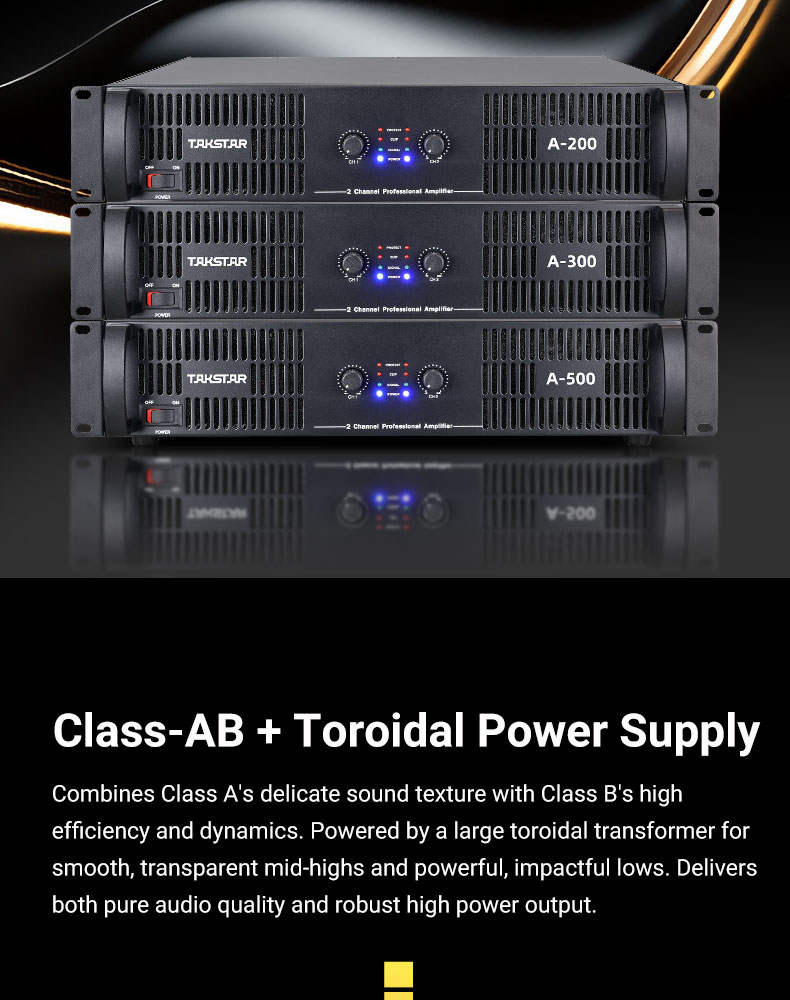

• Class-AB design with toroidal transformer power supply.

• Analog amplifier offers sweet sound, detailed mids/highs, and powerful lows.

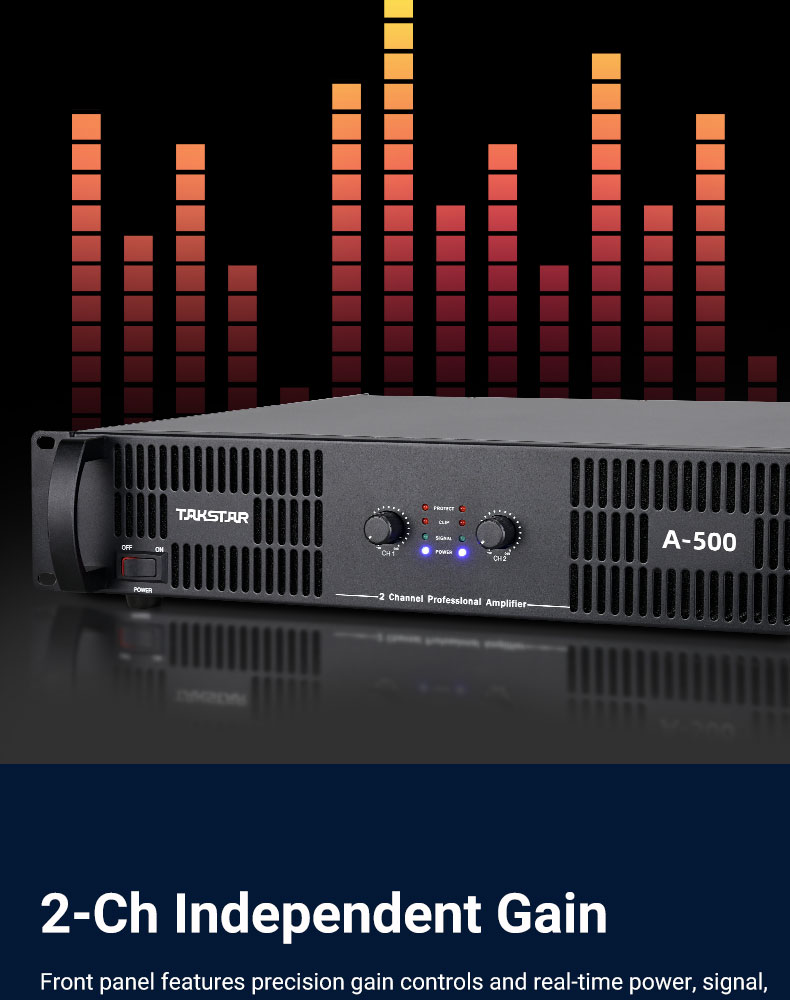

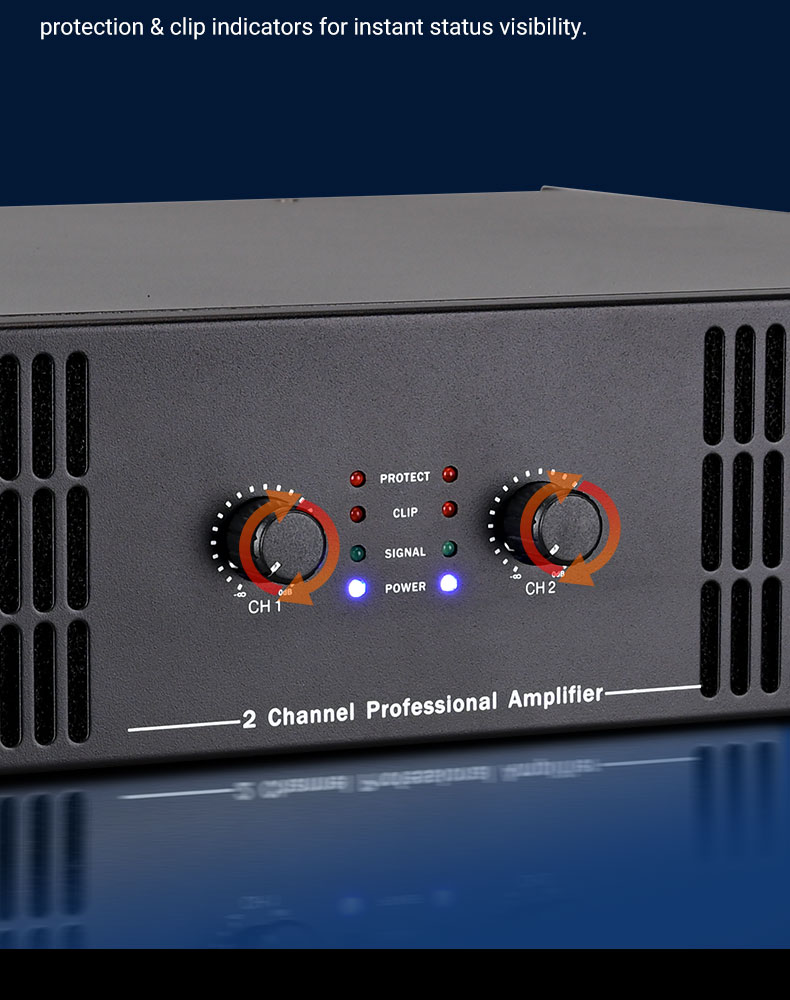

• Front panel with precise gain control and indicator lights for power, signal, protection, and clipping.

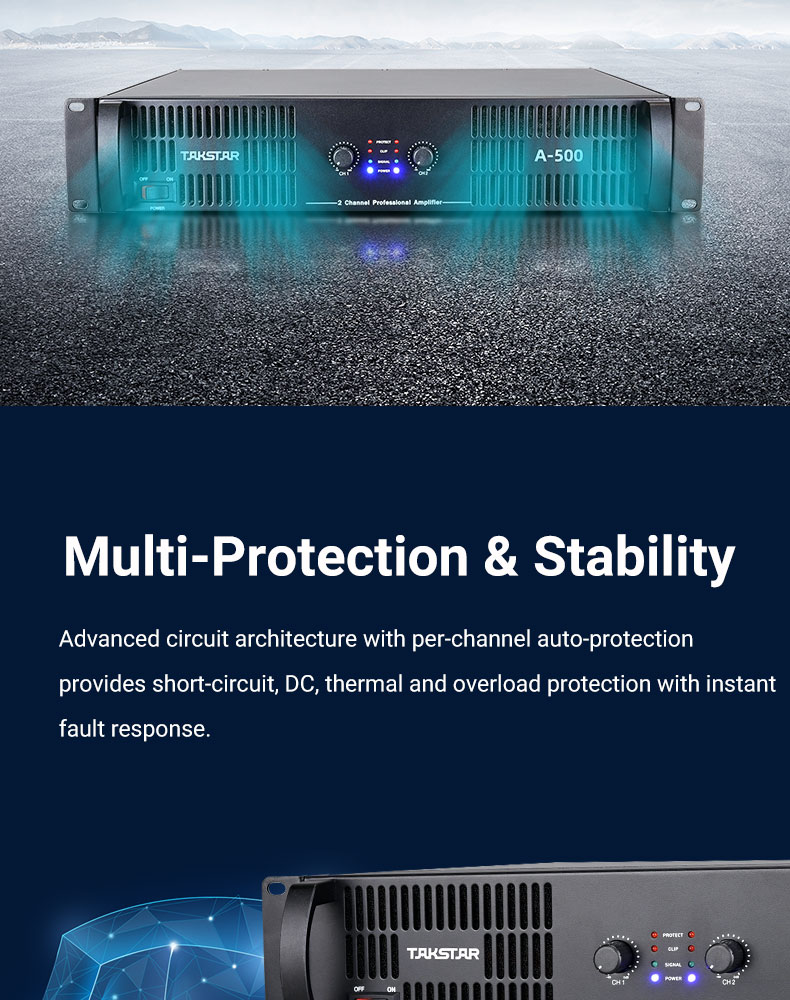

• Each channel includes an automatic protection circuit for short circuit, DC, overheating, and overload.

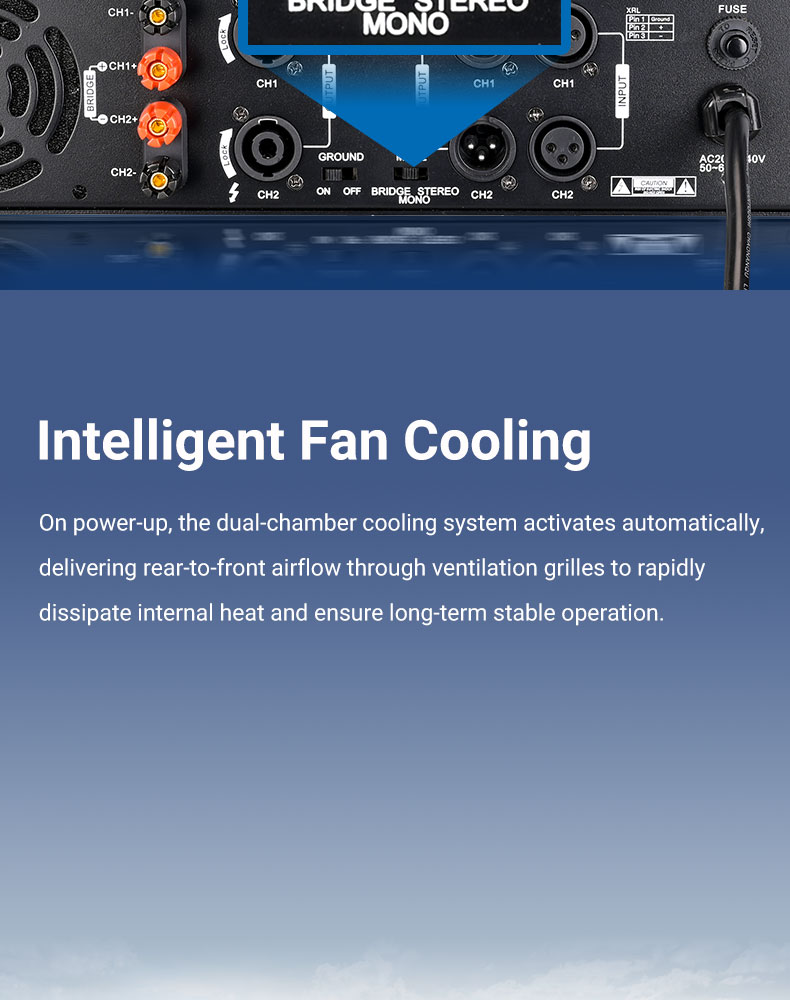

• Rear-to-front fan cooling system for reliable long-term operation.

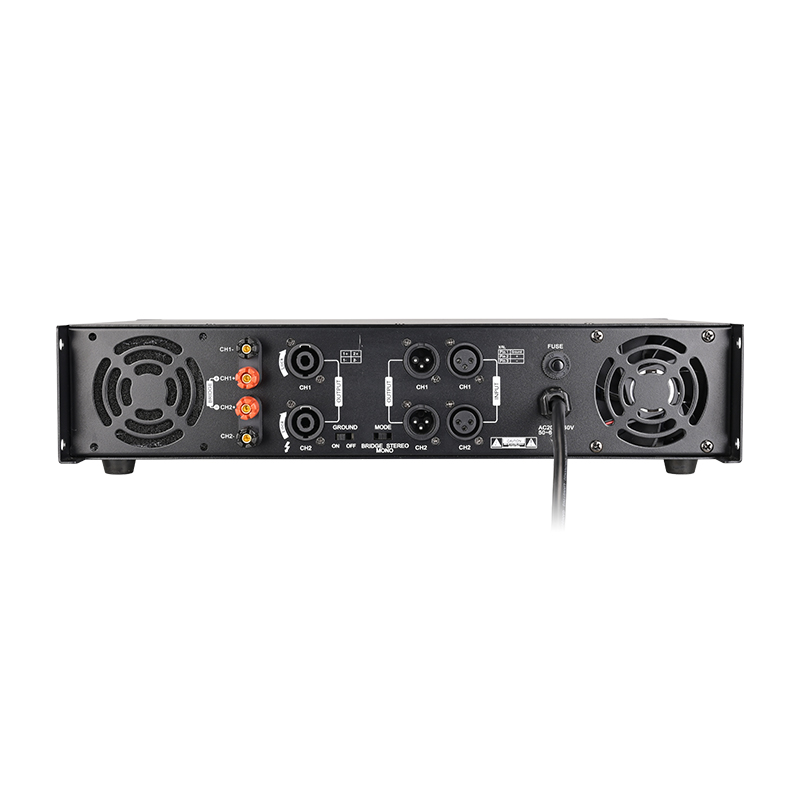

• Balanced XLR input and professional SPEAKON output connectors.

• Selectable operating modes via rear DIP switch: stereo, parallel, or bridged.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial

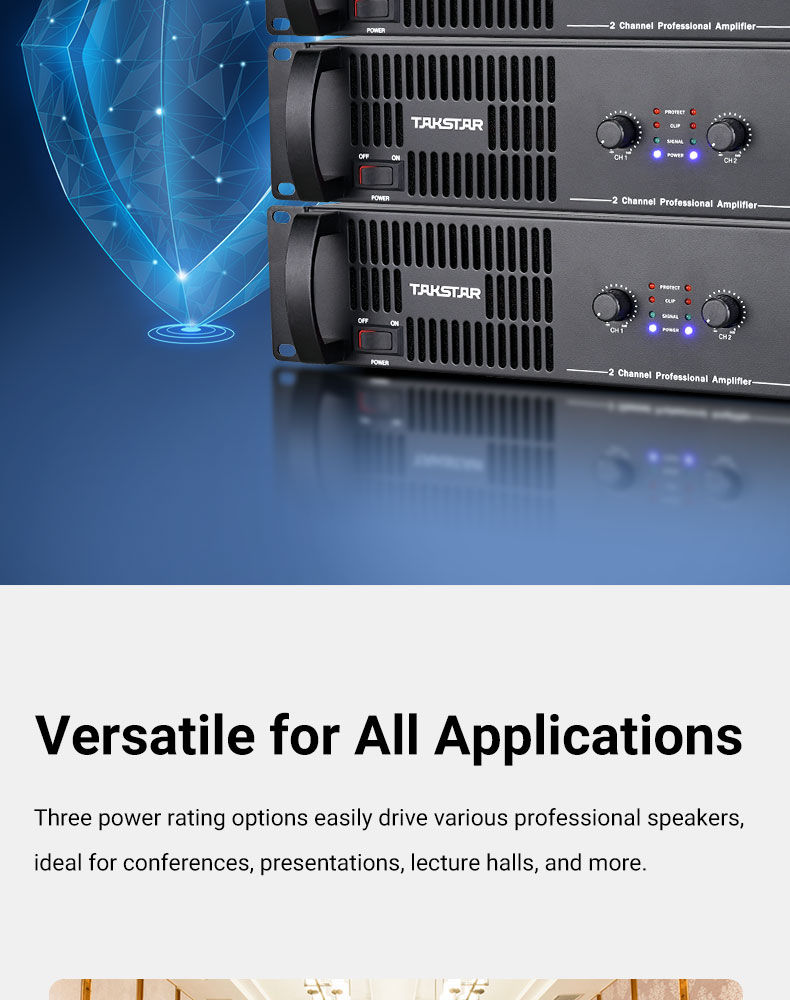

• Suitable for conferences, speeches, and auditoriums.

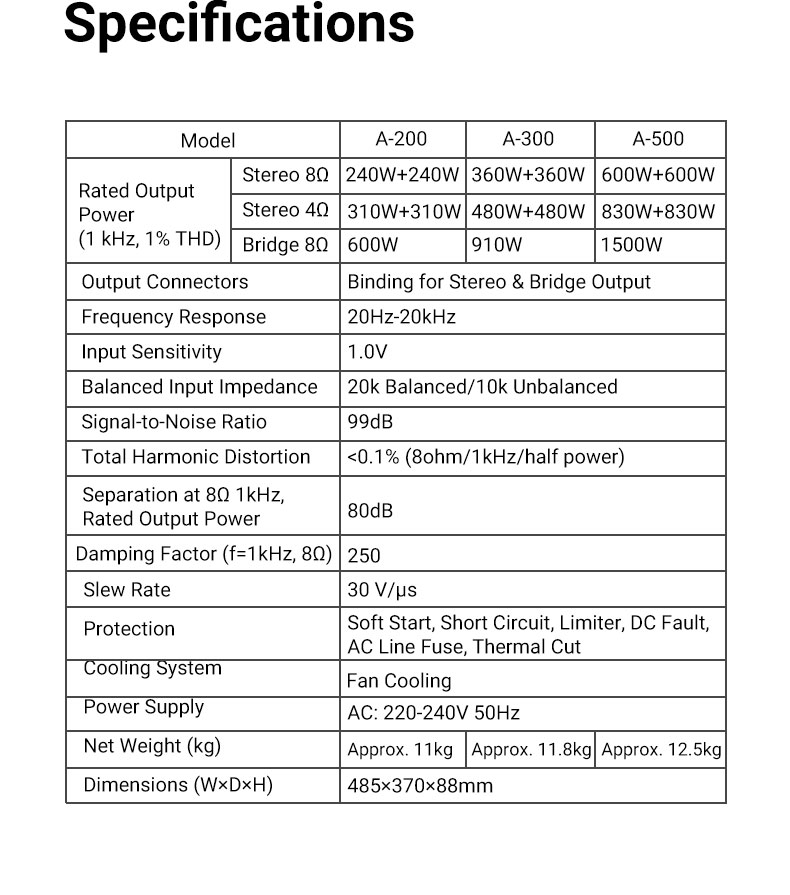

• Model: A-300
• Rated Output Power(1kHz1%THD)Stereo 8Ω: 360W+360W
• Rated Output Power(1kHz1%THD)Stereo 4Ω: 480W+480W
• Rated Output Power(1kHz1%THD)Bridge 8Ω: 910W
• Output Connections: Binding for Stereo & Bridge Output
• Frequency Response: 20Hz-20kHz
• Input Sensitivity: 1.0V
• Balanced Input Impedance: 20k Balanced/10k Unbalance
• Signal-to-Noise Ratio: 99dB
• Total Harmonic Distortion: <0.1% (8ohm/1kHz/half power)
• Separation at 8 Ω 1 kHz, Rated Output Power: 80dB
• Damping Factor (f=1 kHz, 8 Ω): 250
• Slew Rate: 30 V/μs
• Protection Features: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut
• Cooling System: Fan Cooling
• Power Supply: AC: 220-240V 50Hz
• Net Weight (kg): About 11.8kg
• Dimensions (W×D×H): 485×370×88mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
