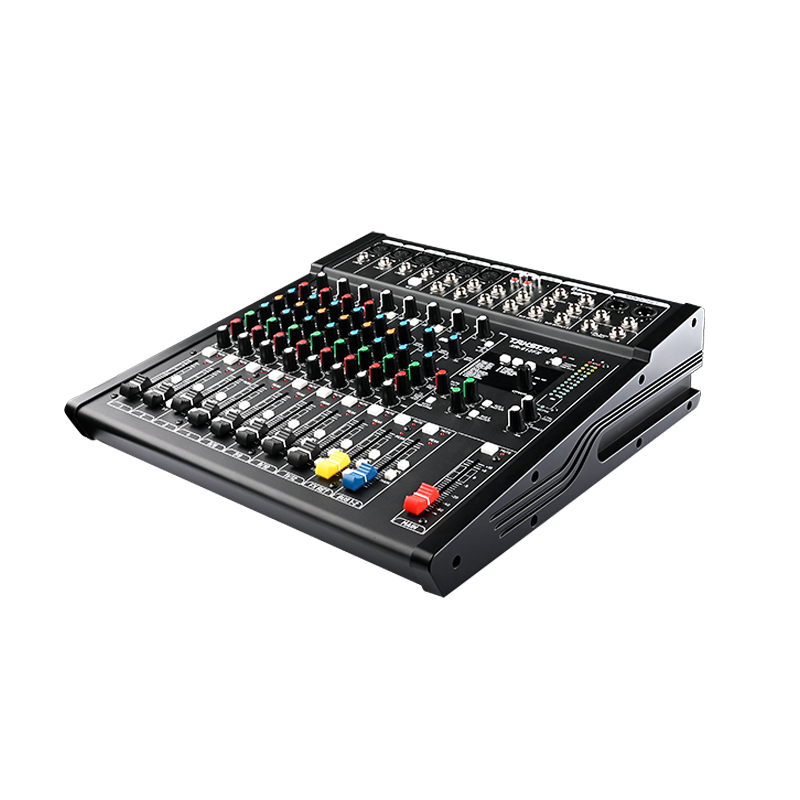

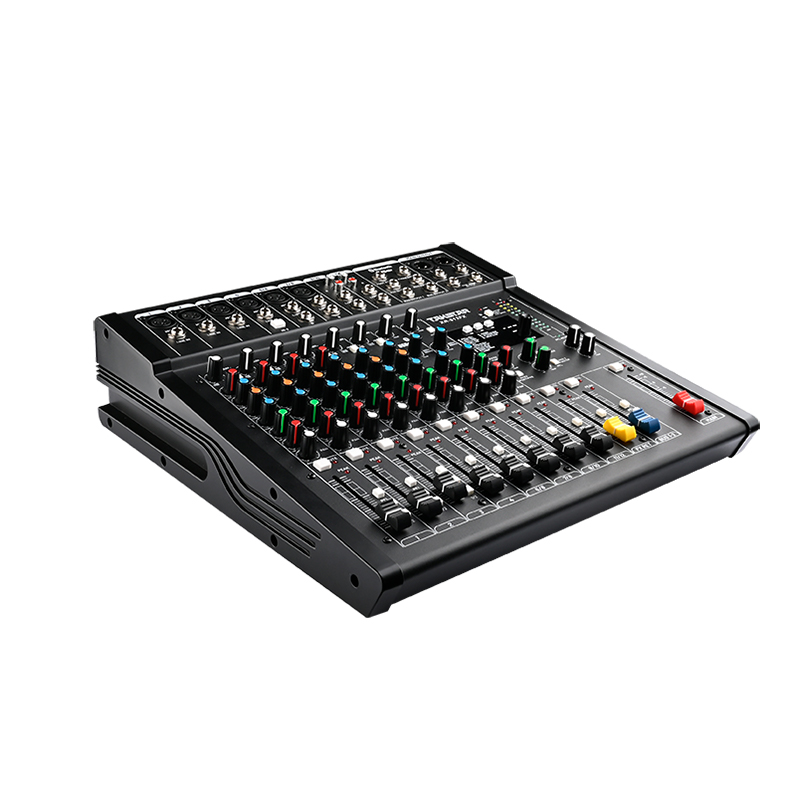

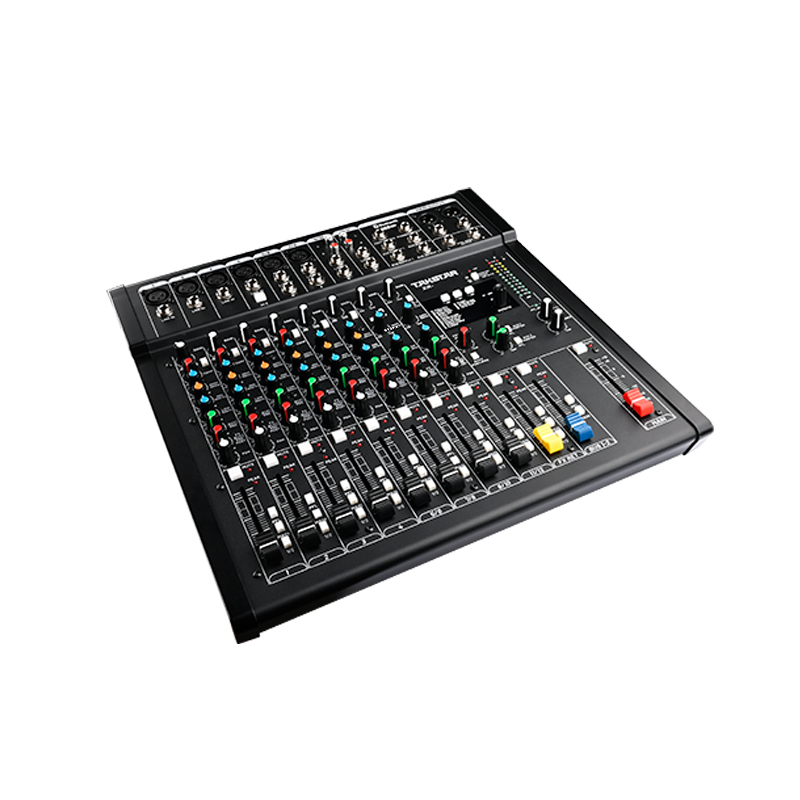

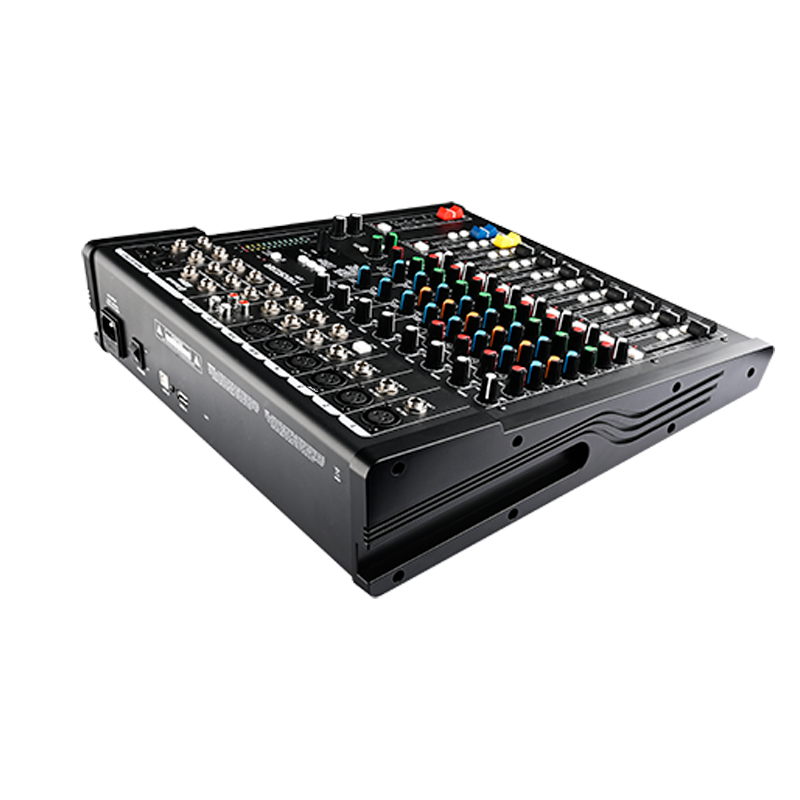

XR-612FX Analog Mixer

Mixer

• Robust metal housing

• Professional DSP effector with 16 effects available

• 6/10CH XLR mic inputs, 2/4CH bus outputs, 4/6CH with built-in compressor; separate stereo pan control on each channel

• Two stereo channels capable of direct routing to L/R

• USB-A MP3 playback, stereo USB-B audio input & output

• Low-noise preamp + 48V phantom power

• 3-band equalizer on each channel for treble/mid-range/bass adjustment

• Studio quality headphone output

• 60mm high precision faders

Product Detail

Application
Specification
Product Content
Product Tutorial

• Commercial performances, large gatherings, outdoors

MONO INPUT
• MIC IN: 6/10CH Bal XLR
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Max Input Level: +20 dBu
• Sensitivity: 0 dB to -50 dB
• MIC IN Impedance: 14 kΩ, unbal
• Phantom Power: +48V
• Low Cut: 80 Hz
• LINE IN: 4/8CH Bal TRS
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Sensitivity: 20 dB to -30 dB
• Max Input Level: +40 dBu
• LINE IN Impedance: 21 kΩ, unbal

STEREO INPUT
• LINE IN: 4 pairs of Bal TRS + 2 pairs of Unbal RCA
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Sensitivity: 20 dB to -30 dB
• LINE IN Impedance: 15 kΩ, unbal

MONO EQ
• HIGH: +/-15 dB ＠ 10 kHz Shelving
• MID: +/-15 dB ＠ Freq.sel. from 100Hz to 8kHz-Bell
• LOW: +/-15 dB ＠ 100 Hz Shelving

DSP
• DSP: 20/27 bit digital signal A/D & D/A Converter: 24 bit
• FX Type: 4 algorithms: reverb, chorus, delay, flanger - 16 presets
• Foot Switch: TS jack (for effect return mute and unmute)

STEREO EQ
• HIGH: +/-15 dB ＠ 10 kHz Shelving
• MID: +/-15 dB ＠ 1,250 kHz Bell
• LOW: +/-15 dB ＠ 100 Hz Shelving

OUTPUT
• MAIN OUTPUT: 1 pair of XLR + 1 pair of 6.3mm TRS
• MAIN Max Output Level: +28 dBu
• AUX OUTPUT: 4 TRS
• AUX Max Output Level: +28 dBu
• STEREO GROUP 1/2 OUTPUT: 2 TRS
• GROUP Max Output Level: +28 dBu
• STEREO GROUP 3/4 OUTPUT: 2 TRS
• GROUP Max Output Level: +28 dBu
• Monitor Output: 1 pair of TRS
• Stereo Headphone Output: 1 Stereo TRS

POWER SUPPLY
• Main Input Voltage: 100 V - 240 V AC, 50-60 Hz
• Power Consumption: 30W

• XR-612FX Dimensions: 369*383*94 mm
• Weight: 4.8 kg
