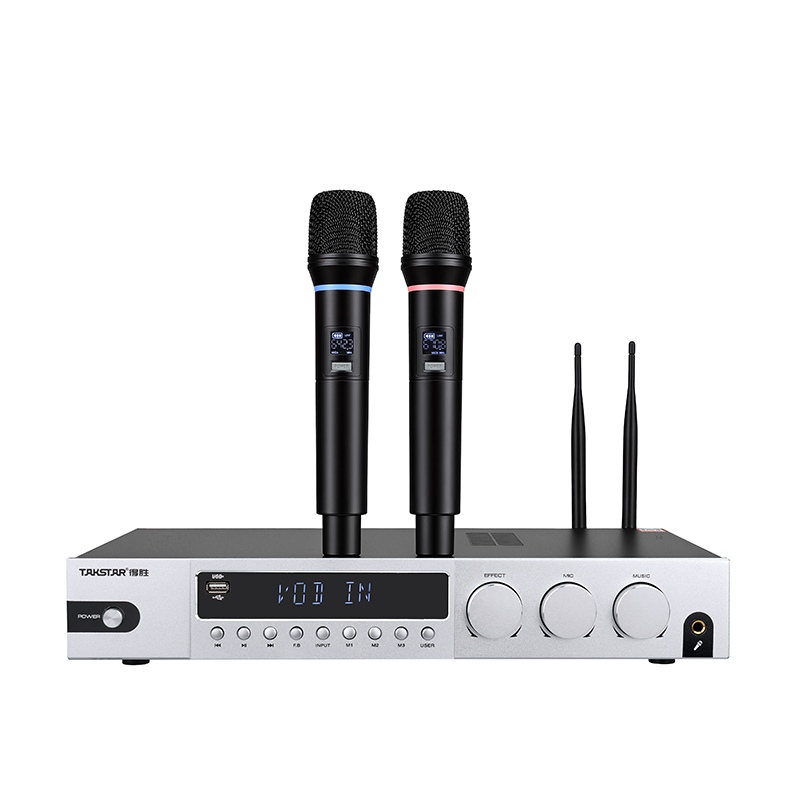

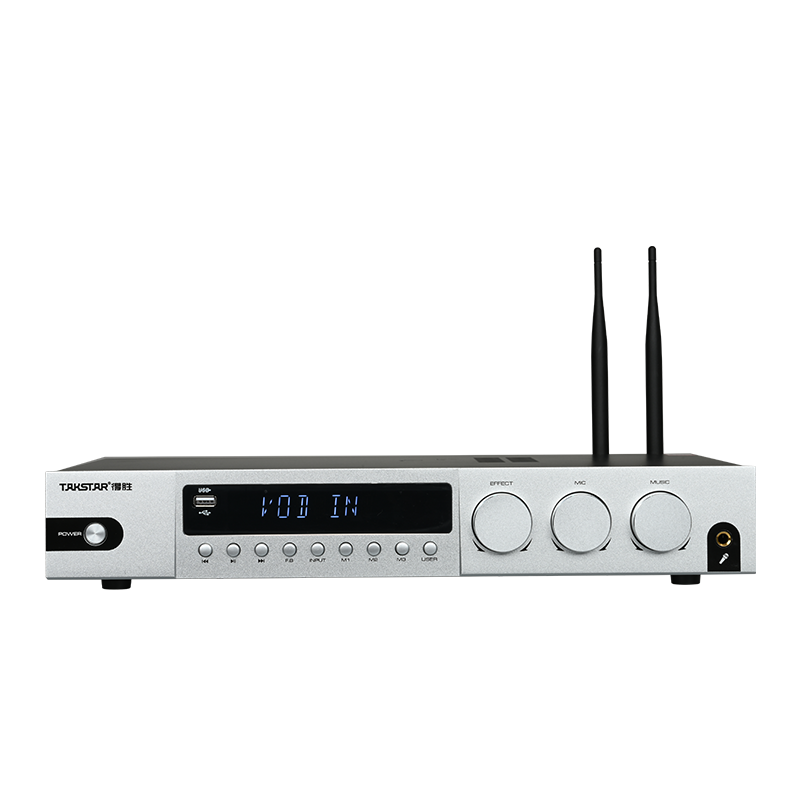

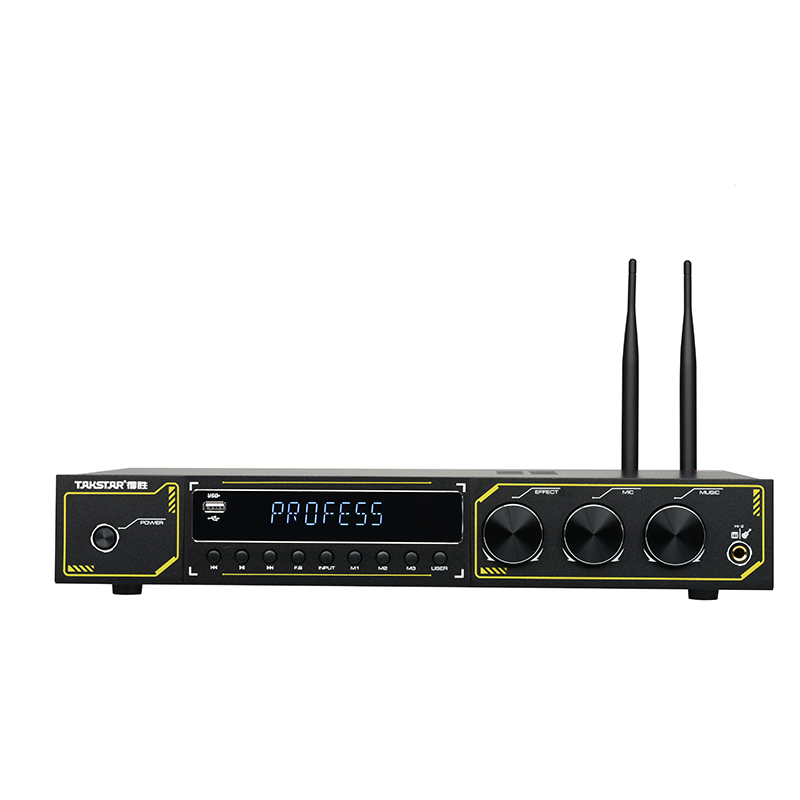

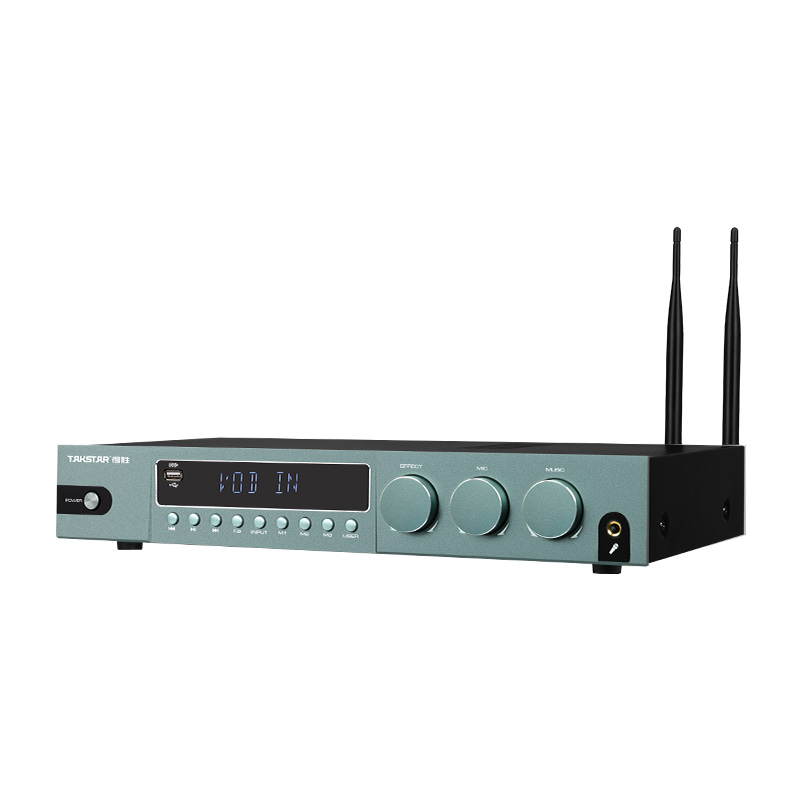

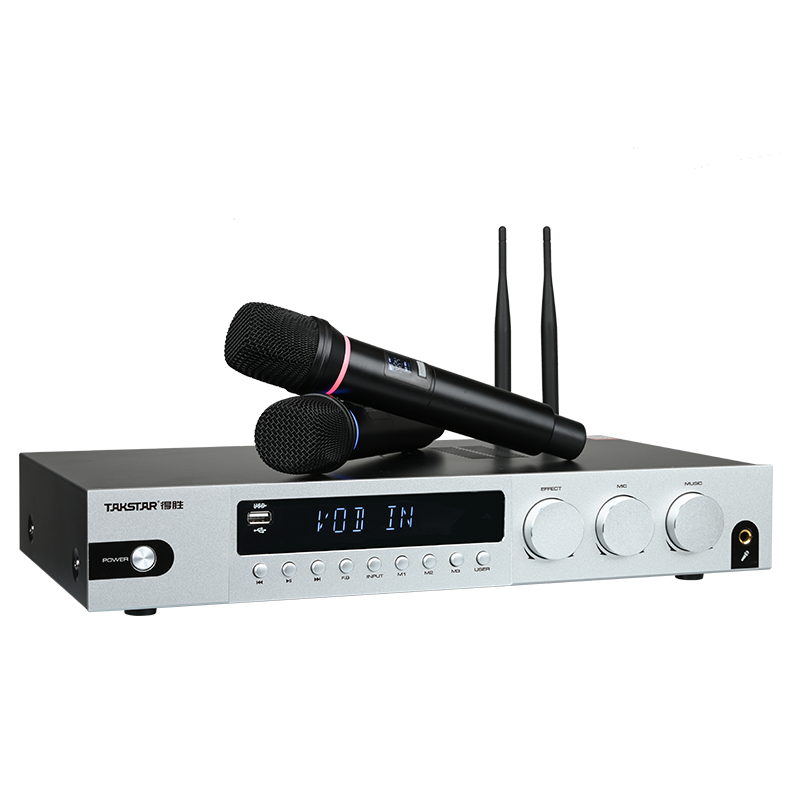

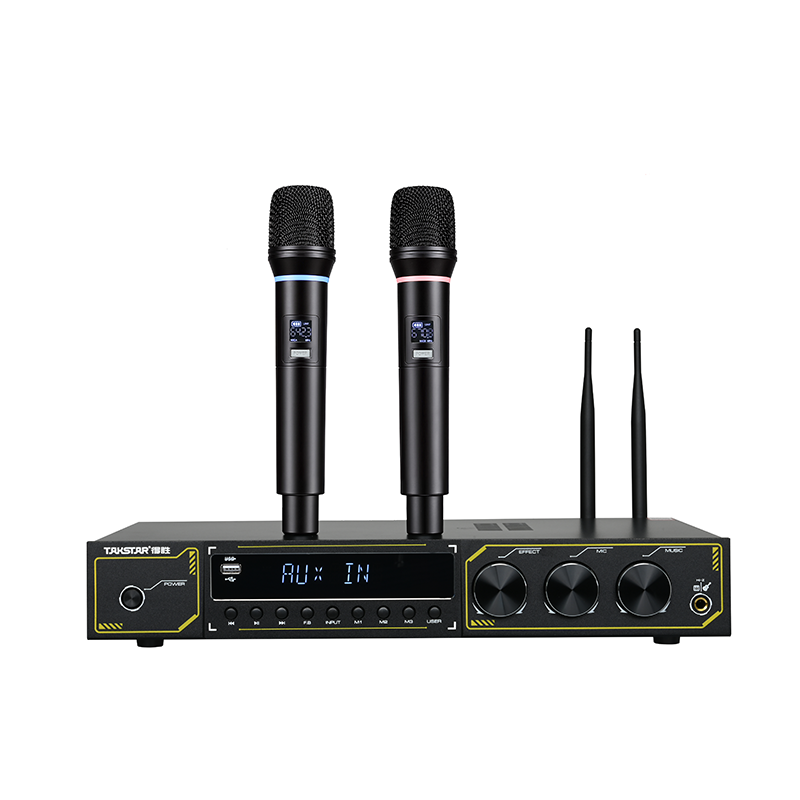

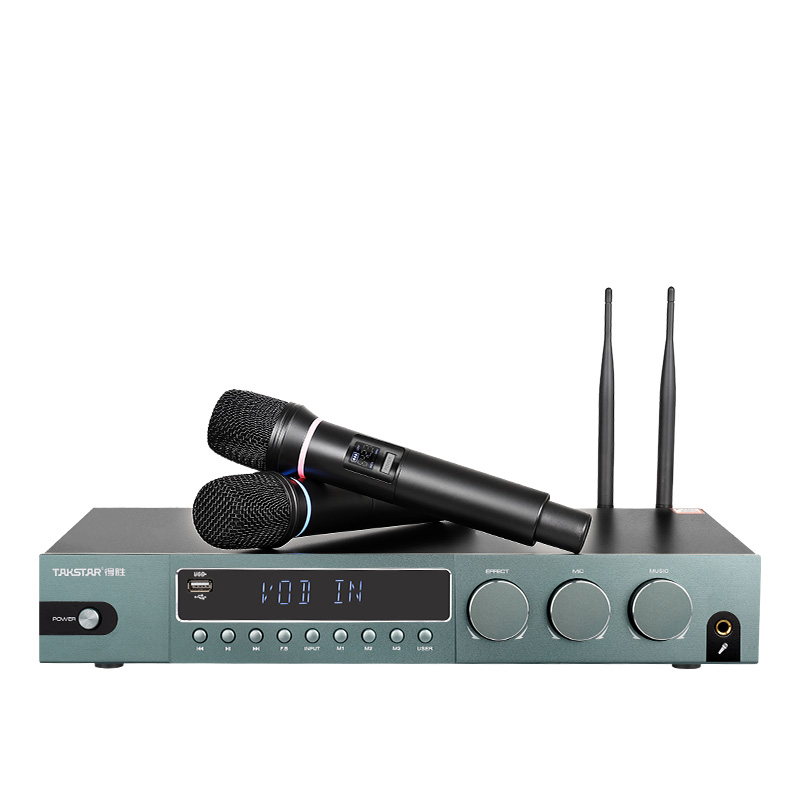

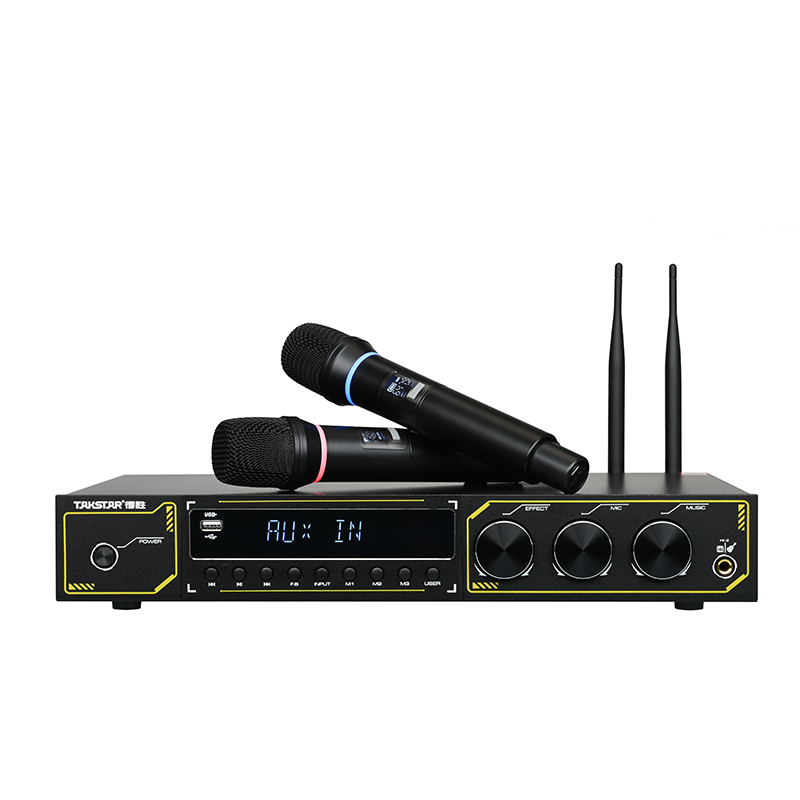

MK-3 3-in-1 Multi-Functional Amplifier
- Power Amplifier
• High-performance SOC power amp integrating wireless V5.3, MP3/WMA/MAV/FLAC/APE/ACC, 24-bit DAC/ADC decoding; 2ch mic/guitar inputs with independent control, supports USB/SD/wireless playback.
• 1.5U aluminum panel, toroidal transformer, DSP preamp & Class D power amp.
• 2ch analog stereo inputs (VOD/AUX) + 4ch digital inputs (Bluetooth/Optical/Coaxial/USB).
• 3 factory audio presets, 1 custom effect & 3-level feedback suppression.
• 2ch music outputs, 1ch vocal output & 1ch subwoofer output.
• 2ch mic inputs with independent control of bass/treble/EQ/noise gate/compressor/volume/routing.
• 2ch full-range + 1ch subwoofer outputs; full-range supports 31-band EQ, subwoofer supports 5-band EQ adjustment.
• 3ch outputs with professional crossover, compressor, input/effect routing, delay/phase adjustment & individual mute.
• Applies ECHO and REVERB algorithms for powerful, immersive sound.
• 9-way crossover: 3ch outputs with Bessel, Butterworth, Linkwitz-Riley professional filters. Slope 6dB-48dB selectable, with precise and fast crossover, fully replacing analog crossovers.
• Save or recall any effect with 10 storable modes, or store them to a computer without audio loss.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• Suitable for home karaoke, entertainment private rooms, multifunctional halls, banquet halls, agritainment, conference rooms, classrooms, supermarkets and other occasions
• Rated Power: 2 × 150W • Music Sensitivity: 465mV • MIC Sensitivity: 48mV • Frequency Response: 20Hz-20kHz (±3dB) • Signal-to-Noise Ratio: >80dB • Harmonic Distortion: <0.1% • Dimensions: 430 × 220 × 65 mm • Gross Weight: Approx. 7kg Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • 3-in-1 Amplifier | 1 PC |

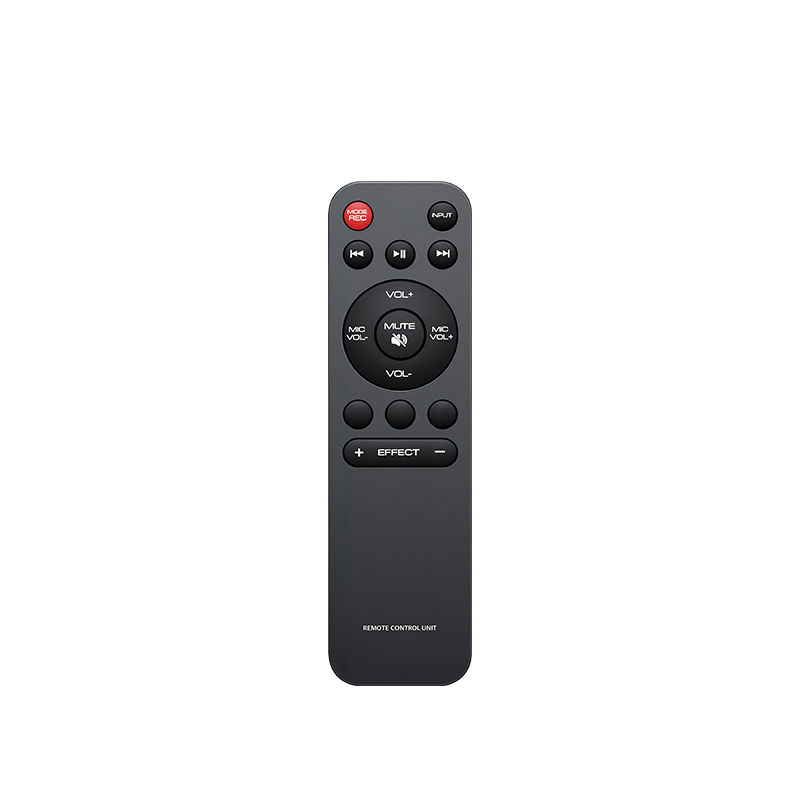

| • Remote Control | 1 PC |

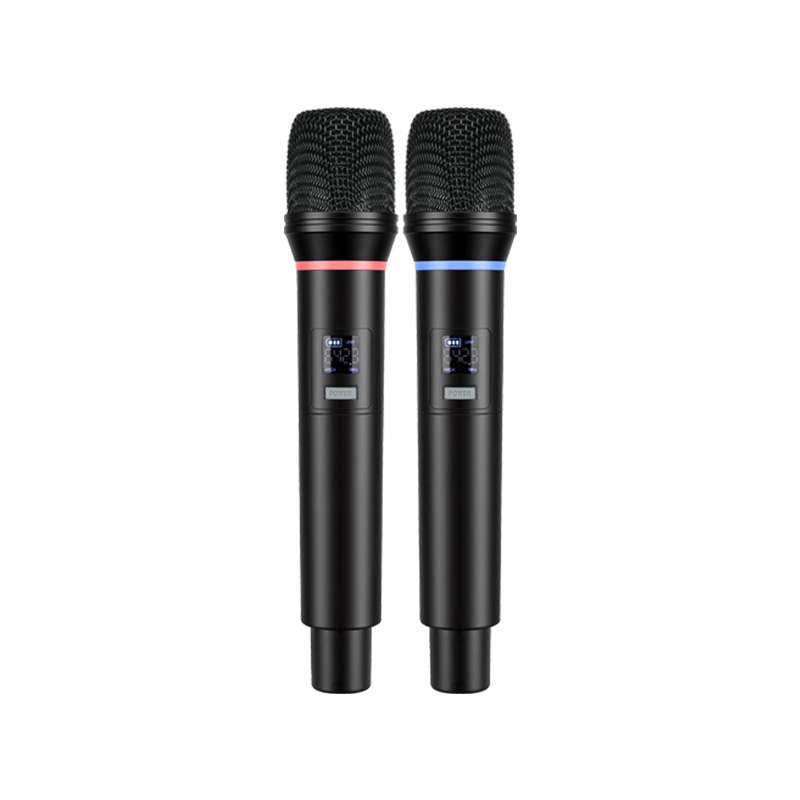

| • Wireless Microphones | 2 PC |
| • Power Cable | 1 PC |
| • USB Data Cable | 1 PC |
| • 18650 Batteries | 2 PC |
| • AAA Batteries | 2 PC |
| • Microphone Antennas (200mm) | 2 PC |
| • User Manual | 1 PC |
User manual
Driver software
MK-3
