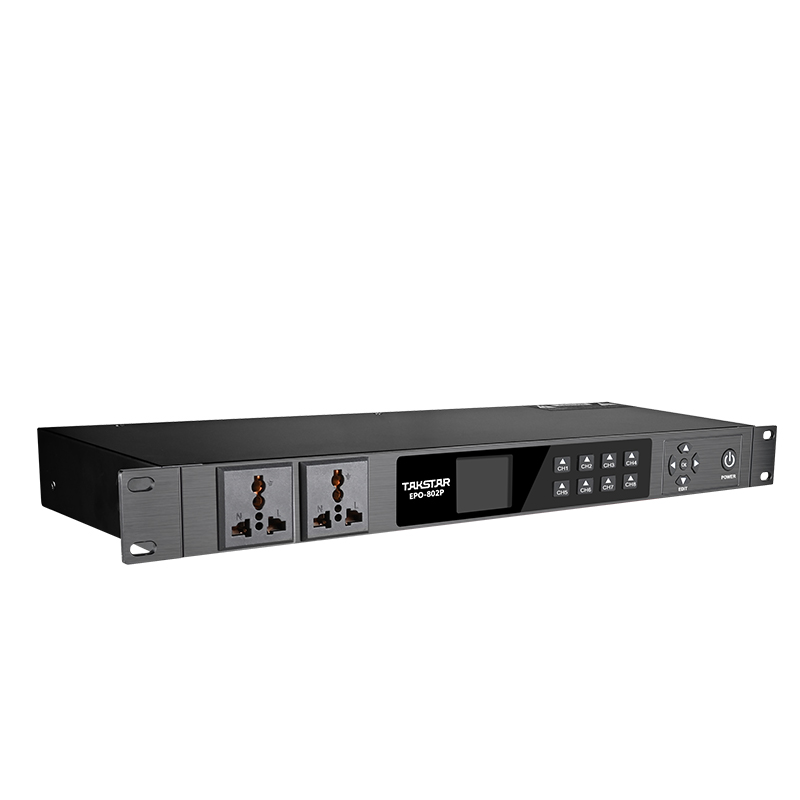

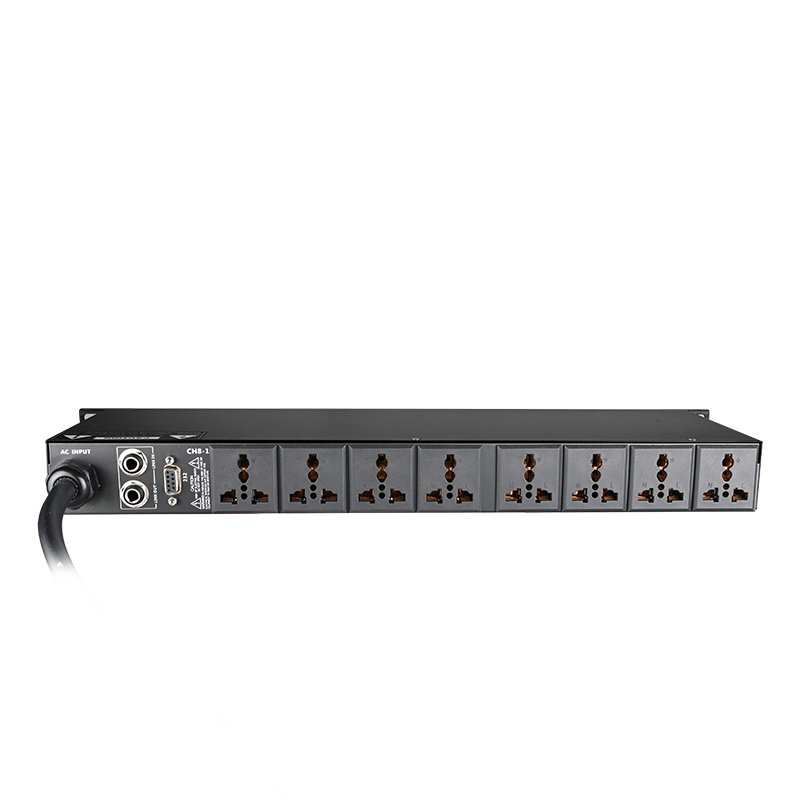

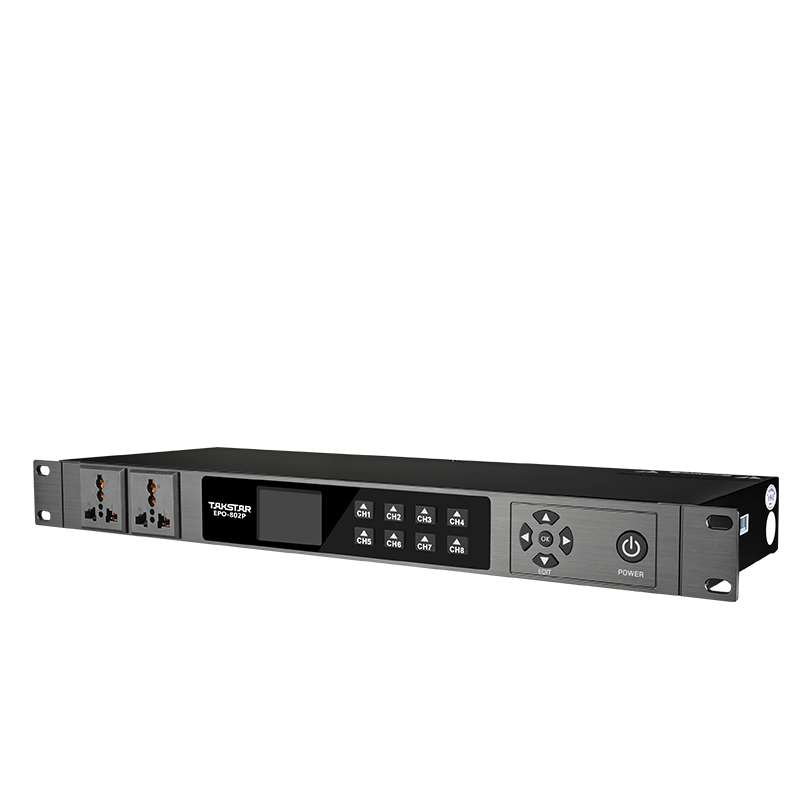

EPO-802P Power Sequencer

Peripheral Equipment

• 2-inch color LCD smart display: real-time voltage, date/time, and channel on/off status.

• 8 switched output channels with individually adjustable turn-on/turn-off delay time (0‒999 seconds).

• Panel lock function to prevent accidental operation.

• Built-in clock chip for scheduled automatic power on/off based on date/time, no manual operation required.

• Supports daisy-chain sequential control of multiple units with automatic cascade detection.

• RS-232 interface for external central control system integration.

• Individual ID setting and detection for remote centralized control.

• 8 groups of power on/off scene settings for easy save and recall.

• Under-voltage and over-voltage detection and alarm.

Product Detail

Specification
Product Content
Product Tutorial

• Item: Parameter
• Rated Output Voltage: AC 220V, 50Hz
• Controllable Power Outlets: 8 channels + 2 auxiliary output channels
• Per Channel Delay Time: 0-999s
• Power Supply: AC 220V 50/60Hz 30A
• Status Display: 2" TFT color LCD, real -time display of voltage, date, time and each channel status
• Rated Output Current Per Channel: 13A
• Total Rated Output Current: 30A
• Timer Function: ✓
• Weight Gross Weight: 4kg
• Dimensions Package Dimensions: 536x410x80mm

• Specifications are subject to change without notice due to continuous product improvement.
