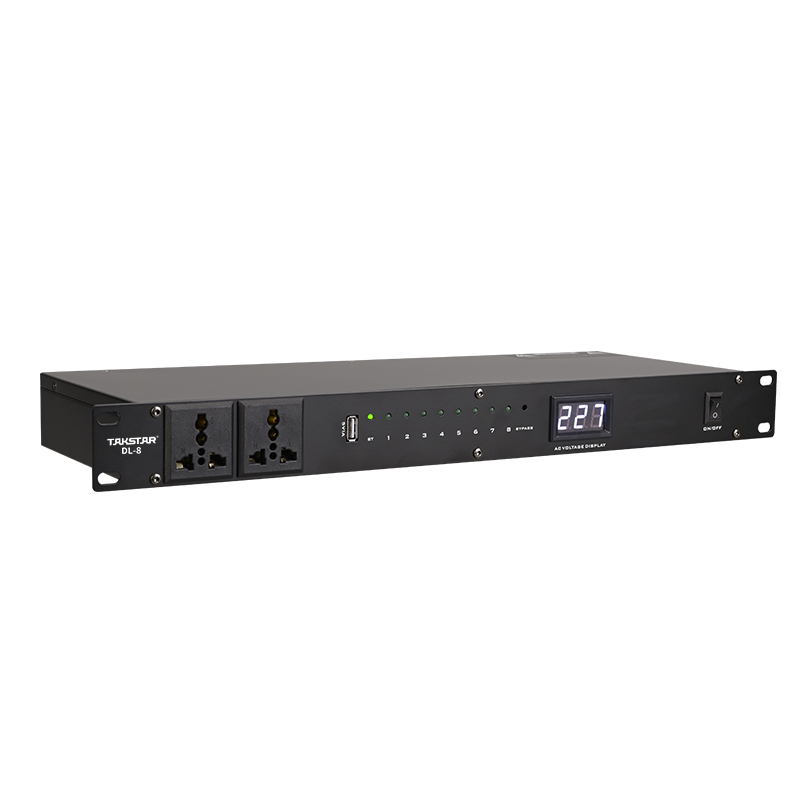

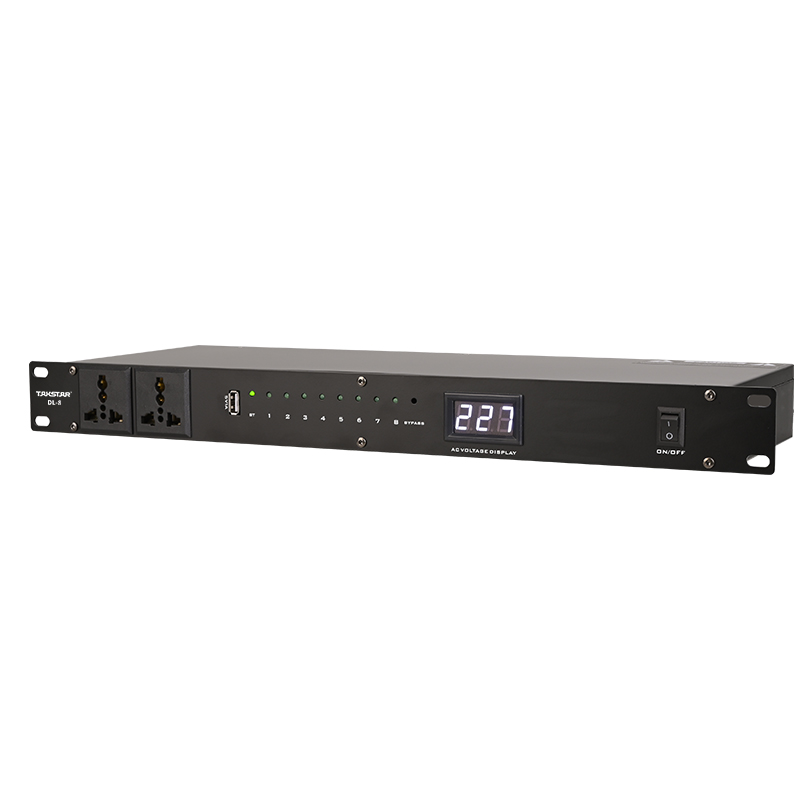

DL-8 Power Sequencer

Peripheral System

• Automatic power sequencing on/off via front panel switch.

• 8 controllable channels + 2 bypass channels.

• Each controllable channel supports a maximum current of 30A; total power capacity is 3500W.

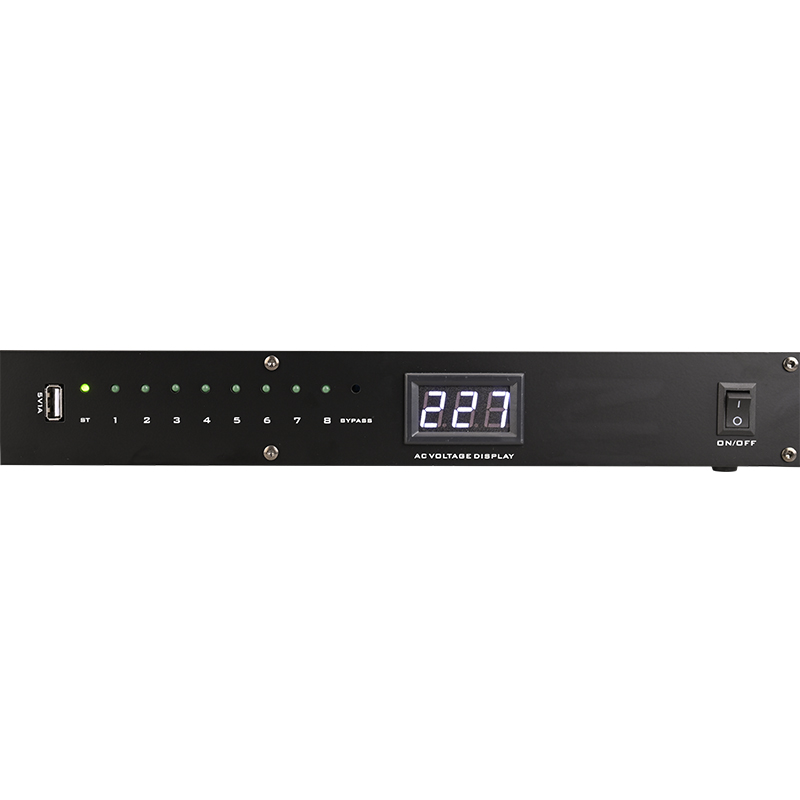

• Each channel features an LED indicator for real-time status feedback.

• Real-time voltage display for monitoring the operating voltage at the device's location.

• Front panel includes a 5V 1A DC USB output for powering lights.

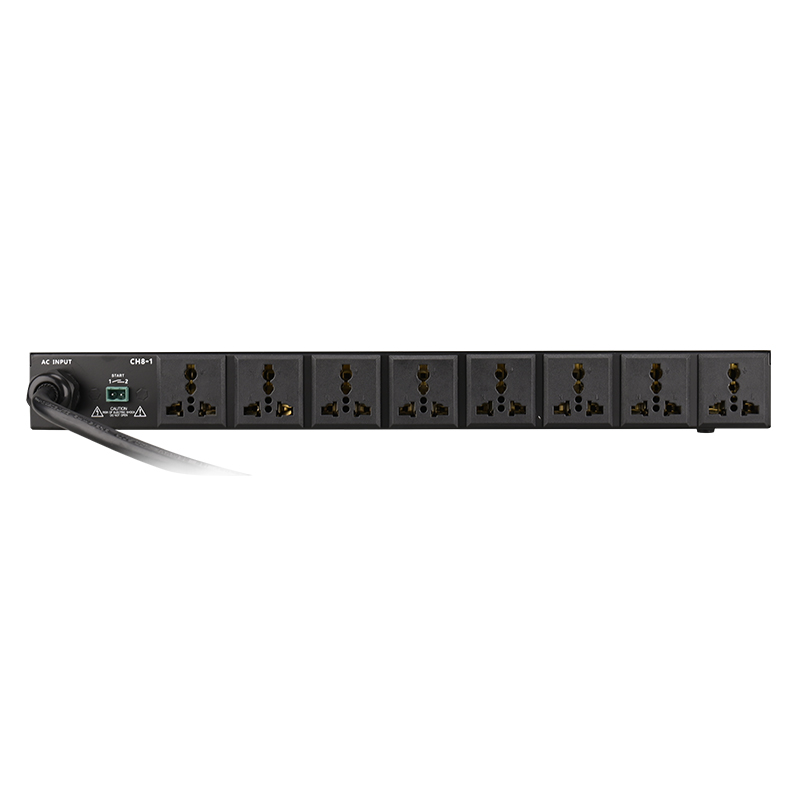

• High-quality universal sockets, compatible with various power plug standards.

Product Detail

Application
Specification
Product Content
Product Tutorial

• For conference rooms, multipurpose halls, KTV bars, engineering installations, and outdoor performances.

• Number of Channels: 8
• Number of Auxiliary Channels: 2
• Rated Current per Channel: 13A
• Maximum Current per Channel: 30A
• Total Power Capacity: 3500W
• Sequential Switch Time Interval: 1 sec
• Power Supply: 220V/50Hz
• Weight: Approx. 3kg
• Dimensions (W*D*H): 483mm*66.5mm*185mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
