• 2-in 6-out digital audio processor, equipped with 4th-generation SHARC ADSP-21489 high-performance floating-point DSP chip for powerful audio processing.

• 96kHz sampling rate for precise sound detail capture; AD/DA dynamic range up to 118dB.

• Imported ELNA capacitors and premium audio-grade components to minimize sound coloration.

• Dynamic range >110dB, THD+N <0.006%, minimum fixed system latency <2ms.

• Built-in signal generator with pink noise, white noise and sine wave outputs.

• Parametric EQ types: PEQ, Lo-Shelf, Hi-Shelf, Allpass1, Allpass2 (all-pass filters support phase adjustment).

• High/low-pass filters: Bessel, Butterworth, Linkwitz-Riley, slope selectable from 6 to 48dB/Oct.

• Adjustable input/output delay up to 1000ms with 0.02ms resolution.

• Input channel processing: noise gate, feedback suppressor, 10-band parametric EQ, 3-band dynamic EQ, high/low-pass filter, compressor, delay.

• Output channel processing: matrix mixer, 10-band parametric EQ, high/low-pass filter, compressor, limiter, delay.

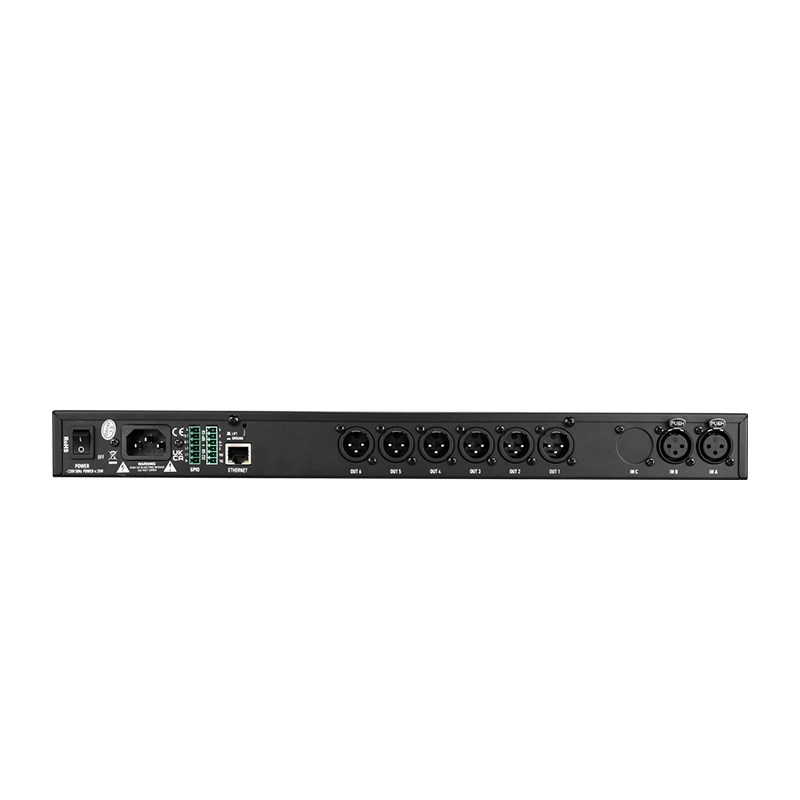

• Ethernet and RS-232/485 control ports; open TCP/IP and serial protocols for third-party control.

• Flexible GPIO ports (2 inputs + 2 outputs) for system integration; optional GPIO expansion box.

• PC software auto-discovers processors; supports 23 scene presets for easy recall.
