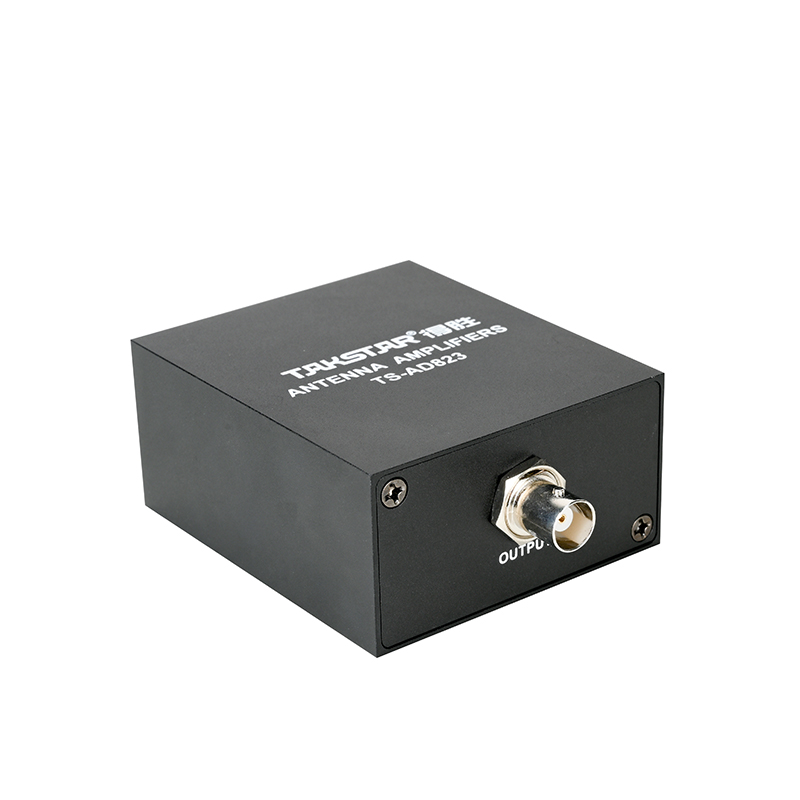

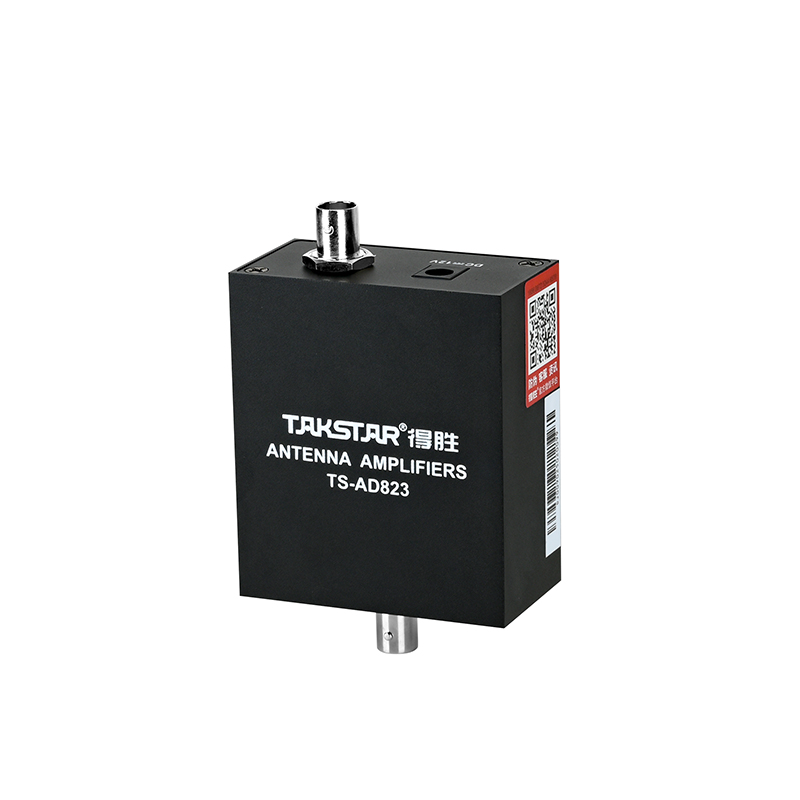

TS-AD823 Antenna Amplifier
- Peripheral System
• Wideband design (300–950MHz) for antenna signal amplification, supporting 3–50m cable extensions to effectively increase reception range and transmission stability.
• Dual power supply: supports power via the RF cable and an external DC input, providing stable signal gain.
• Aluminum alloy housing with excellent heat dissipation ensures consistent and stable circuit performance.
Product Detail
- Product Detail
- Specification
- Product Content

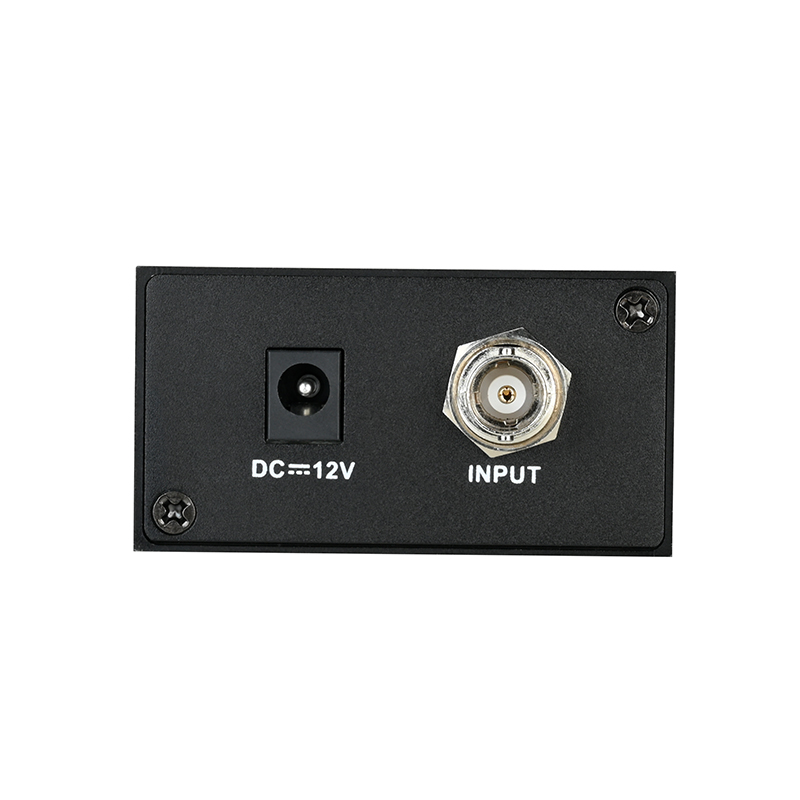

• BNC Input: BNC female, wireless signal input • BNC Output: BNC female • Power Supply: DC 12 V, 500mA • Current Consumption: <90mA • Frequency Range: 300–950MHz • Gain: 8–15dB • DC Input: DC 12V • Dimensions: 65×75×35mm (excluding BNC connectors) • Weight: 133g
| • TS-AD823 Antenna Amplifier | 1 PC |
| • BNC Male-to-Male Cable | 1 PC |
| • Power Adapter | 1 PC |
| • User Manual | 1 PC |
| • Warranty Card | 1 PC |
TS-AD823
