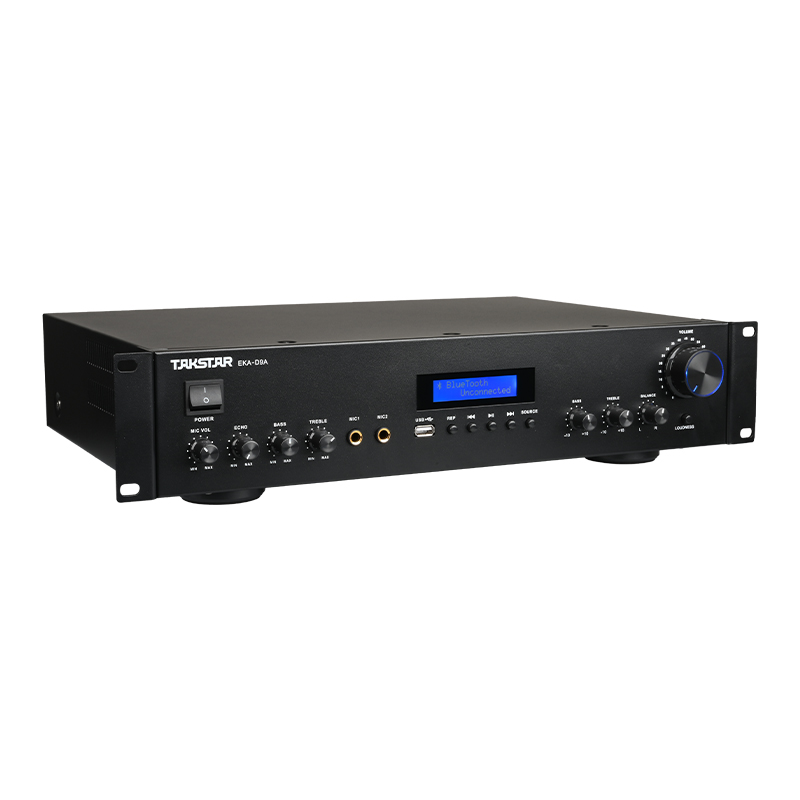

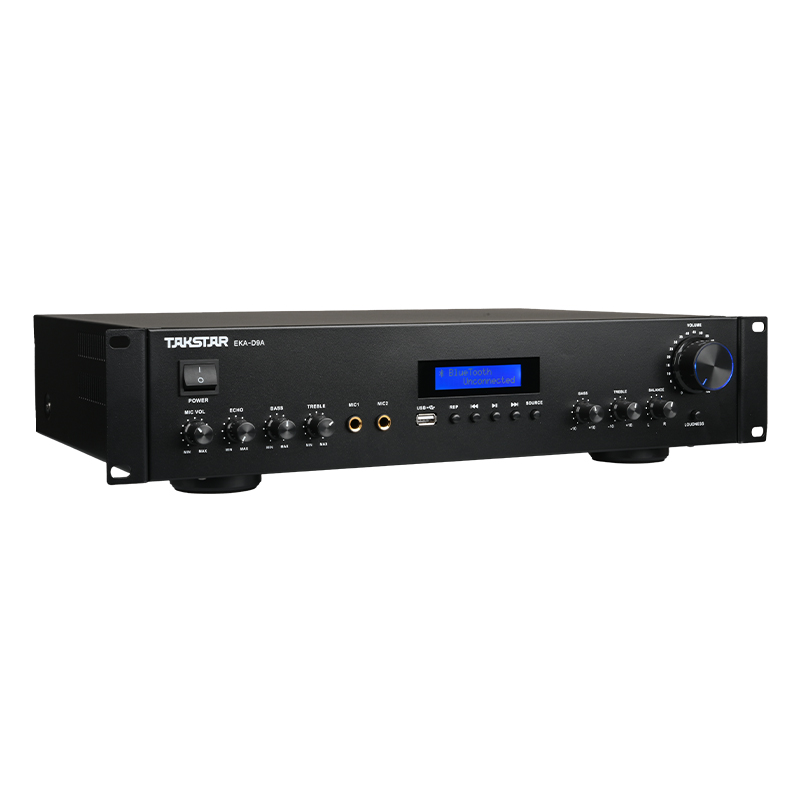

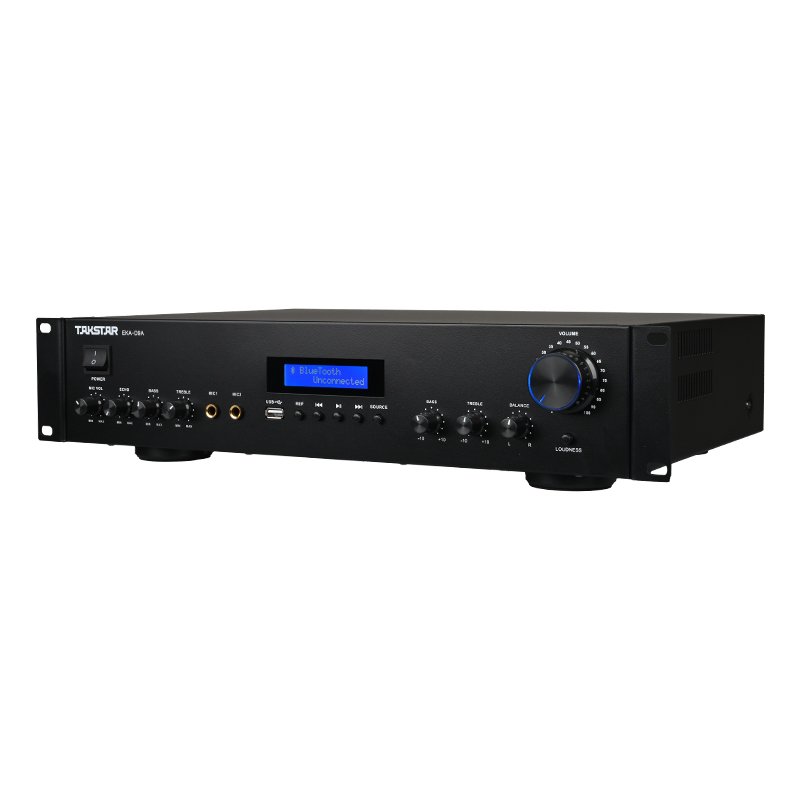

EKA-D9A (Upgraded Version) Low Impedance Integrated Amplifier
- Power Amplifier
- EKA-D Series

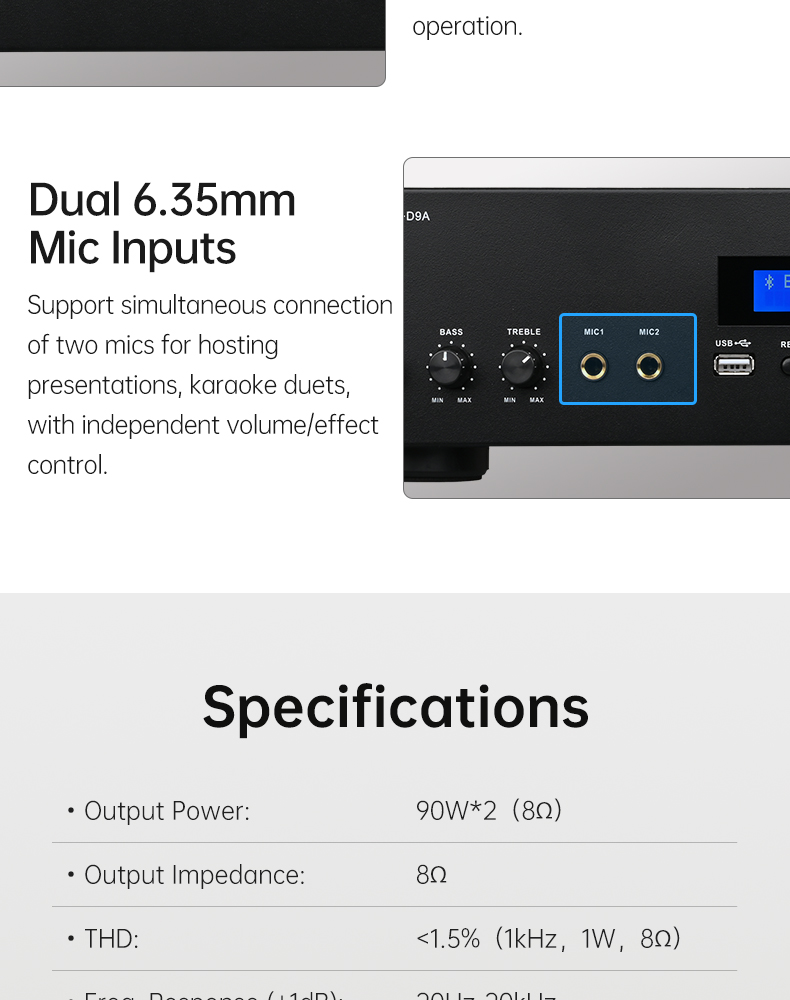

• Dual microphone inputs, enabling adjustment of microphone volume, treble, bass, and effects.

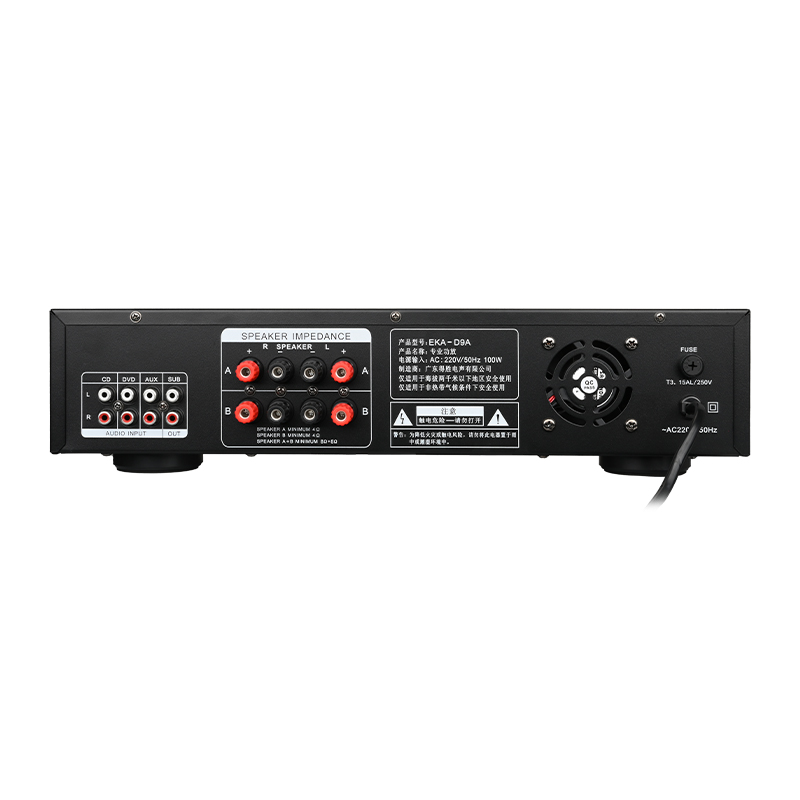

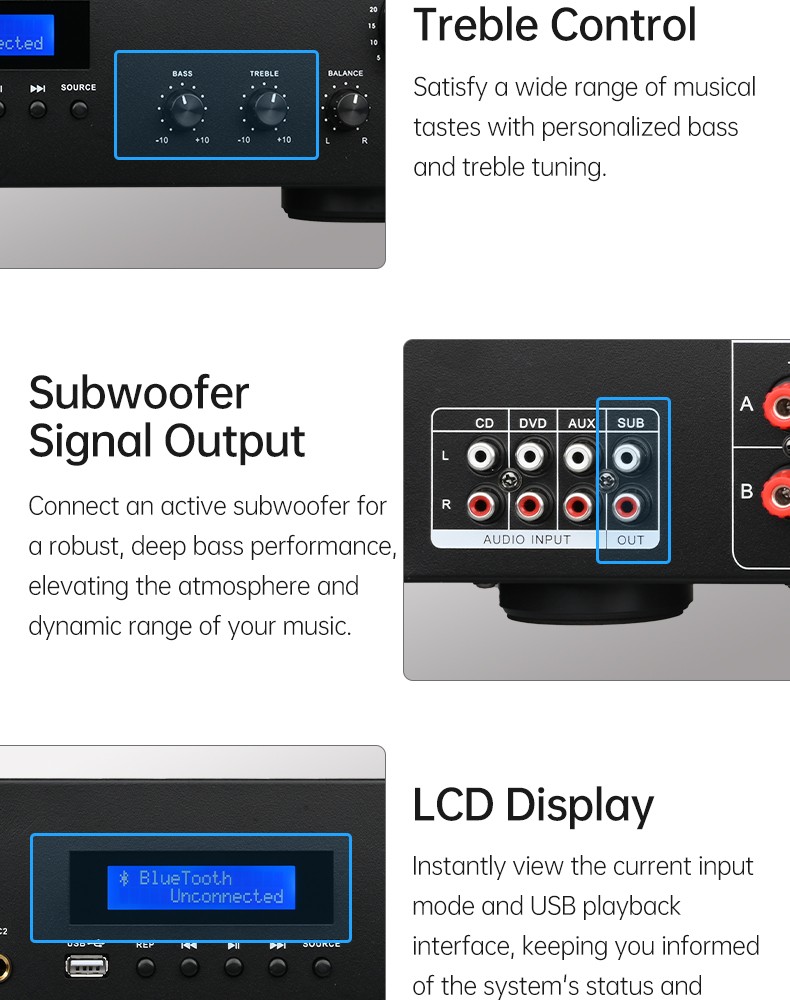

• 3 AUX audio inputs; 1 subwoofer output for connecting active subwoofers.
• Wireless audio streaming from phones, PCs, and tablets with interactive control.
• Supports multimedia audio file playback from USB drives.
• Full metal chassis and high-quality transformer for stable performance.
• Efficient circuitry, high-fidelity dynamic, wide frequency response, clear sound.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
- Product Tutorial
• For small shops, classrooms, and small meeting rooms.

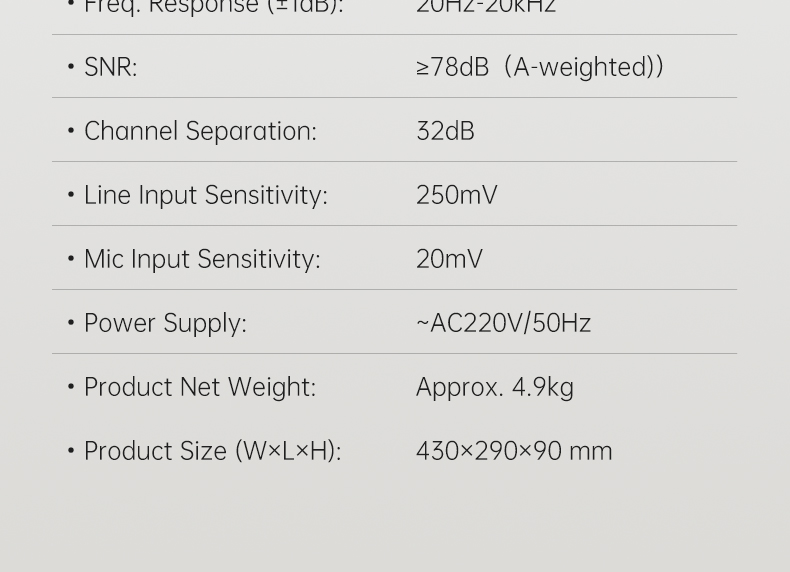

• Output Power: 90W × 2 (8Ω) • Output Impedance: 8Ω • THD: <1.5% (1kHz, 1W, 8Ω) • Frequency Response (±1dB): 20Hz-20kHz • SNR: ≥78dB (A-weighted) • Channel Separation: 32dB • Line Input Sensitivity: 250 mV • Mic Input Sensitivity: 20mV • Power Supply: ~AC220V/50Hz • Product Net Weight: Approx. 4.9kg • Product Size (W×L×H): 430mm×290mm×90mm Note: The above data are measured by Takstar laboratory which has the final interpretation right!
| • Amplifier | 1 PC |
| • User Manual | 1 PC |
| • Rack Ears | 1 PC |
User manualEKA-D9A (Upgraded Version) Low Impedance Integrated Amplifier User Manual2026-10-22 14:06:10Download
User manualEKA-D9A (Upgraded Version)
