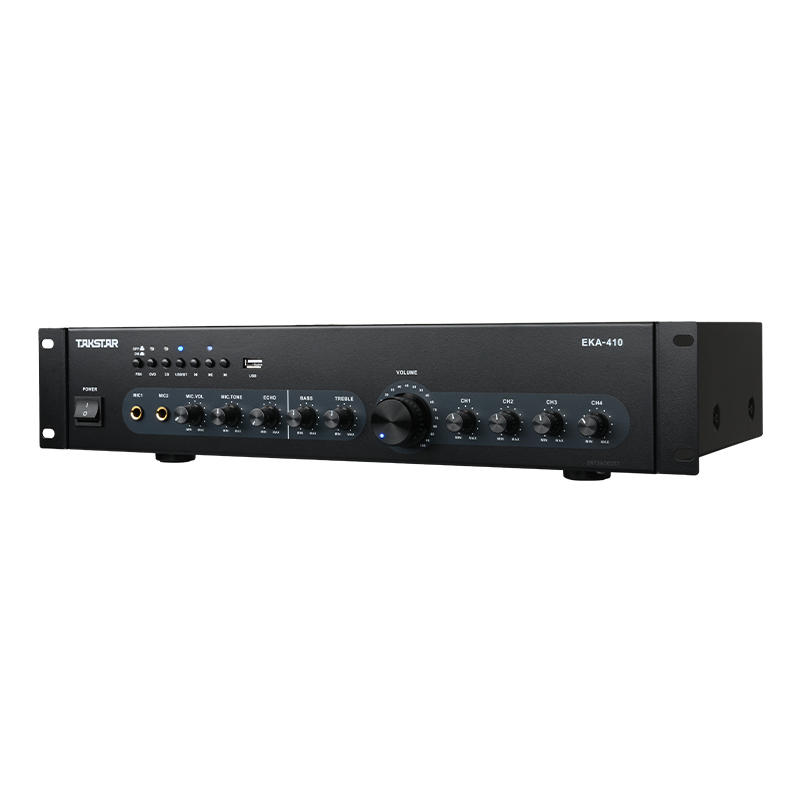

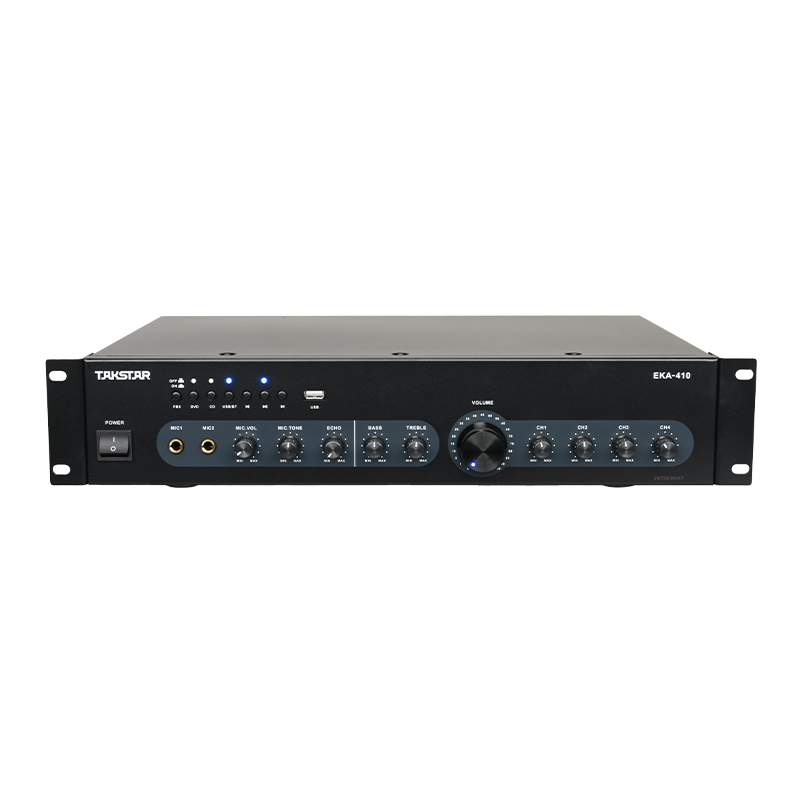

EKA-410 (Upgraded Version) Four-Channel Integrated Amplifier

Power Amplifier

• Full metal chassis with quality transformer for stable performance.

• 4 channel outputs, 100W (8Ω) power per channel, 4-8 ohm loads.

• Features feedback suppression with one-key activation, boosting system gain by 3‒4dB for enhanced sound reinforcement.

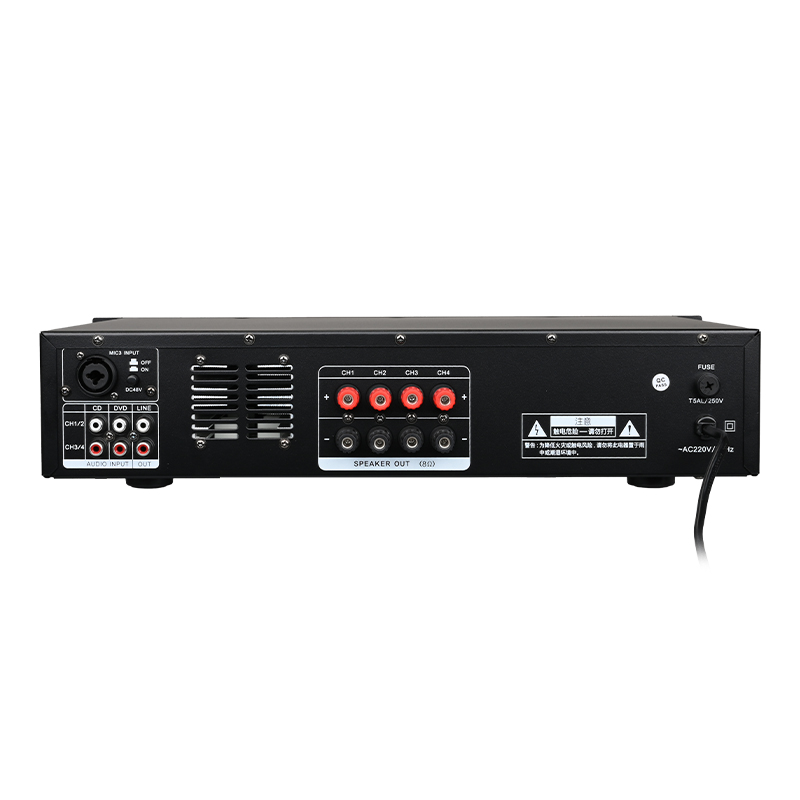

• Rear 48V phantom mic input, front 2 mic inputs with volume/effect controls.

• 2 AUX inputs, 1 audio output for connecting amps/recorders.

• USB drive and wireless audio playback with interactive controls.

• Efficient power, high-fidelity, high-dynamic, wide-range audio.

Product Detail

Application
Specification
Product Content
Product Tutorial

• For classrooms, small conference rooms, and similar settings.

• Output Power: 100W × 4 (8Ω)
• THD: <1.5% (1kHz, 1W, 8Ω)
• Frequency Response (±1dB): 20Hz - 20kHz
• S/N Ratio: ≥80dB (A-weighted)
• Channel Separation: 32dB
• Input Sensitivity: 170mV
• Mic Input Sensitivity: 18mV
• Power Supply: ~AC220V/50Hz
• Net Weight: Approx. 8.4Kg
• Product Dimensions (W×D×H): 430mm×290mm×90mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
