• For conferences, performances, speeches, and auditoriums.

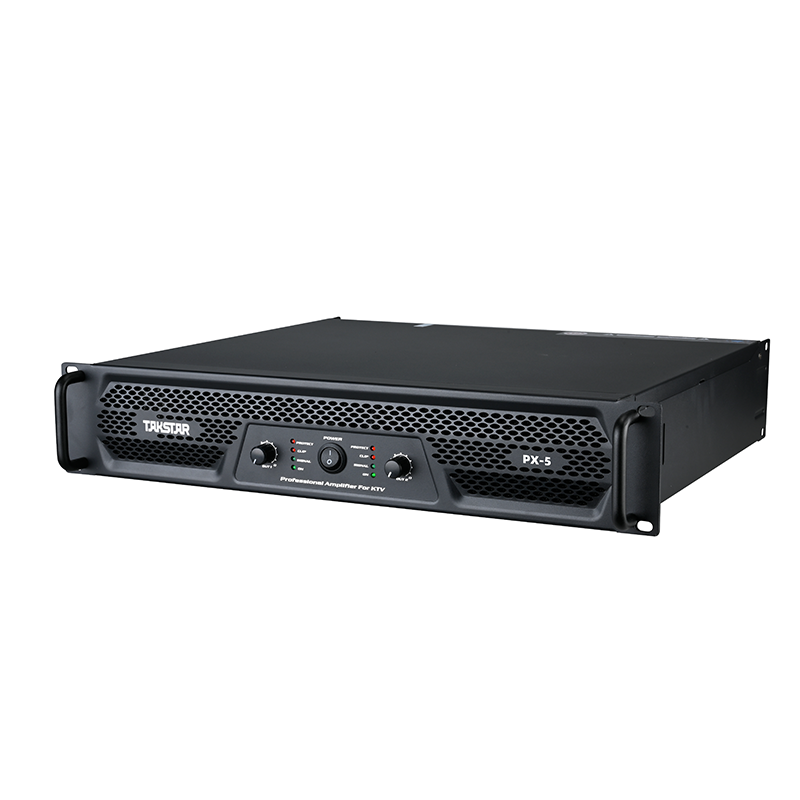

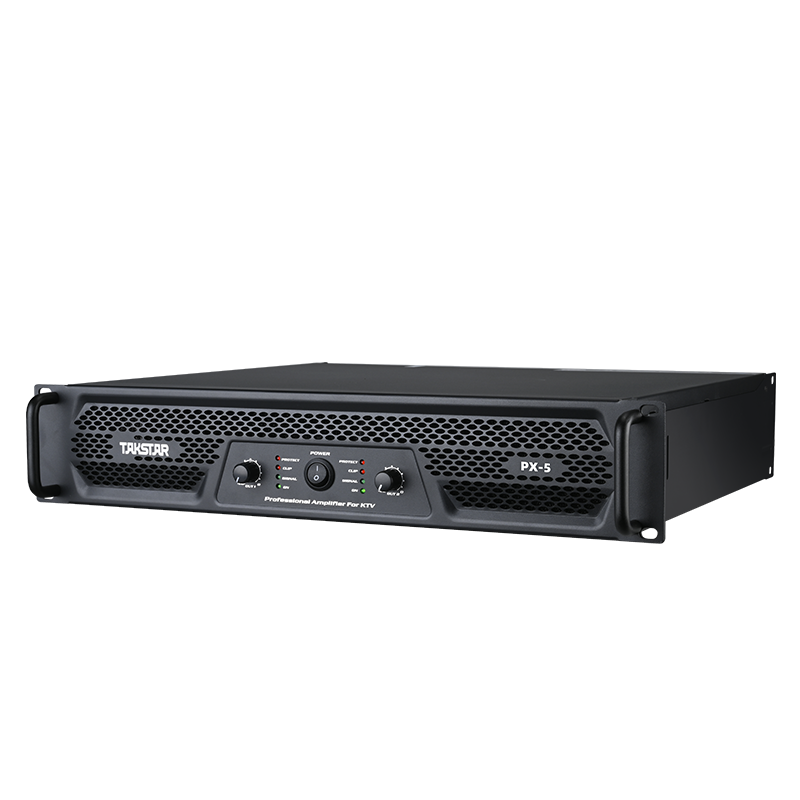

• Model: PX-5

Rated Output Power（1kHz1%THD ）
• Stereo 8Ω: 550W+550W
• Stereo 4Ω: 800W+800W
• Bridge 8Ω: 1600W

Peak Power（1kHz1%THD ）
• Stereo 8Ω: 110W+110W
• Stereo 4Ω: 1600W+1600W
• Bridge 8Ω: 3200W

• Output Connector: Binding for Stereo & Bridge Output
• Frequency Response: 20Hz-20kHz
• Input Sensitivity: 1.0V；1.4V
• Balanced Input Impedance: 20kΩ/Balanced，10kΩ/Un-Balanced
• SNR: 100dB
• THD: <0.03% （8ohm/1kHz/half power ）
• Rated Output Power Separation at 8 OHM, 1kHz: 80dB
• Damping Factor at 1kHz, 8 OHMS: 300
• Slew Rate: 20 V/μ s
• Protection Features: Soft Start，Short Circuit，Limiter，DC Fault，AC Line Fuse，Thermal Cut
• Cooling System: Two steps speed fan
• Power Supply: AC：220-240V 50Hz
• Net Weight (kg): 13.5kg
• Dimensions (W×D×H) : 483×88×410mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!

• Professional Power Amp
1 PC
• Power Cord
1 PC
• User Manual
1 PC
