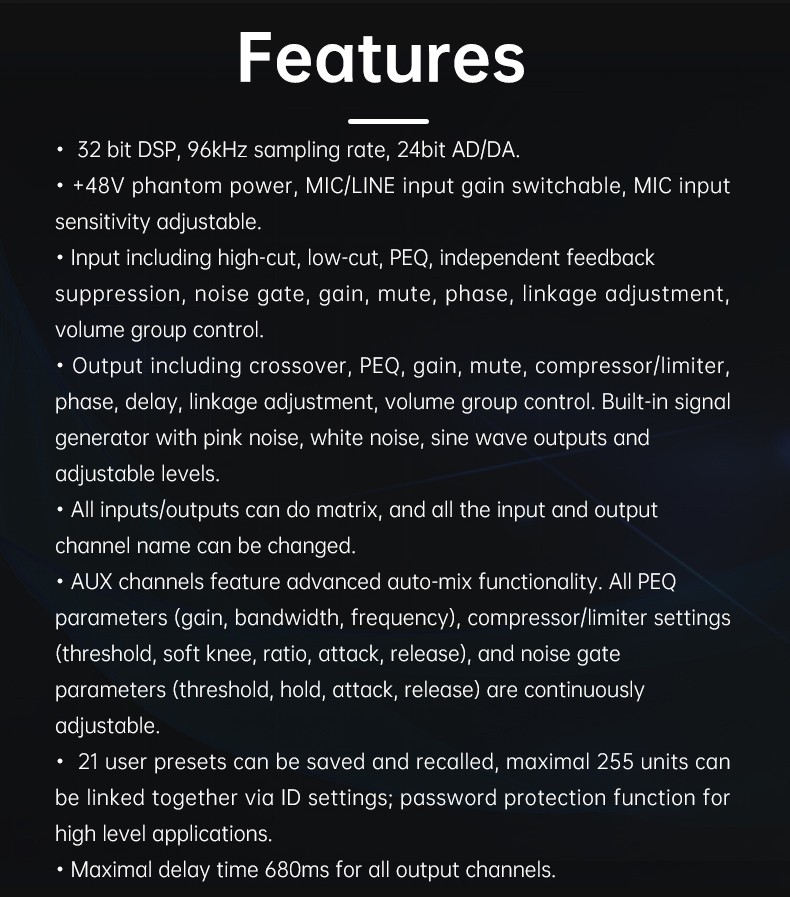

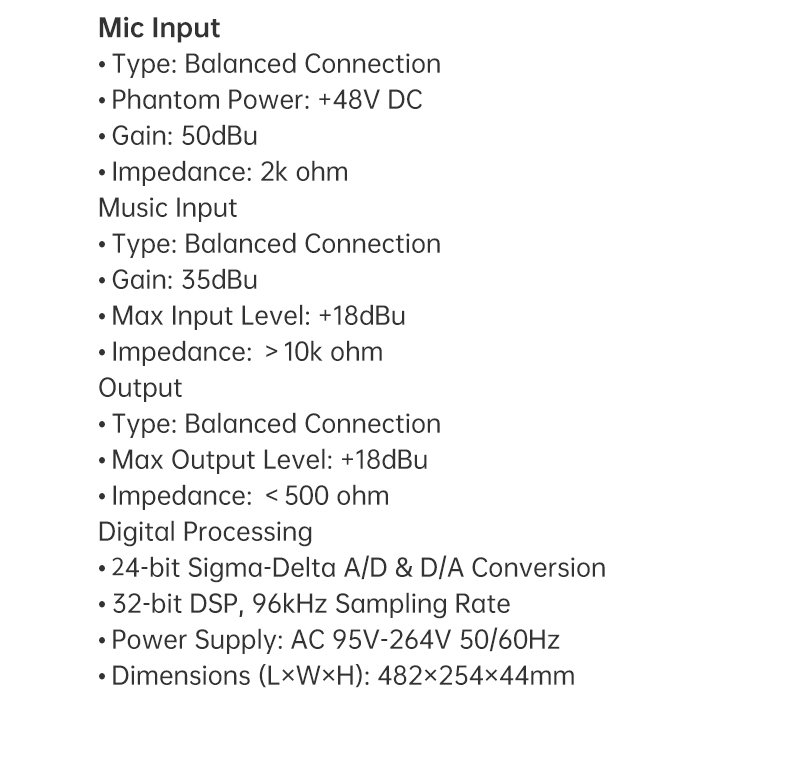

• 32 bit DSP, 96kHz sampling rate, 24bit AD/DA.

• +48V phantom power, MIC/LINE input gain switchable, MIC input sensitivity adjustable.

• Input including, high-cut, low-cut,PEQ, independent feedback inhibition, noise gate, gain, mute, phase, delay, link.

• Output including X-over, PEQ, Gain, mute, compressor/limiter,phase, delay and link.

• All PEQ Gain, bandwidth, frequency continues adjustment. type can be select by PEAK, H-SHELF, LSHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.

• All inputs/outputs can do Matrix, and all the input and output channel name can be changed.

• All the input and output with independent phase curve adjust function, PEQ style choose ALLPASS1 is 180° curve adjust, ALLPASS2 is 360° curve adjust.

• All high cut, low-cut filter type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.

• Noise gate's threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.

• Maximal delay time 680mS for all output channels.

• Pre settings can copy for every single channel, every channel can do link adjust.

• Every input and output channel PEQ curve adjusting picture can be found when you are in any input and output.

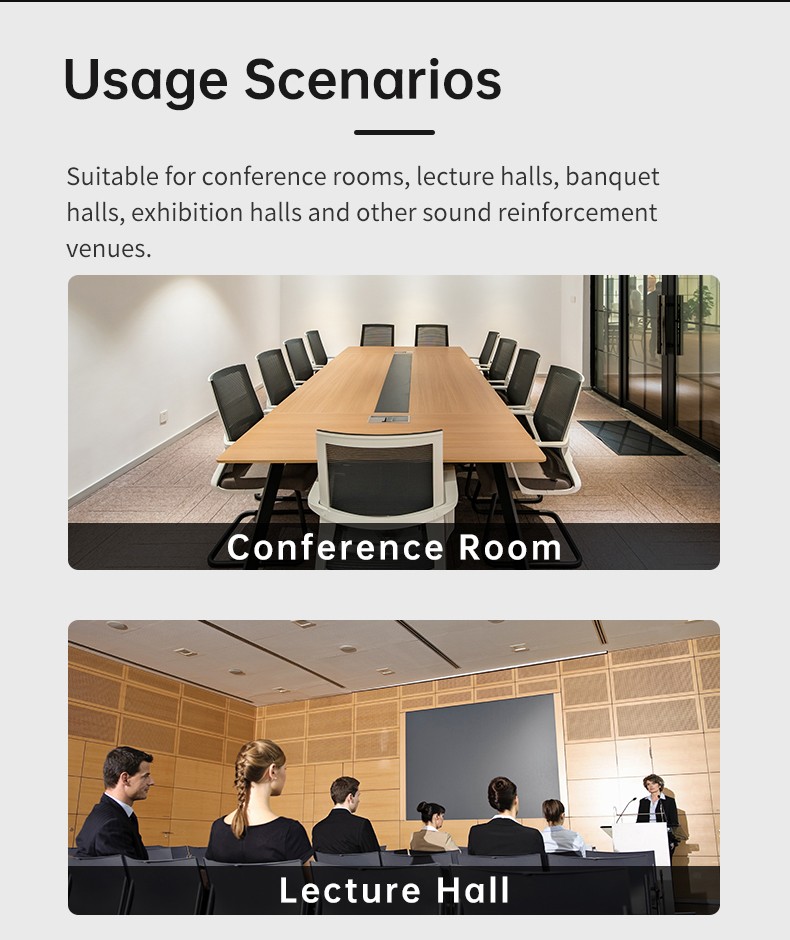

• Unique design for AUX channels, mixing all microphone inputs, and professional ECHO & REVERB effects inside. easy adjustment the sound and full support karaoke function. wide-applications, such as conference system, multi-functions hall. etc...

• AUX channel has powerful mixing function, such as threshold, level, attack time. release time, continually adjustment. also with the automatic function of camera-tracking. threshold, level, attack&release time. etc... AEC automatic echo cancellation and system environment noise cancellation function, effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminate environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan, and independent PEQ, compressor, volume adjustment functions.

• Inside single generator(pink,white noise and 20~20K sine wave, amplitude adjustable ).

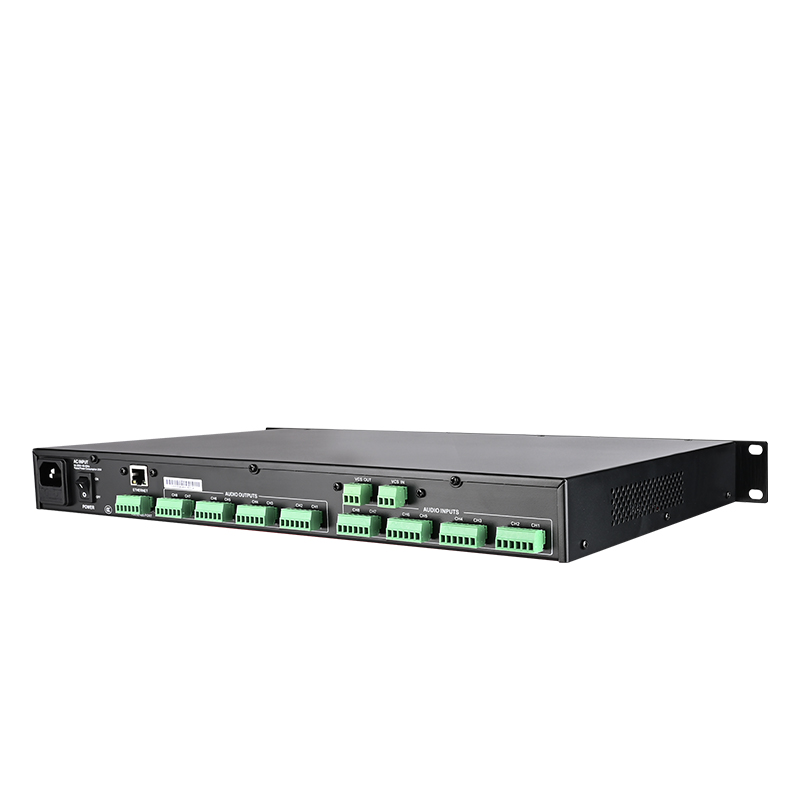

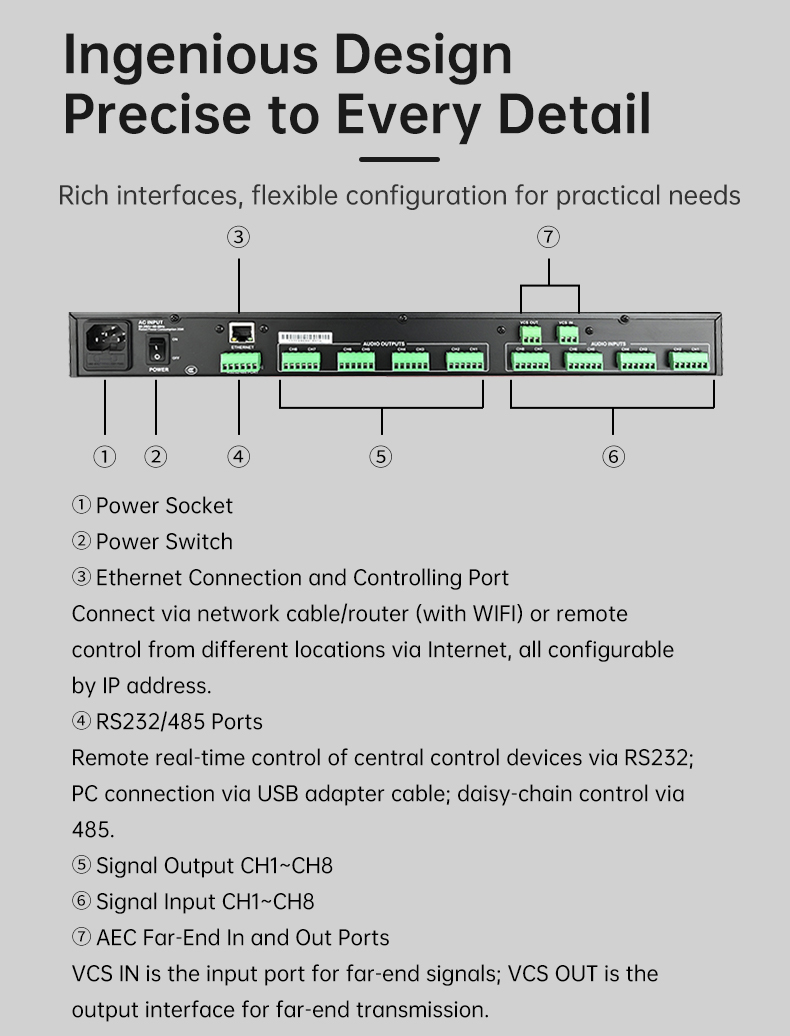

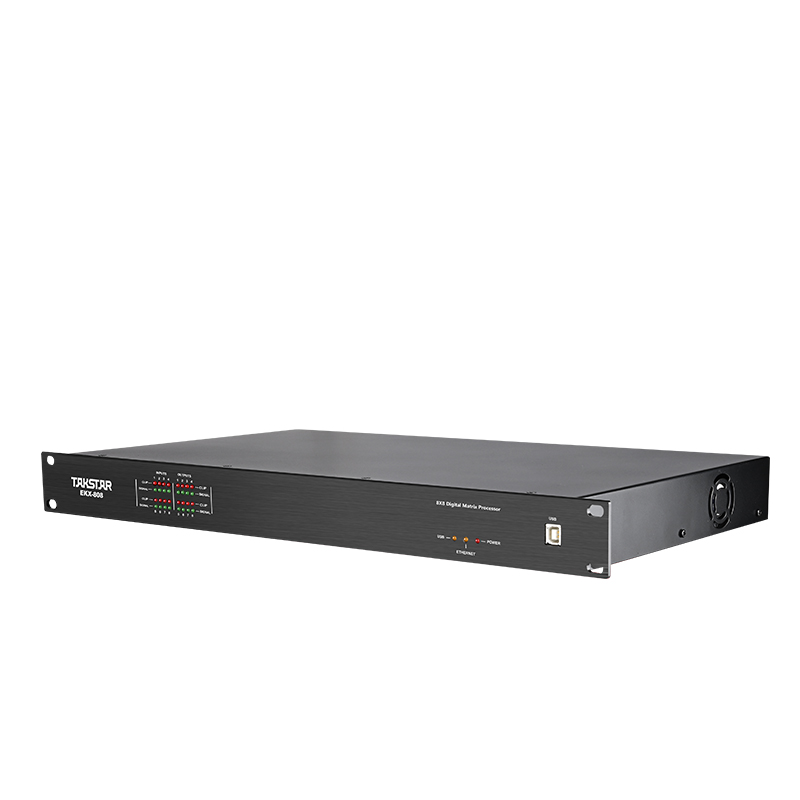

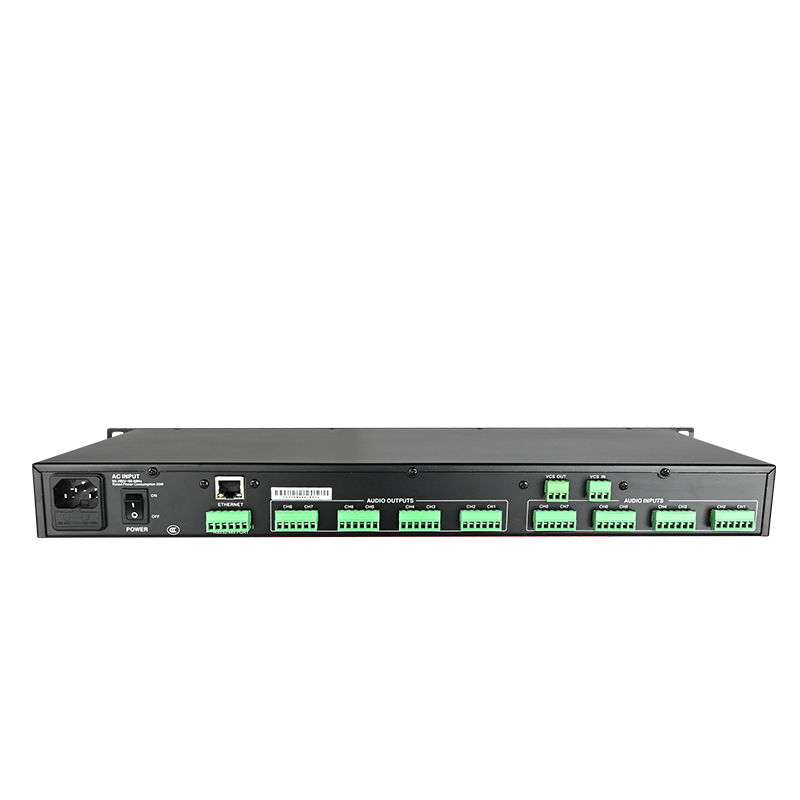

• Front panel has level indicator for input/output ,USB port, RS232,485 and net ports remote control at rear panel. easy for user's operations.

• 21 user presets can be save and recall, maximal 255 units can be link together via ID settings. password protection function for high level applications.
