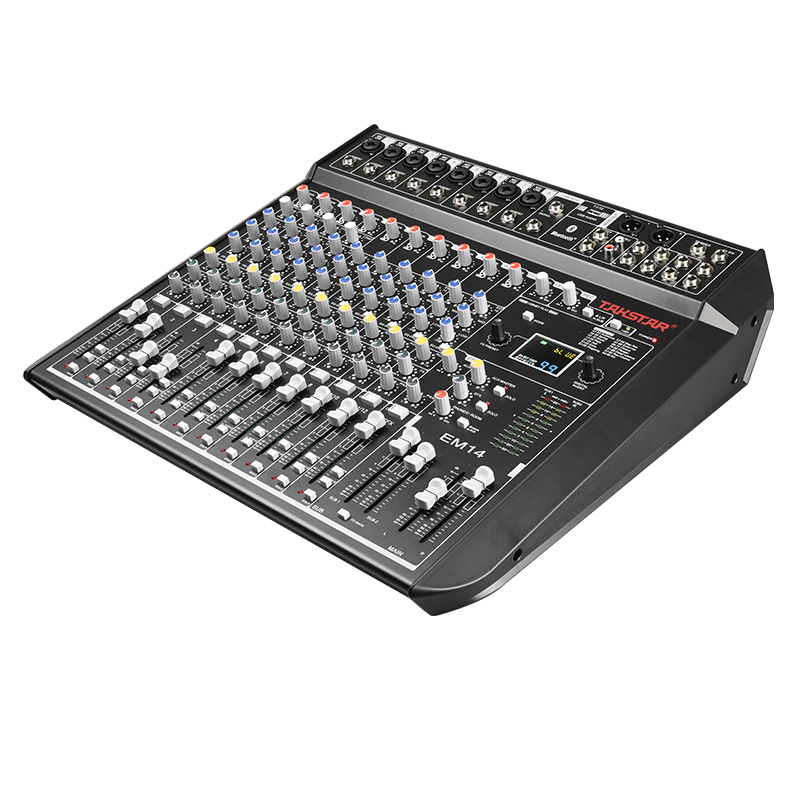

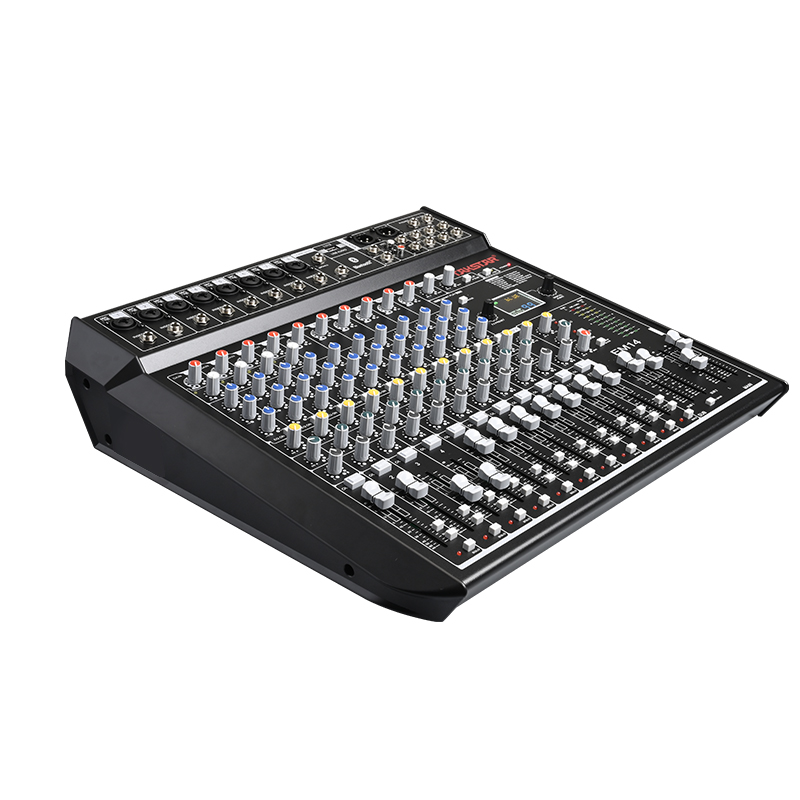

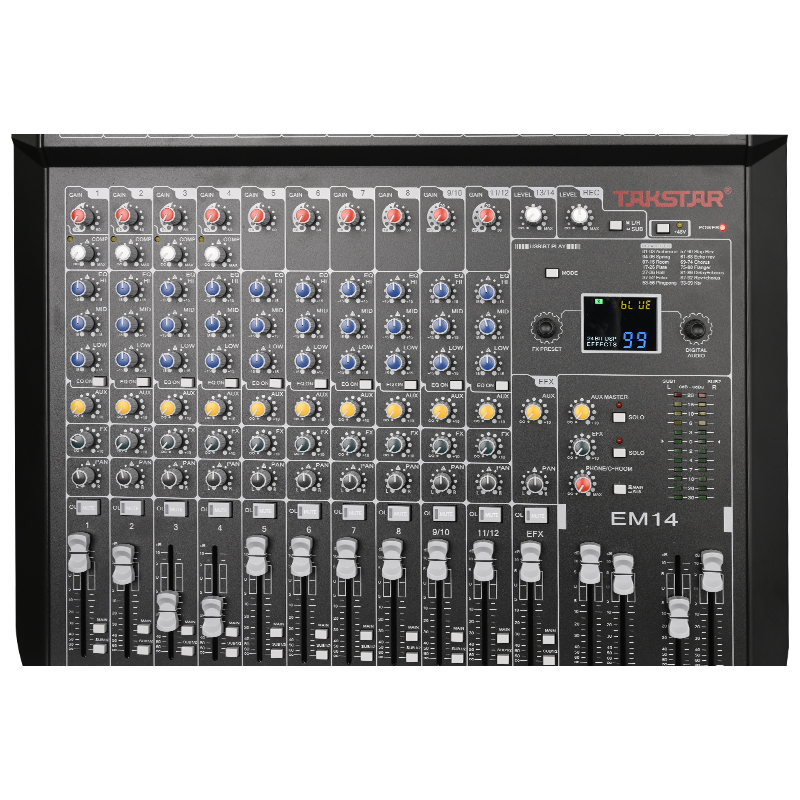

EM14 Analog Mixer
- Mixer
• 14 inputs including 8 mics+ 3 Stereos(L+R)
• L/R on main channel, SUB group, SOLO and other bus signal distribution buttons

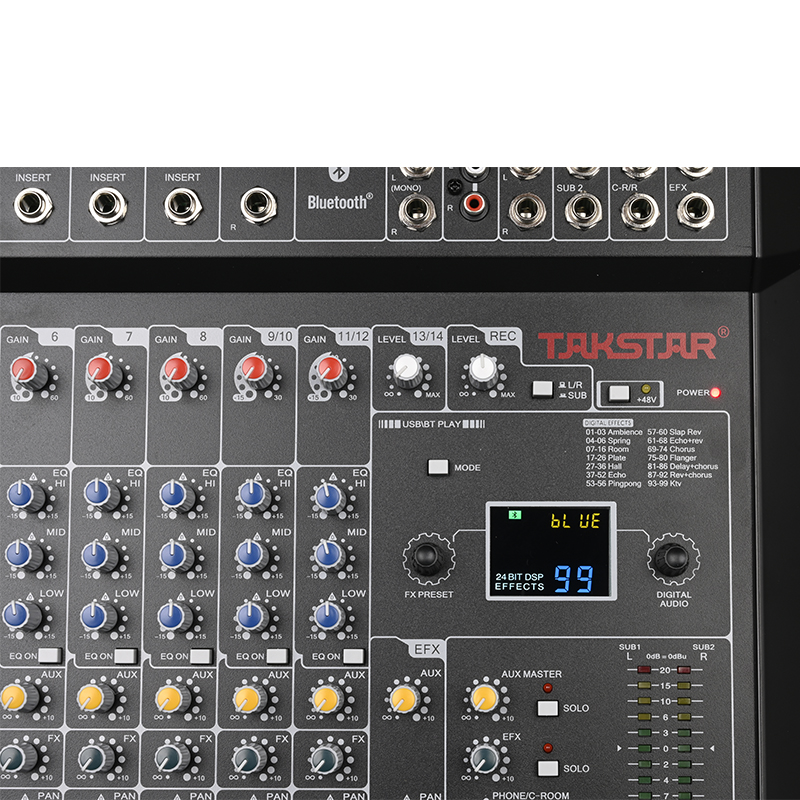

• Built-in 99 kinds of 24BIT DSP +digital display
• 3 band EQ+4ch independent compression
• Group output of SUB1/2
• Double 12 level monitoring
• PAN MUTE, THD signal lamp
• 2 stereo aux return input+PC USB-A 2.0 interface, can be used for USB playback and other electronic equipment
• Aux+ effect FX send, REC recording output
• Independent monitoring+ Headphones monitoring for output
• 60mm logarithmic fader
• 48V phantom power supply
Product Detail
- Product Detail
- Application
- Specification
- Product Tutorial
• Suitable for all kinds of small & medium activities, conferences, multi-function hall, small performance
GAIN (0dBu) • CHANNEL MIC: 10~60 • CHANNEL LINE: 10~40 • STEREO LINE: -20~20 AUX OdB(POST) • CHANNEL MIC: 10 • CHANNEL LINE: -10 • STEREO LINE: -22 AUX MAX(POST) • CHANNEL MIC: 81 • CHANNEL LINE: 61 • STEREO LINE: 33 MONITOR OUT MAX ( ALL MAX ) • CHANNEL MIC: 78 • CHANNEL LINE: 64 • STEREO LINE: 43 • RETURN: 40 MONITOR OUT OdB(GAIN Control at MIN) • CHANNEL MIC: 5 • CHANNEL LINE: -16 • STEREO LINE: 9 • RETURN: 15 PHONES OUT MAX ( ALL MAX ) • CHANNEL MIC: 84 • CHANNEL LINE: 61 • STEREO LINE: 50 • RETURN: 40 PHONES OUT OdB(GAIN Control at MIN) • CHANNEL MIC: 10 • CHANNEL LINE: 0 • STEREO LINE: 15 • RETURN: 15 GROUP OUT MAX ( ALL MAX ) • CHANNEL MIC: 56 • CHANNEL LINE: 67 • STEREO LINE: 46 GROUP OUT OdB(GAIN Control at MIN) • CHANNEL MIC: 15 • CHANNEL LINE: -5 • STEREO LINE: 17 STEREO OUT MAX ( ALL MAX ) • CHANNEL MIC: 86 • CHANNEL LINE: 67 • STEREO LINE: 46 • RETURN: 19 STEREO OUT OdB(GAIN Control at MIN) • CHANNEL MIC: 15 • CHANNEL LINE: -5 • STEREO LINE: 17 • RETURN: 0 CH INSERT OUT MAX ( ALL MAX ) • CHANNEL MIC: 60 • CHANNEL LINE: 44 CH INSERT OUT OdB(GAIN Control at MIN) • CHANNEL MIC: 11 • CHANNEL LINE: -13 REC OUT MAX • CHANNEL MIC: 75 • CHANNEL LINE: 60 • STEREO LINE: 38 Signal to Noise Ratio STEREO OUT • CHANNEL MIC: 79 • CHANNEL LINE: 64 • STEREO LINE: 84 Signal to Noise Ratio PHONESOUT • CHANNEL MIC: 79 • CHANNEL LINE: 65 • STEREO LINE: 85 Noise (Control at MIN) • PHONES OUT (Fader at OdB): -90 • STEREO OUT(Fader at OdB): -73 • STEREO OUT (Fader at MIN): -87 • CH INSERT OUT: -95
User manualEM14 Analog Mixer User Manual2025-09-26 13:40:00Download
User manualEM14 EM14 Analog Mixer
