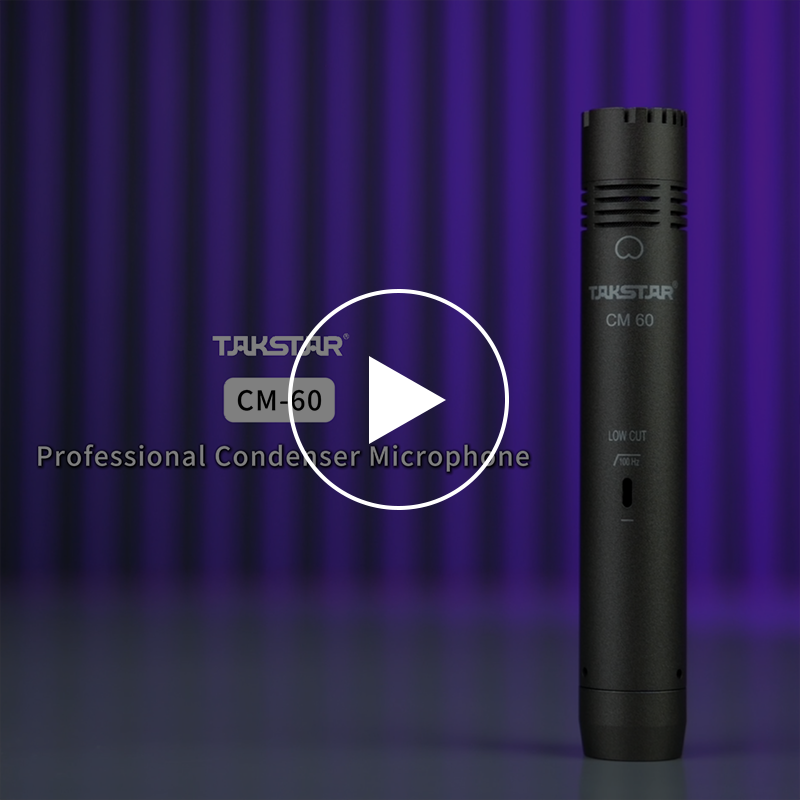

CM-60 Small-diaphragm Microphone

  • Instrument
  • Wired
  • Cardioid
  • Condenser
  • Front Address
  • Recording
  • Gold-plated diaphragm

  • Cardioid directivity characteristic for ideal sound capturing

  • High sensitivity and low self noise

  • Suitable for high SPL environments

  • Wide frequency response range and extended dynamic range

  • Transformerless circuitry for noise reduction

  • Low output impedance for long distance connection and high EMI resistance

  • Built-in pre-amplifier circuitry for steady performance

  • Optional bass filter to eliminate unwanted low frequency noise

Product Detail

  • Specification
  • Application
• Transducer Principle: True Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 30Hz-20kHz
• Sensitivity: -38dB±2dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 100Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Equivalent Noise Level: ≤20dB A (IEC 581-5)
• Max. Input SPL: 130dB (THD ≤1.0% at 1kHz)
• Bass Filter: 12dB/octave at 100Hz
• Power Requirements: 48V DC Phantom Power
• Body Dimensions: Ø22 x 132mm
• Net Weight: 112g
Recording, broadcasting, on-stage performance
  • Specification
  • Application
• Transducer Principle: True Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 30Hz-20kHz
• Sensitivity: -38dB±2dB (0dB=1V/Pa at 1kHz)
• Output Impedance: 100Ω±30% (at 1kHz)
• Load Impedance: ≥1000Ω
• Equivalent Noise Level: ≤20dB A (IEC 581-5)
• Max. Input SPL: 130dB (THD ≤1.0% at 1kHz)
• Bass Filter: 12dB/octave at 100Hz
• Power Requirements: 48V DC Phantom Power
• Body Dimensions: Ø22 x 132mm
• Net Weight: 112g
Recording, broadcasting, on-stage performance
