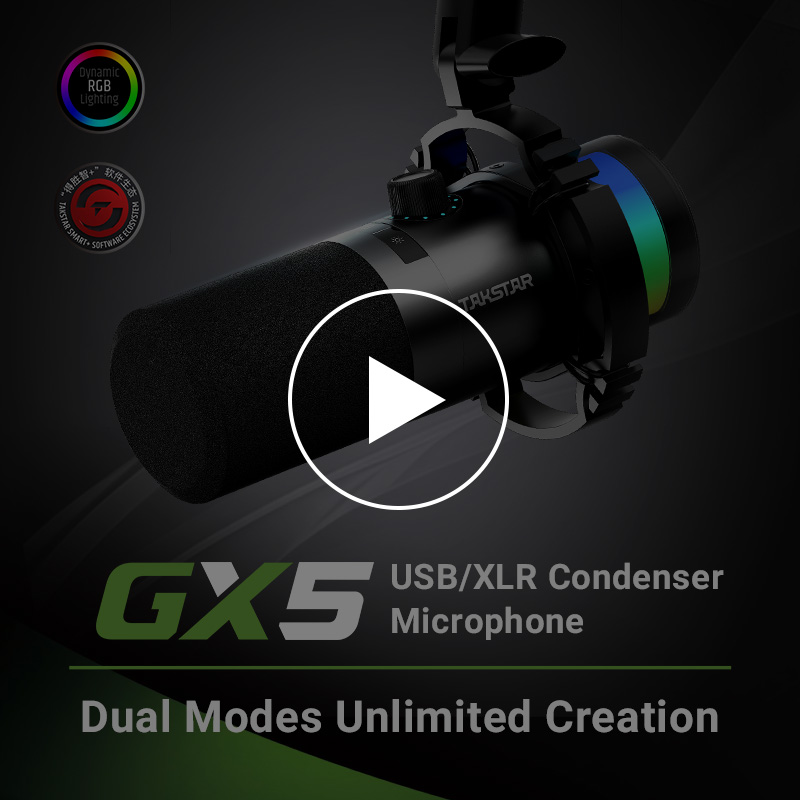

• USB-C/XLR dual interfaces, compatible with smartphones, computers, audio interfaces, and mixers.
• "Takstar Smart+" software, compatible with both mobile and computer terminals, enabling more professional audio settings.
• Φ16mm condenser capsule, high sensitivity, wide frequency response, clear sound pickup.
• Built-in DSP chip with professional reverb effects, suitable for scenarios such as live streaming and karaoke.
• Supports 48kHz/24bit high sampling rate, resulting in clearer audio recording and playback.
• Built-in wireless playback function, free from cable constraints, providing more freedom for playing accompaniment.
• Multi-function knob for independent adjustment of mic, headphone, and reverb volume.
• RGB cool lighting effects with multiple switchable light modes, creating a dreamlike atmosphere.
• "Takstar Smart+" lets you customize your sound: advanced mic EQ, reverb, and adjustable compression.
• Includes a mobile phone data cable, supporting simultaneous charging and use of the phone, eliminating worries about battery life during live streaming.
• Suitable for live streaming, karaoke, broadcasting, voice-over, instrument recording and gaming.
Overall Specifications • Data Transmission: USB2.0 • Sampling Rate: 48kHz/24bit • Capsule: Φ16mm condenser capsule • Polar Pattern: Cardioid • Frequency Response: 20Hz-20kHz • Peak SPL: 130dB (THD≤1% at 1kHz) • Sensitivity: -32dB±3dB (0dB=1V/Pa at 1kHz) • Microphone Gain: >42dB • Headphone Output Power: 80mW • Headphone Output Impedance: 16-60Ω • Power Supply: 5V=500mA • Operating Temperature: -10°C to 60°C • Net Weight: Approx. 270g Interface Details • Headphone Jack: Φ3.5mm • Audio Output: XLR and USB-C Note: The above data are measured by Takstar laboratory which has the final interpretation right!

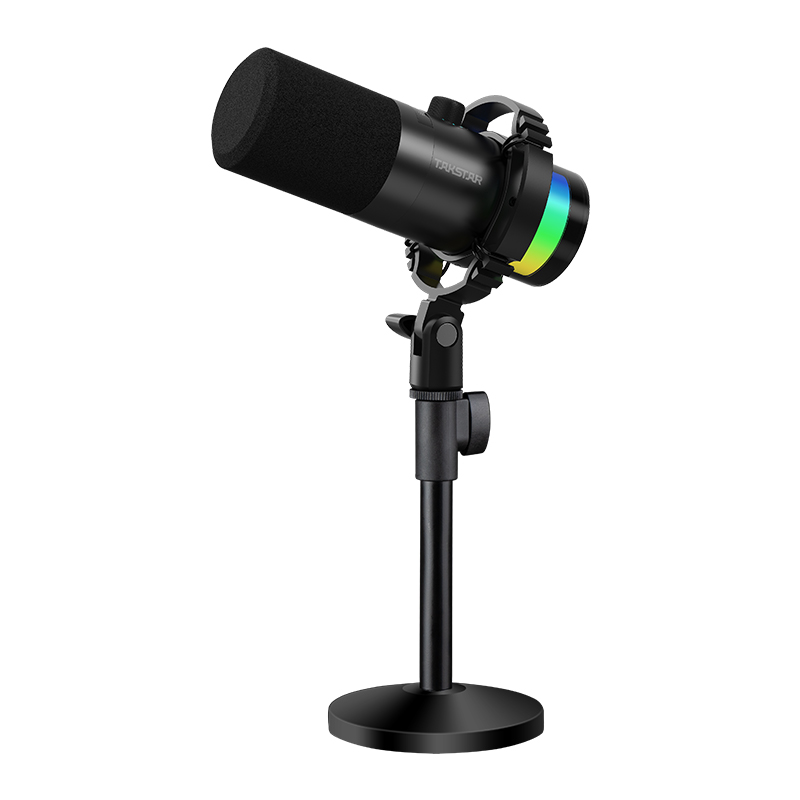

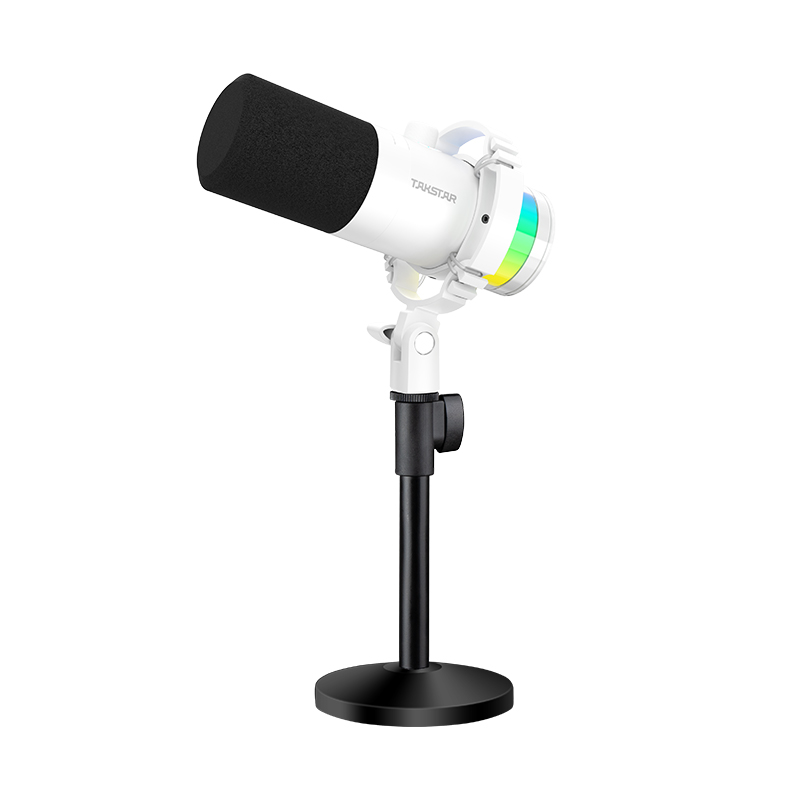

| Desktop Version | |
| • GX5 Microphone | 1 PC |
| • Phone Data Cable | 1 PC |
| • Computer Data Cable | 1 PC |
| • Desktop Stand | 1 PC |
| • Headphones | 1 PC |
| • User Manual | 1 PC |

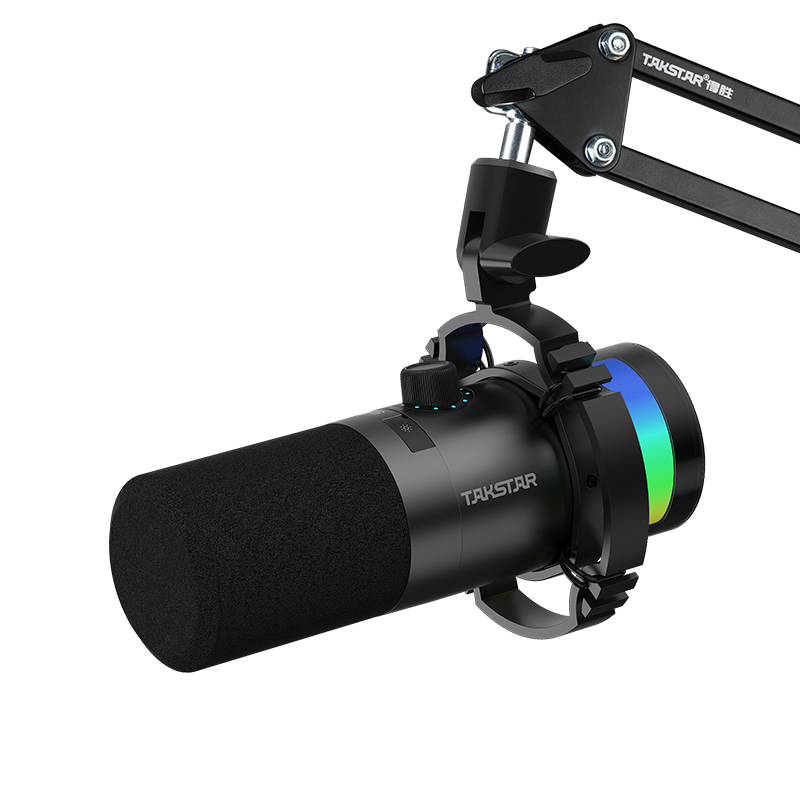

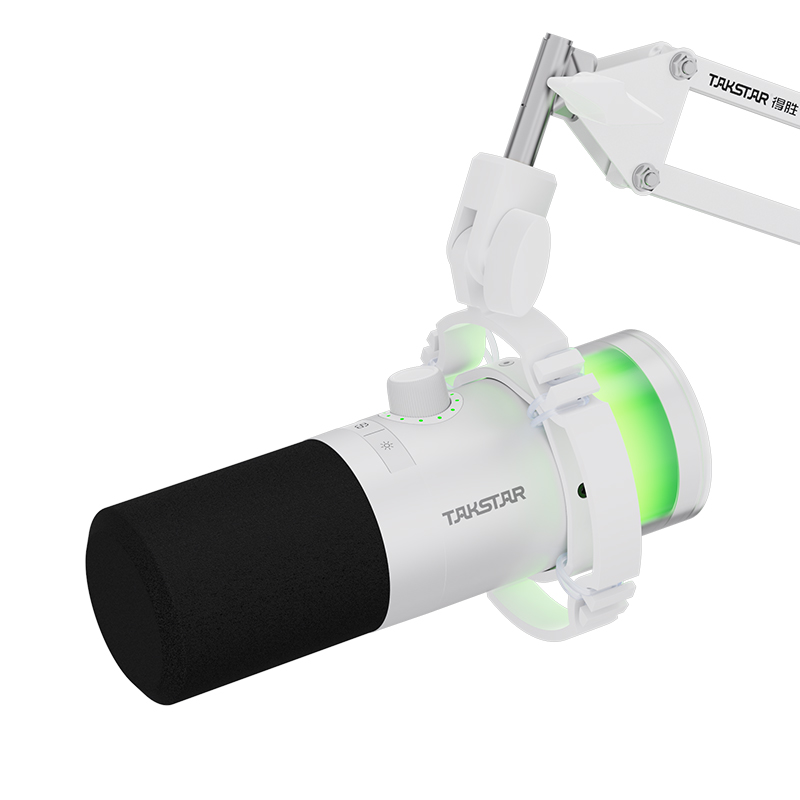

| Boom Arm Version | |
| • GX5 Microphone | 1 PC |
| • Phone Data Cable | 1 PC |
| • Computer Data Cable | 1 PC |
| • Boom Arm Stand | 1 PC |
| • Headphones | 1 PC |
| • User Manual | 1 PC |
User manualGX5 USB/XLR Condenser Microphone User Manual2026-06-12 13:43:12Download
