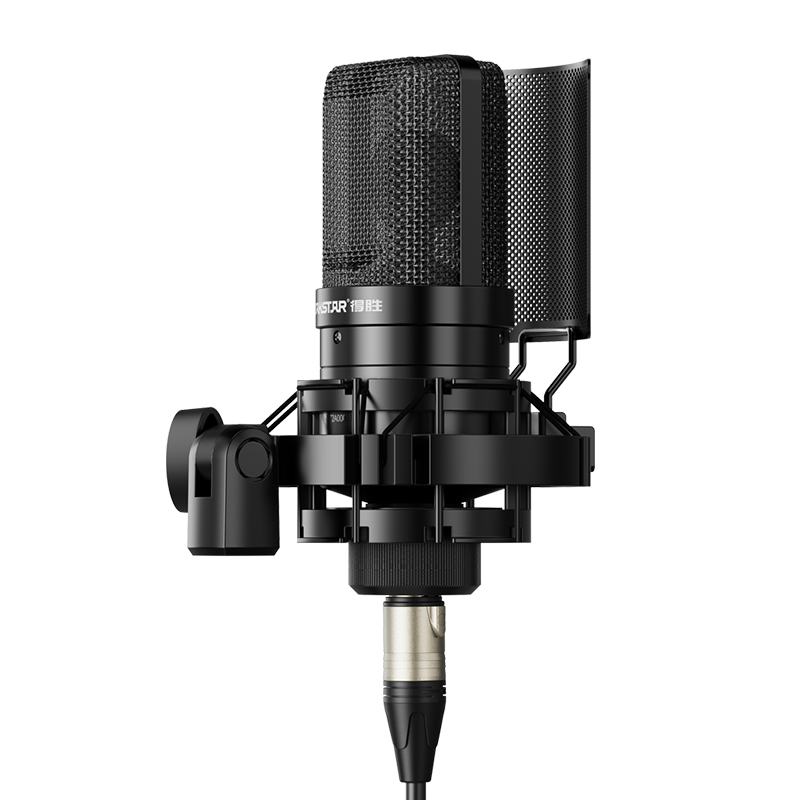

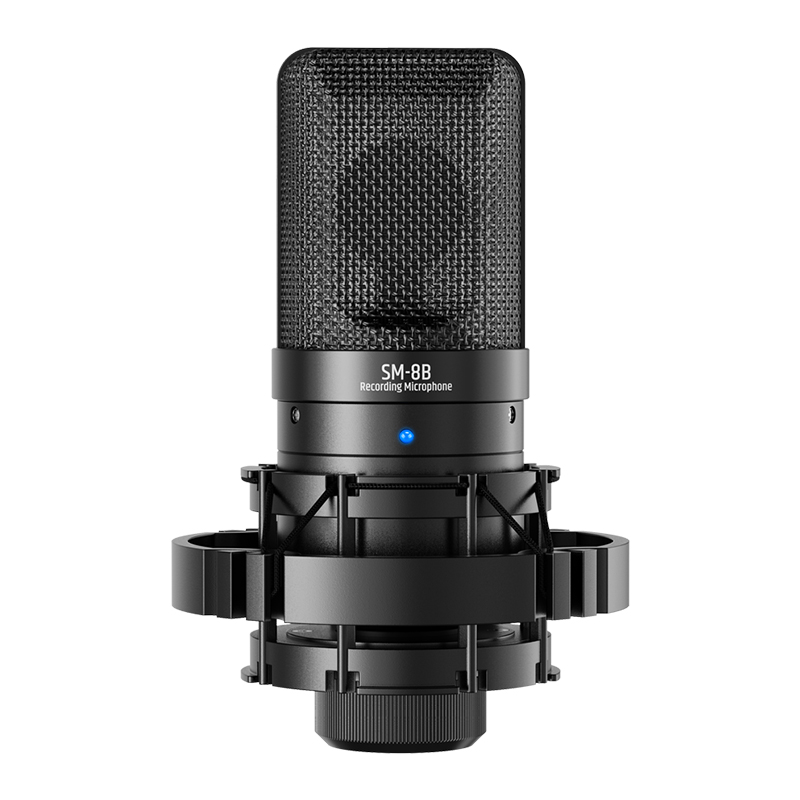

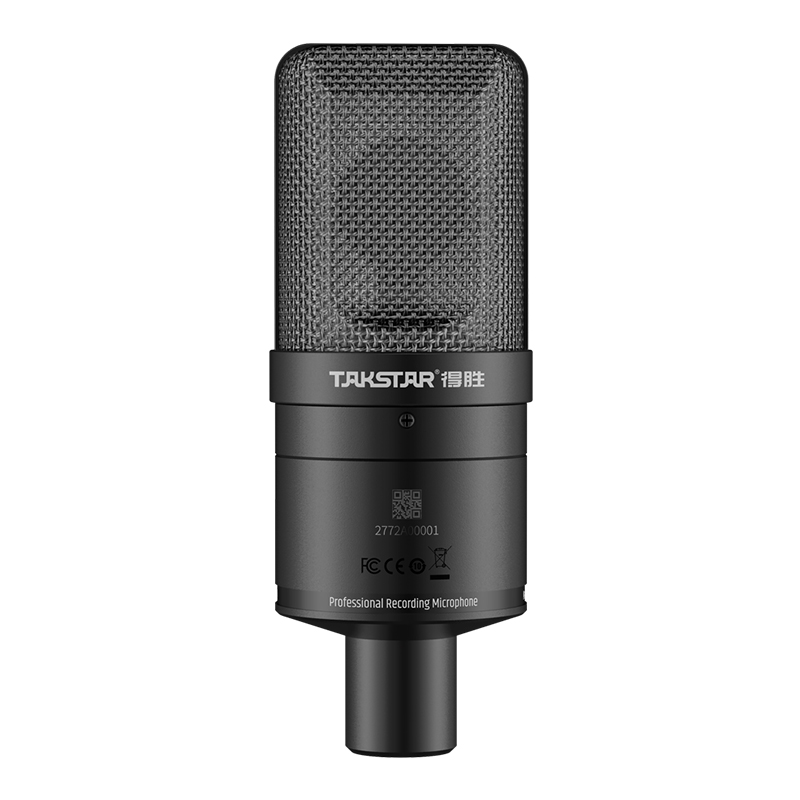

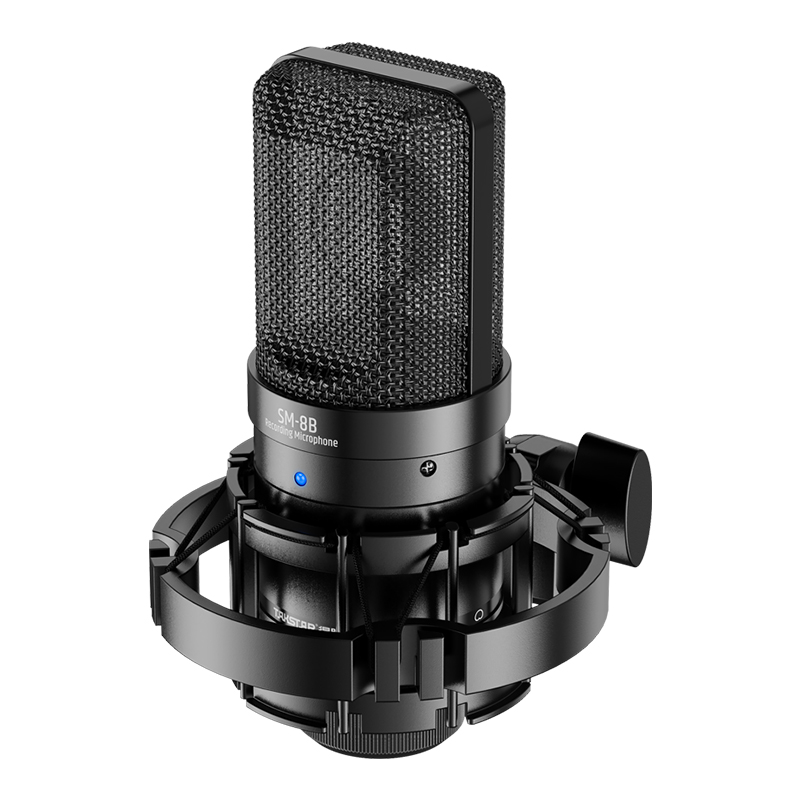

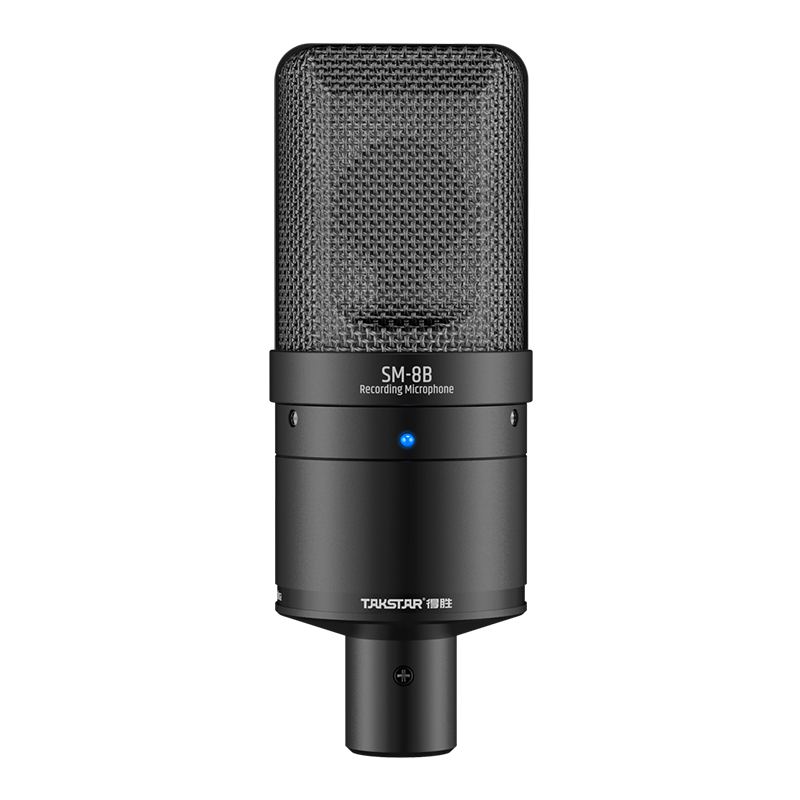

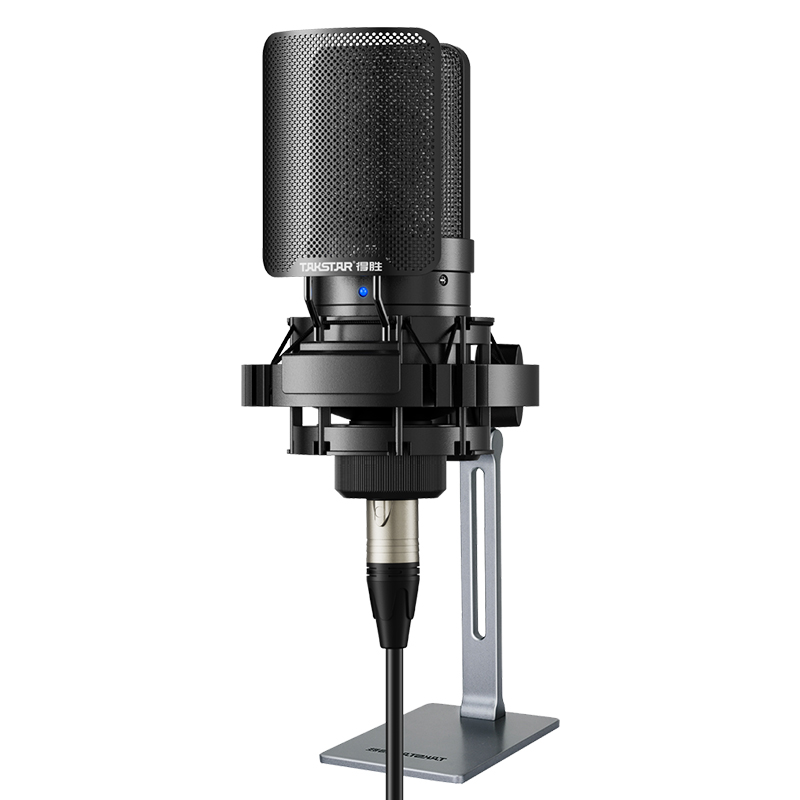

SM-8B (GEN 3) Professional Recording Microphone

Recording
Wired

• Ø16mm gold-plated condenser capsule with extended frequency response, deep bass, and crystal-clear highs.

• Enhanced sensitivity of -30dB for easier driving and superior pickup at greater distances.

• Power indicator light for intuitive operation status monitoring.

• Durable all-metal construction with distinctive matte silver labeling.

• Professional shock mount with elastic suspension for superior vibration isolation.

• Compact metal pop filter with easy clip-on design offers effective protection without visual obstruction.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial

• Karaoke streaming, studio recording, instrument recording.

• Capsule: Ø16mm gold-plated condenser
• Polar Pattern: Supercardioid
• Frequency Response: 20Hz-20KHz
• Sensitivity: -30dB±3dB (0dB=1V/Pa at 1KHz)
• Equivalent Noise Level: ≤22dBA (IEC 581-5)
• Peak SPL: 130dB (THD≤1% at 1KHz)
• Output Impedance: 200Ω±30% (at 1KHz)
• Power Supply: 48V phantom power
• Dimensions: ø56mm*151mm
• Weight: about 345g

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
