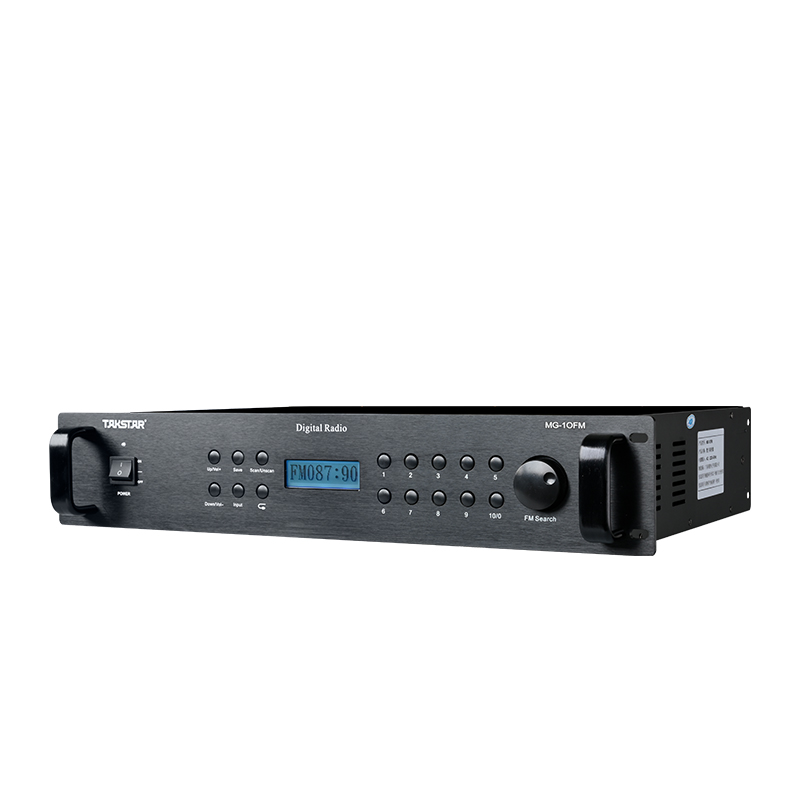

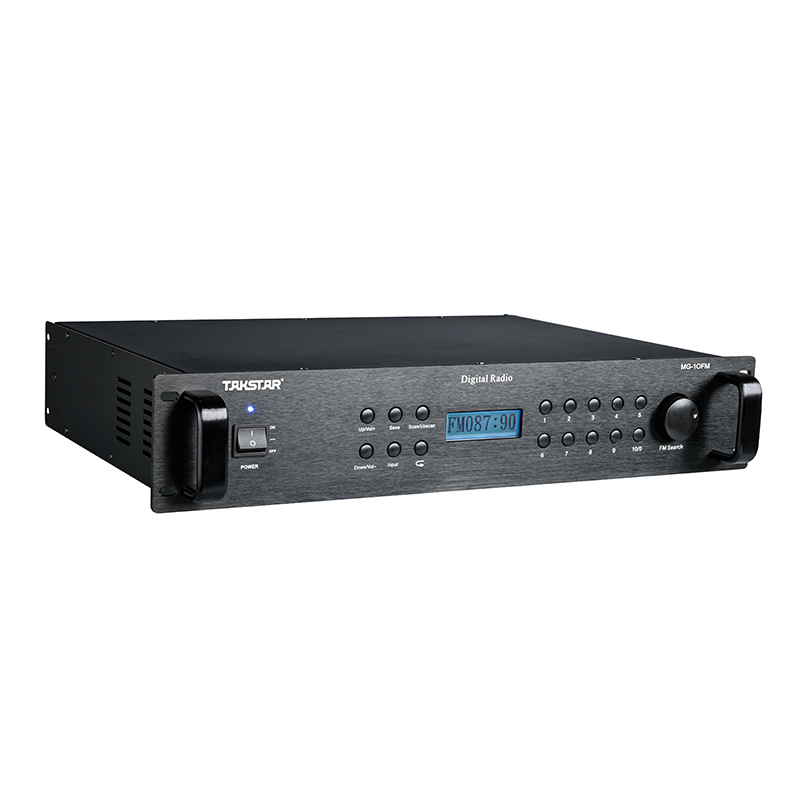

MG-10FM Digital Tuner

Power Amplifier

• LCD Display Screen

• FM Tuning: Automatic and manual station scan with stereo output.

• Upward and downward frequency scanning to find all stations within range, automatically saving them in order.

• Direct frequency entry, e.g., inputting 106.10MHz.

• Manual station search with the option to manually save stations.

• Stores over 30 stations with direct selection capability.

• Power Loss Protection: Retains memory even after power disconnection.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial







• For use in scenic areas, schools, and engineering installations.

• Frequency Range: FM 87-108.5 MHz
• Memory Capacity: Stores up to 30 FM stations
• Noise limit sensitivity (FM): Better than 3.5 μV
• Single signal Selectivity performance: Greater than 40 dB
• Signal-to-Noise Ratio (FM): Greater than 46 dB
• Power Supply: AC 220V/50Hz
• Maximum Current Consumption: Less than 200 mA
• Maximum Output Power: ≥100 mW
• Stereo Separation: ≥40 dB
• Dimensions: 485 x 360 x 90 mm
• Net Weight: 4.62 kg

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
