WTG-800 Smart Zone Tour Guide System
- Tour Guide System
• Automatic connection to guide zones without manual operation.
• UHF digital encryption, stable, anti-interference signal transmission, high sound quality.
• One-key switching among multiple languages, accommodating international tourists.
• Transmitter features 16GB of storage, supporting MP3 playback for background music or pre-recorded audio.
• 23 channel options allow flexible zone settings, enabling independent operation without interference.
• Adjustable transmission power (0-9 levels) for adaptable distances of about 0.5 to 18 meters.
• Built-in digital power amp in the receiver with 60W power, compatible with various audio equipment.
• Supports line input/output and audio cable connections for flexible connectivity.
Product Detail
- Product Detail
- Application
- Specification
- Product Content
• Suitable for large area scenarios such as tourist attractions, exhibition halls, and schools.
Transmitter • Operating Mode: Digital QPSK • Frequency Range: UHF • Number of Channels: 23 CH • Channel Spacing: 4 MHz • Transmission Power: 18 dBm (max) • Operating Current: 130 mA (max) • Frequency Response Range: 20 Hz - 3.4 kHz • Distortion: <1% • Signal-to-Noise Ratio: 70 dB • Output/Input Interface: 3.5 mm • Output Level: 50mW/16Ω • Battery Capacity: 2000 mAh • Charging Current: 400 mA • Charging Time: Approx. 5 hours to fully charge • Operating Time: Approx. 10 hours • Product Dimensions: 86 x 50 x 18.5 mm • Product Weight: Approx. 81 g • Charging Indicator: LED • Additional Indicator: OLED display • Storage Capacity: 16 GB Receiver • Operating Mode: Digital QPSK • Frequency Range: UHF • Number of Channels: 23 CH • Channel Spacing: 4 MHz • Operating Current: 150 mA • Frequency Response Range: 20 Hz - 3.4 kHz • Distortion: <1% • Signal-to-Noise Ratio: 70 dB • Output/Input Interface: 3.5 mm • Output Level: 50mW/16Ω • Power Supply: External • Product Dimensions: 99 x 99 x 26 mm • Product Weight: Approx. 122 g • Charging Indicator: LED • Additional Indicator: LED display • Additional: Built-in power amp Note: The above data are measured by Takstar laboratory which has the final interpretation right!

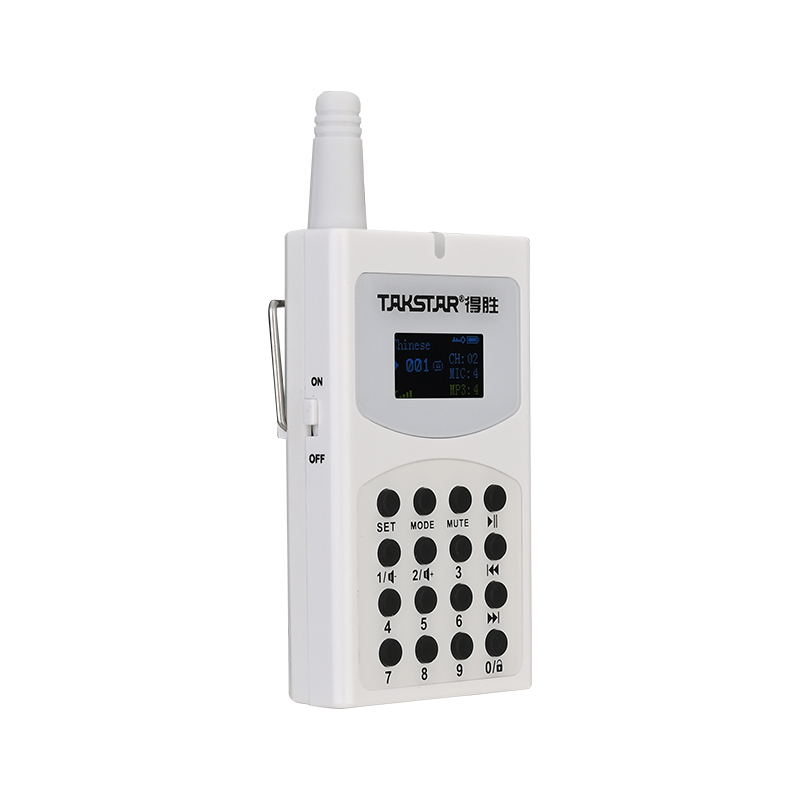

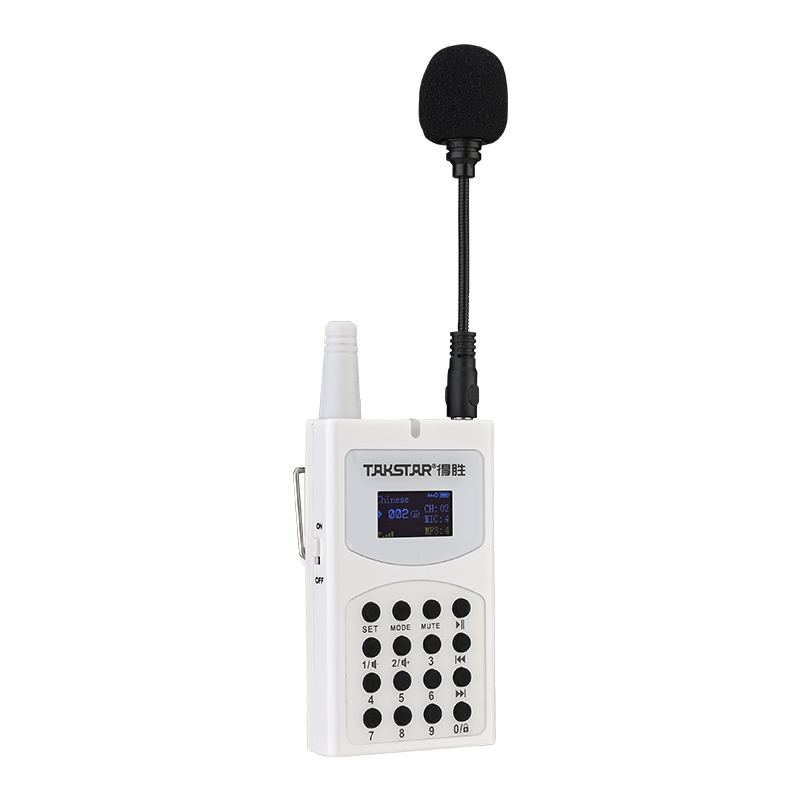

Transmitter
| • Transmitter | 1 PC |
| • Data Cable | 1 PC |
| • Plug-in Mic | 1 PC |
| • Headset Mic | 1 PC |
| • User Manual | 1 PC |

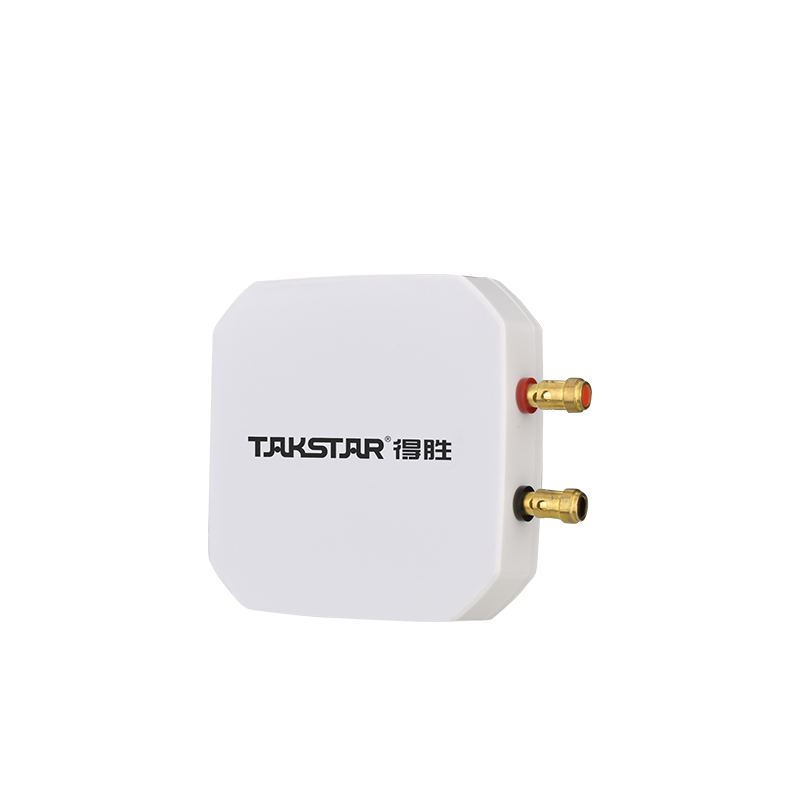

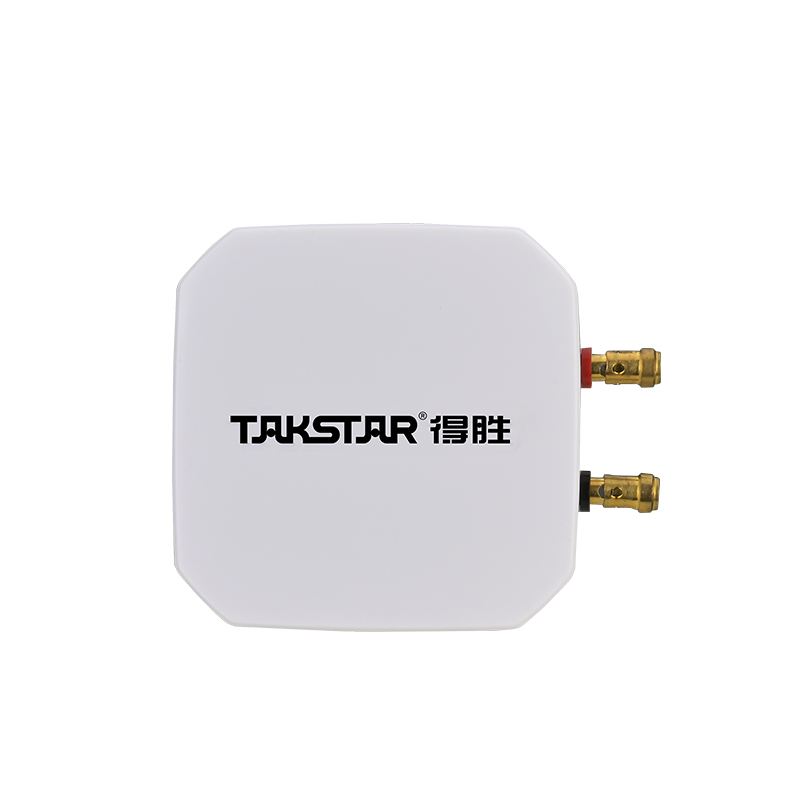

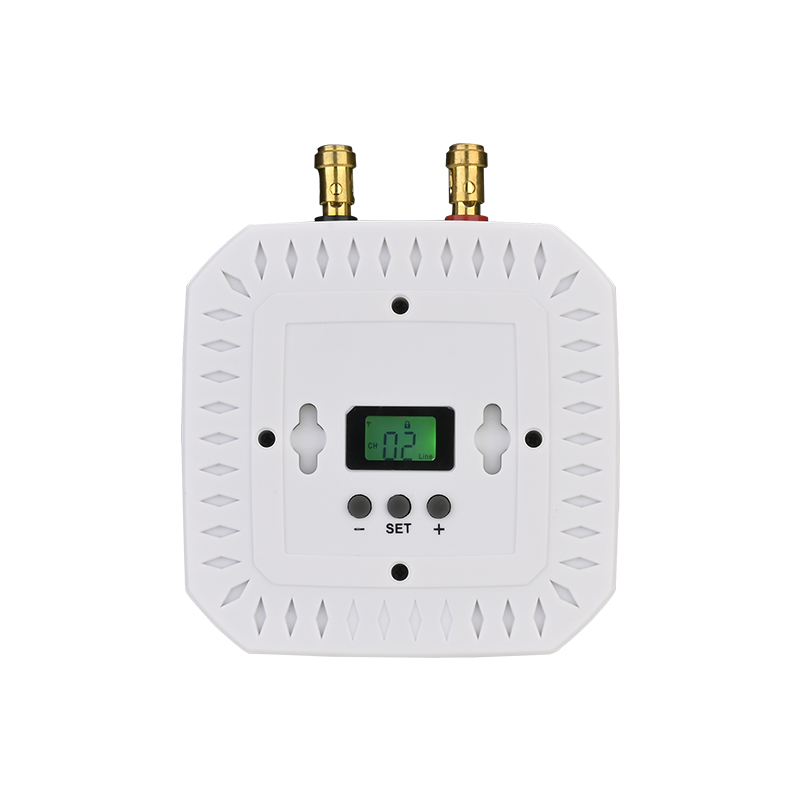

Receiver
| • Receiver | 1 PC |
| • Power Adapter | 1 PC |
| • 3.5mm to RCA Adapter | 1 PC |
| • Speaker Cable (1m) | 1 PC |
WTG-800
