WTG-550 Air Conduction Audio Guide

• Advanced UHF digital audio processing, stable and clear sound without electrical sizzling.

• Comfortable, wearable on both ears, stress-free for long guiding sessions.

• Advanced air conduction tech, reducing ambient interference for undisturbed listening.

• Built-in energy-saving 2,000 mAh lithium-ion battery for ultra-long battery life.

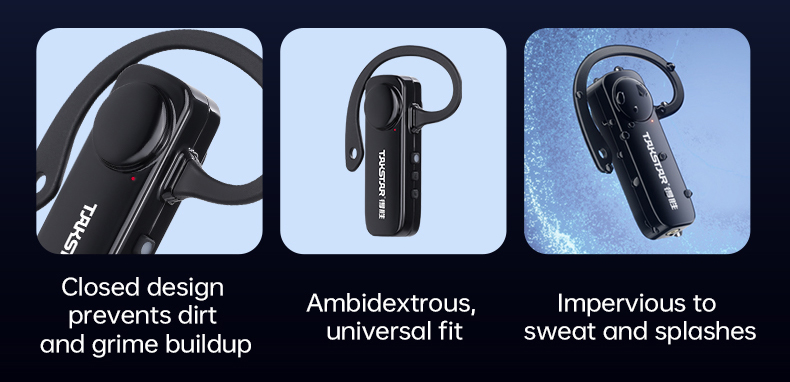

• Splash-proof and sweat-resistant, unfazed by changing environments.

• Instant one-key Bluetooth pairing to share audio effortlessly from smart devices.

Product Detail

Application
Specification

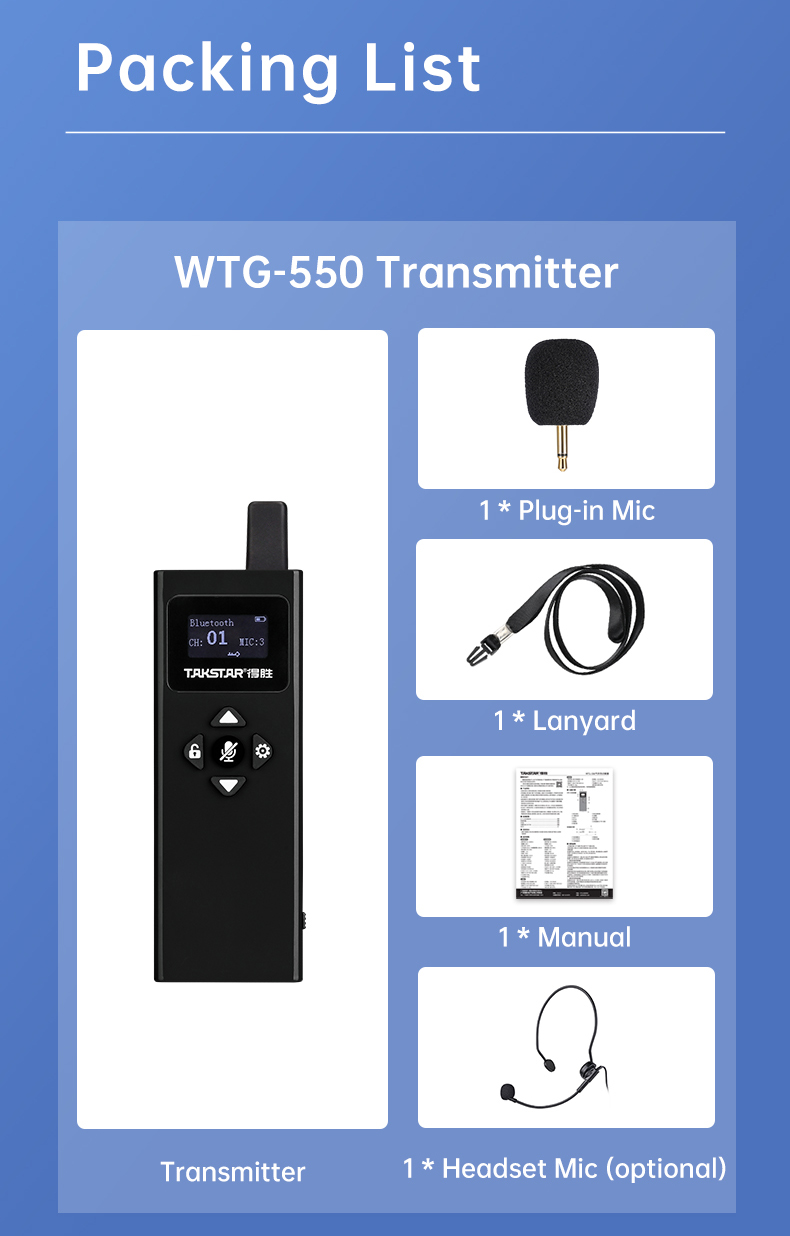

Product Content
Product Tutorial

• For tourism, corporate activities, training, conferences, exhibitions, and facility tours.

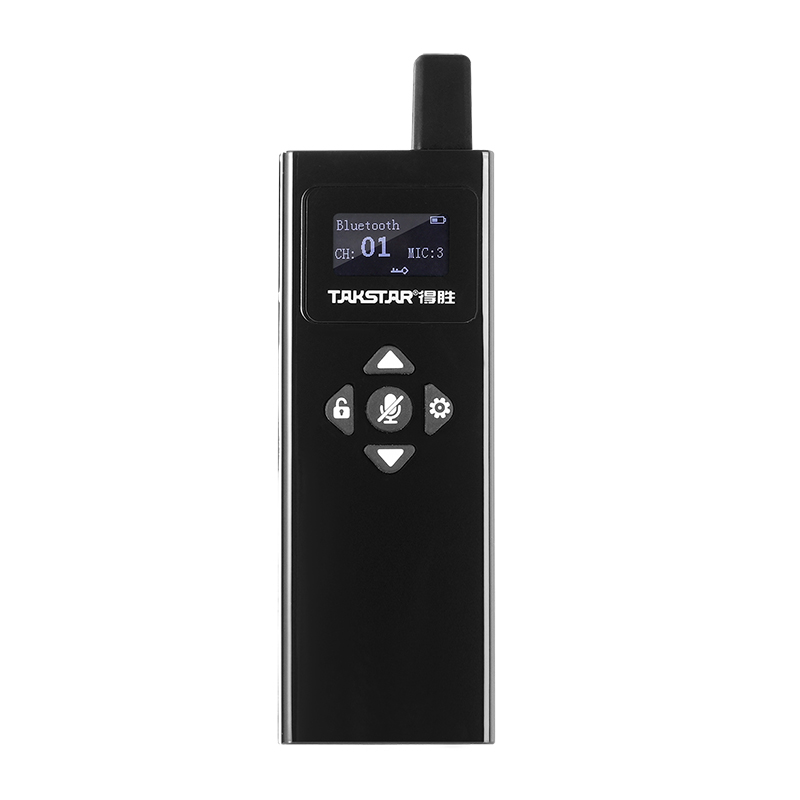

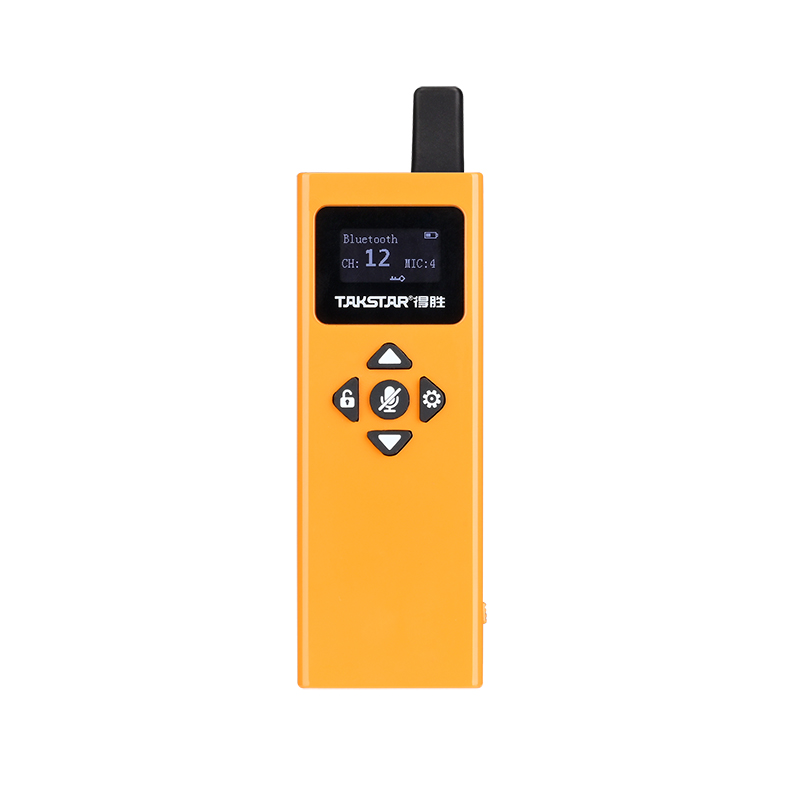

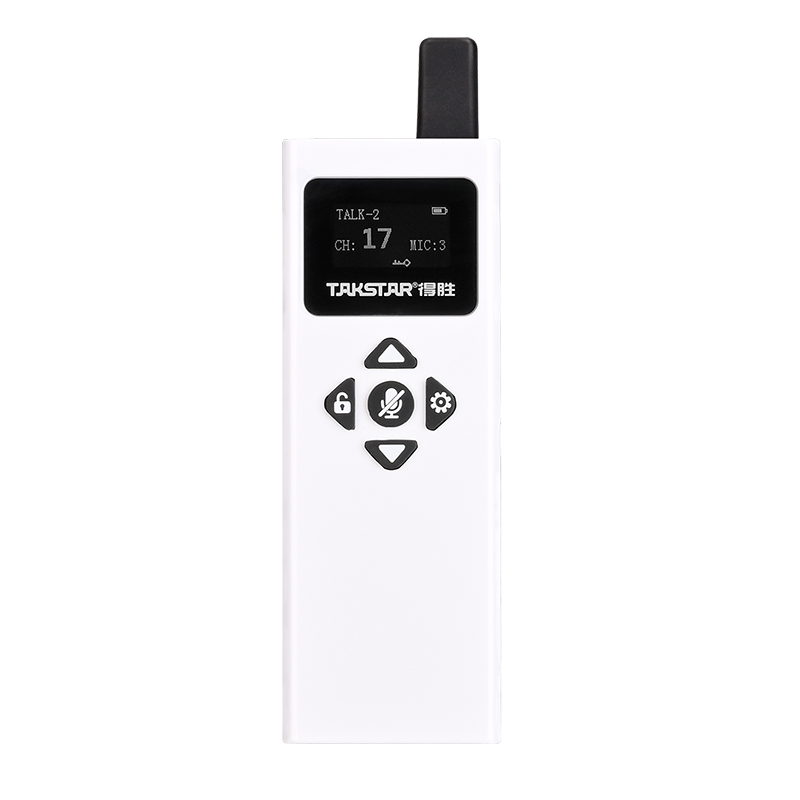

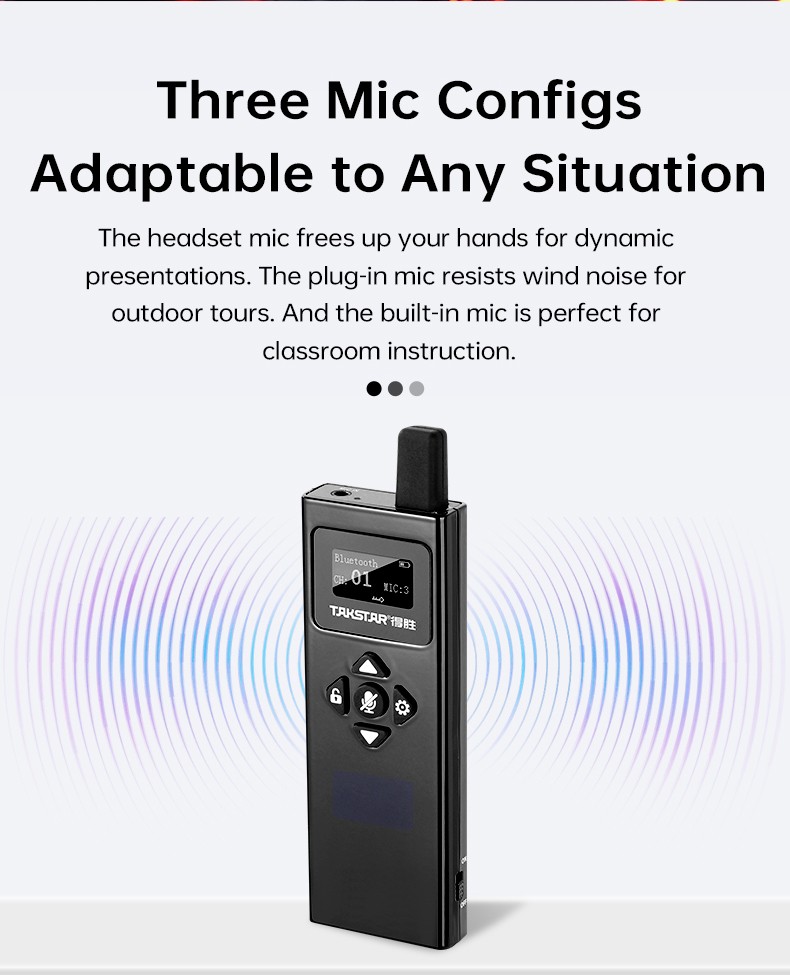

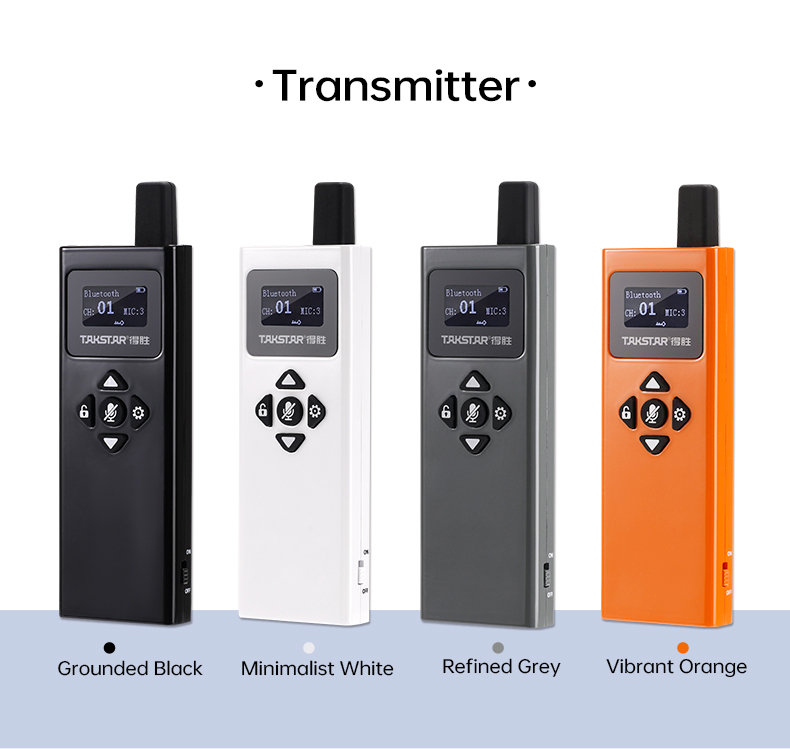

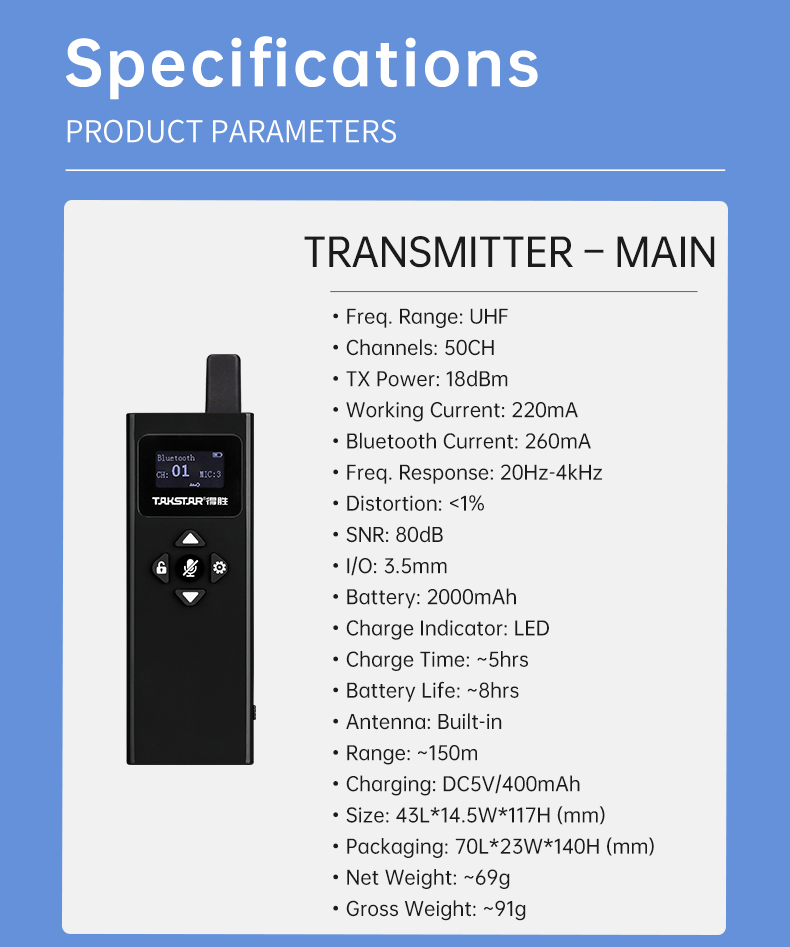

Transmitter
• Main TX Freq. Range: 960-1000MHz
SEC TX Freq. Range: 2402-2483MHz

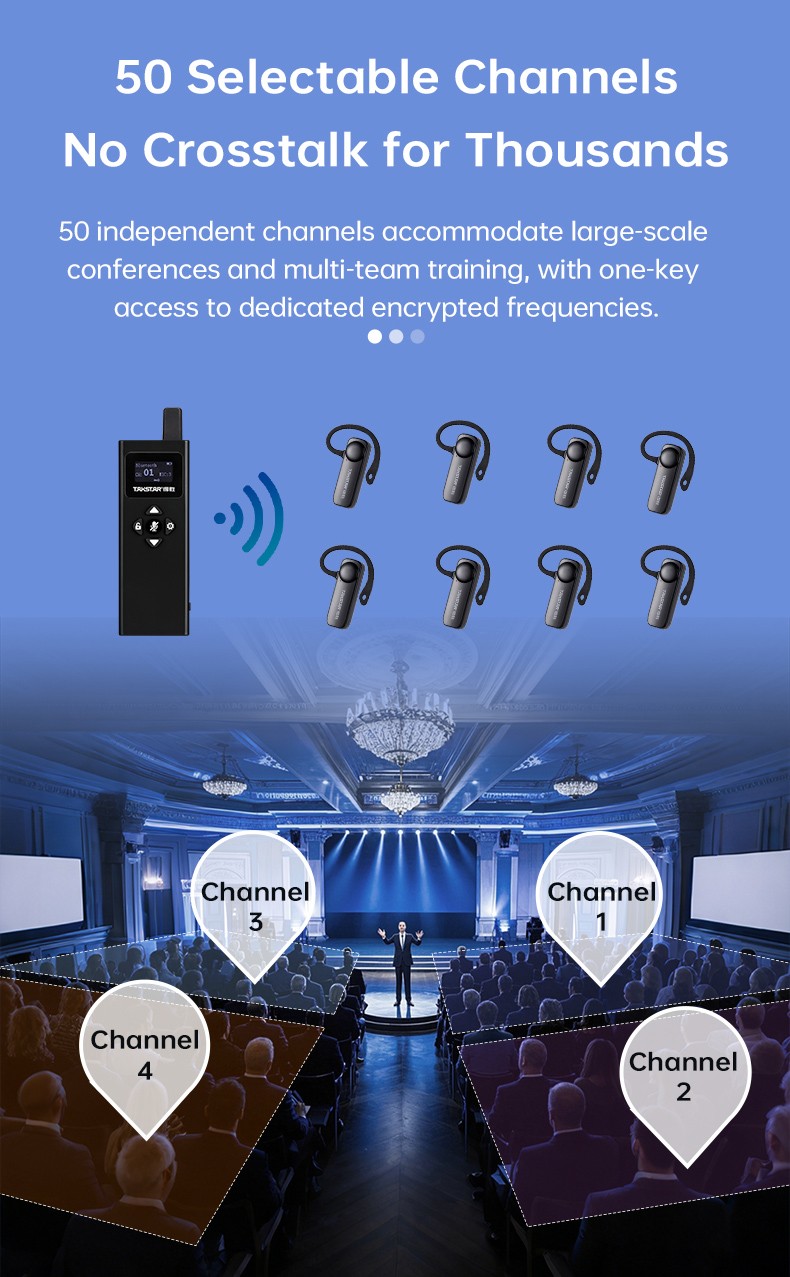

• Channels: 50CH
• TX Power: 18dBm
• Working Current: 220mA
• Bluetooth Current: 260mA / SEC TX 80mA
• Freq. Response: 20Hz-4kHz
• Distortion: <1%
• SNR: 80dB
• I/O: 3.5mm
• Battery: 2000mAh
• Charge Indicator: LED
• Charge Time: ~5hrs

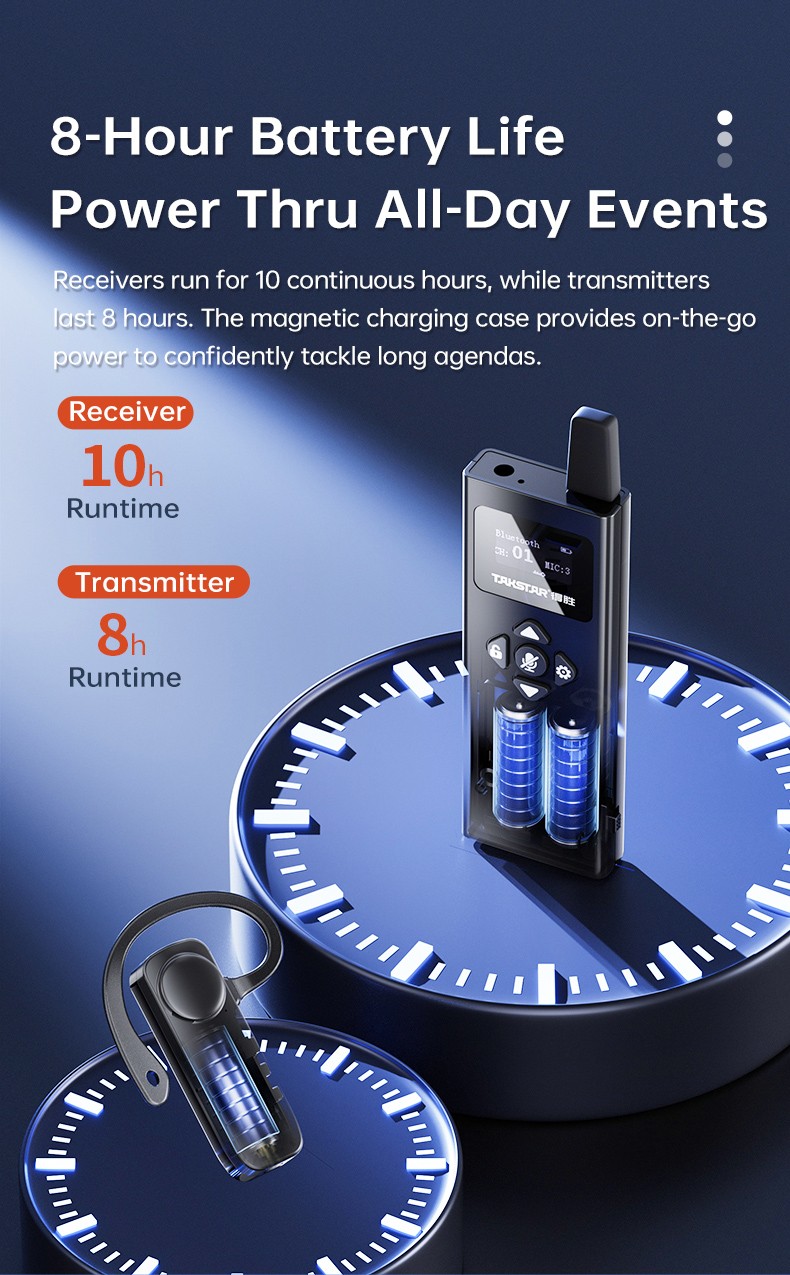

• Battery Life: ~8hrs
• Antenna: Built-in

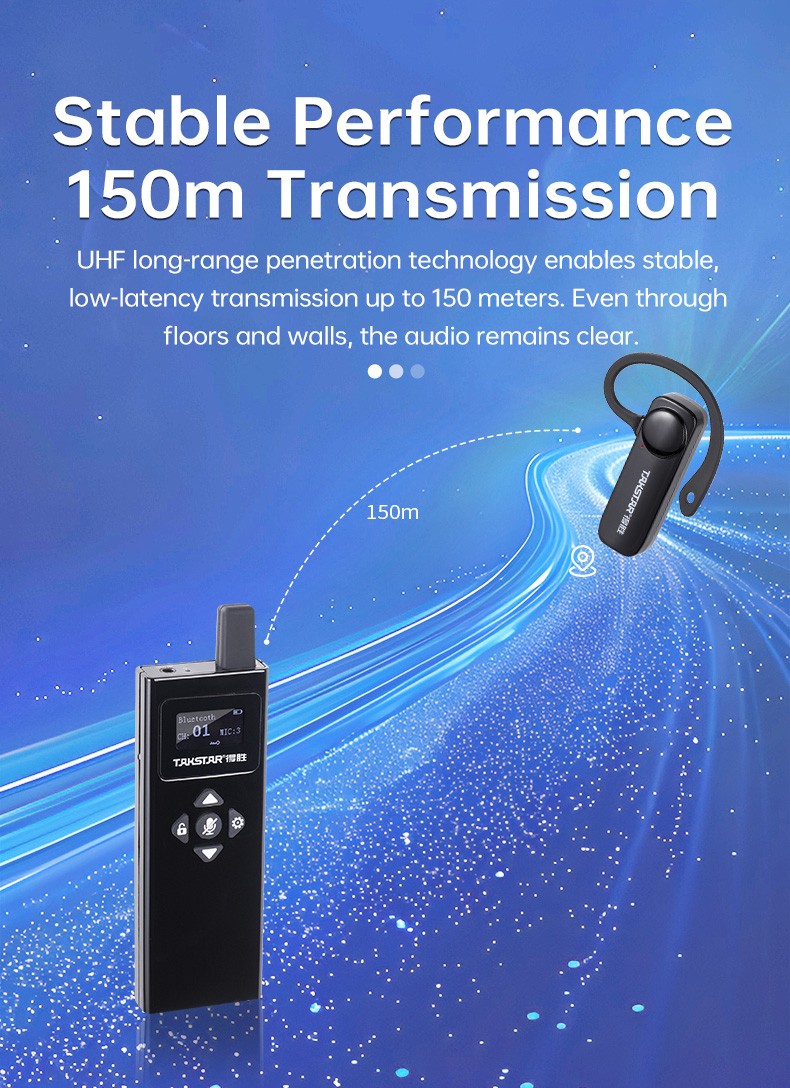

• Range: ~150m
• Charging: DC5V/400mAh
• Size: 43L*14.5W*117H (mm)
• Packaging: 70L*23W*140H (mm)
• Net Weight: ~69g
• Gross Weight: ~91g

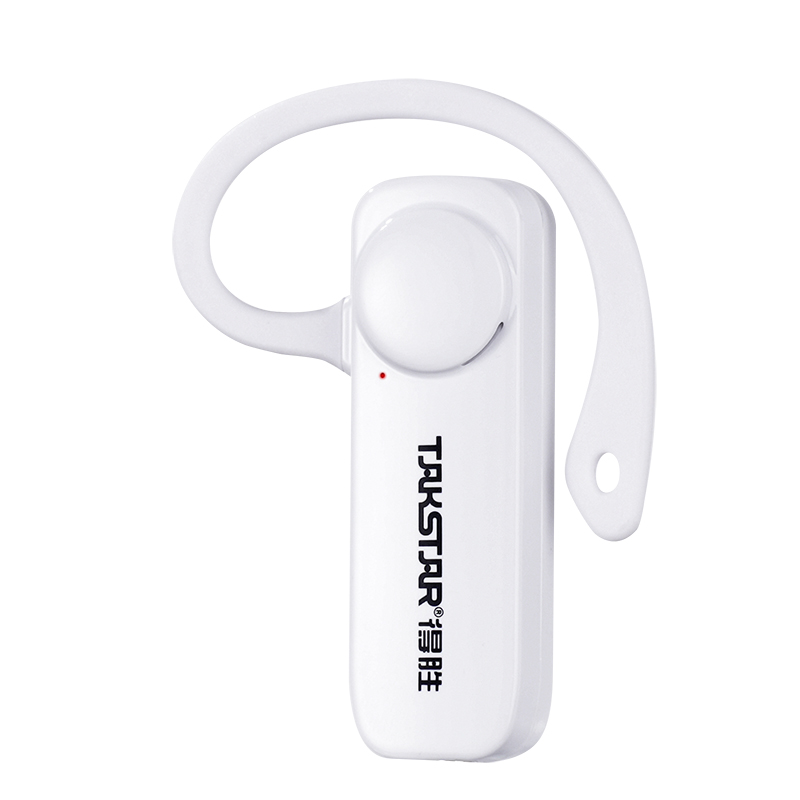

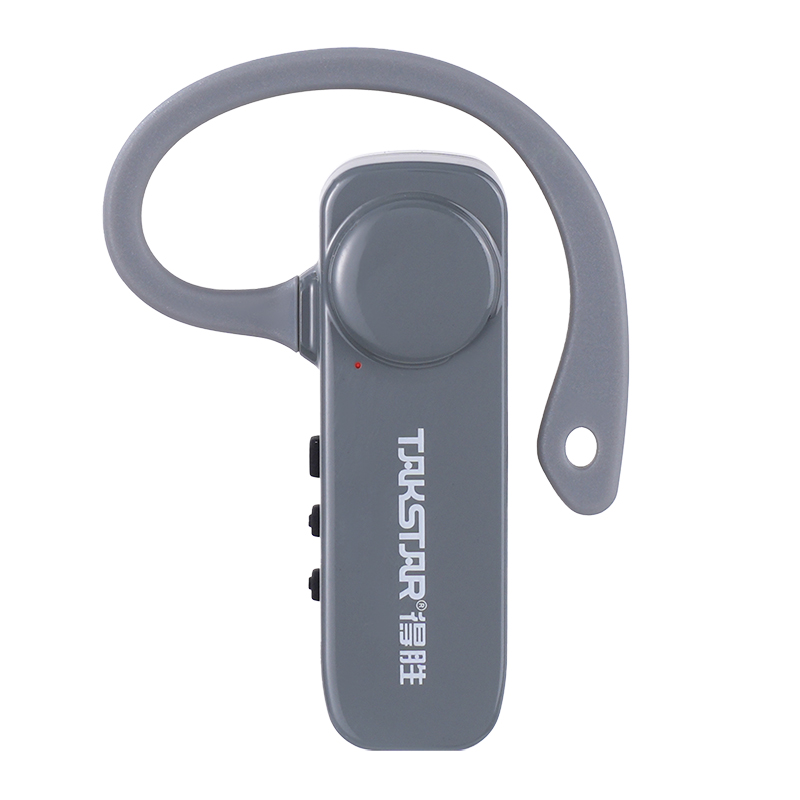

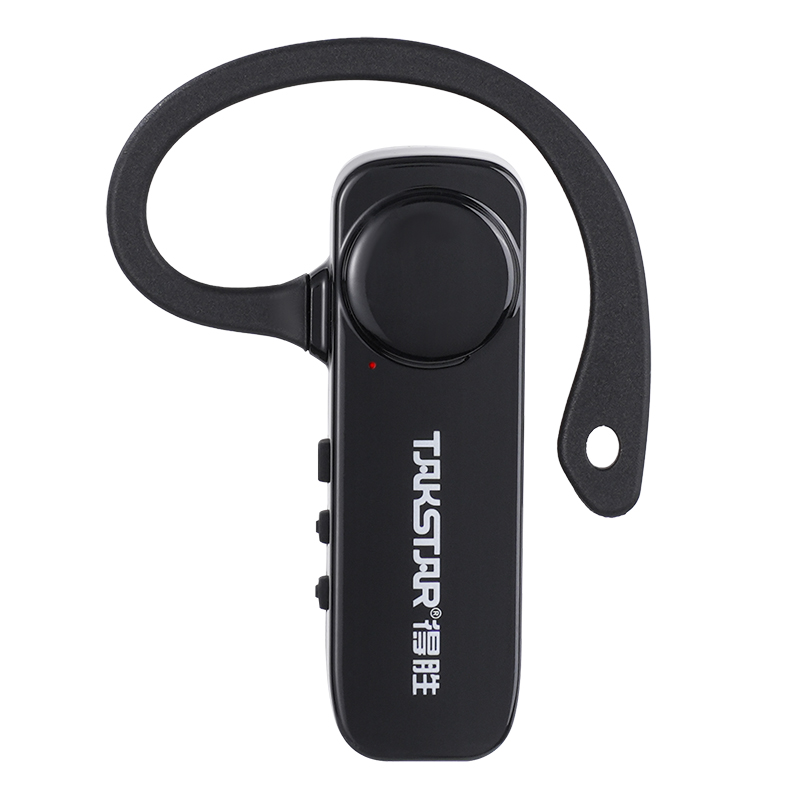

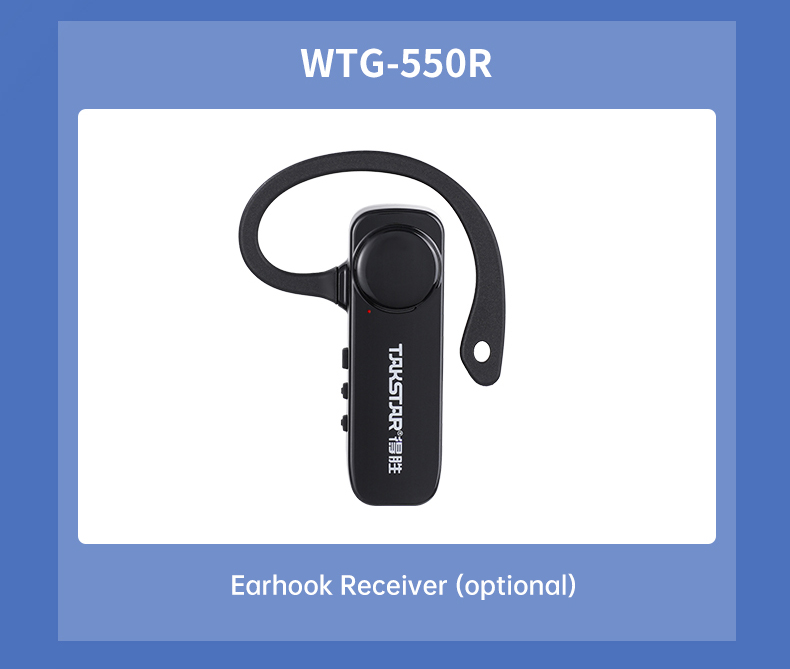

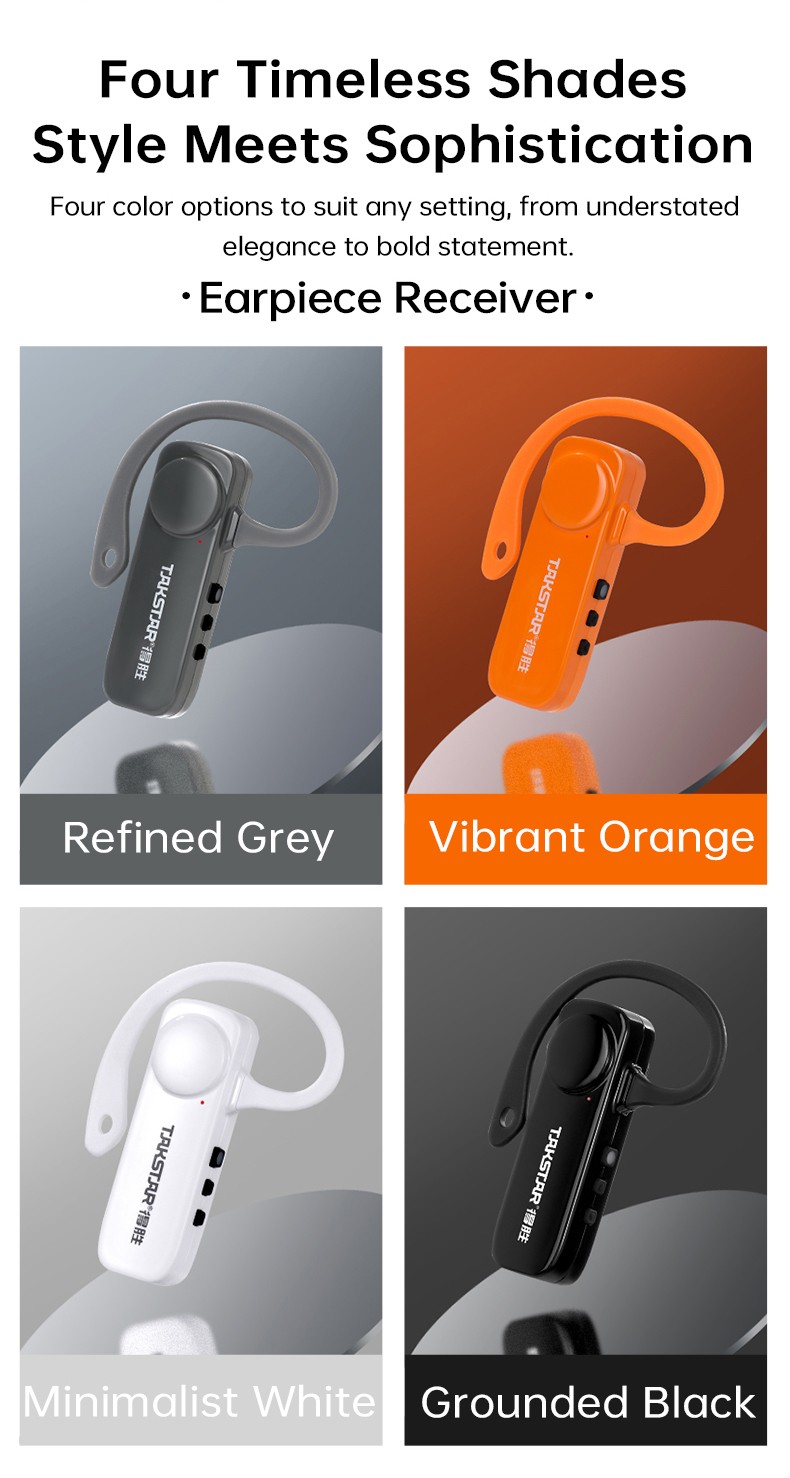

Earhook Receiver
• Freq. Range: 960-1000MHz
• Channels: 50CH
• Working Current: 15mA
• Freq. Response: 20Hz-4kHz
• Distortion: <1%
• SNR: 80dB
• Battery: 260mAh
• Charging: DC5V/180mA
• Indicator: LED
• Charge Time: ~1.5hrs
• Battery Life: ~10hrs
• Speaker: Built-in
• Range: 150m
• Size: 59L*19W*11.5H (mm)
• Packaging: 58L*20W*75H (mm)
• Net Weight: ~14.5g
• Gross Weight: ~25g

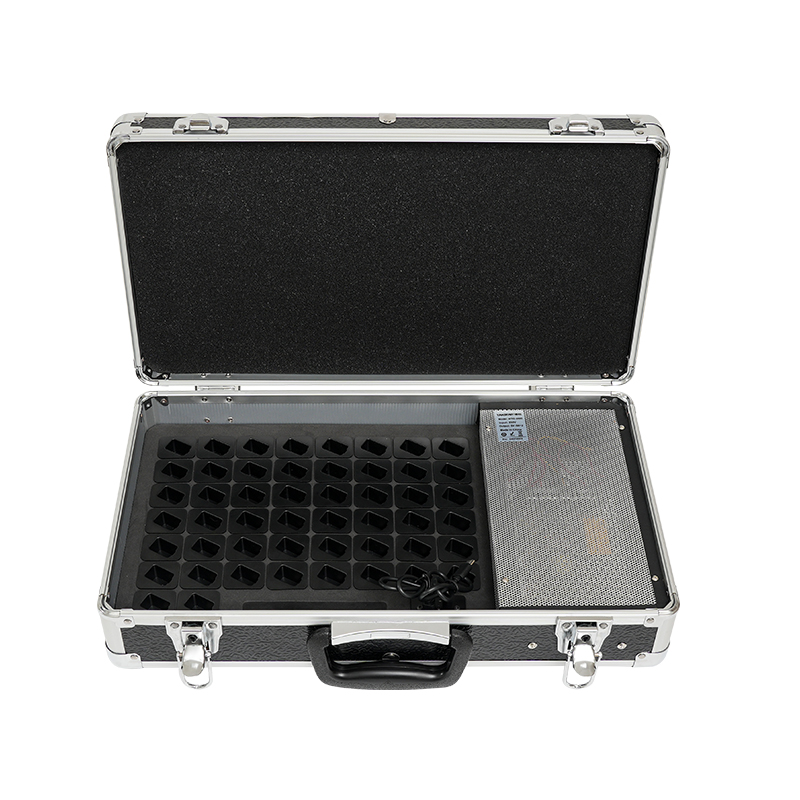

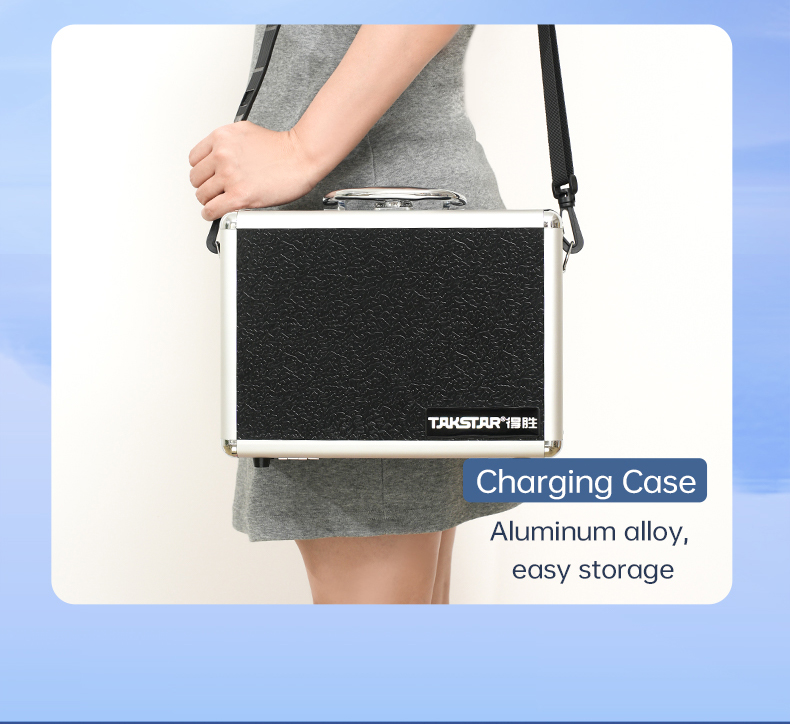

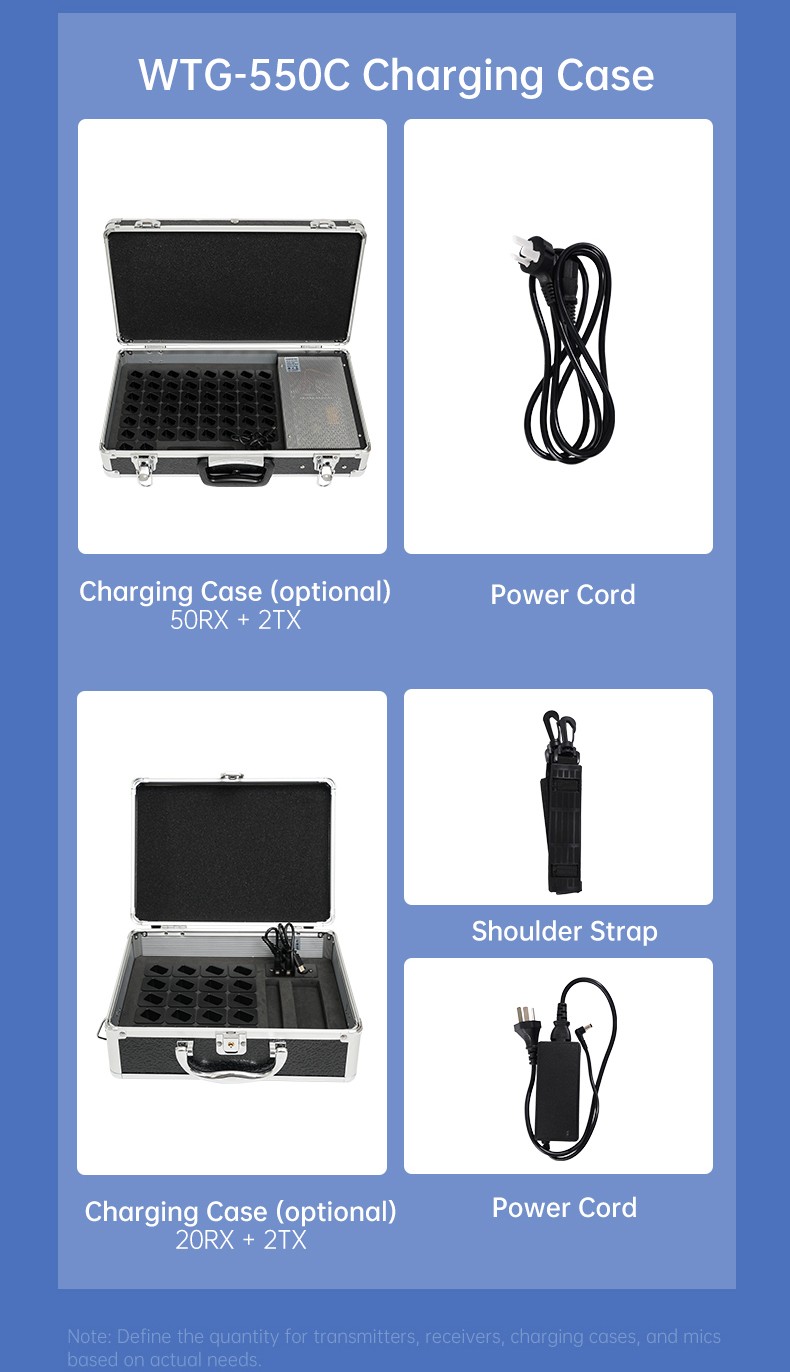

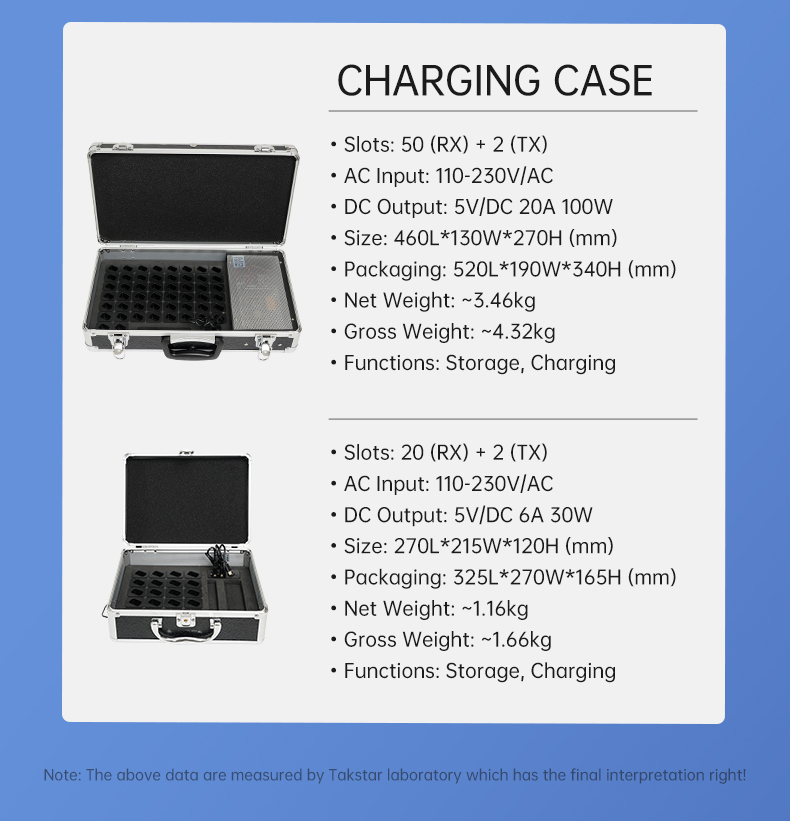

Charging Case
• Slots: 50 (RX) + 2 (TX)
• AC Input: 110-230V/AC
• DC Output: 5V/DC 20A 100W
• Size: 460L*130W*270H (mm)
• Packaging: 520L*190W*340H (mm)
• Net Weight: ~3.46kg
• Gross Weight: ~4.32kg
• Functions: Storage, Charging

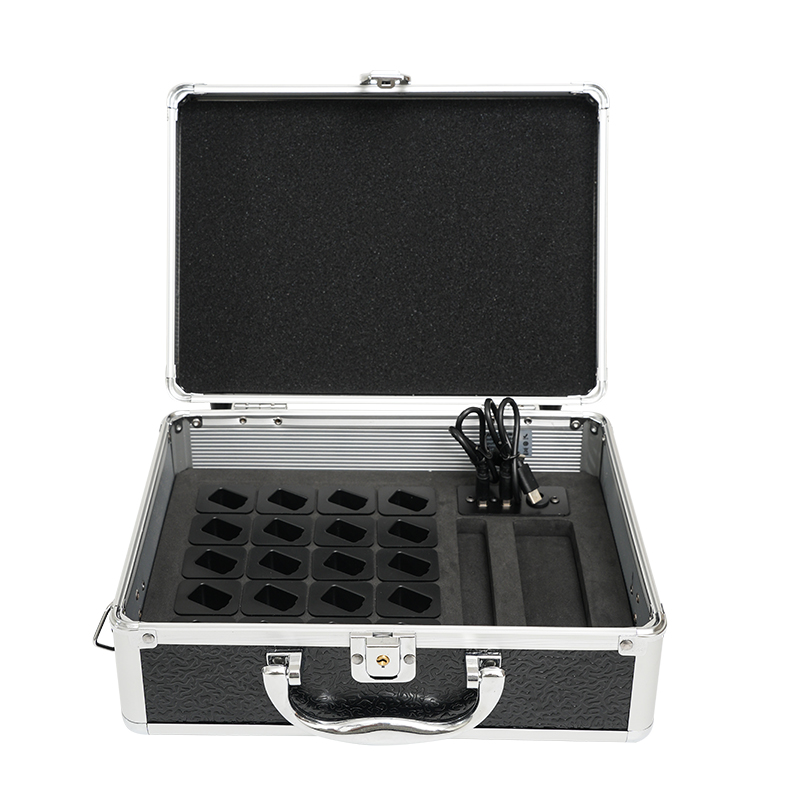

Charging Case
• Slots: 20 (RX) + 2 (TX)
• AC Input: 110-230V/AC
• DC Output: 5V/DC 6A 30W
• Size: 270L*215W*120H (mm)
• Packaging: 325L*270W*165H (mm)
• Net Weight: ~1.16kg
• Gross Weight: ~1.66kg
• Functions: Storage, Charging

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
