WTG-650 Tour Guide System-TAKSTAR - Guangdong Takstar Electronic Co., Ltd.

WTG-650 Tour Guide System

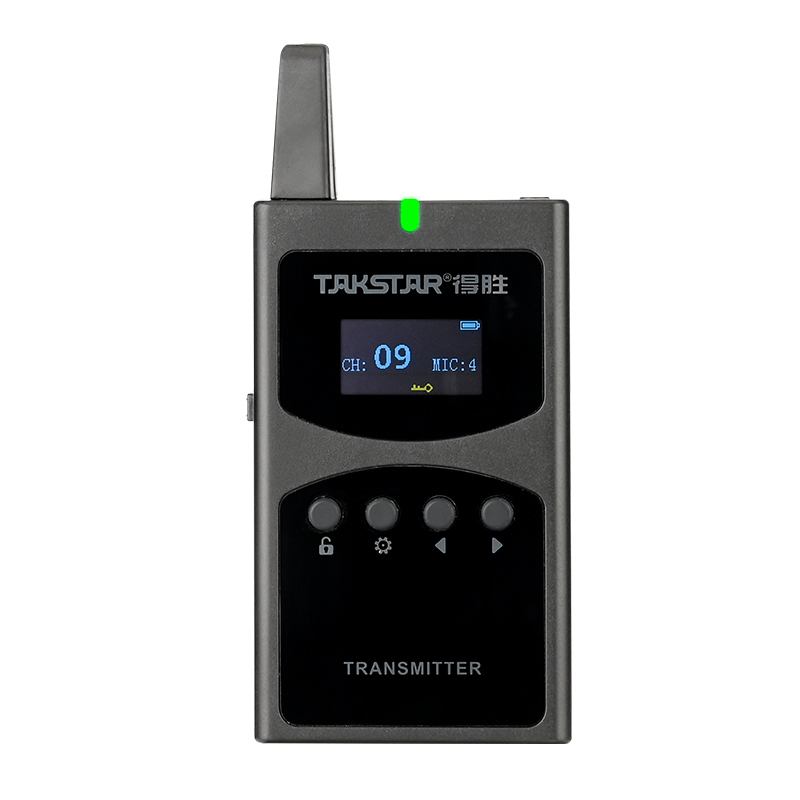

  • Tour Guide System

• UHF transmission for stable use up to 100m in open areas.

• Detachable mic with high sensitivity and clear sound.

• 50 adjustable channels to prevent crosstalk between systems.

• Transmitter enables remote one-button receiver pairing and powering off.

• Wireless playback of audio from phones and computers.

• Non-in-ear receiver design, lightweight, comfortable and hygienic.

Product Detail

• Frequency Range: 960-1000MHz
• No. of Channels: 50CH
• Transmission Power: 18dBm
• UHF Operating Current: 220mA
• Bluetooth Mode Current: 260mA
• Frequency Response: 20Hz-4kHz
• Distortion: <1%
• Signal-to-Noise Ratio: 80dB
• Input/Output Interface: 3.5mm
• Battery Capacity: 2000mAh
• Charging Current: DC 5V/400mAh
• Dimensions: 86*50*18.5mm
• Weight: Approx. 81g
• Charging Indicator: LED display
• Playtime: Approx. 10 hours
• Antenna: External antenna
• Effective Distance: Approx. 150m

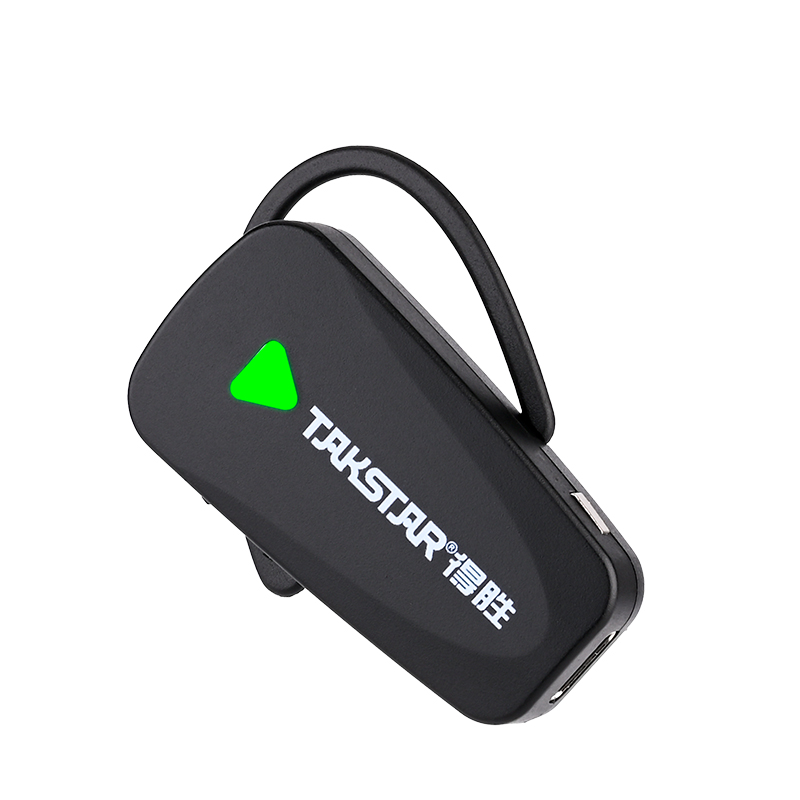

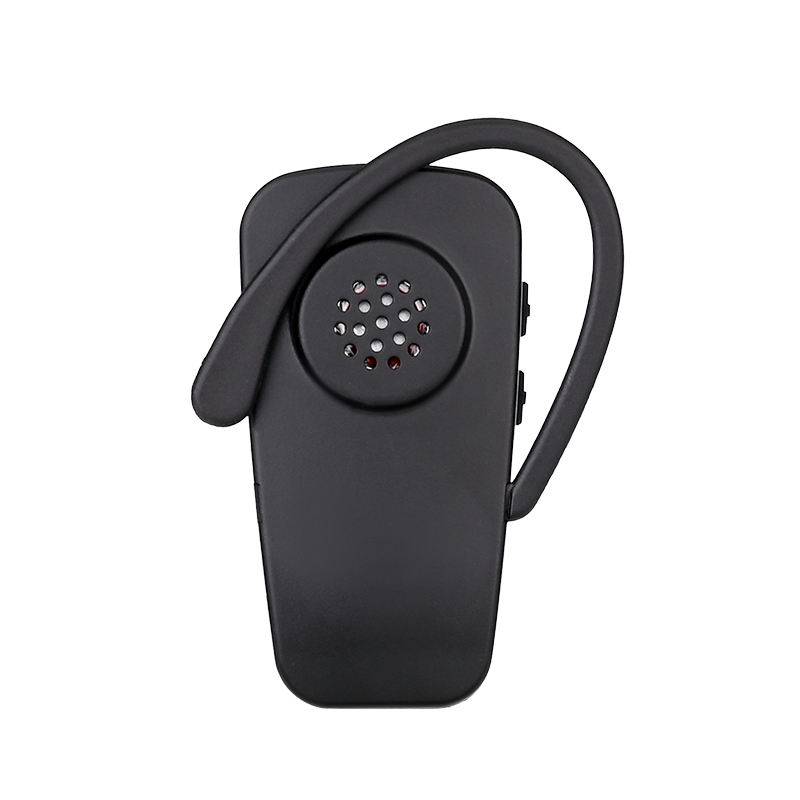

Earhook Receiver
• Frequency Range: 960-1000MHz
• No. of Channels: 50CH
• Operating Current: 15mA
• Frequency Response: 20Hz-4kHz
• Distortion: <1%
• Signal-to-Noise Ratio: 80dB
• Battery Capacity: 260mAh
• Charging Current: DC 5V/230mA
• Dimensions: 52*27*12.5mm
• Weight: Approx. 16g
• Function Indicator: LED light
• Storage Capacity: 512MB
• Operating Distance: Approx. 150m

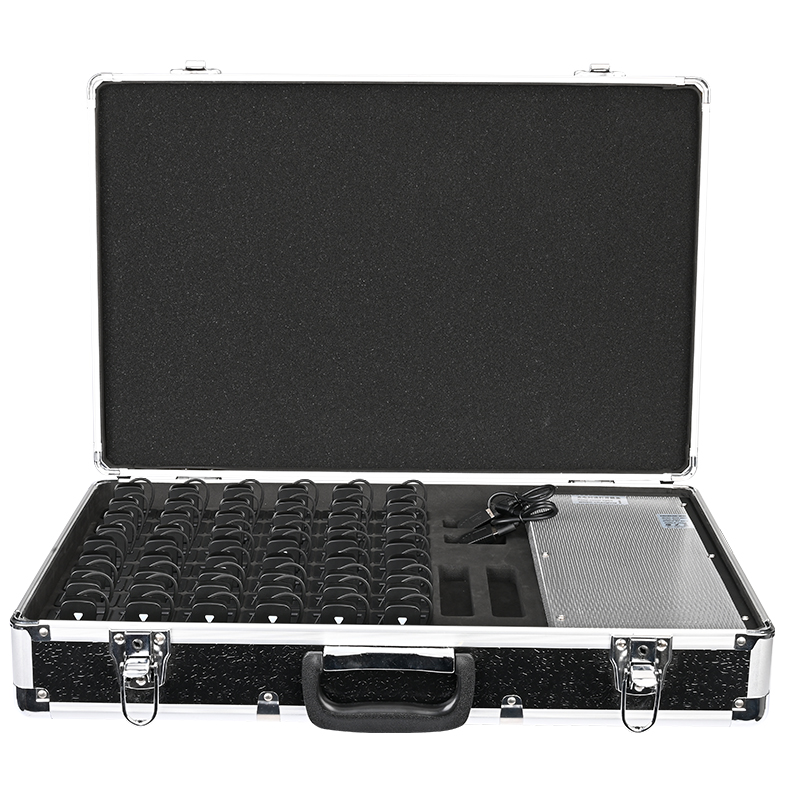

Charging Case
• Charging Slots: 54 RX + 2 TX
• AC Input: 110-220V/AC
• DC Output: 5V/DC
• Dimensions: 560*130*370mm
• Weight: Approx. 5.2kg
• Functions: Storage & Charging
Note: The above data are measured by Takstar laboratory which has the final interpretation right!
• Tourism, religious activities, simultaneous interpretation, reception visits,large conferences, lectures, industrial workshop, etc.

n × WTG-650 Transmitter

n × Earhook Receiver

n × Charging Case

n × Headset Mic (HM-700)

1 × User Manual

Note: Quantity n is defined by client requirements.

  • User manual

    WTG-650 Tour Guide System User Manual2024-02-19 15:16:46Download
