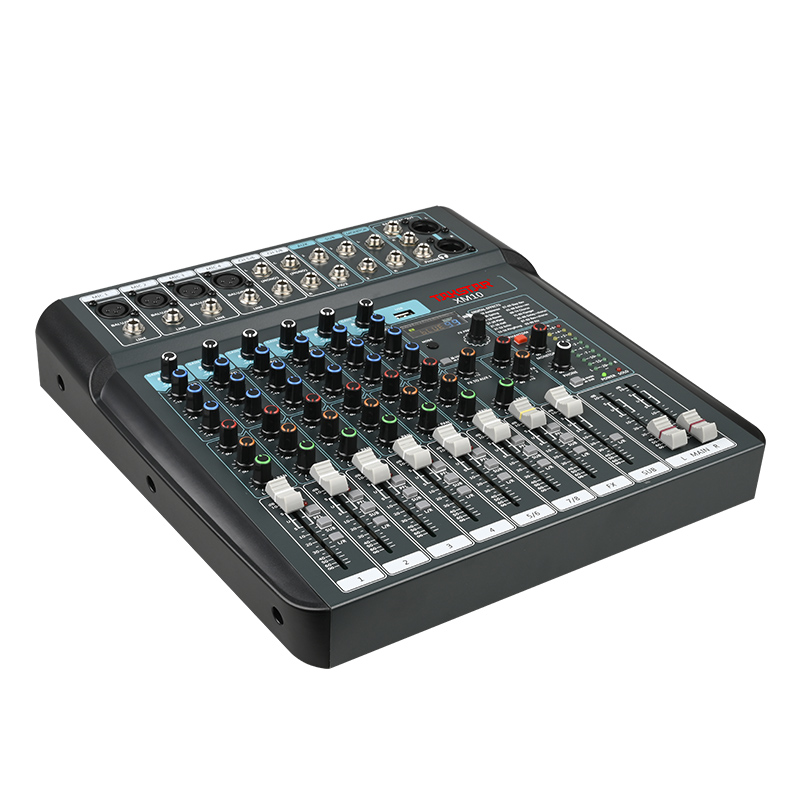

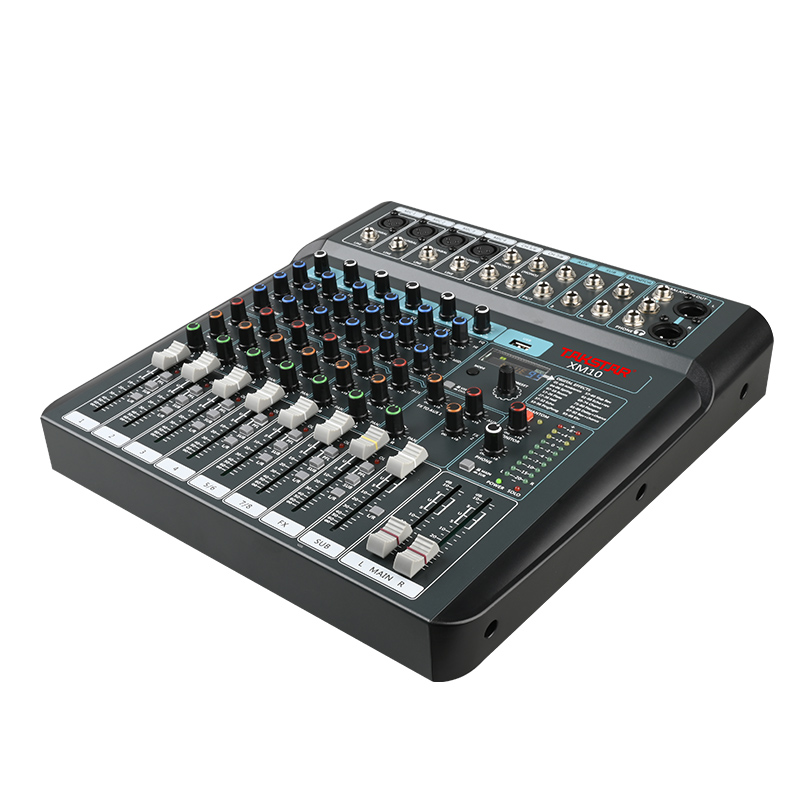

XM10 Analog Mixer

Power Amplifier

• 8 inputs, including 4 mics+ 2 Stereos (L+R).

• 3 band EQ.

• PAN, MUTE, THD signal lamp.

• 60mm logarithmic fader.

• AUX + FX send.

• Supports 24-bit/48kHz recording.

• Built-in 99 kinds of 24BIT DSP +LCD color display.

• Group output of SUB1/2.

• Double 10 level monitoring, 48V phantom power supply.

• USB/REC Player, Bluetooth.

• Independent monitoring + Headphones monitoring for output.

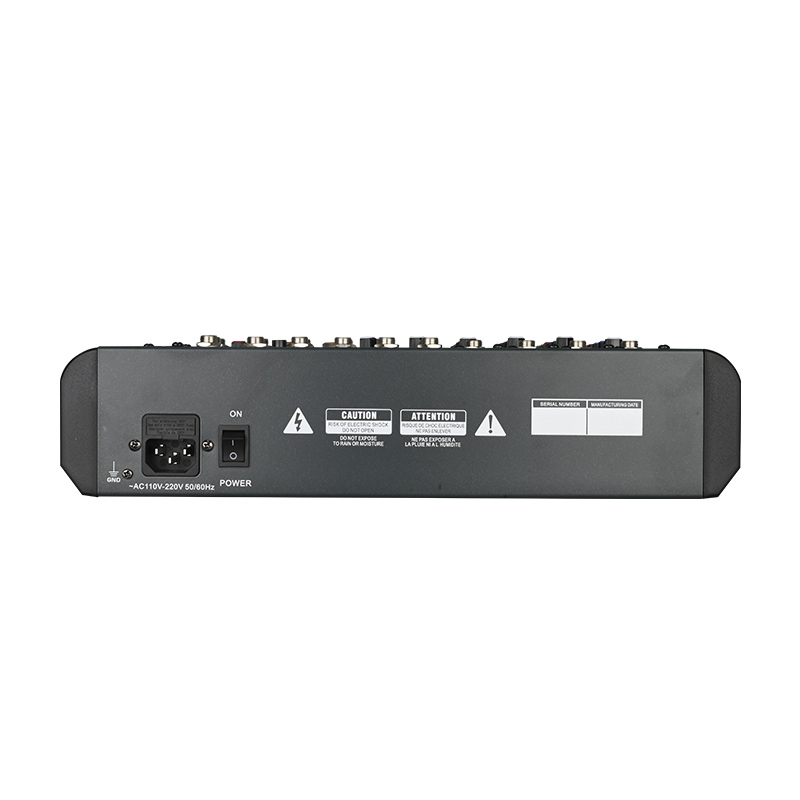

• Built-in 110V/240V,50-60Hz broadband power supply.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Suitable for all kinds of small & medium activities, conferences, multi-function hall, small performance.

GAIN (0 dB IN)
• CH MIC Gain: 5~50 dB
• CH LINE Gain: -10~34 dB

MONITOR OUT
ALL MAX
• CH MIC Gain: 67 dB
• CH LINE Gain: 51 dB

PHONES OUT
ALL MAX
• CH MIC Gain: 67 dB
• CH LINE Gain: 51 dB
GAIN Control at 0 dB
• CH MIC Gain: 0 dB
• CH LINE Gain: 0 dB

STEREO OUT
ALL MAX
• CH MIC Gain: 64 dB
• CH LINE Gain: 48 dB
GAIN Control at 0 dB
• CH MIC Gain: 5 dB
• CH LINE Gain: 0 dB

CMRR
GAIN Control at 0 dB
• CH MIC Gain: 62 dB

THD 0dB
STEREO OUT (GAIN Control at 0 dB)
• CH MIC: 0.01%
• CH LINE: 0.01%
PHONES OUT (GAIN Control at 0 dB)
• CH MIC: 0.01%
• CH LINE: 0.01%

Signal to Noise Ratio
STEREO OUT
• CH MIC: 90 dB
• CH LINE: 84 dB
MONITOR OUT
• CH MIC: 82 dB
• CH LINE: 74 dB

Noise
• MONITOR OUT (Fader at 0 dB): -86dBu
• STEREO OUT (Fader at 0 dB): -88dBu
• STEREO OUT (Fader at MIN): -92dBu

• EIN: -122dB
