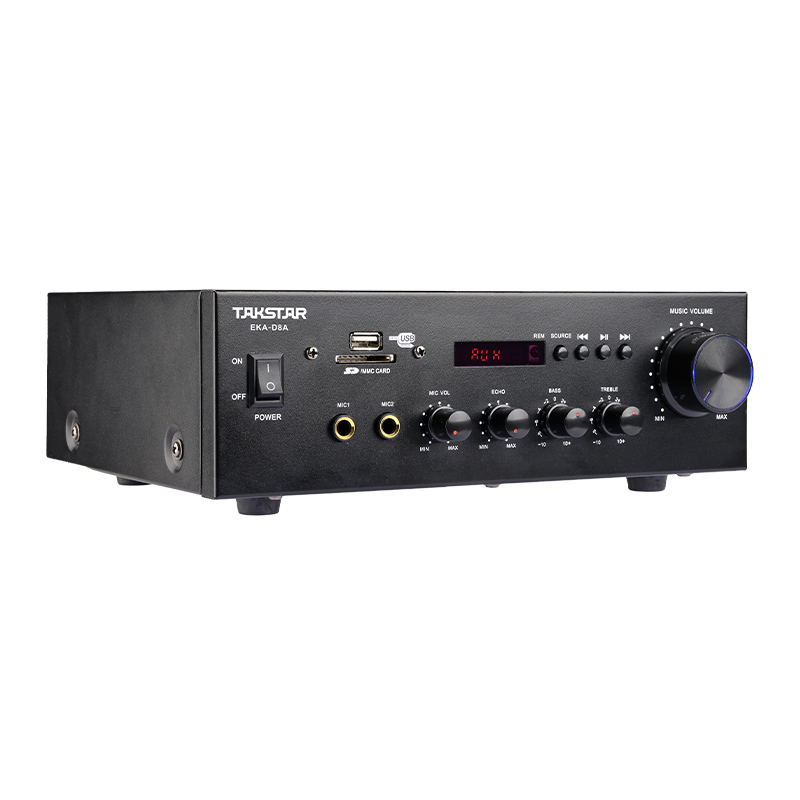

EKA-D8A (Upgraded Version) Low Impedance Integrated Amplifier

Power Amplifier

• All-metal chassis with high-quality transformer.

• 2-channel output, 60W per channel (8Ω), compatible with loads of 4-16Ω.

• Music and mic inputs with bass and treble controls for personalized sound.

• Two mic inputs with volume and effect controls for customizable audio.

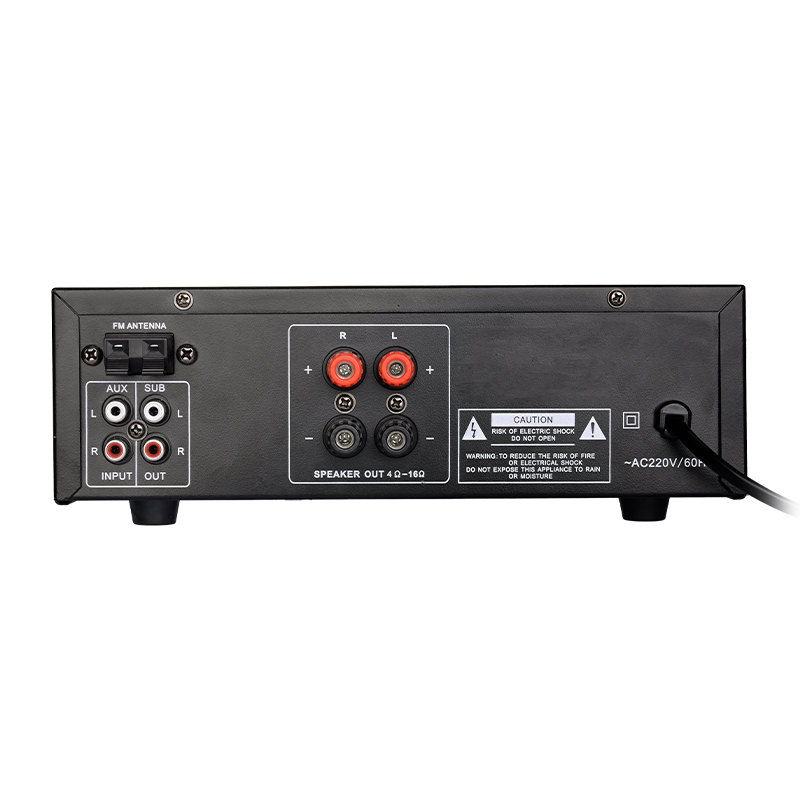

• 1 AUX audio input; 1 audio output to connect high-power amps or recording devices.

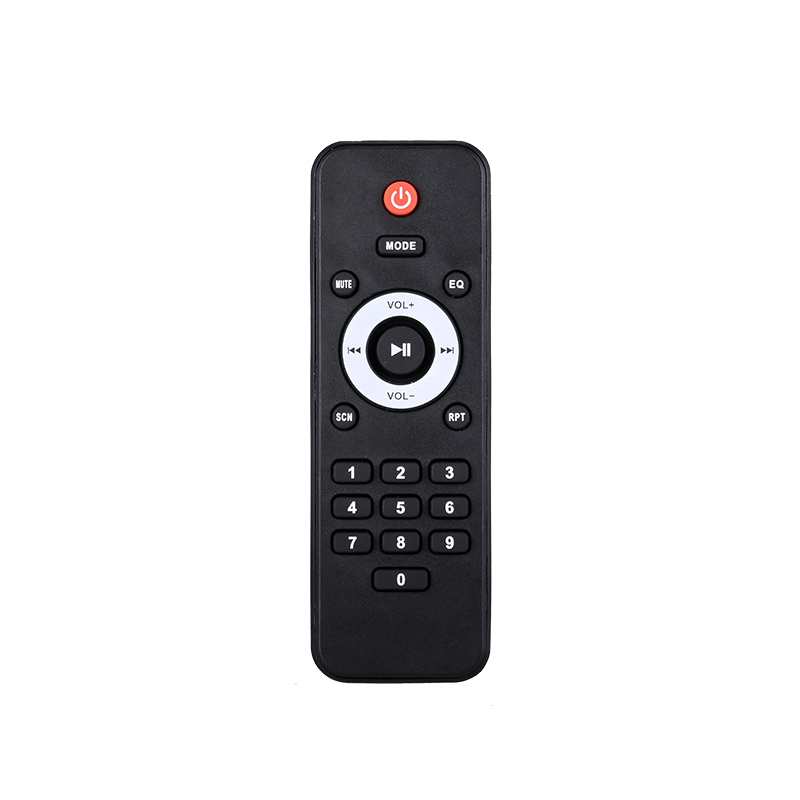

• Supports USB/SD playback and wireless audio streaming with interactive control.

• Built-in FM radio function for receiving radio signals.

• Efficient circuitry, high-fidelity dynamic, wide frequency response, clear sound.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial

• For small shops, classrooms, and small meeting rooms.

• Output Power: 60W × 2 (8Ω)
• THD: <1.5% (1kHz, 1W, 8Ω)
• Frequency Response (±1dB): 20Hz-20kHz
• SNR: ≥78dB (A-weighted)
• Channel Separation: 32dB
• Line Input Sensitivity: 350 mV
• Mic Input Sensitivity: 18mV
• Power Supply: ~AC220V/50Hz
• Product Net Weight: 2.2kg
• Product Size (W×L×H): 350mm×230mm×80mm

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
