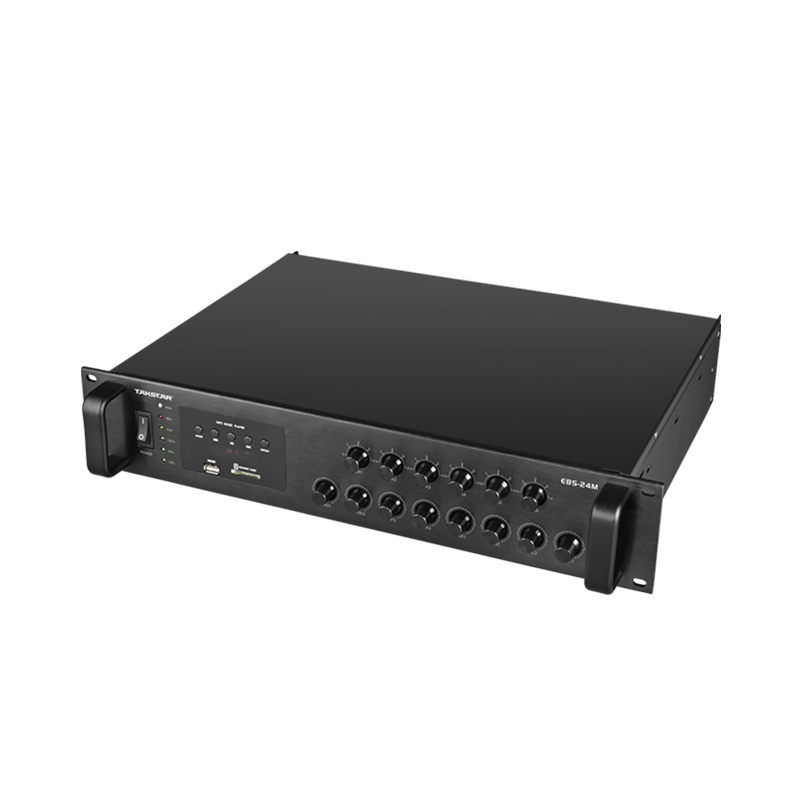

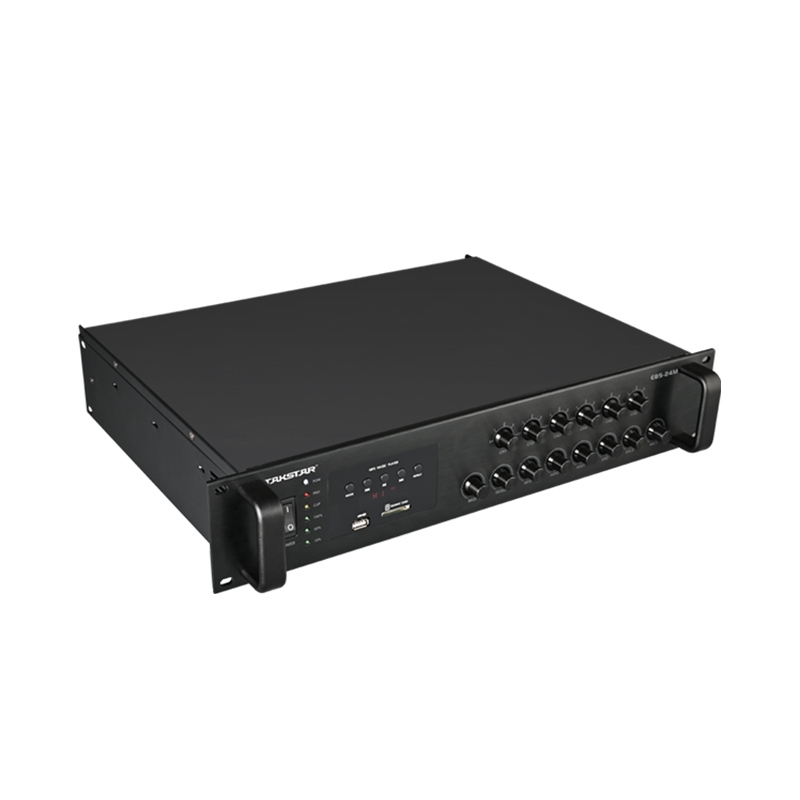

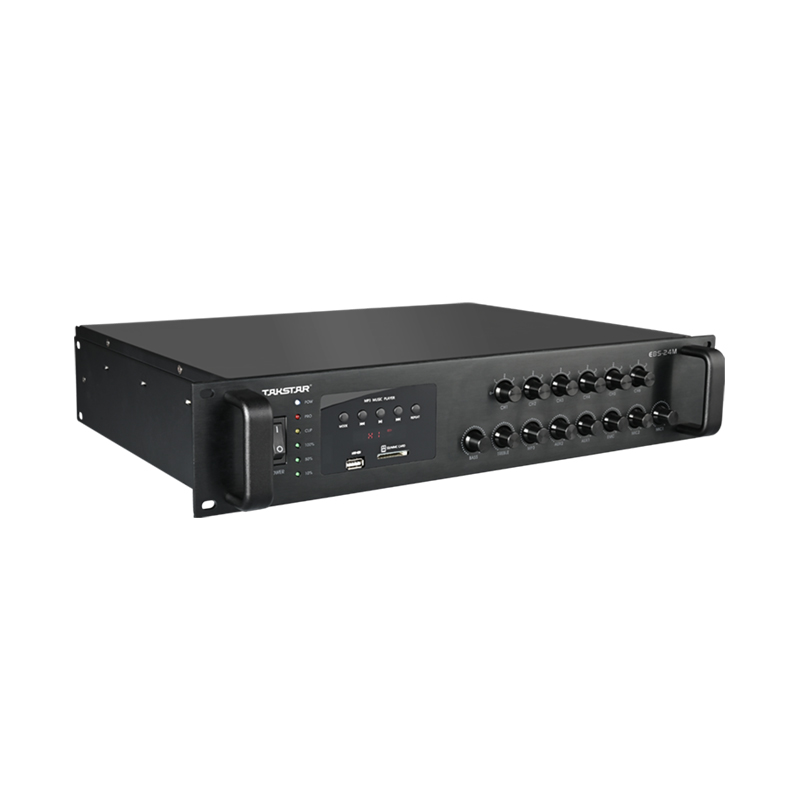

EBS-24M (Upgraded Version) Integrated Broadcast Amplifier

Power Amplifier

• 6 independent zone outputs with separate volume control, and 100V output voltage.

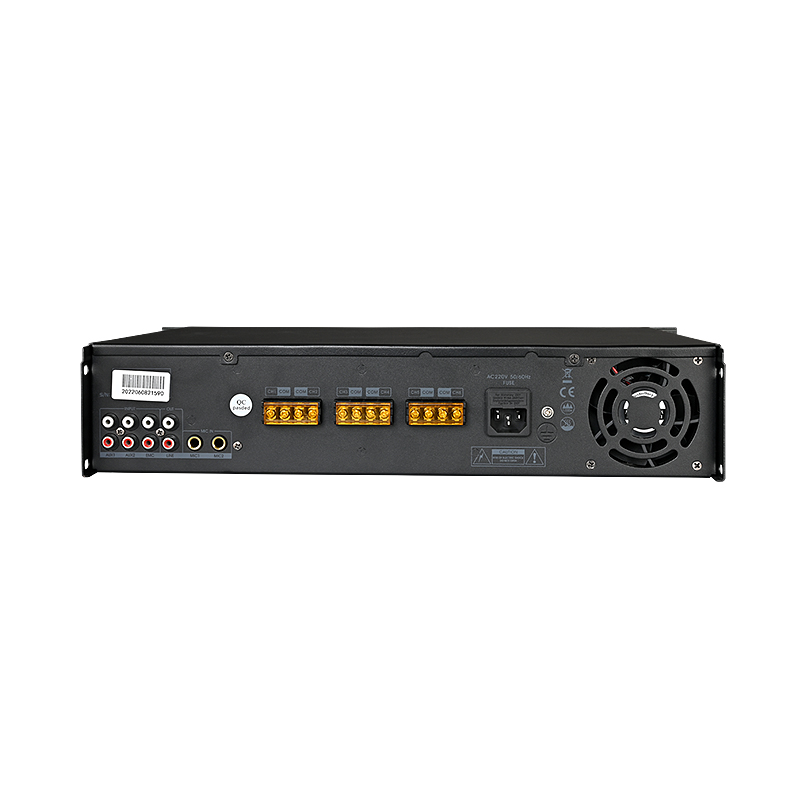

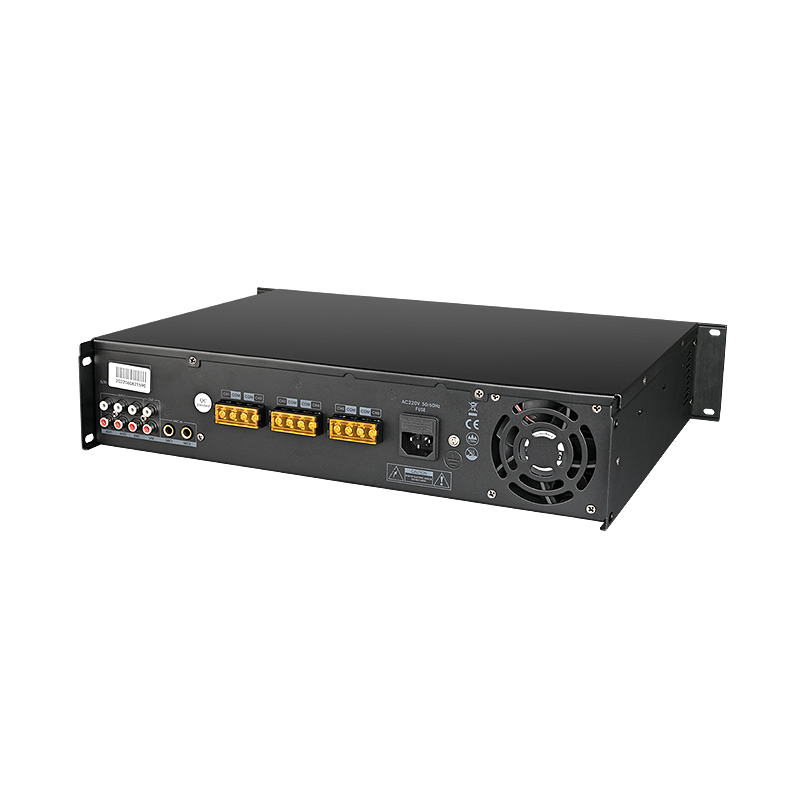

• Includes 2 AUX line inputs, 1 Emergency (EMC) input, 2 mic inputs, and 1 auxiliary output for cascading to another amplifier.

• Bass and treble adjustments, along with separate volume controls for all inputs.

• Mic 1 and Emergency EMC input have the highest priority, can override other input signals.

• Built-in Wireless/MP3 module for easy mobile streaming for program playback.

• Multiple indicator LED lights for power, signal, clipping, and protection status.

• Active fan cooling for efficient heat dissipation and long-term operation.

• Mains power fluctuation protection for over-voltage and under-voltage safeguards.

Product Detail

Application
Specification
Product Content
Product Tutorial

• Classrooms, small meeting rooms, retail stores, etc.

• Rated Power：240W
• Product Weight：11.5KG
• Dimensions：483*342*90MM
• High-Z Output：100V
• AUX Sensitivity：-12dB
• MIC Sensitivity：-40dB
• Treble/Bass：±10dB
• Freq.Response：80Hz~16KHz±2dB
• THD：THD≤0.1%
• SNR：≥70dB
• Temperature：-5℃~80℃
• Operating Humidity：20%~80% RH, non-condensing
• Power Supply：-220V/50Hz
