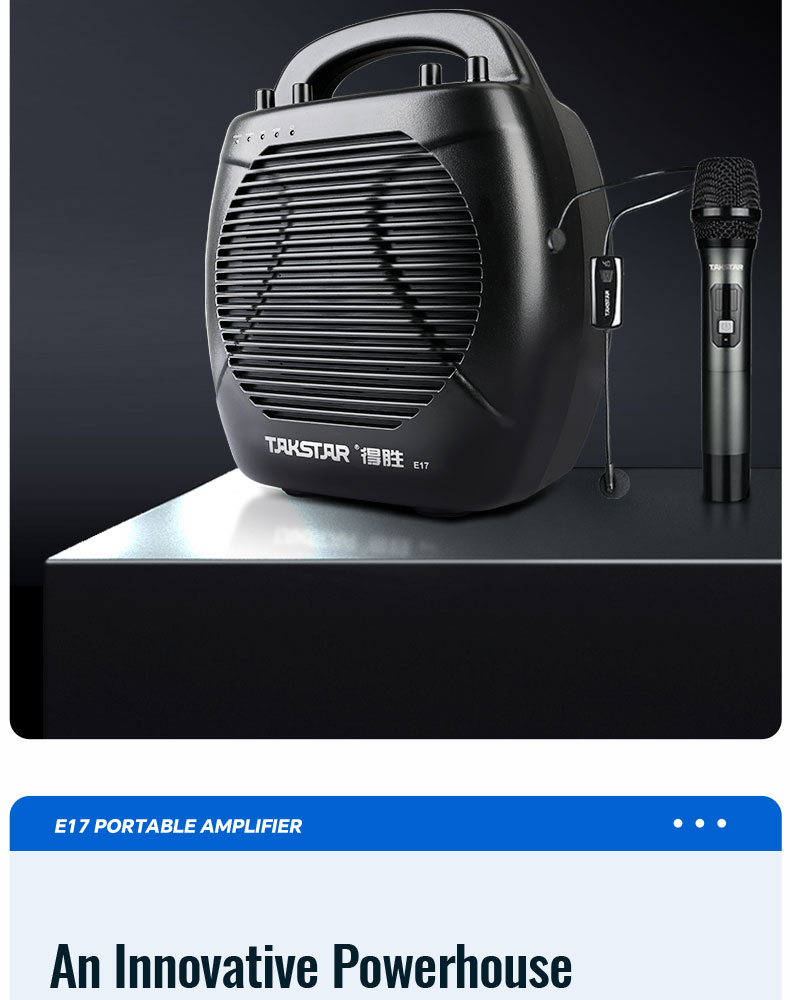

E17 (New Edition) Portable Wireless Amplifier

  • External power supply
  • Built-in battery
  • Portable
  • Teaching
  • Propaganda
  • Outdoor Activities
  • Bluetooth
  • AUX
  • Audio Player
  • Wired

• UHF wireless transmission up to 40 meters in areas without interference andobstruction.

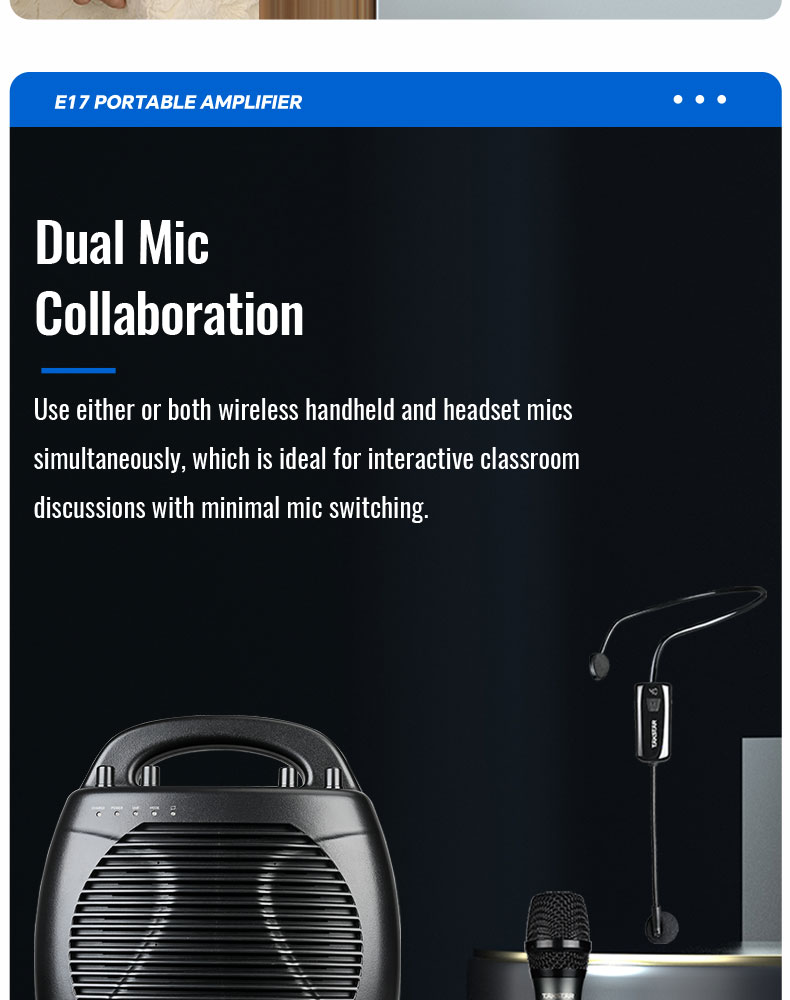

• Includes wireless handheld and head-worn mics featuring automaticfrequency pairing.

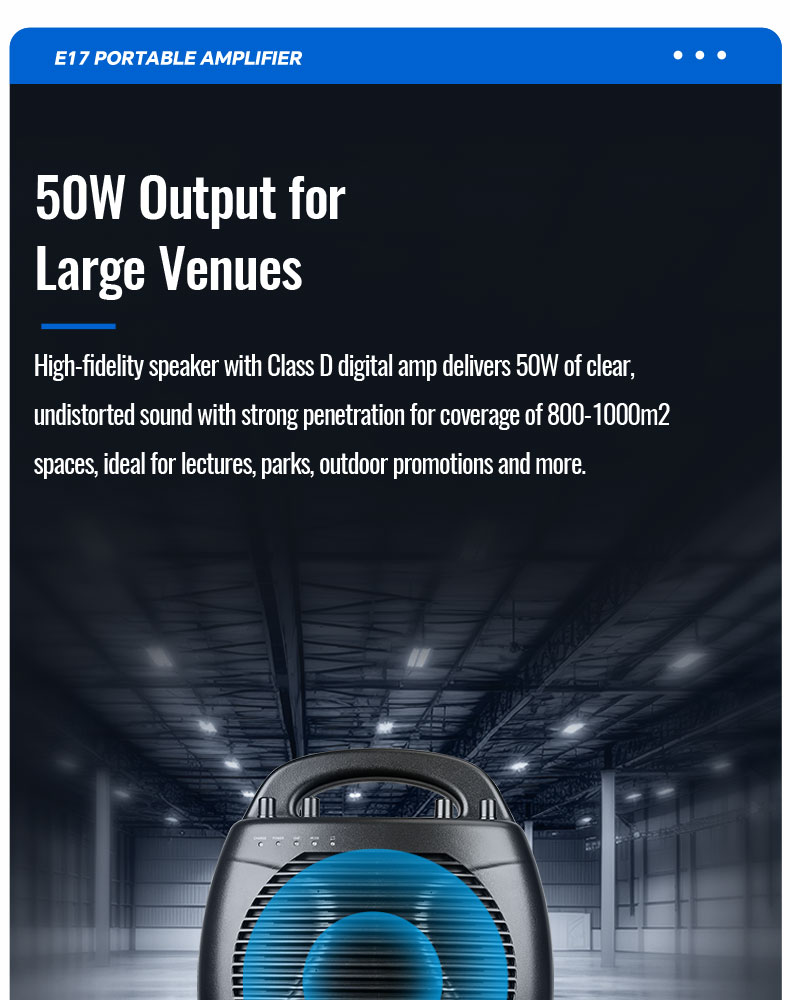

• Powerful 50W audio output with clear sound from efficient class D digitalamplifier module.

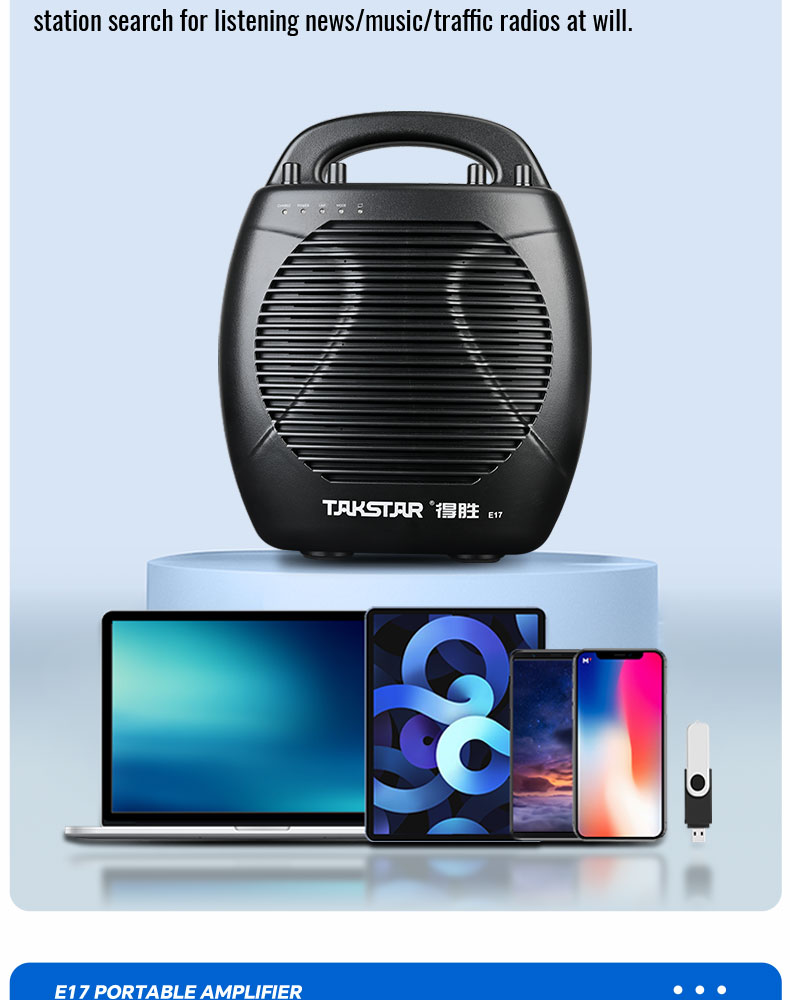

• Supports wireless playback for mobile phones, computers, and tablets.

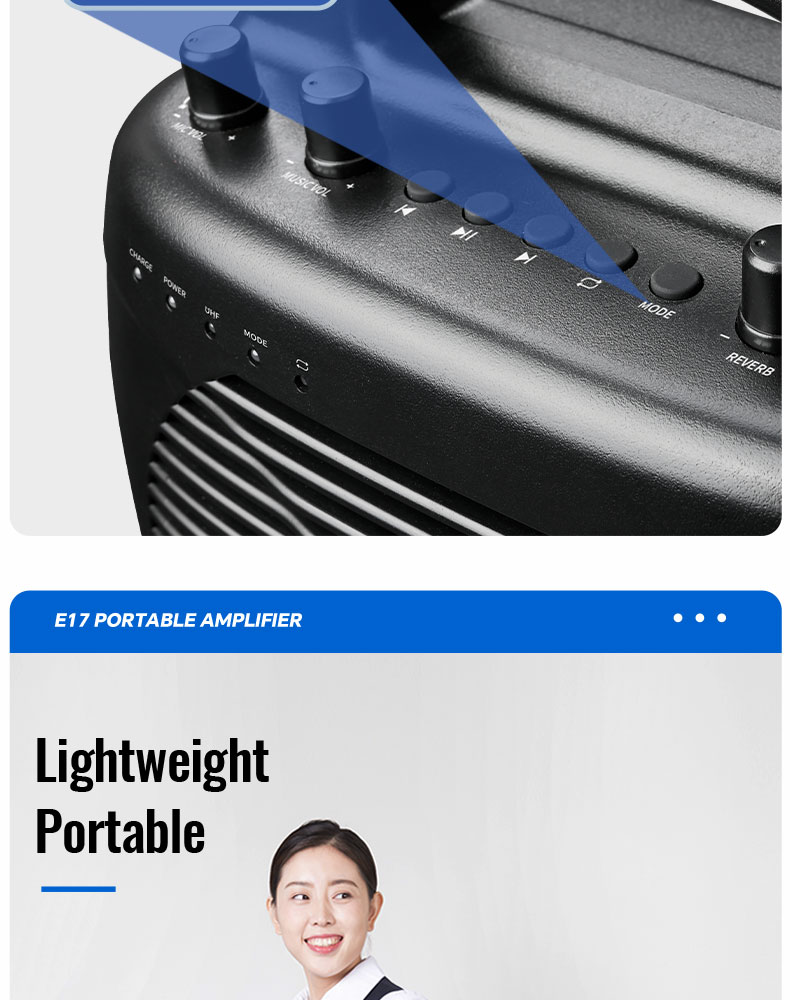

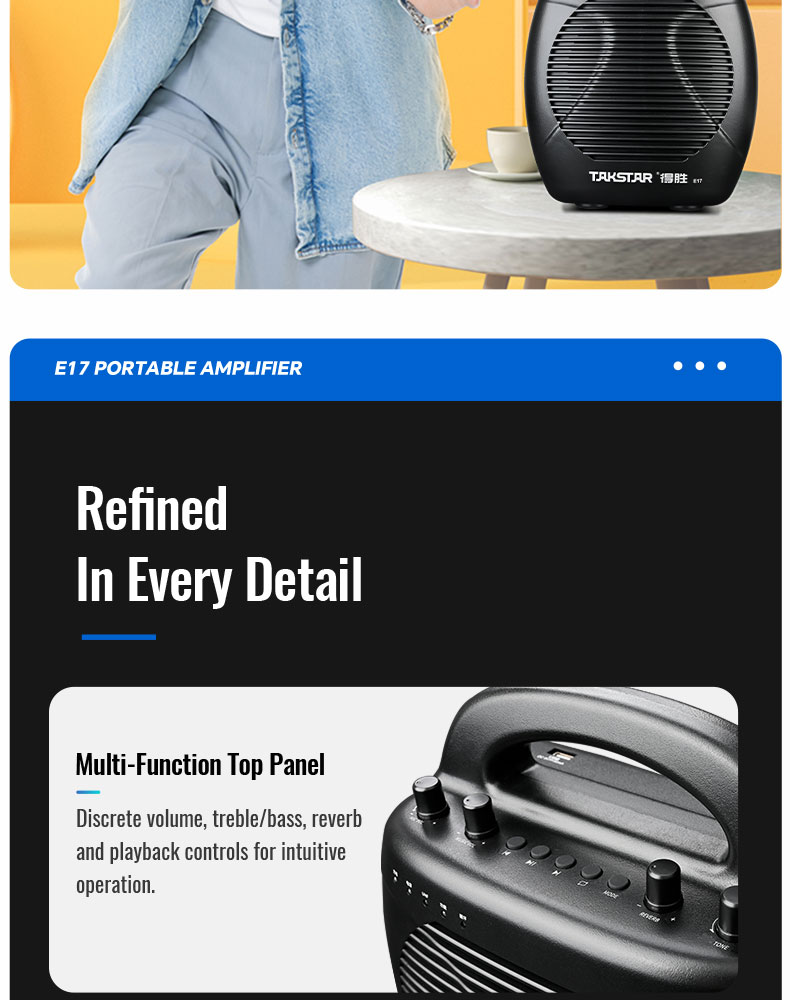

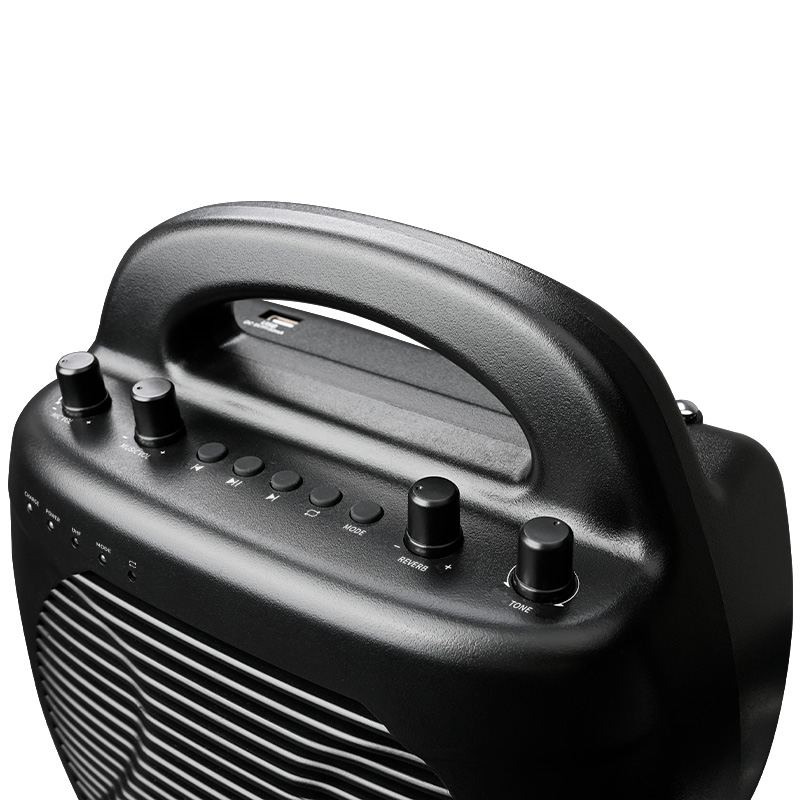

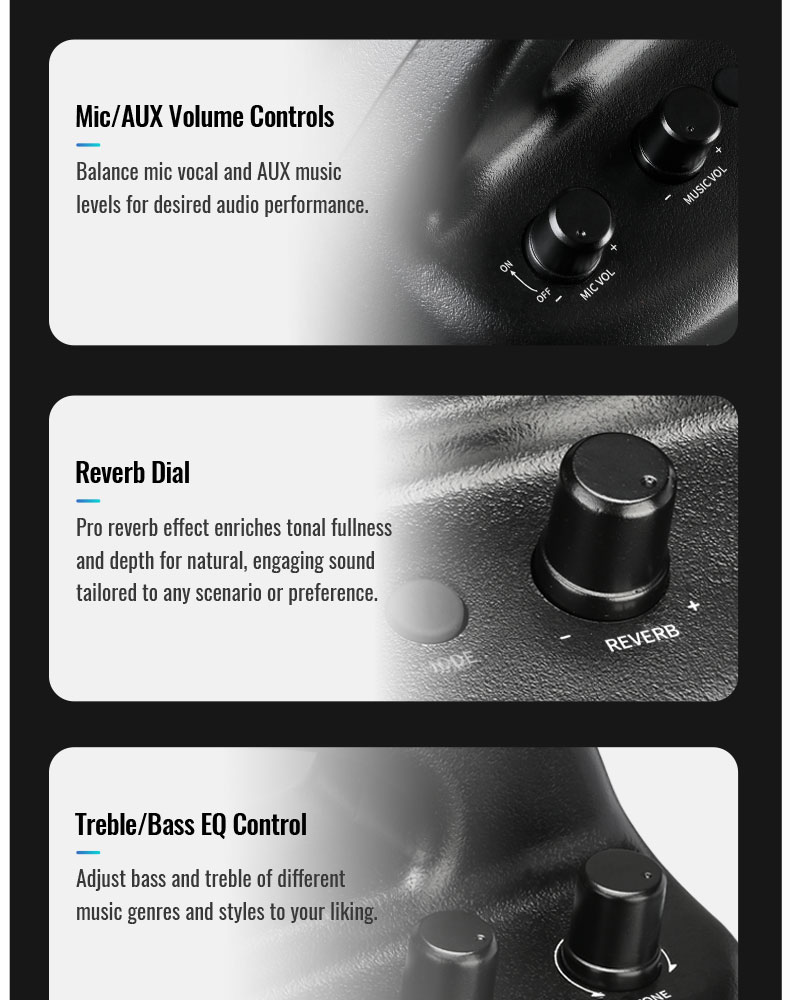

• Customizable settings for volume, bass, treble, and reverb.

• USB support for multimedia audio file playback.

• Audio signal input and output capabilities.

• Built-in FM radio with automatic station search.

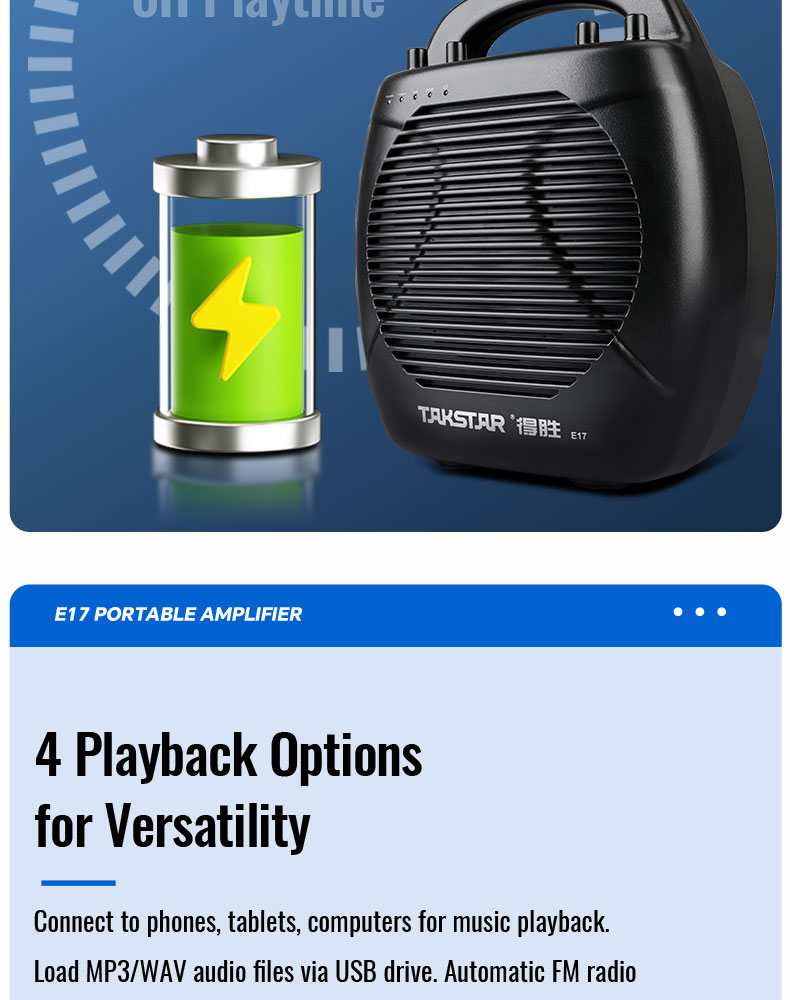

• Long-lasting rechargeable lithium-ion battery with up to 8 hours of battery life.


Product Detail

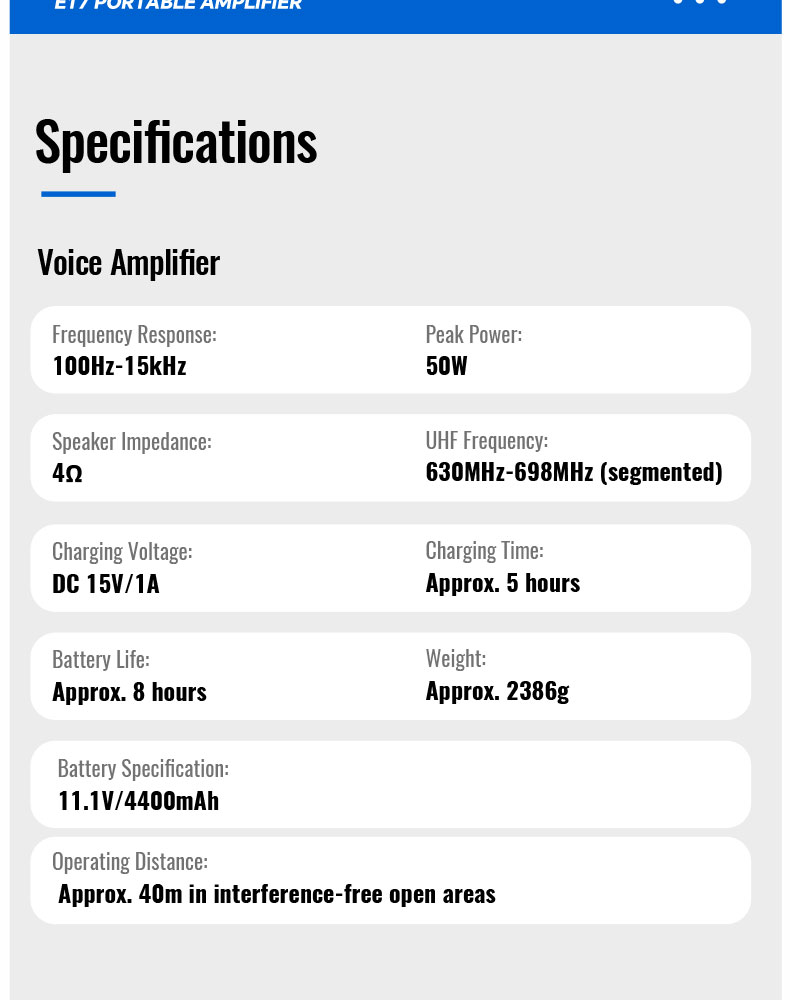

Voice Amplifier
• Frequency Response: 100Hz-15kHz
• Peak Power: 50W
• Speaker Impedance: 4Ω
• UHF Frequency: 630MHz-698MHz (segmented)
• Operating Distance: Approx. 40m in interference-free open areas
• Battery Specification: 11.1V/4400mAh
• Charging Voltage: DC 15V/1A
• Charging Time: Approx. 5 hours
• Battery Life: Approx. 8 hours
• Weight: Approx. 2386g

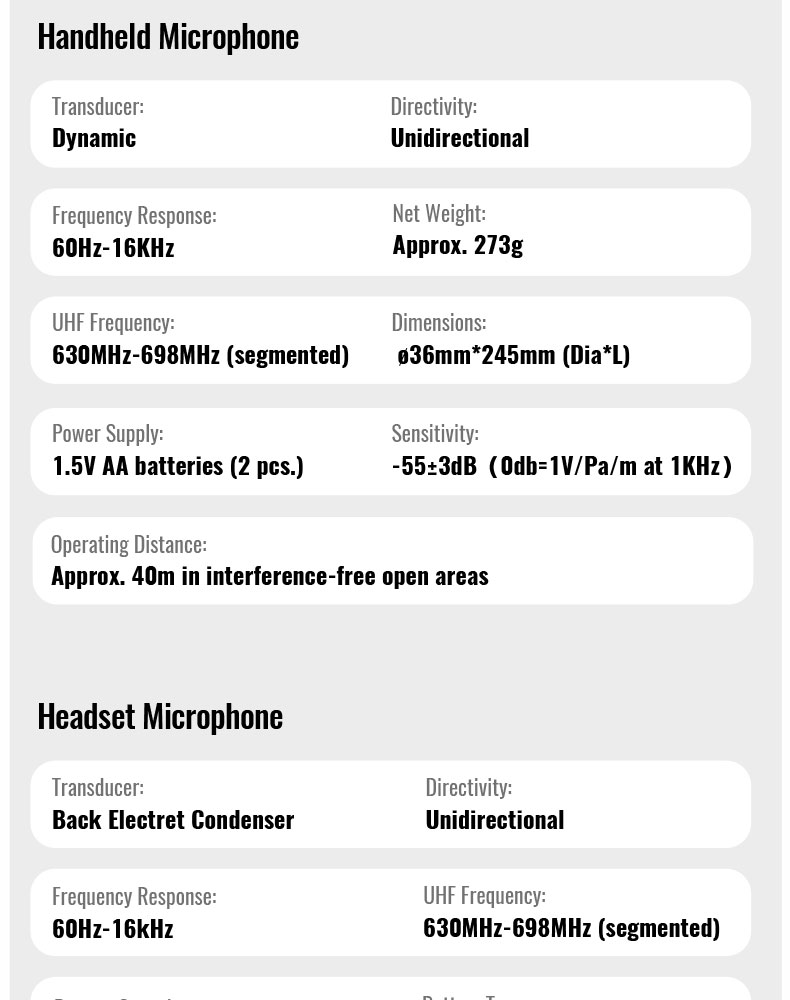

Handheld Microphone
• Transducer: Dynamic
• Directivity: Unidirectional
• Frequency Response: 60Hz-16KHz
• Sensitivity: -55±3dB (0dB=1V/Pa/m at 1kHz)
• UHF Frequency: 630MHz-698MHz (segmented)
• Operating Distance: Approx. 40m in interference-free open areas
• Power Supply: 1.5V AA batteries (2 pcs.)
• Dimensions: ø36mm*245mm (Dia*L)
• Net Weight: Approx. 273g

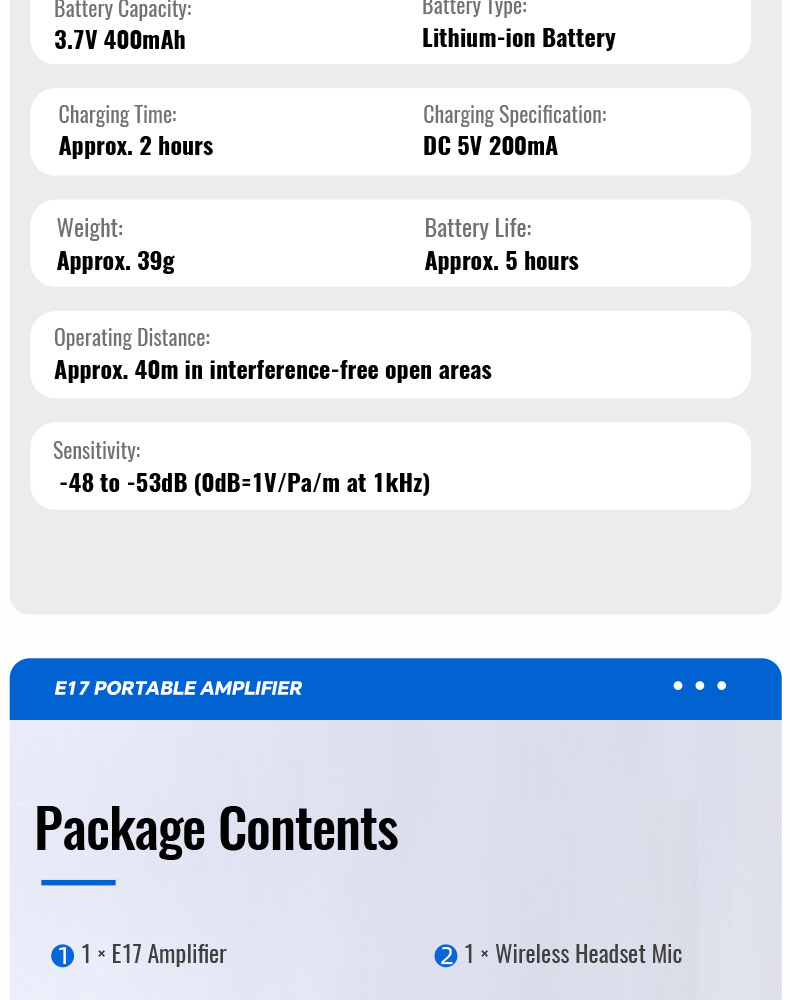

Headset Microphone
• Transducer: Back Electret Condenser
• Directivity: Unidirectional
• Frequency Response: 60Hz-16kHz
• Sensitivity: -48 to -53dB (0dB=1V/Pa/m at 1kHz)
• UHF Frequency: 630MHz-698MHz (segmented)
• Operating Distance: Approx. 40m in interference-free open areas
• Battery Type: Lithium-ion Battery
• Battery Capacity: 3.7V 400mAh
• Charging Specification: DC 5V 200mA
• Charging Time: Approx. 2 hours
• Battery Life: Approx. 5 hours
• Weight: Approx. 39g
Note: The above data are measured by Takstar laboratory which has the final
interpretation right!
• Live monitoring, recording monitoring, and live e-commerce.
• E17 Amplifier1pc
• Wireless Headset Microphone1pc
• Wireless Handheld Microphone1pc
• AA Alkaline Battery1pc
• Audio Adapter Cable (ø6.35mm to ø3.5mm)2pcs
• Type-C Charging Cable1pc
• Power Adapter1pc
• User Manual1pc



  • User manual

    E17 (New Edition) Portable Wireless Amplifier User Manual2024-01-26 16:32:29Download
