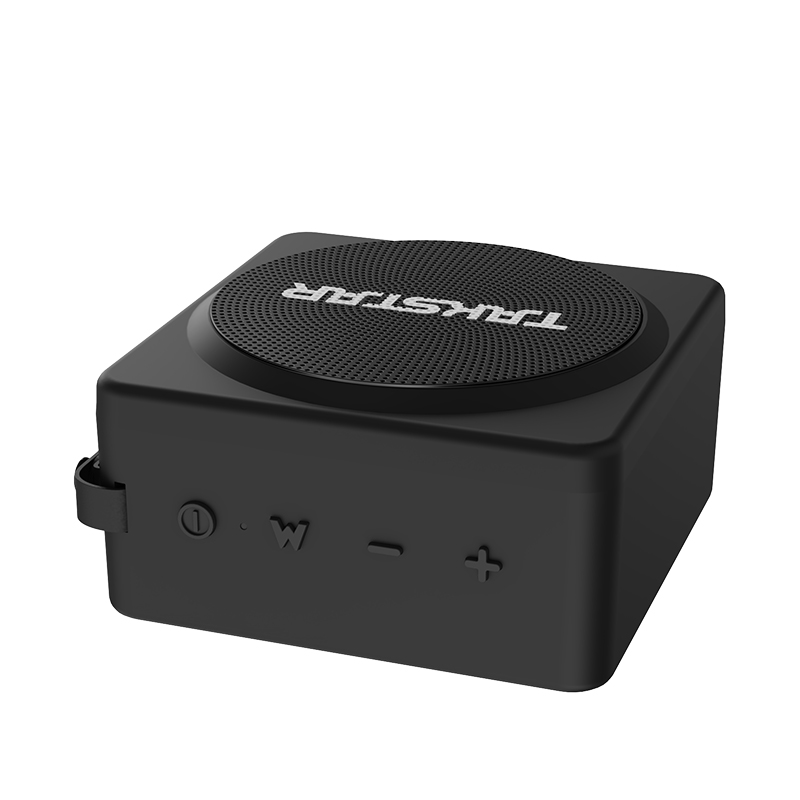

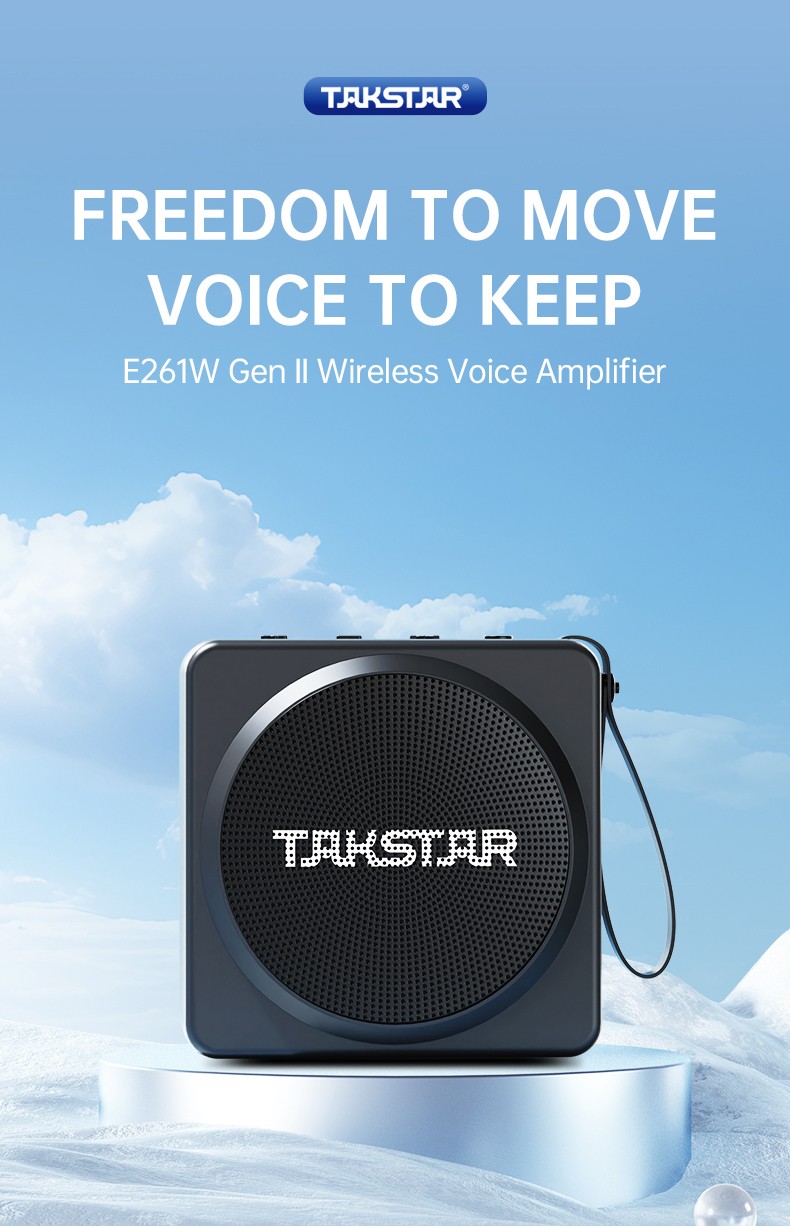

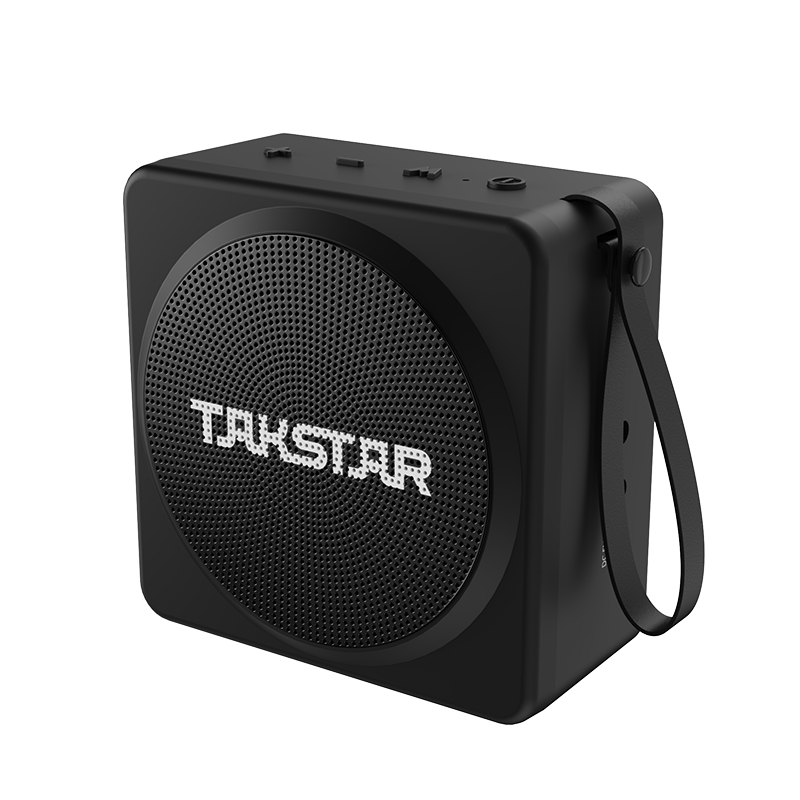

E261W (Gen 2) Wireless Voice Amplifier

Built-in battery
Wireless
Tour guide
Teaching
Outdoor Activities

• Portable wireless voice amplifier for teaching, tours, training, sales, etc.

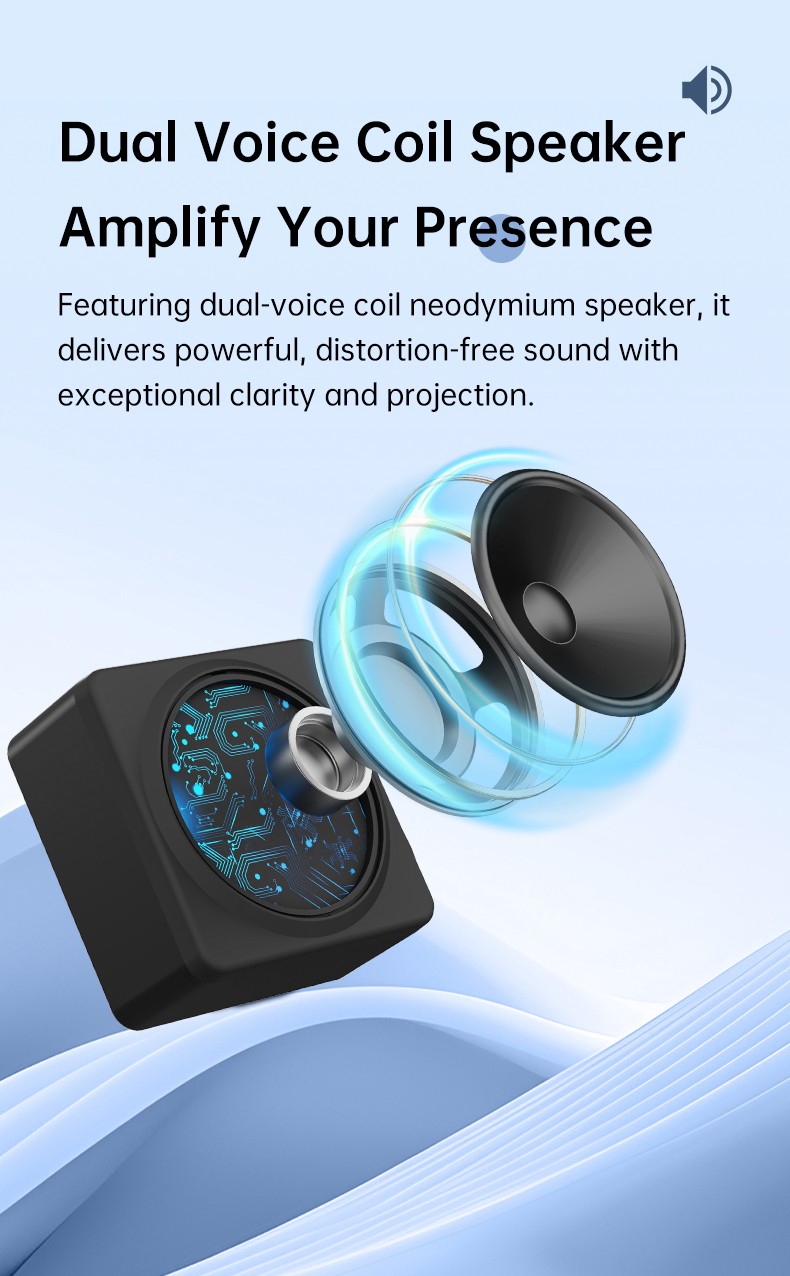

• 25W audio output with high-quality rare earth speaker - loud, clear sound.

• UHF wireless connectivity, operates up to 40m in unobstructed areas.

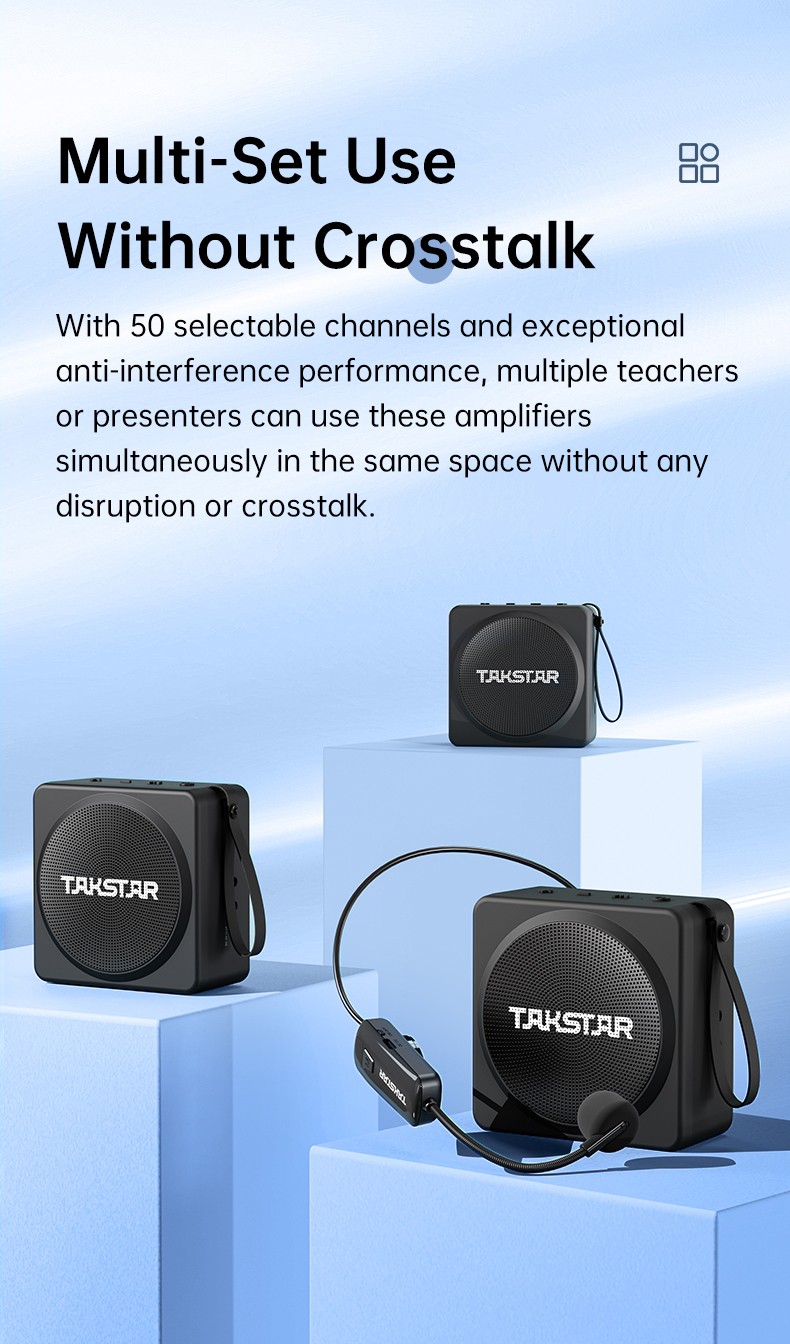

• 50 selectable frequency channels enable use of multiple amplifiers.

• Wireless headset mic with automatic frequency pairing.

• Wireless audio playback - easily connect mobile devices, computers, tablets.

• Auxiliary audio input allows use as a portable speaker system.

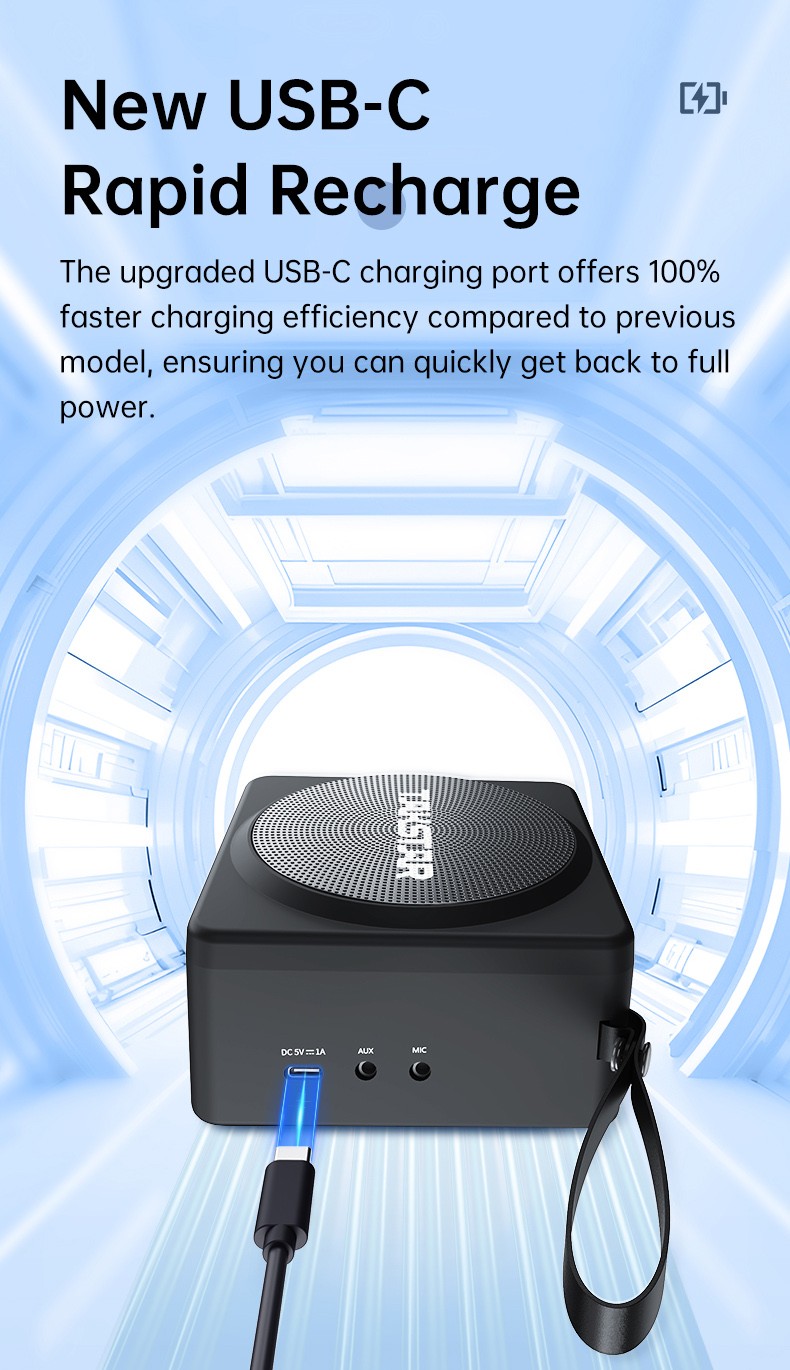

• Built-in lithium-ion battery with Type-C charging, up to 12 hours runtime.

• Durable, well-engineered construction ensures reliable performance.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial

• Teaching, tour guiding, training, sales promotions, etc.

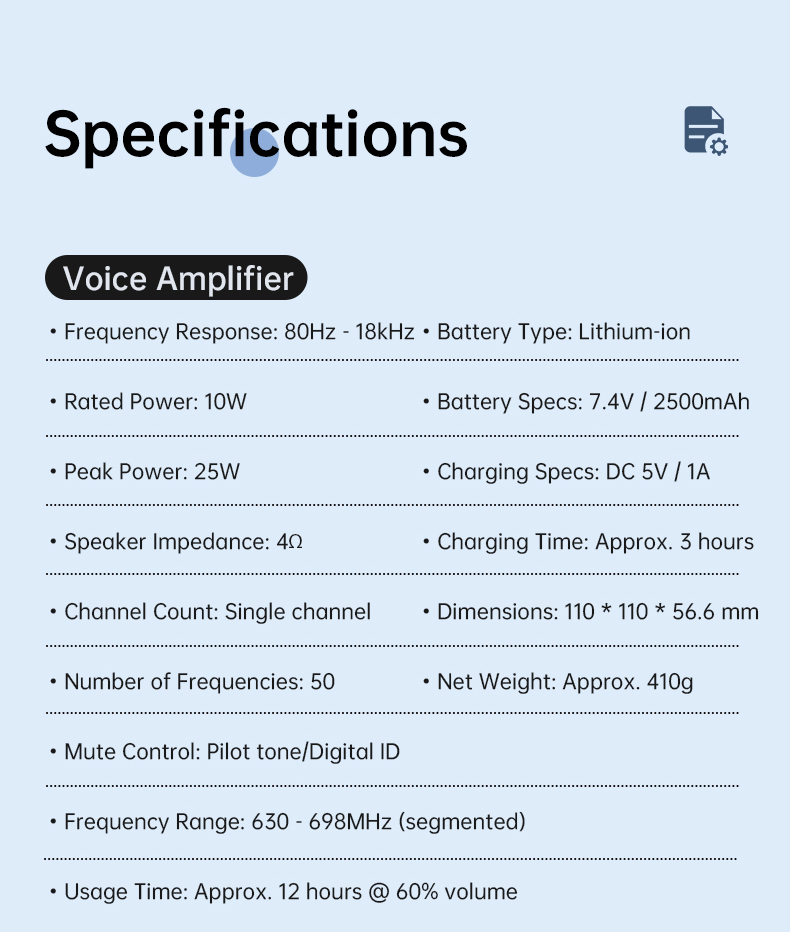

Voice Amplifier
• Frequency Response: 80Hz - 18kHz
• Rated Power: 10W
• Peak Power: 25W
• Speaker Impedance: 4Ω
• Frequency Range: 630-698MHz (segmented)
• Channel Config: Single-channel
• Number of Channels: 50
• Mute Control: Pilot Tone/Digital ID
• Battery Type: Lithium-ion
• Battery Spec: 7.4V/2600mAh
• Charging: DC 5V/1A
• Charging Time: Approx. 3 hours
• Runtime: Approx. 12 hours ＠60% volume
• Product Dimensions: 110 x 110 x 56.6mm
• Net Weight: Approx. 410g

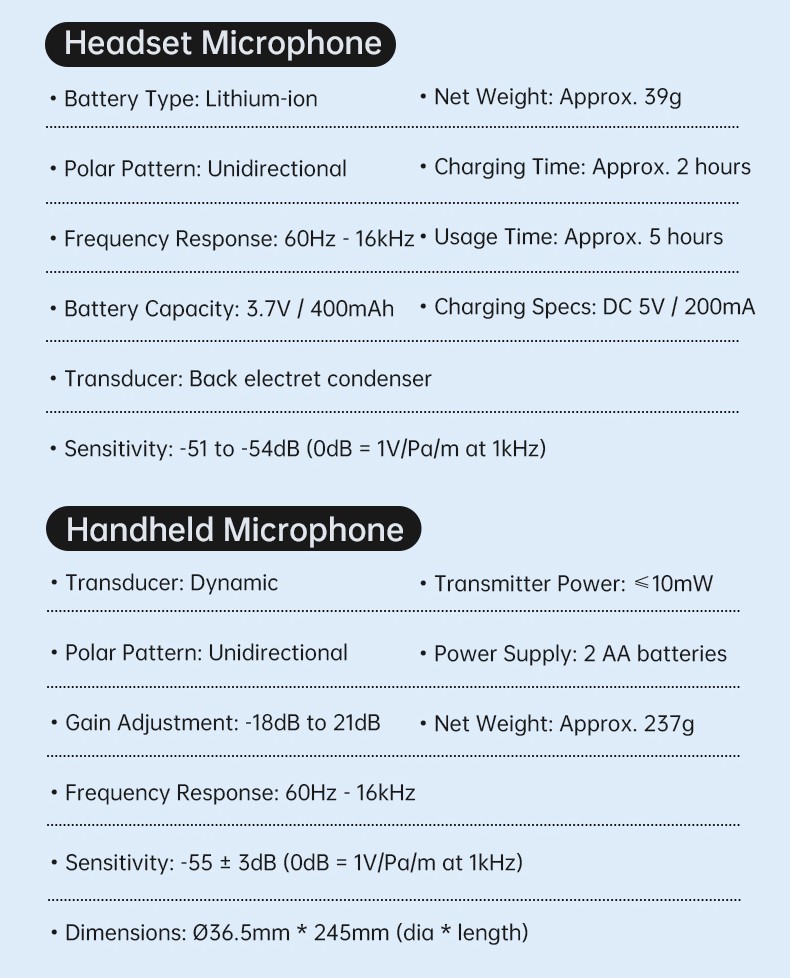

Headset Microphone
• Transducer: Back Electret Condenser
• Polar Pattern: Unidirectional
• Frequency Response: 60Hz - 16kHz
• Sensitivity: -51 to -54dB (0dB=1V/Pa/m at 1kHz)
• Battery Type: Lithium-ion
• Battery Capacity: 3.7V/400mAh
• Charging: DC 5V/200mA
• Charging Time: Approx. 2 hours
• Runtime: Approx. 5 hours
• Net Weight: Approx. 39g

Handheld Microphone
• Transducer: Dynamic
• Polar Pattern: Unidirectional
• Frequency Response: 60Hz - 16kHz
• Sensitivity: -55 ± 3dB (0dB=1V/Pa/m at 1kHz)
• Gain Adjustment: -18dB to 21dB
• Transmitter Power: ≤10mW
• Power Supply: 2 x AA Batteries
• Dimensions: Ø36.5mm x 245mm (Diameter x Length)
• Net Weight: Approx. 237g

Note: The above data are measured by Takstar laboratory which has the final interpretation right!

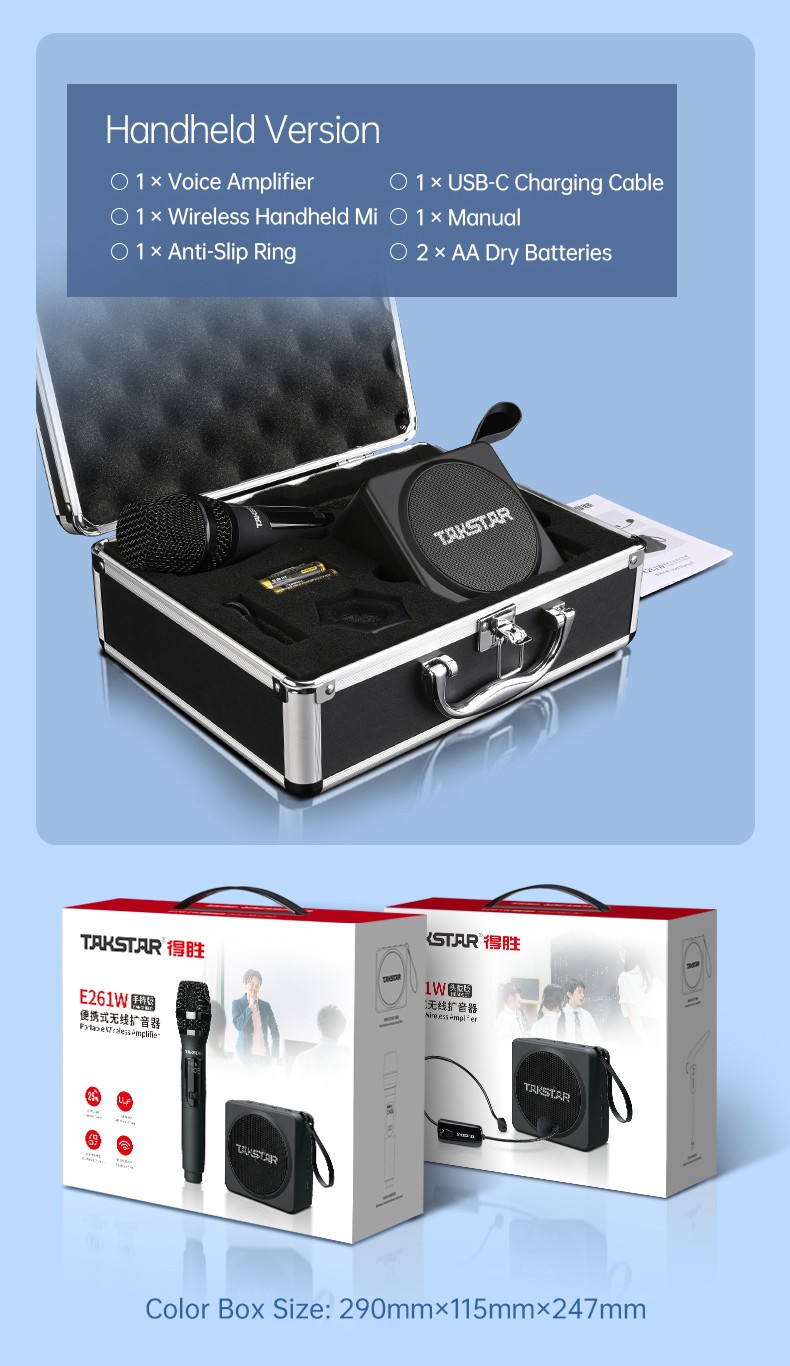

Handheld Version
• Voice Amplifier	1 PC
• Wireless Handheld Mic	1 PC
• Type-C Charging Cable	1 PC
• AA Battery	2 PC
• Anti-Roll Ring	1 PC
• User Manual	1 PC

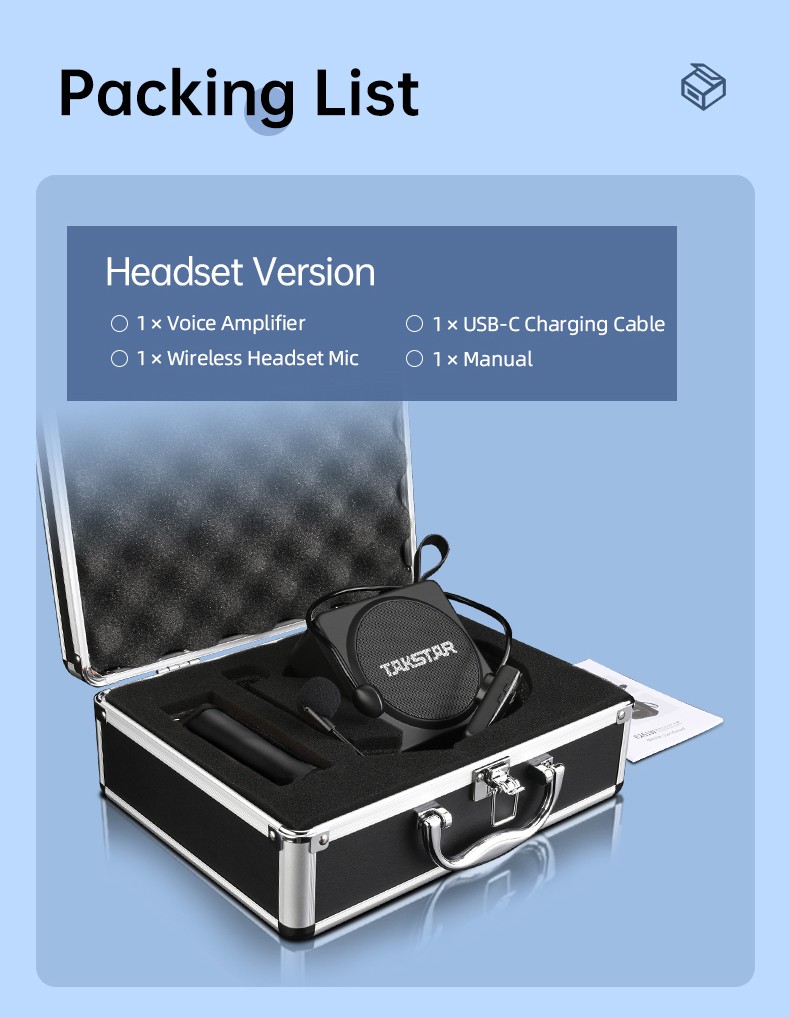

Headset Version
• Voice Amplifier	1 PC
• Wireless Headset Mic	1 PC
• Type-C Charging Cable	1 PC
• User Manual	1 PC
