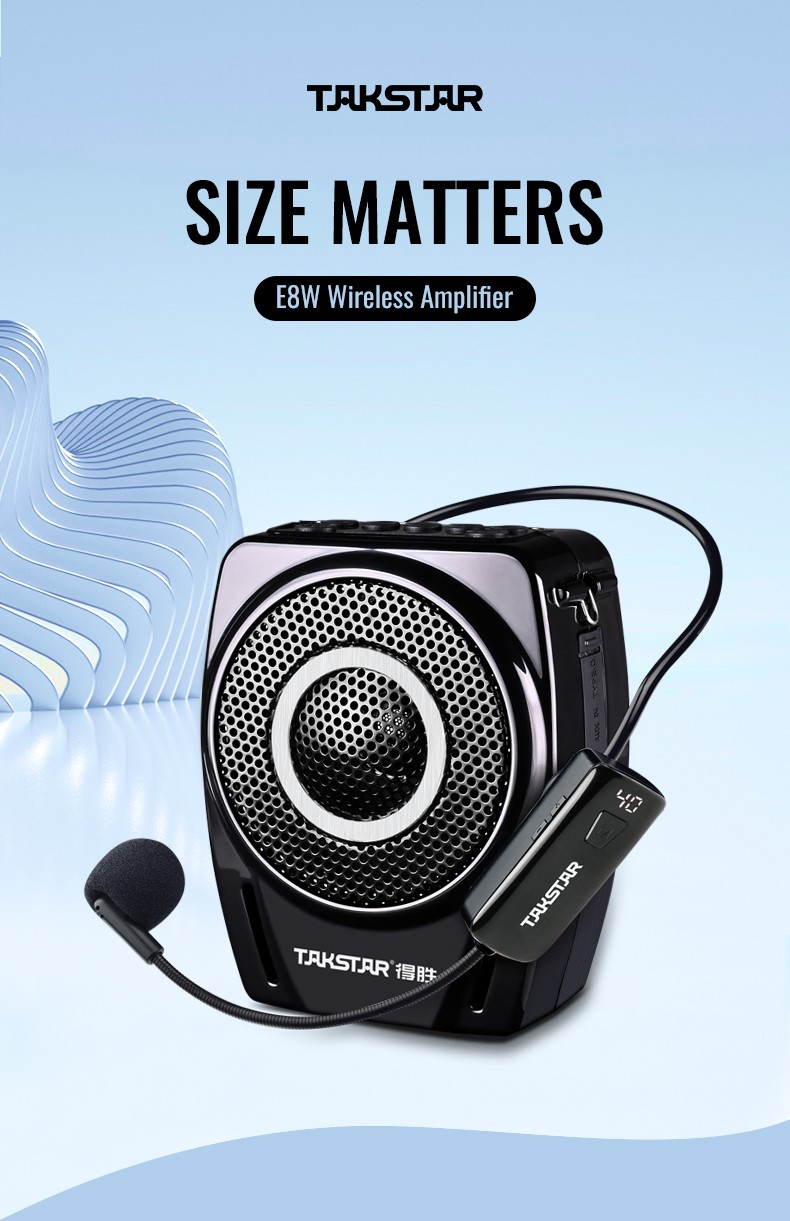

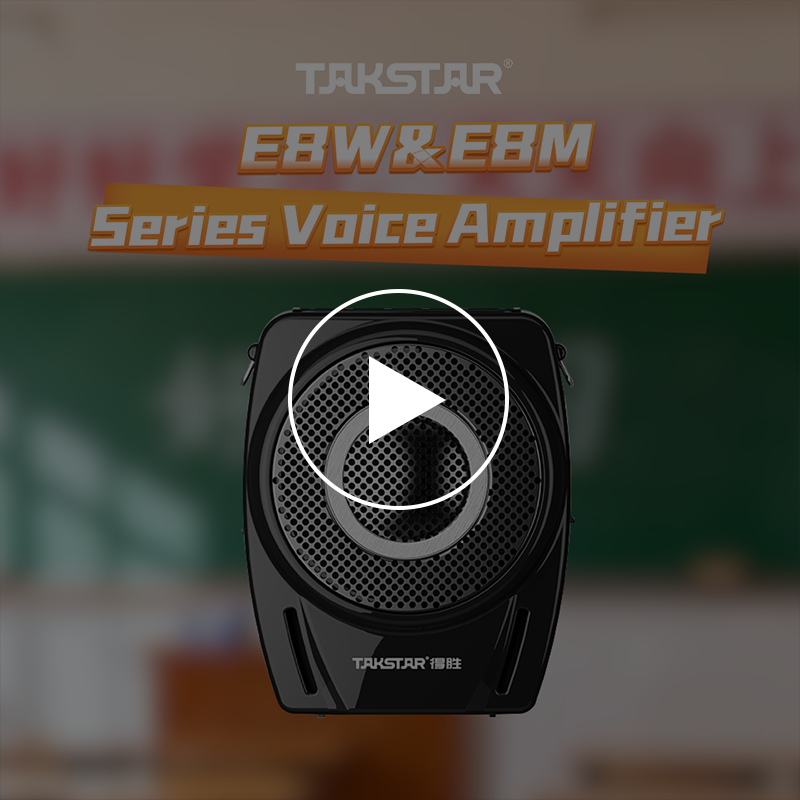

E8W Wireless Amplifier

  • Bluetooth
  • Wireless
  • Teaching
  • Tour guide
  • Outdoor Activities
  • Propaganda

• High-power portable wireless amplifier, suitable for teaching, tour guide, training and sales.

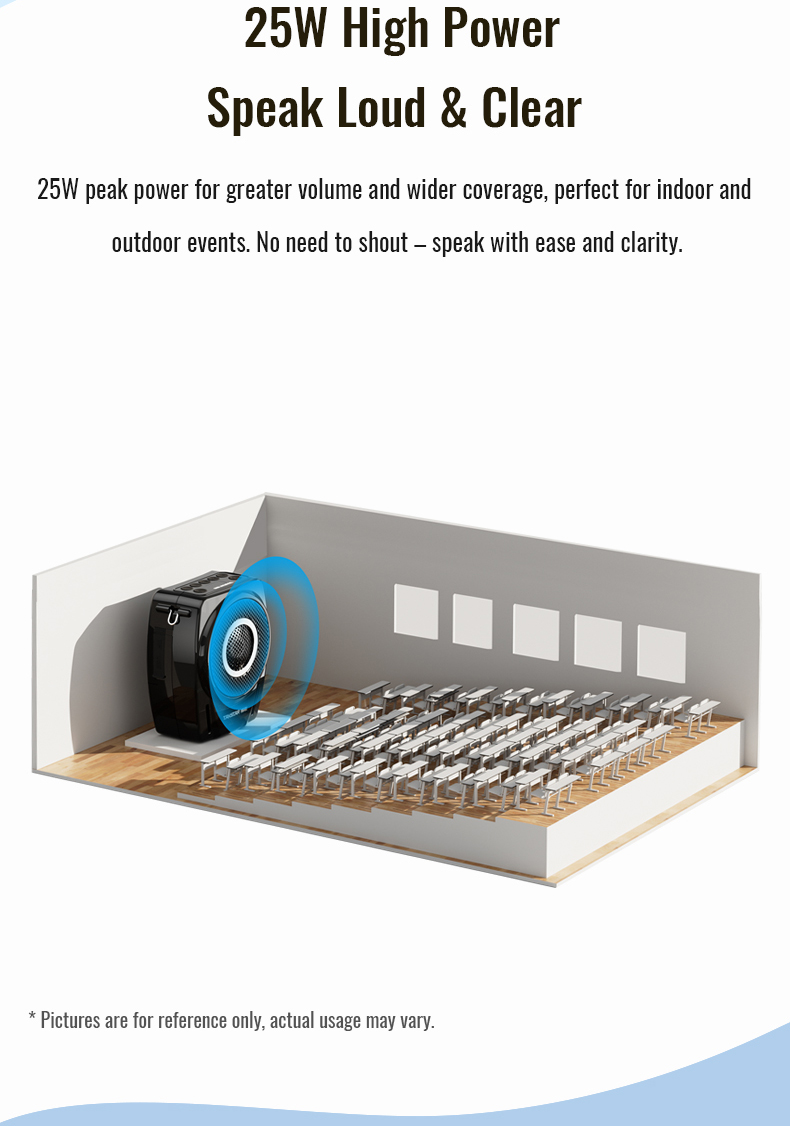

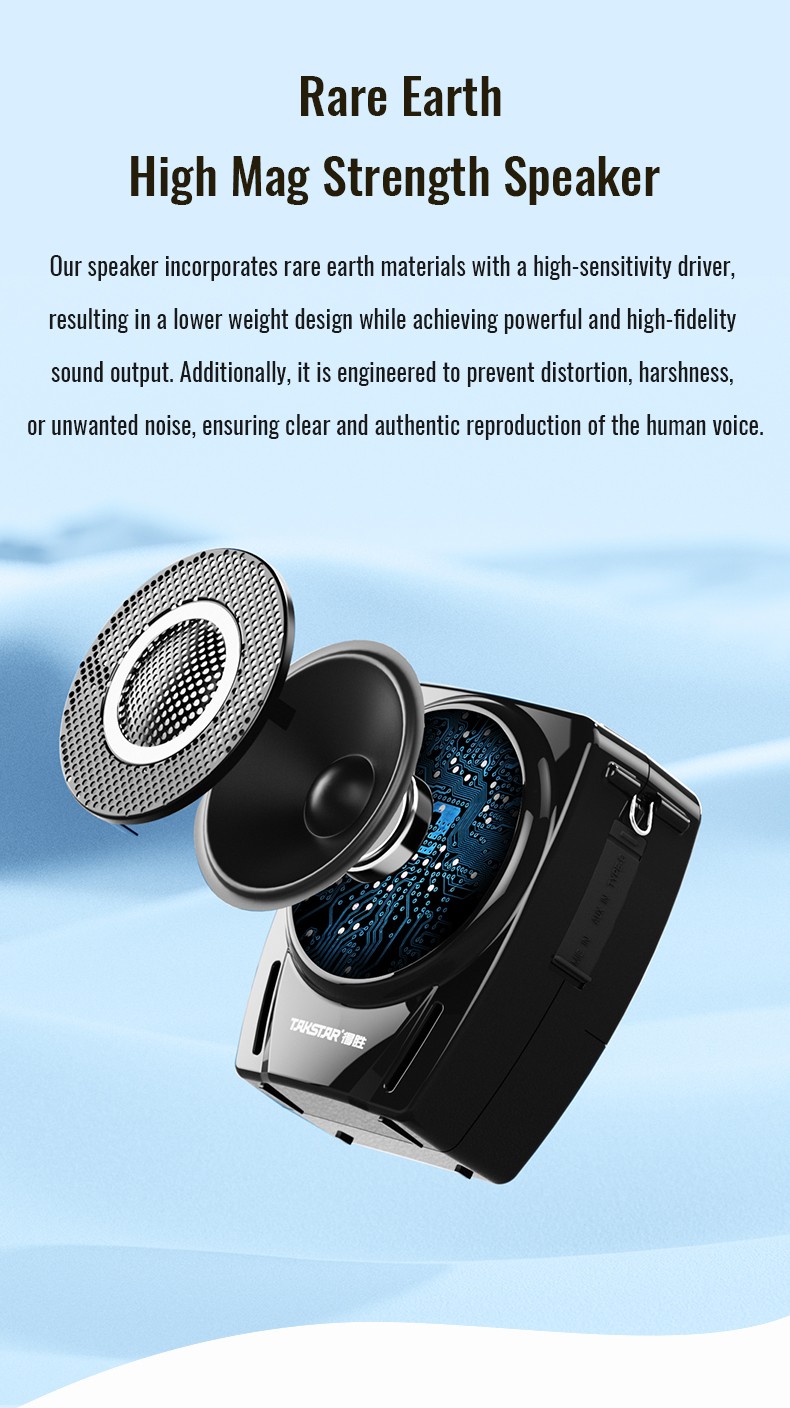

• Rare-earth speaker with 18W high power, excellent audio quality and loud output.

• UHF wireless technology, about 40m use range in area without obstruction and interference.

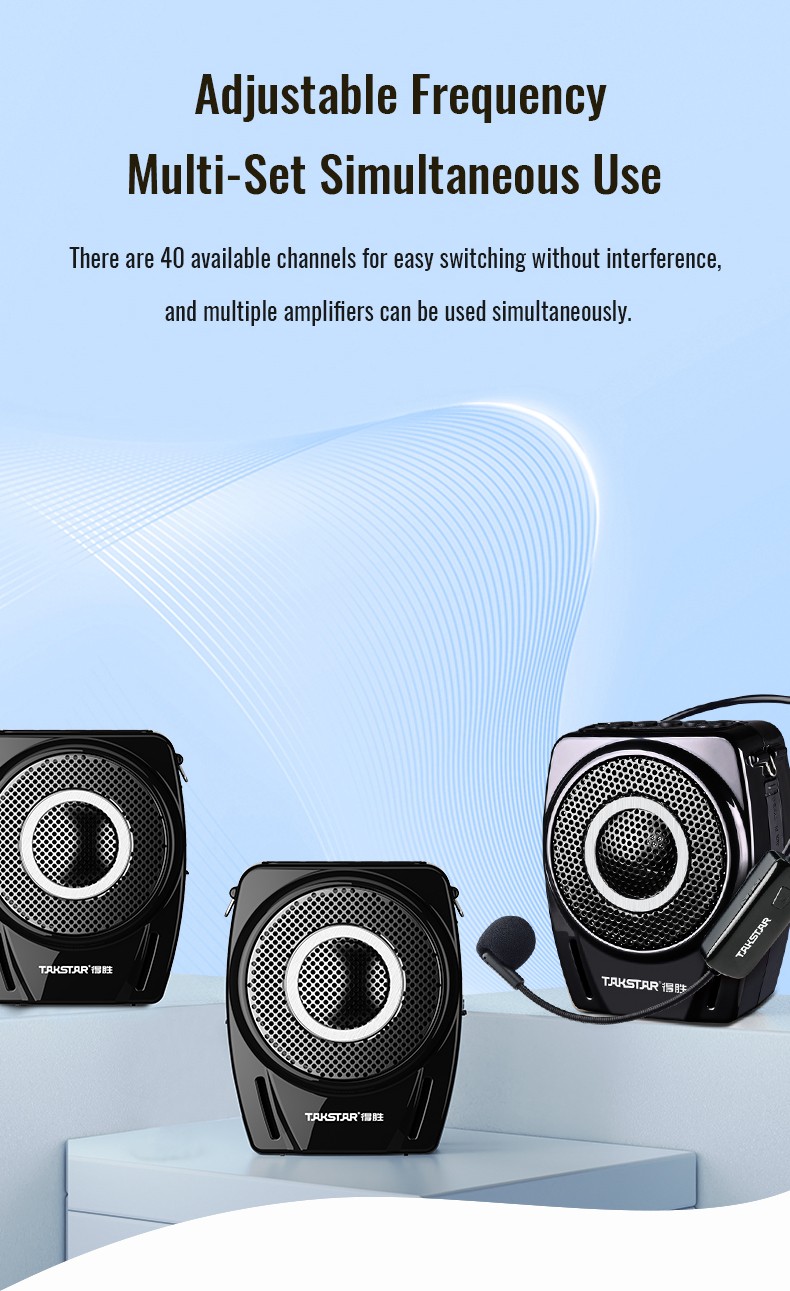

• Adjustable frequencies, 40 selected channels available, supporting multiple amplifiers used simultaneously.

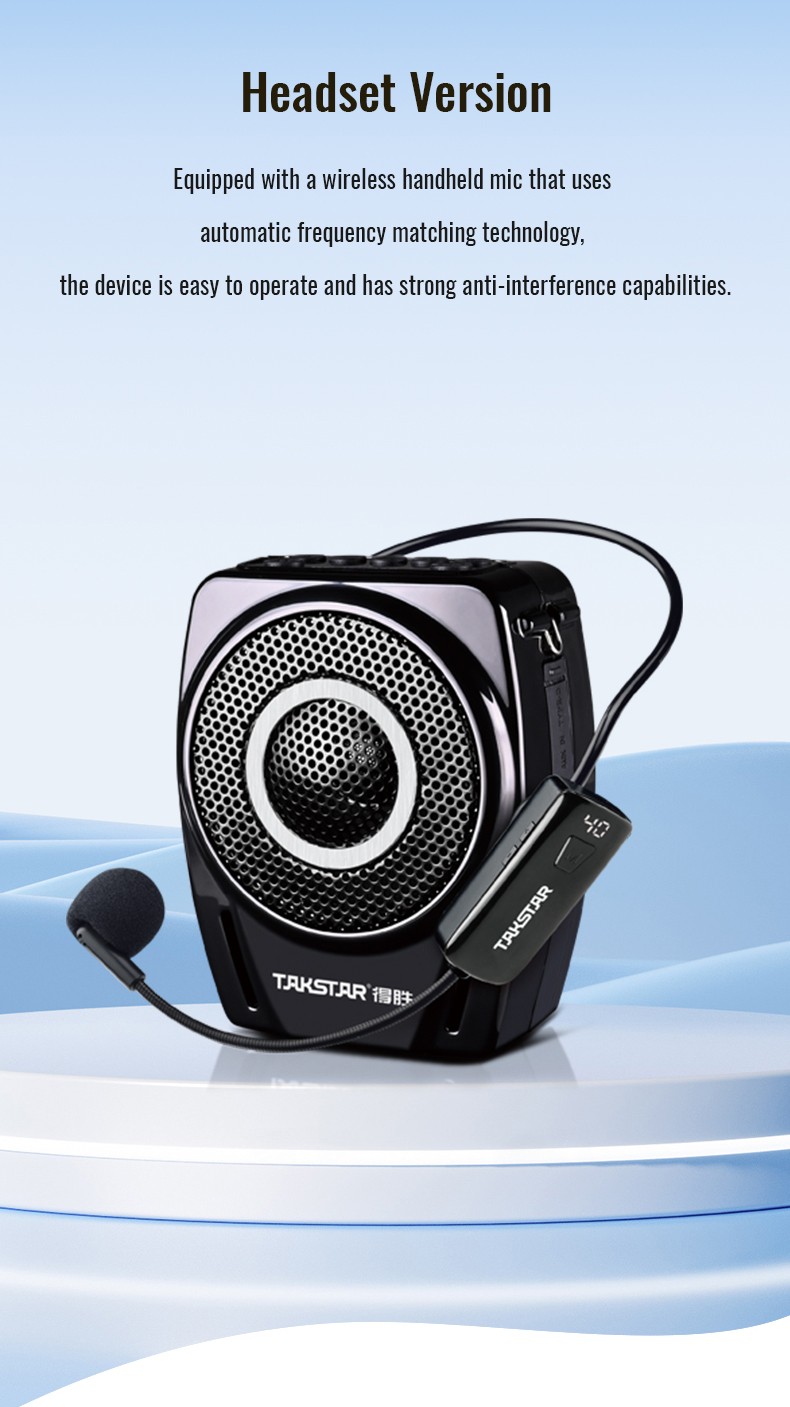

• With wireless handheld or headset mic that utilizes automatic frequency sync and resists interference.

• High/Low power setting switchable on wireless headset mic, flexible in different environments.

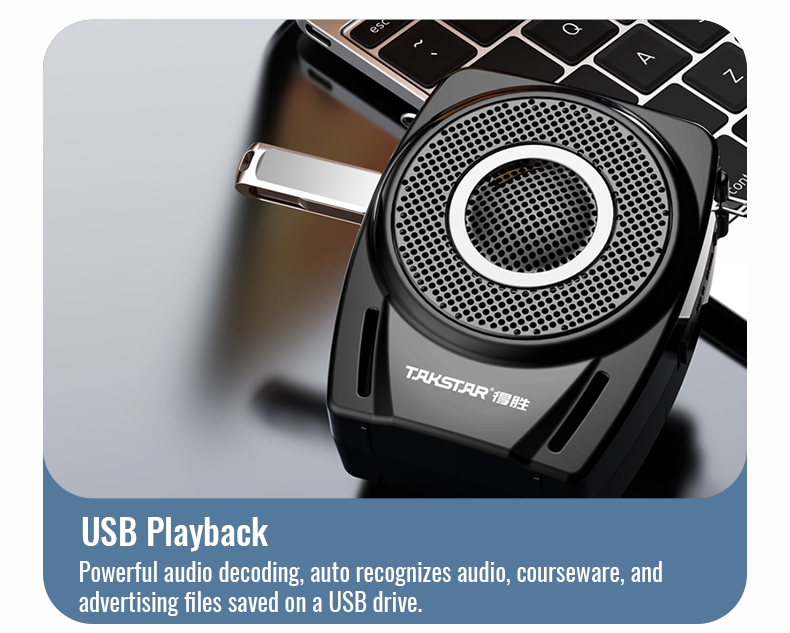

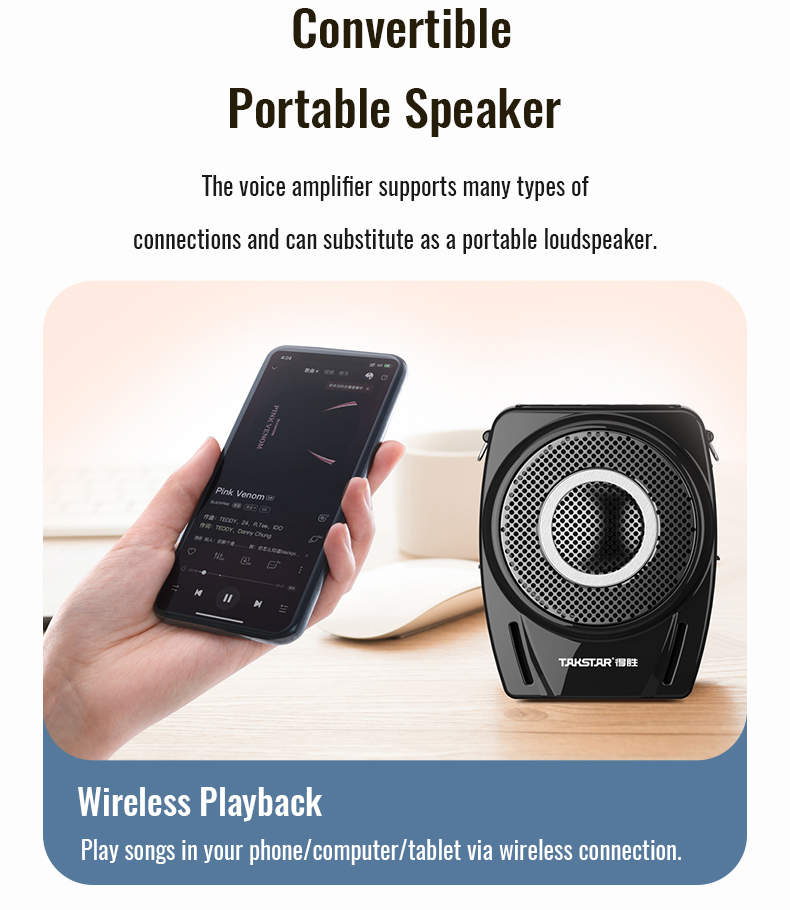

• Supports wireless playback, USB playback and TF card playback of multimedia files.

• Built-in large-capacity lithium-ion battery lasts around 12hrs operation.

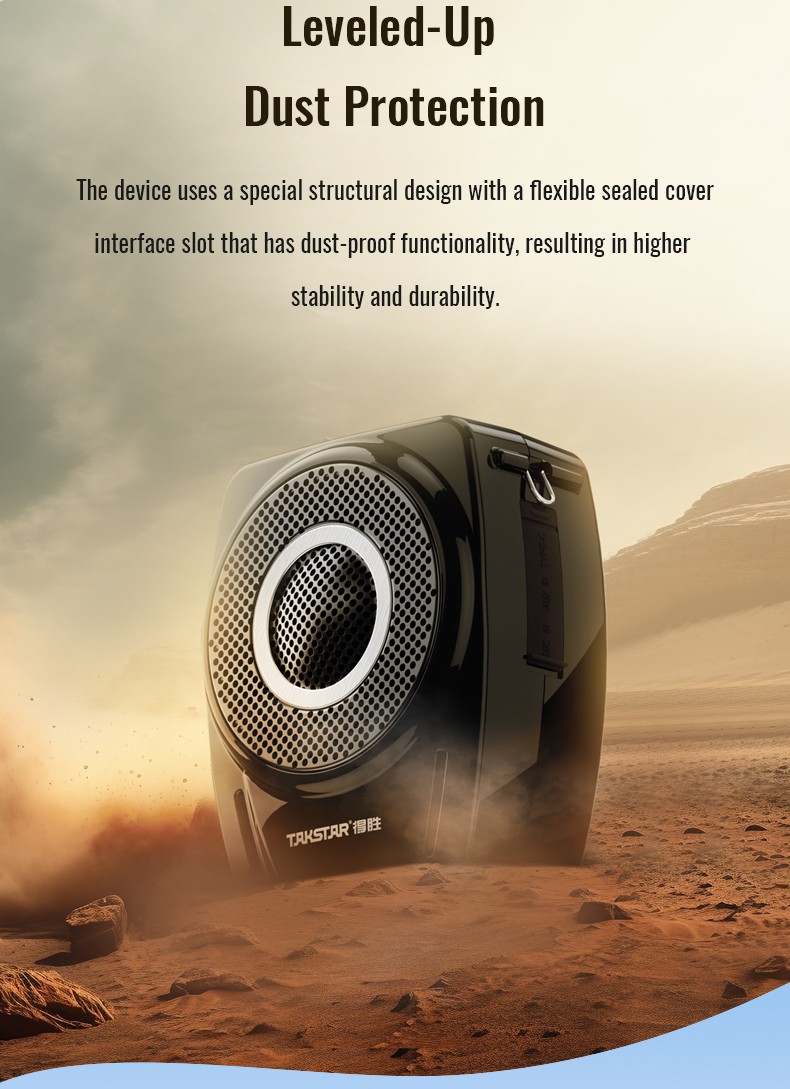

• Special structure design makes it dust-proof, thus more durable and stable to use.

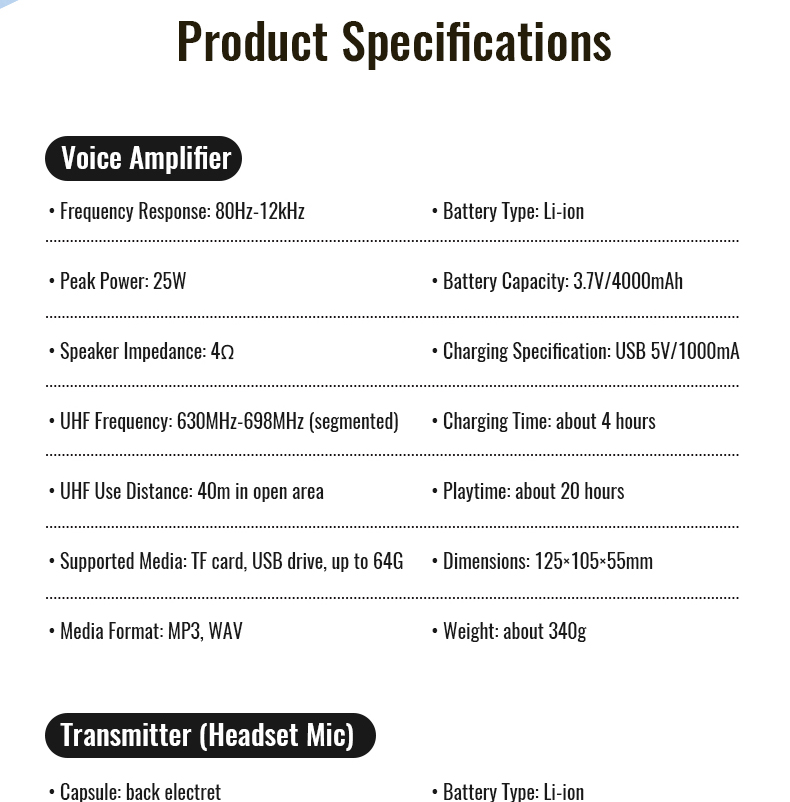

Product Detail

Voice Amplifier:
• Frequency Response: 80Hz-12kHz
• Peak Power: 18W
• Speaker Impedance: 4Ω
• UHF Use Distance: 40m in open area
• Battery Type: Li-ion
• Battery Capacity: 3.7V/4000mAh
• UHF Frequency: 630MHz-698MHz (segmented)

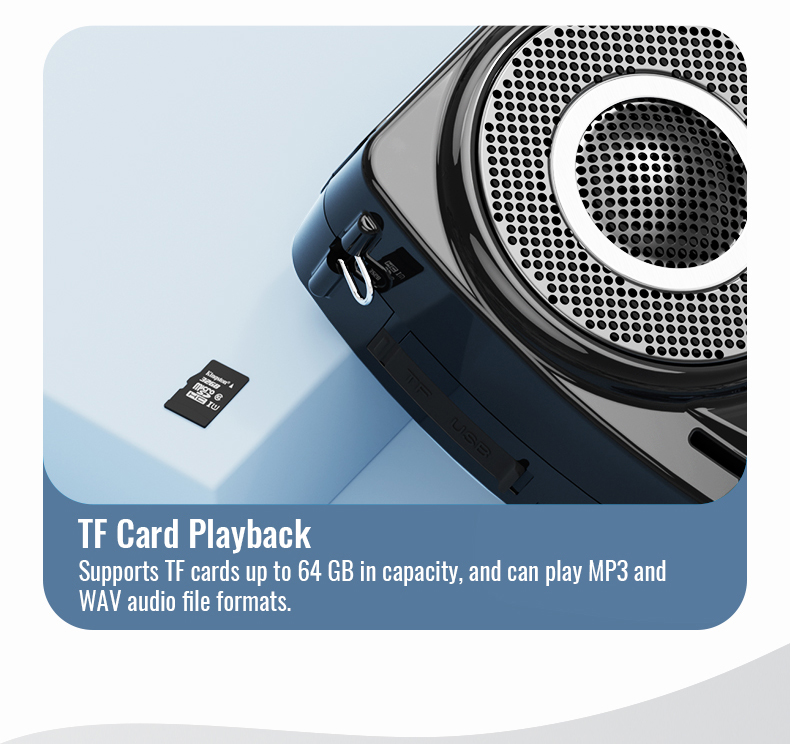

• Supported Media: TF card, USB drive, up to 64G
• Media Format: MP3, WAV
• Charging Specification: USB 5V/1000mA
• Charging Time: about 4 hours
• Playtime: about 12 hours
• Dimensions: 125×105×55mm
• Weight: about 340g

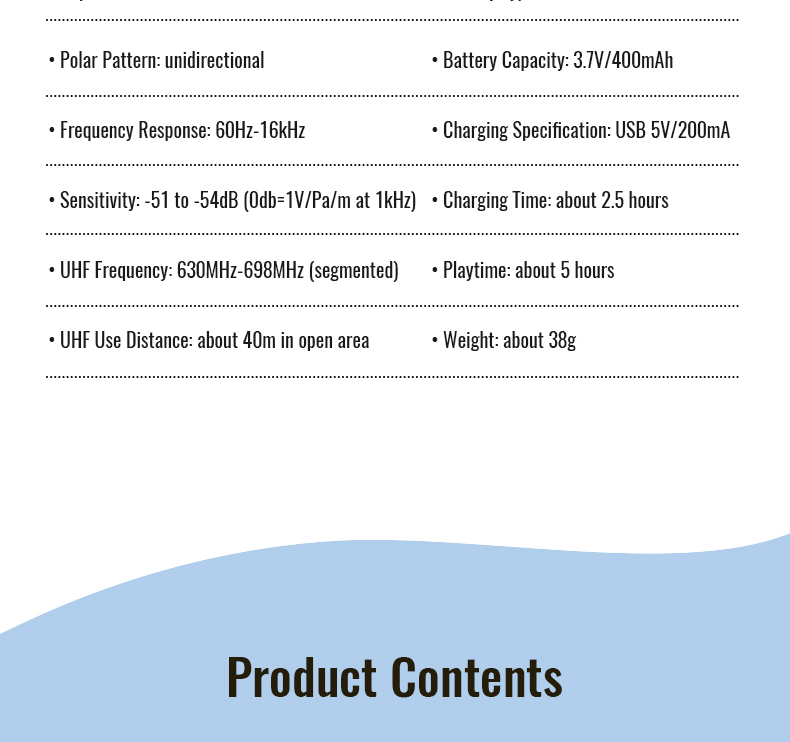

Transmitter (Headset Mic):
• Capsule: back electret
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16kHz
• Battery Type: Li-ion
• Battery Capacity: 3.7V/400mAh
• Sensitivity: -51 to -54dB (0db=1V/Pa/m at 1kHz)
• UHF Frequency: 630MHz-698MHz (segmented)
• UHF Use Distance: about 40m in open area
• Charging Specification: USB 5V/200mA
• Charging Time: about 2.5 hours
• Playtime: about 5 hours
• Weight: about 38g

Transmitter (Handheld Mic):
• Capsule: back electret
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16kHz
• Battery Type: Li-Ion
• Battery Capacity: 3.7V/1800mAh
• Sensitivity: -51 to -54dB (0db=1V/Pa/m at 1kHz)
• UHF Frequency: 630MHz-698MHz (segmented)
• UHF Use Distance: 40m in open area
• Charging Specification: USB 5V/1000mA
• Charging Time: about 2.5 hours
• Playtime: about 15 hours
• Weight: about 150g
Note: The above data are measured by Takstar laboratory which has the final interpretation right!
• Teaching, tour guide, training, sales, etc.

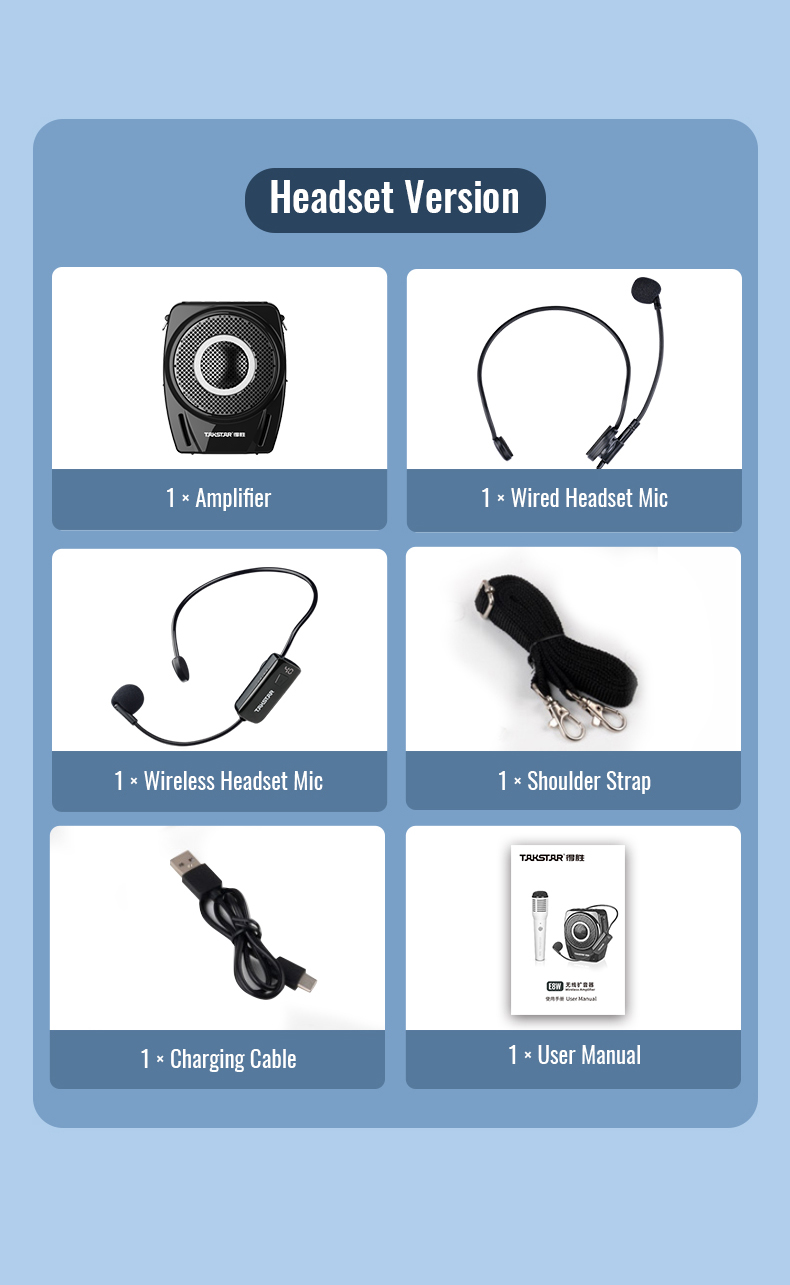

• Voice Amplifier1 PCS
• Wired Headset Microphone1 PCS
• Wireless Headset Microphone1 PCS (optional)
• Handheld Microphone1 PCS (optional)
• Strap1 PCS
• Charging Cable1 PCS
• User Manual1 PCS


  • User manual

    E8W Wireless Amplifier User Manual2023-06-28 11:00:11Download
