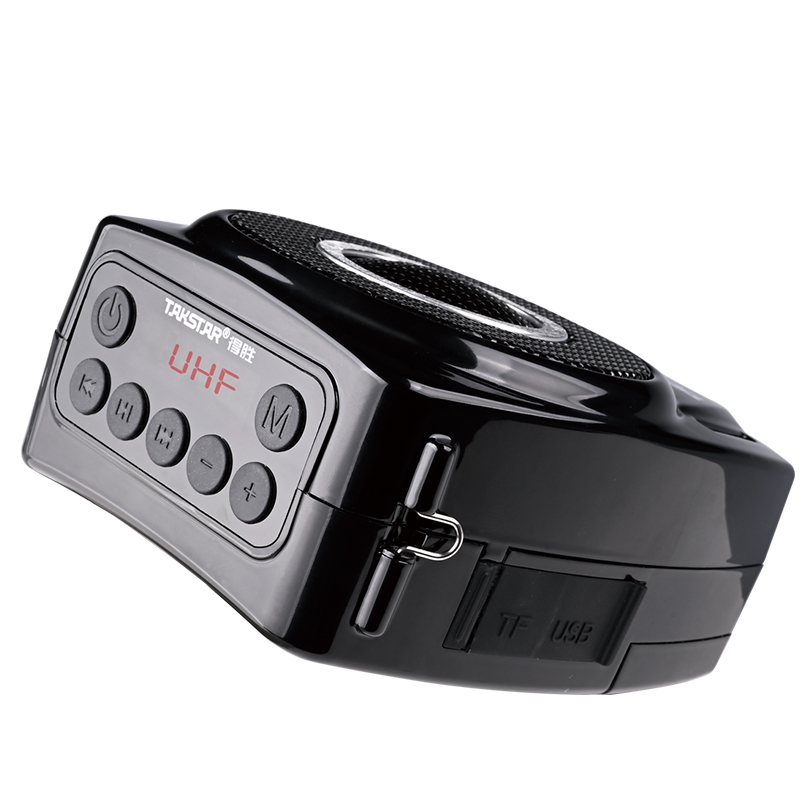

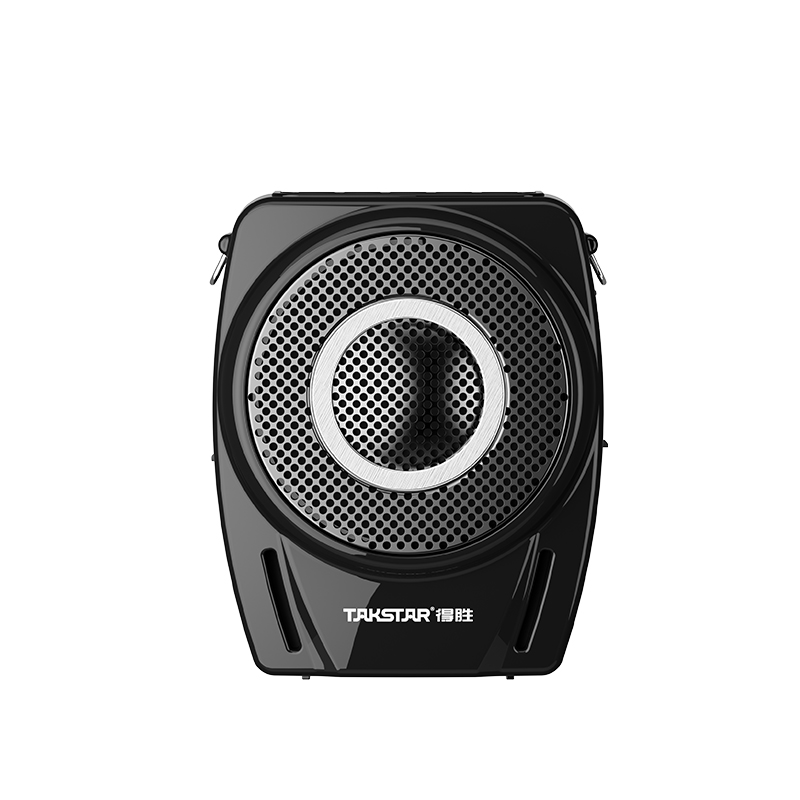

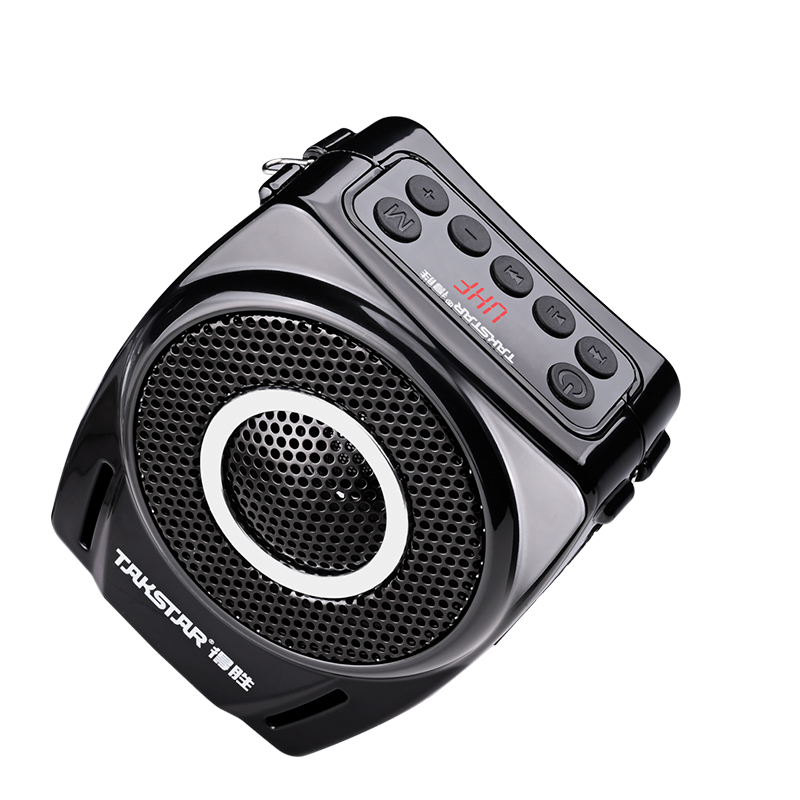

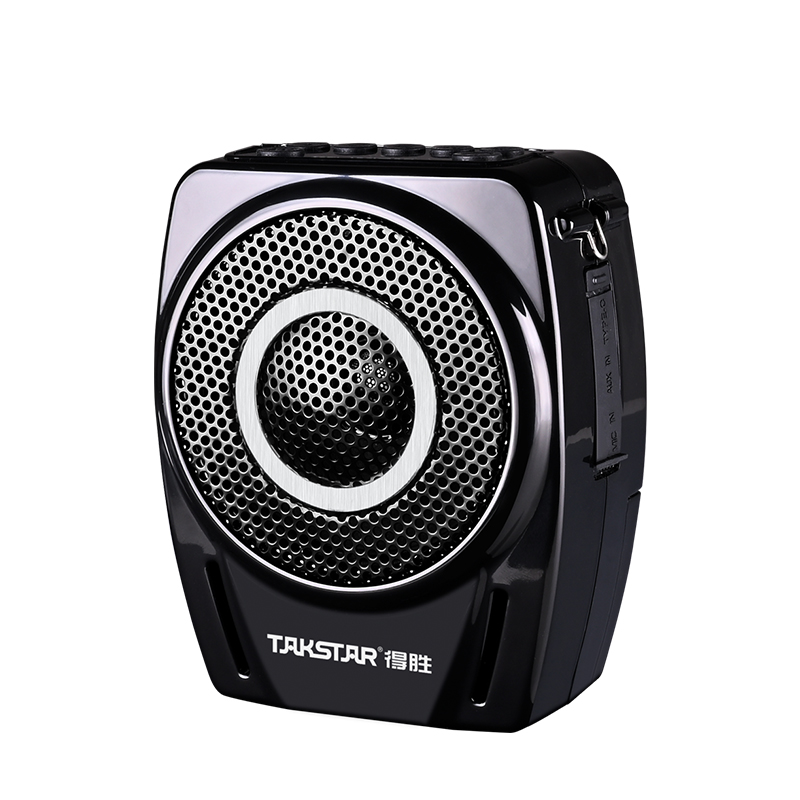

E8W (Handheld Version) Wireless Amplifier

Built-in battery
Teaching
Tour guide
Wireless
Propaganda

• High-power portable wireless amplifier, suitable for teaching, tour guide, training and sales.

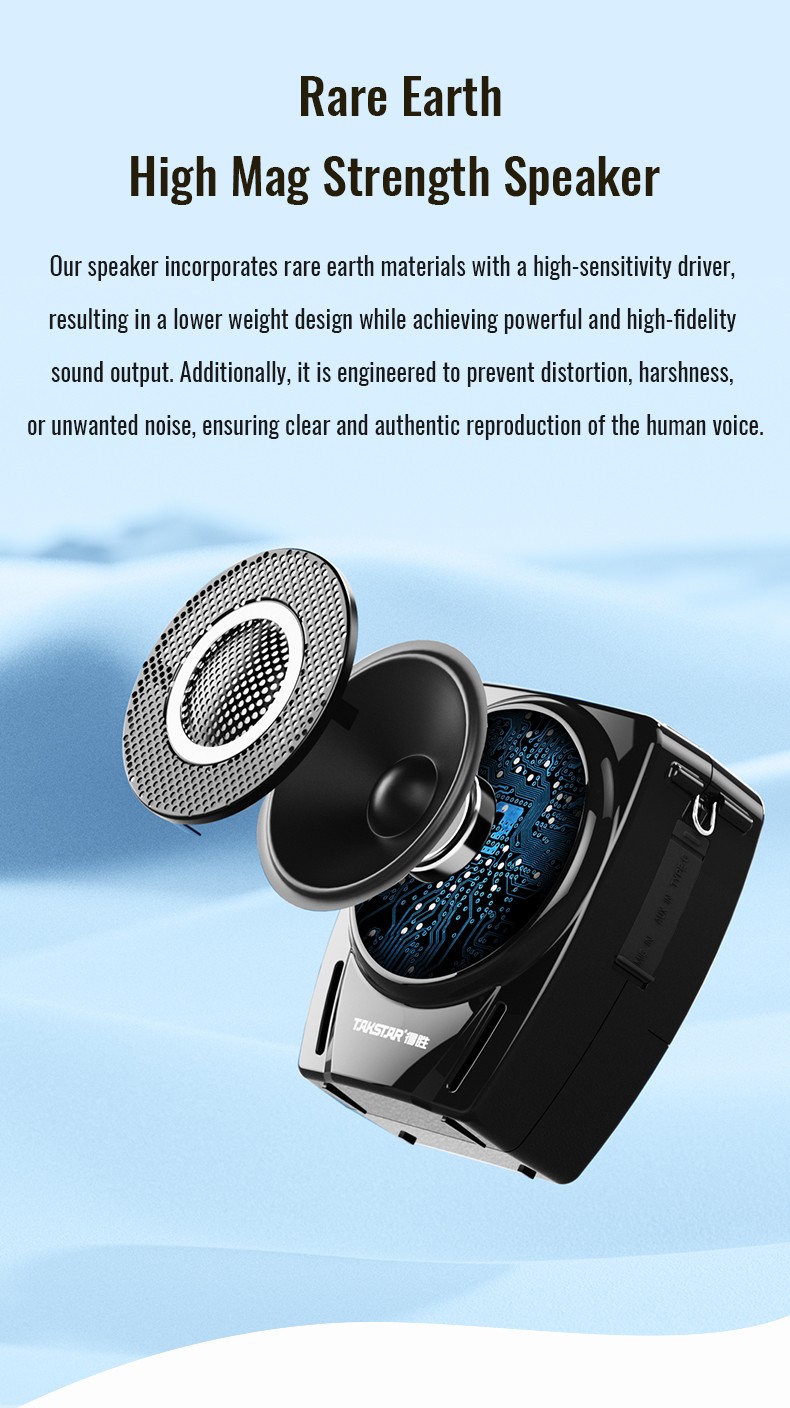

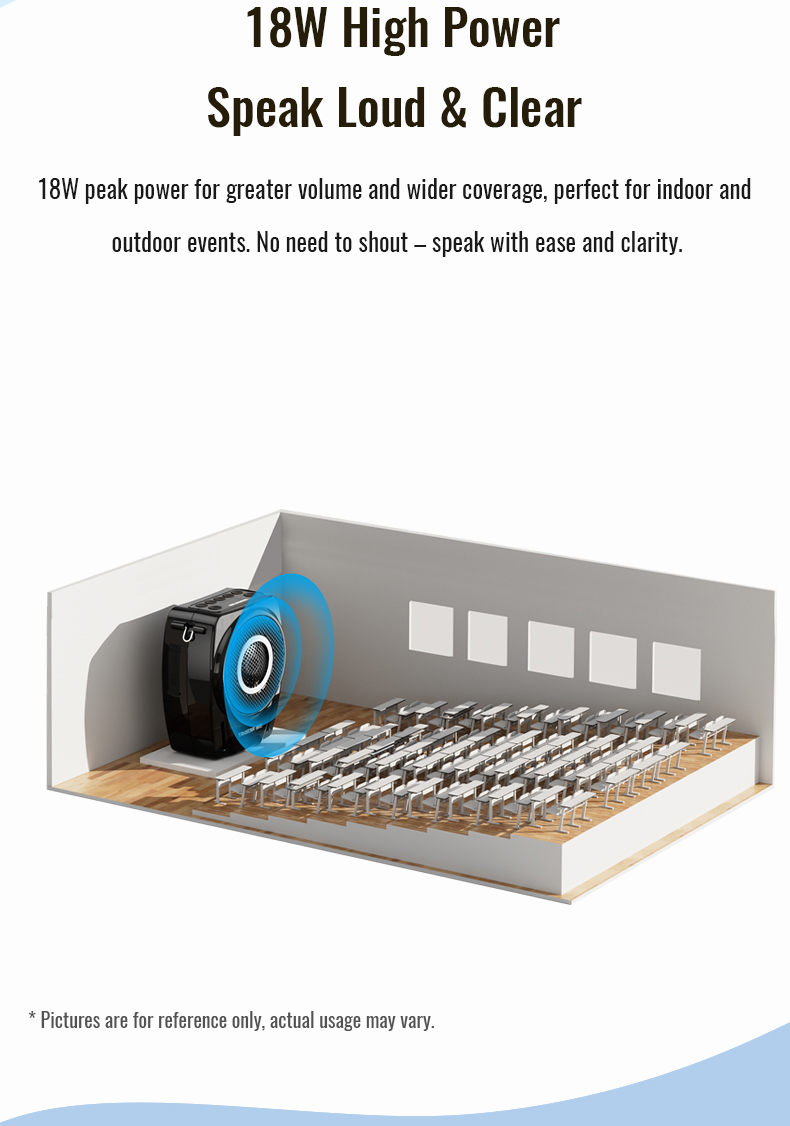

• Rare-earth speaker with 18W high power, excellent audio quality and loud output.

• UHF wireless technology, about 40m use range in area without obstruction and interference.

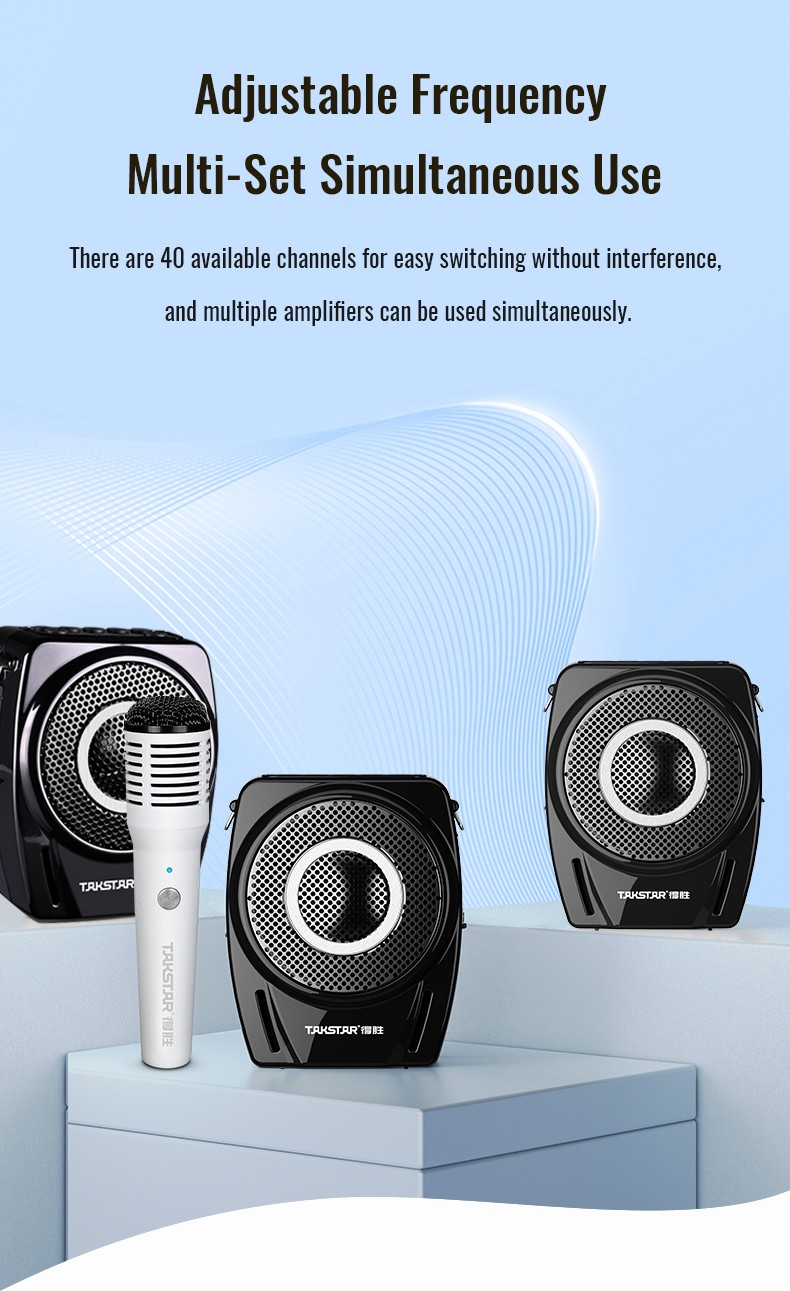

• Adjustable frequencies, 40 selected channels available, supporting multiple amplifiers used simultaneously.

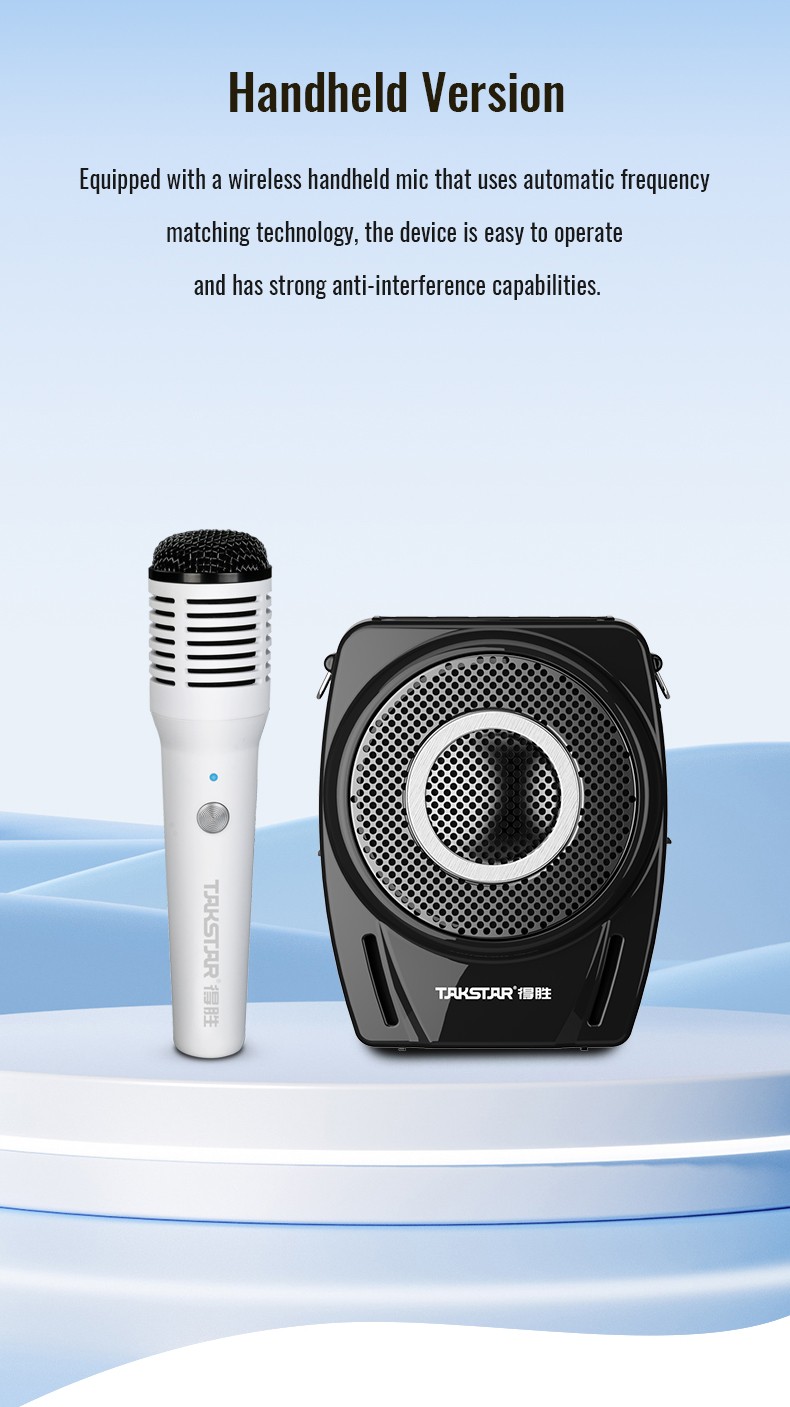

• With wireless handheld mic that utilizes automatic frequency sync and resists interference.

• High/Low power setting switchable on wireless headset mic, flexible in different environments.

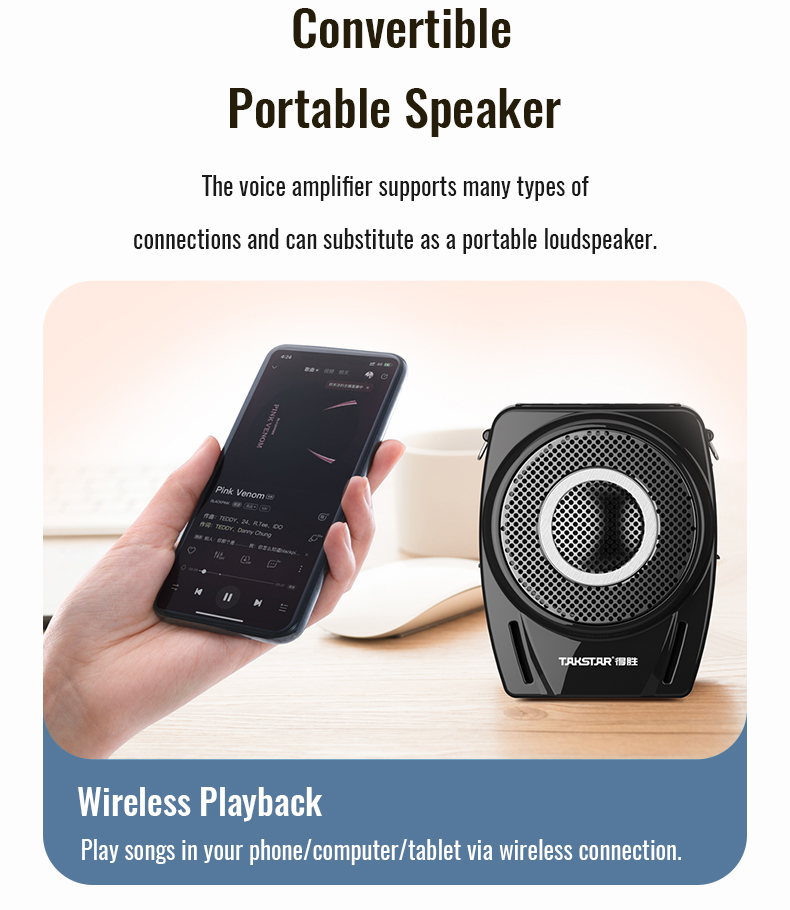

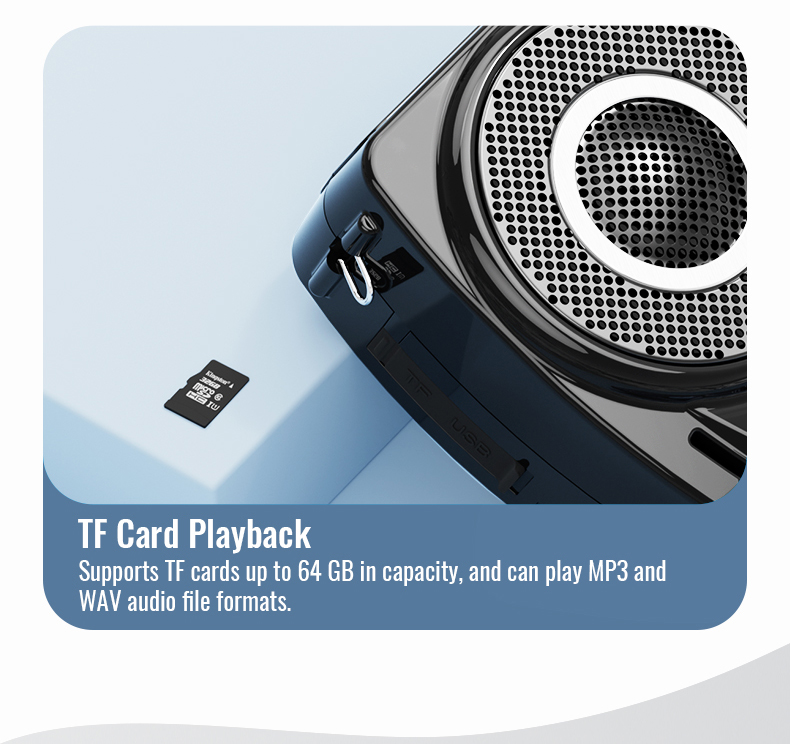

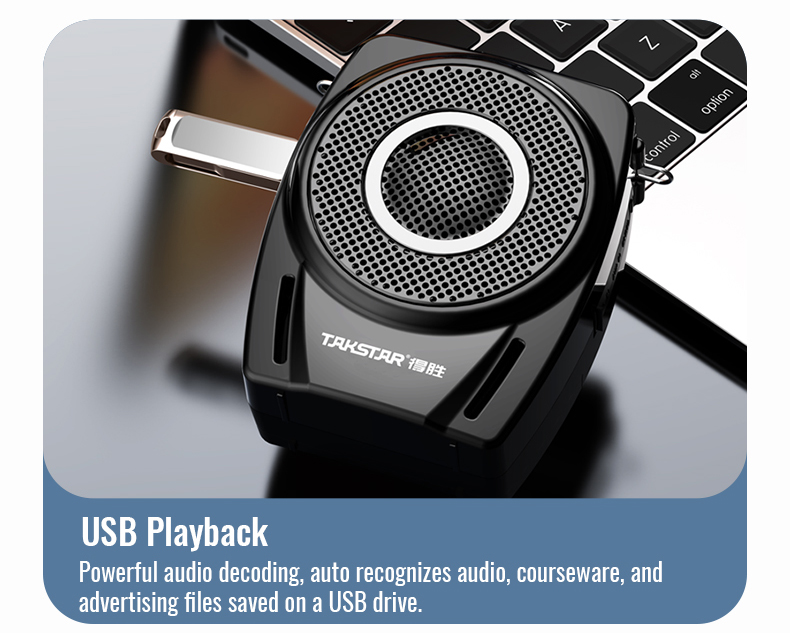

• Supports wireless playback, USB playback and TF card playback of multimedia files.

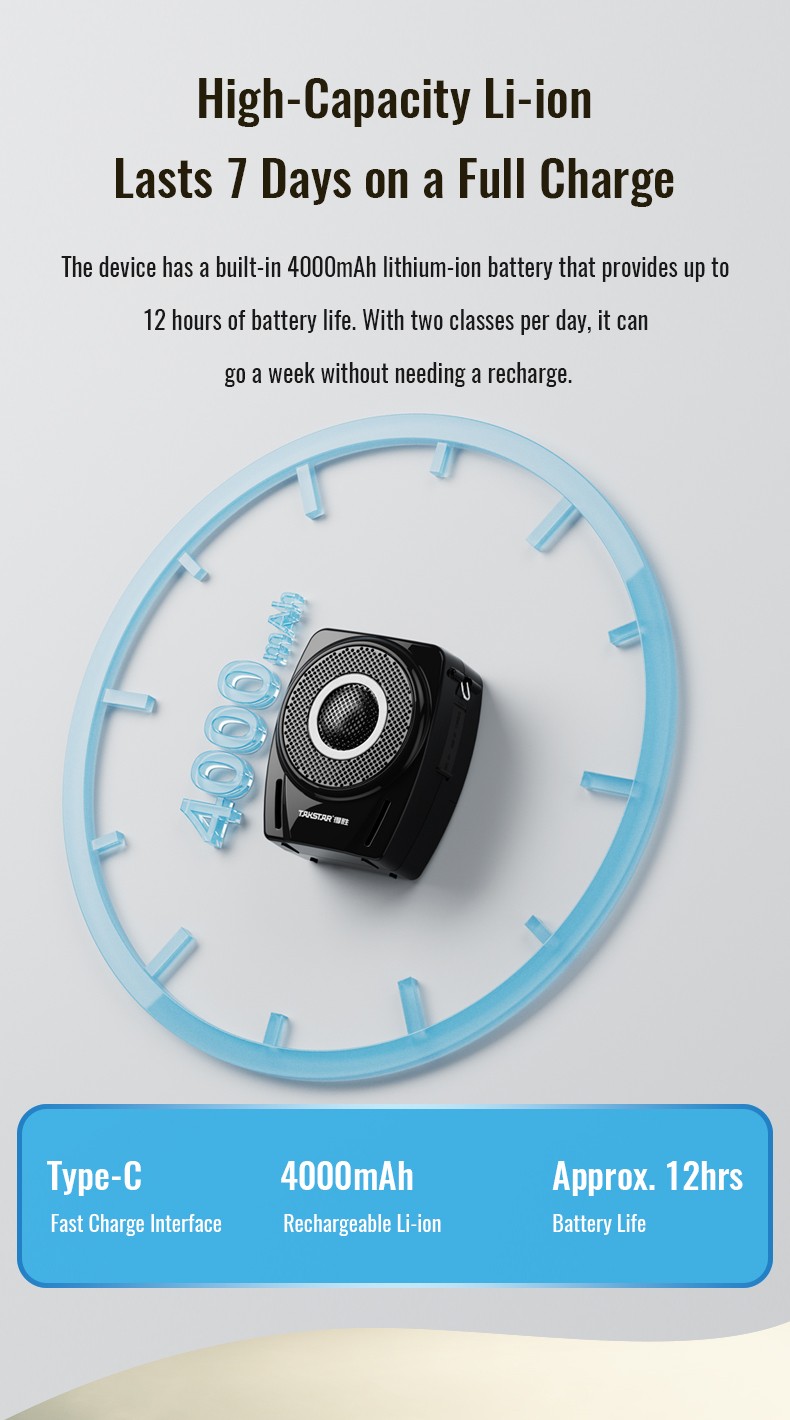

• Built-in large-capacity lithium-ion battery lasts around 12hrs operation.

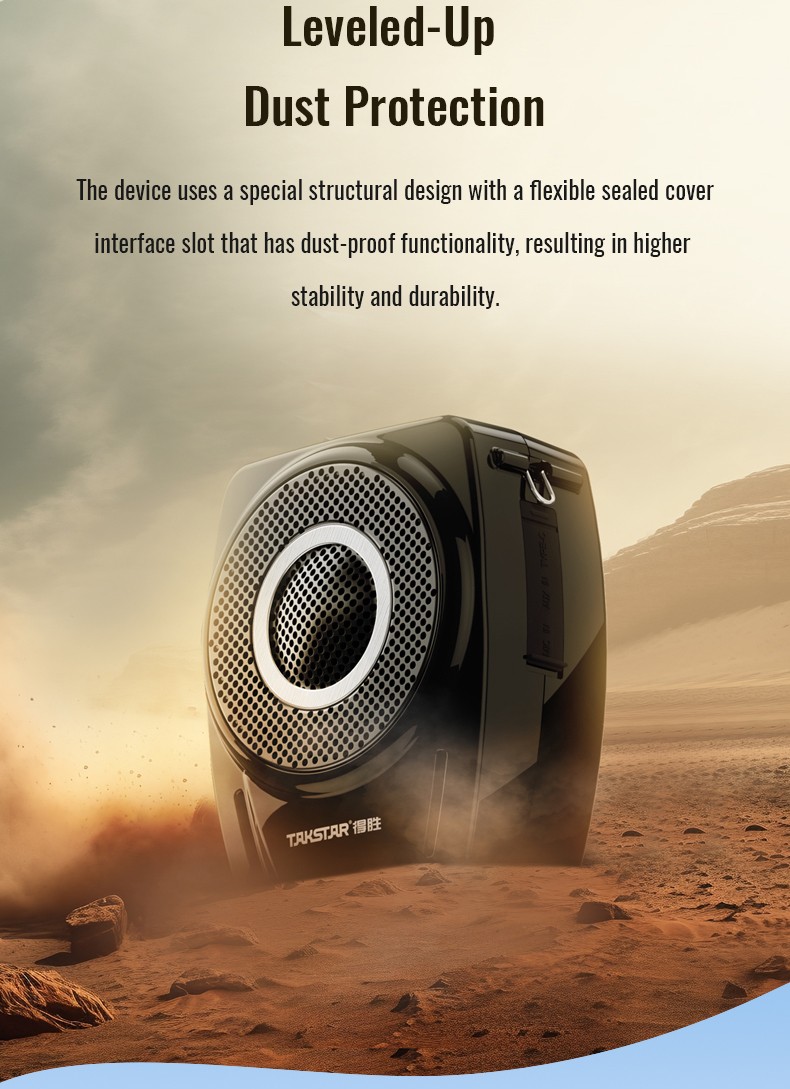

• Special structure design makes it dust-proof, thus more durable and stable to use.

Product Detail

Product Detail
Application
Specification
Product Content
Product Tutorial



























• Teaching, tour guide, training, sales, etc.

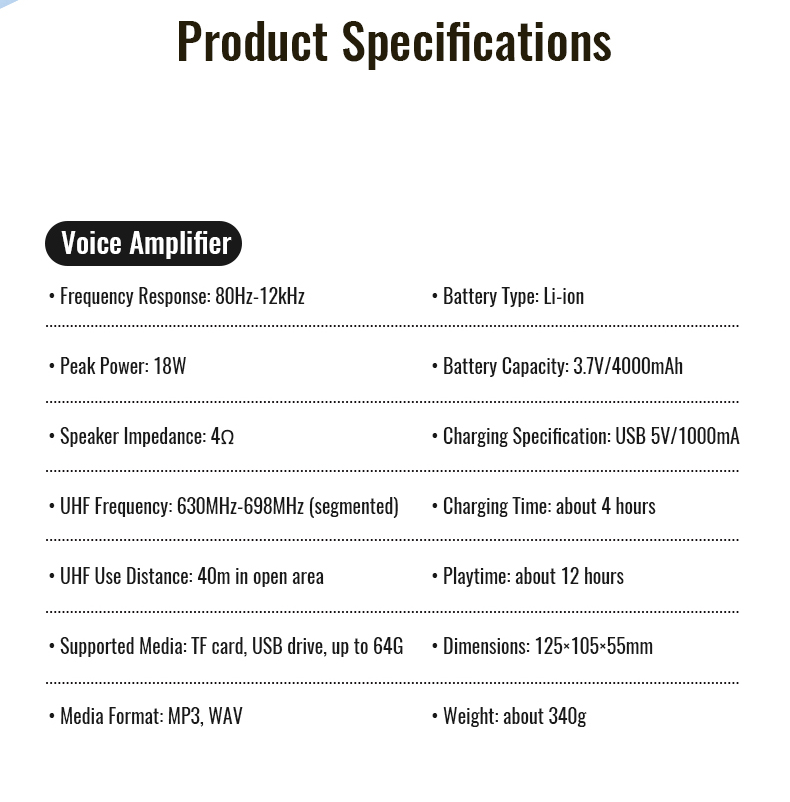

Voice Amplifier：
• Frequency Response: 80Hz-12kHz
• Peak Power: 18W
• Speaker Impedance: 4Ω
• UHF Use Distance: 40m in open area
• Battery Type: Li-ion
• Battery Capacity: 3.7V/4000mAh
• UHF Frequency: 630MHz-698MHz (segmented)
• Supported Media: TF card, USB drive, up to 64G
• Media Format: MP3, WAV
• Charging Specification: USB 5V/1000mA
• Charging Time: about 4 hours
• Playtime: about 12 hours
• Dimensions: 125×105×55mm
• Weight: about 340g

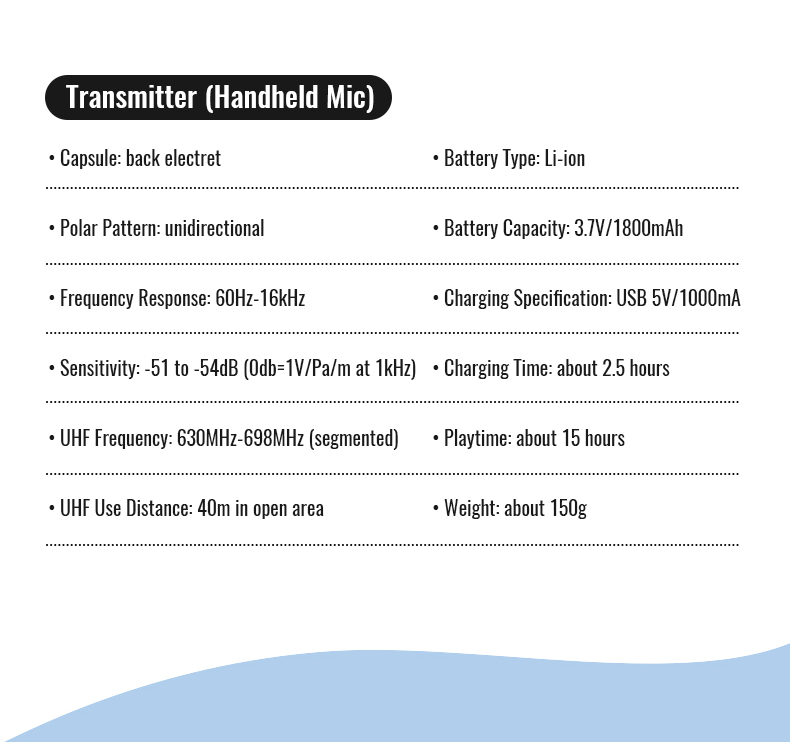

Transmitter (Handheld Mic)：
• Capsule: back electret
• Polar Pattern: unidirectional
• Frequency Response: 60Hz-16kHz
• Battery Type: Li-Ion
• Battery Capacity: 3.7V/1800mAh
• Sensitivity: -51 to -54dB (0db=1V/Pa/m at 1kHz)
• UHF Frequency: 630MHz-698MHz (segmented)
• UHF Use Distance: 40m in open area
• Charging Specification: USB 5V/1000mA
• Charging Time: about 2.5 hours
• Playtime: about 15 hours
• Weight: about 150g
Note: The above data are measured by Takstar laboratory which has the final interpretation right!

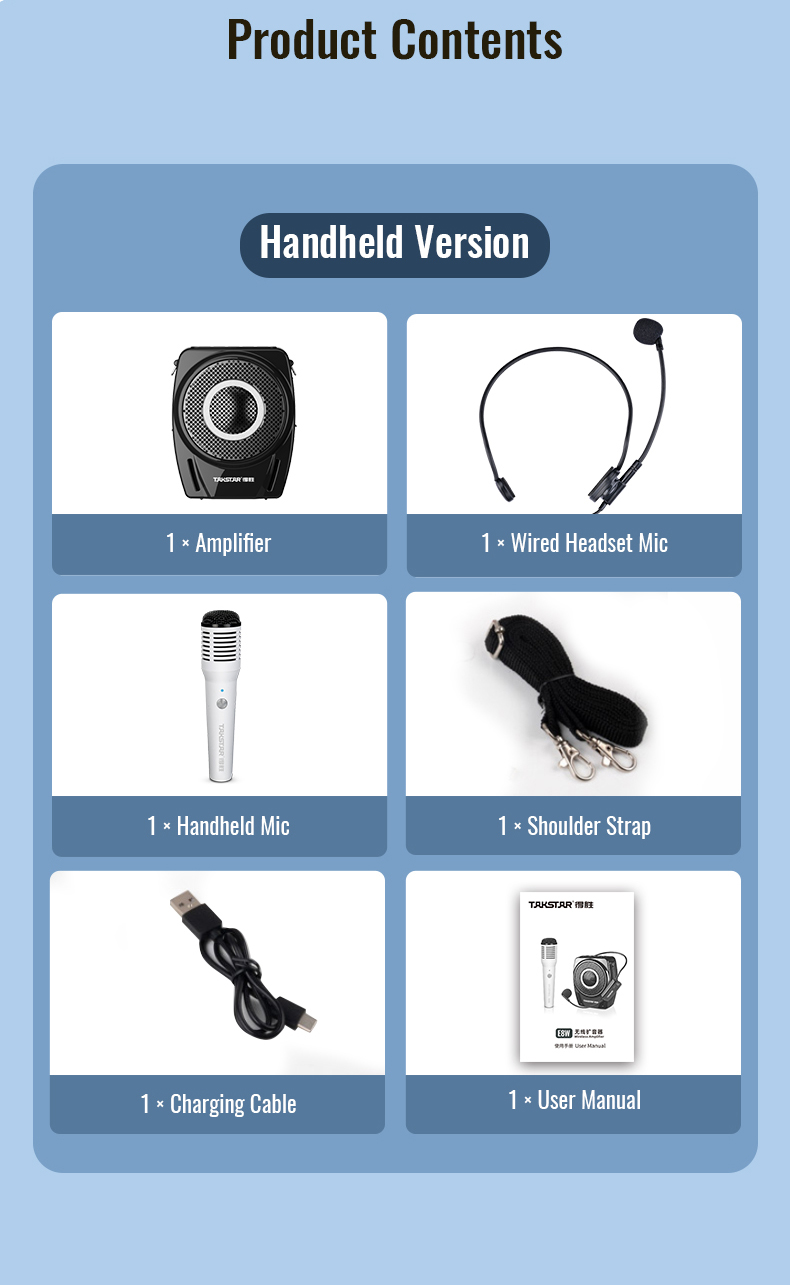

• Voice Amplifier	1 PCS
• Wired Headset Microphone	1 PCS
• Wireless Handheld Microphone	1 PCS
• Strap	1 PCS
• Charging Cable	1 PCS
• User Manual	1 PCS

User manual
E8W (Handheld Version) Wireless Amplifier User Manual2025-05-07 14:58:07Download
